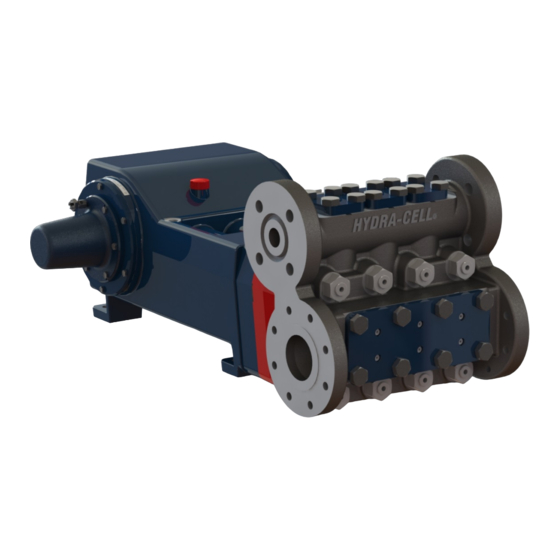

- Page 1 ATEX T & Q-Series pumps Directive 2014/34/EU Covers – Category 2 Zone 1 requirements Rev: A Date of issue: 14/10/2019 Rev. A 14/10/2019...
-
Page 2: Table Of Contents
Contents Wanner and the ATEX Directive 2014/34/EU ................. 3 Operating Conditions ........................4 Drive Motors ........................... 5 Protection Concept ......................... 5 Specific Conditions of Use ....................... 5 Markings of Conformity – Category 2 Zone 1 ................. 7 Earth Continuity Checks & Procedure..................... 9 Oil level monitoring device installation. -
Page 3: Wanner And The Atex Directive 2014/34/Eu
Wanner has worked with an outside specialist agency called Intertek in order to obtain ATEX Certification for the T&Q-Series Hydra-Cell pumps, carrying out a comprehensive risk assessment and compiling the Technical File. Intertek is accredited by UKAS (the UK Accreditation Service) and authorised to carry out product safety testing and Certification of equipment under European Directives such as ATEX as well as under the international IECEx scheme. -
Page 4: Operating Conditions
Minimum service temperature (°C) Aflas EPDM HNBR This is the maximum temperature range for T-Series Hydra-Cell pump with ATEX. Wanner has obtained Type Certification, for conditions outside the pump as follows:- II 2G Ex h IIC T5…T4 Gb X Group II (Zone 1) Category 2 G (gasses) T5…T4 (auto ignition temperature dependent on process temperature) -
Page 5: Drive Motors
(see product specification sheets on website) at maximum speed and pressure for any given pump . 4. Protection Concept T & Q Series Hydra-Cell pumps are protected by constructional safety and control of ignition source. Constructional safety is ensured by splash lubrication. Control of ignition source is used in the form of an oil level monitoring float switch which ensures the presence of the protective liquid (lubricant). - Page 6 A01-114-3416 severe-duty synthetic oil A01-114-3421 T&Q Series Hydra-Cell pumps are not suitable for total immersion in liquid. Only genuine replacement parts and mechanical components must be used. The chemical and mechanical characteristics of genuine parts only have been considered as part of the risk assessment to ensure explosion safety within the parameter of the ATEX classification herein.
-
Page 7: Markings Of Conformity - Category 2 Zone 1
6. Markings of Conformity – Category 2 Zone 1 The pump nameplate is Stainless steel and text clearly marked as below in figure 1. Figure 1 - ATEX nameplate markings The nameplate will be positioned on the top of the crankcase. It is fixed with pop rivets to the main crankcase illustrated on the next page in figure 2. - Page 8 (T100 Only) Access hole for testing float switches Oil Drain Figure 2 – Component positions An earth stud is fitted to every T and Q-Series Hydra-Cell ATEX certified pump and must be connected to ground during installation. For some T100 models there is also a secondary earthing point on an ‘ear’ projecting from the back cover gasket.
-
Page 9: Earth Continuity Checks & Procedure
7. Earth Continuity Checks & Procedure. Checking Procedure. The 2 cables connected to the PAT tester are connected, one to the manifold of the pump and the other to the earth stud, as described in the pictures below. The ‘earth bond’ is then measured on the deflection meter, when the red earth button is pressed on the PAT tester. - Page 10 PAT tester in operation 1 Rev. A 14/10/2019...
-
Page 11: Oil Level Monitoring Device Installation
8. Oil level monitoring device installation. ATEX T and Q series pumps are supplied with an Ex d flameproof level sensor which is used to monitor the level of oil in the pump and detect a change in level caused by diaphragm rupture. This should be connected to an approved motor shutdown system. -
Page 12: Electrical Installation
Electrical installation The connecting wires to the printed circuit board must be between 16 to 22AWG (Metric capacity 1.5mm2) with 6mm stripped ends. The earth wire should be connected to the screw point in the head using the crimp terminal provided. EXd flameproof cable gland for enclosures with internal volume ≥... -
Page 13: Installation And Putting Into Service
V = Velocity of liquid in suction line (m/sec) [V = LPM x (21.2 ÷ pipe ID N = rpm of crank shaft C = Constant determined by type of pump — use 0.066 for the T100 Hydra-Cell pumps, use 0.04 for the Q155 Hydra-Cell pumps. - Page 14 losses: a 25% increase in suction-line diameter cuts losses by more than two times, and a 50% increase cuts losses by a factor of five times. Consult the factory before pumping viscous fluids. Minimizing Acceleration Head and Frictional Losses To minimize the acceleration head and frictional losses, where possible: •...
- Page 15 Before you start the pump, be sure that: • Pump is stored at a temperature above the minimum service temperature for a minimum of 24 hours before start up. • All shutoff valves are open, and the pump has an adequate supply of fluid. •...
-
Page 16: Maintenance And Testing
3. Check for electrical conductivity for the pump frame to ground. 4. Check the integrity of the external shaft seals and pump head O rings. Please refer to the T-Series Hydra-Cell Installation / Service manual and supplements for more detailed instructions on maintenance and checking methods. -
Page 17: Appendix 1: Type Certificate
Appendix 1: Type Certificate Rev. A 14/10/2019... - Page 18 Rev. A 14/10/2019...
- Page 19 Rev. A 14/10/2019...
- Page 20 Rev. A 14/10/2019...
- Page 21 Rev. A 14/10/2019...
-
Page 22: Appendix 2: Maximum Pressure Values Of All Models
Appendix 2: Maximum Pressure Values of all Models Model Discharge Pressure Inlet Pressure T100E / Q155E 103 bar 34 bar T100F / Q155F 127 bar 34 bar T100H / Q155H 144 bar 34 bar T100K / Q155K 207 bar 34 bar T100M / Q155M 241 bar 34 bar...
