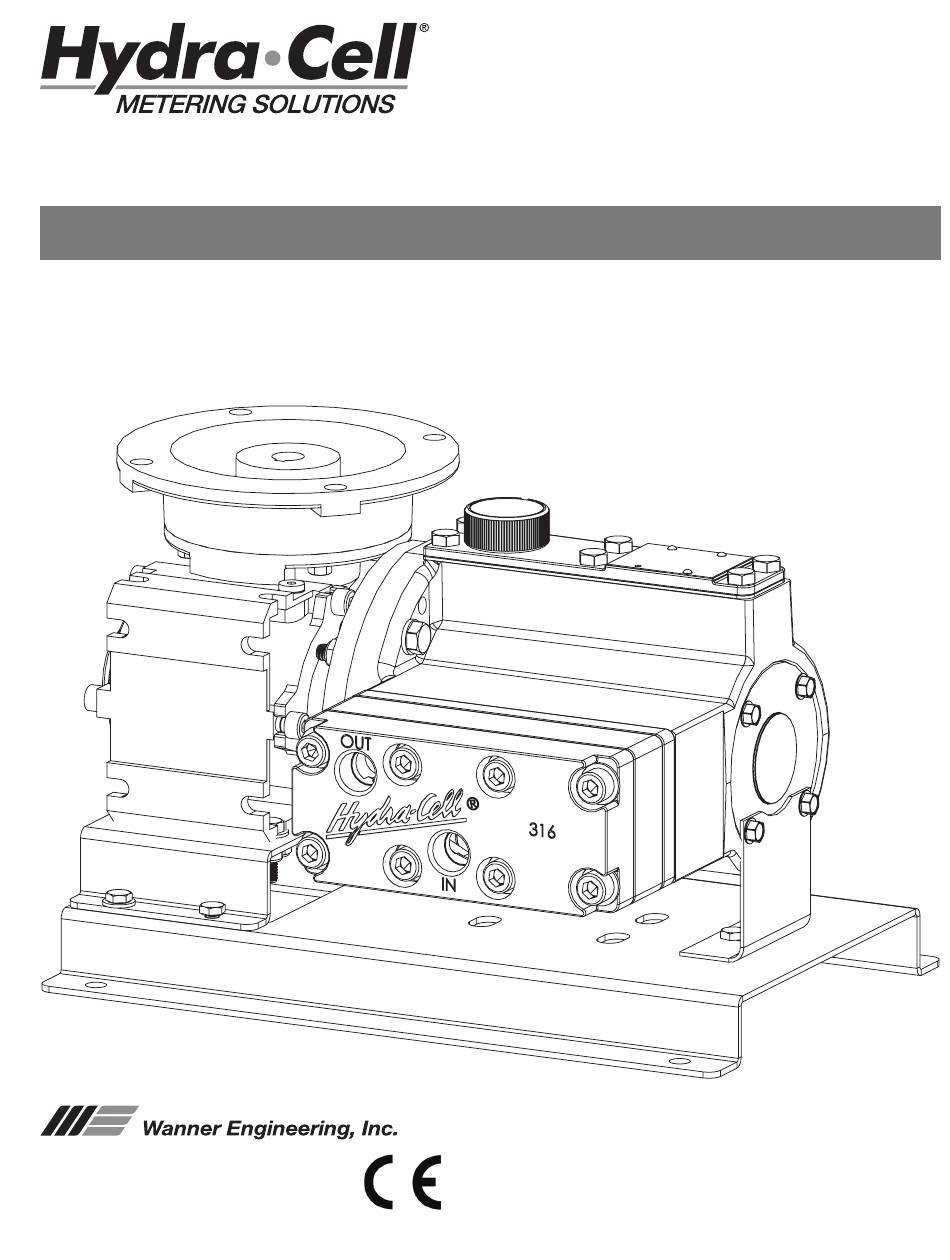

Fluid End P300 Operation P300 Specifications Diaphragms per Liquid End 3 (non Kel-Cell pistons) Hydra-Cell Metering Solutions Pumps are hydraulically- actuated, hydraulically-balanced diaphragm metering pumps Flow Control Electronic variable speed drive that exceed API 675 performance standards of ±1% steady state Steady State Accuracy ±1%...
P300 Installation Location Important Precautions Locate the pump as close to the supply source as possible. Adequate Fluid Supply. To avoid cavitation and Install the pump system in a lighted clean space where it will be premature pump failure, be sure that the pump will have easy to inspect and maintain. an adequate fluid supply and that the inlet line will not be obstructed. See Inlet Piping. Motor and Controller Positive Displacement. This is a positive-displacement The P Series pump shaft can rotate in either direction, pump. To avoid severe system damage if the discharge line therefore direction of motor shaft rotation is not critical.
P300 Installation (Cont’d) Safety Precautions Recommendations: • Keep inlet lines less than 3 ft. (1 m) long General remarks • Use at least 5/8” (16 mm) I.D. inlet hose • Minimize fittings (elbows, valves, tees, etc.) These safety / installation instructions contain fundamental information and precautionary notes and must be kept available Support the pump and piping independently. to all associated with the operation of the pump. Please read them thoroughly prior to installation, electrical connection and Inlet Piping (Pressure Feed) commissioning of the unit. It is imperative that all other operating instructions relating to the components of individual units are Provide for permanent or temporary installation of a pressure followed.
P300 Installation (Cont’d) Initial Start-Up Procedure Calibration Before you start the pump, be sure that: Note: Each metering pump or pump system must be calibrated to determine the pump speed required for the desired flow rate. 1. All shut-off valves are open, and pump has adequate supply of fluid. Accurate calibration depends on pump discharge pressure and system conditions. When calibrating the pump or system, it is...
Page 8
P300 Fluid End Service (Cont’d) 2. Inspect Valves (5-11) Note: The reference numbers in parentheses are shown in the Fluid End Parts List. The three inlet and three outlet valve assemblies are identical This section explains how to disassemble and inspect all easily- and face opposite directions. Inspect each valve as follows: serviceable parts of the pump fluid end. a. Check spring retainer (10), and replace if worn. Caution: Disassembly of the hydraulic end of the pump b. Check valve spring (8). If shorter than new spring, replace...
Page 9
P300 Fluid End Service (Cont’d) 3. Inspect and Replace d. Fill reservoir with fresh oil and manually turn pump shaft to circulate oil. Drain oil. Diaphragms (17) Note: P Series replacement parts kits (complete kits and diaphragm kits) include the correct oil for each a. Lift diaphragm (17) by one edge, and turn pump shaft specific P Series pump configuration. (use the shaft rotator from the Wanner Tool Kit) e. Refill reservoir with fresh oil. If oil appears milky, there is...
P300 Fluid End Parts List Bolt Torque Specifications Ref. No. Assembly Torque 50 ft-lbs 70 N-m 10 in-lbs 110 N-cm W0010 W0005 W0009 Quantity/ Quantity/ No. Part Number Description Pump No. Part Number Description Pump 10 D03-023-1017 Retainer, Valve spring, Hastelloy C ..6 G10-024-2012 Screw, Cap, soc-hd, SST ....8 12 D03-003-1030 Valve Plate, Brass .......1...
Page 11
P300 Hydraulic End Parts Lists Quantity/ Quantity/ No. Part Number Description Pump No. Part Number Description Pump 50 G03-086-2010 Bolt, Hex flange ........4 68 D03-010-2910 Front Bearing ........1 51 D25-047-2110 O-ring, Back cover screws, Buna-N ...4 69 D03-087-2010 Screw, Cap, hex-hd (part of 78) ..4 52 D03-131-1000 Back Cover ..........1 70 D40-074-2110 O-ring, Front cover, Buna-N .
Page 12
P300 Reducer Parts List (Cont’d) Notes: * Item consists of Pump Assembly and mounting hardware. ** Item consists of one Input Flange Kit and attaching parts. W0008B P300-991-2400C...
Page 13
P300 Reducer Parts List Quantity/ Quantity/ No. Part Number Description Pump No. Part Number Description Pump P3-M-PUMP P300 Pump Assembly, BSPT ....11 D03-026-2211 Dowel Pin ..........2 P3-N-PUMP P300 Pump Assembly, NPT ....12 101-749 Screw, 3/8-16 x 1.5, FHSCS ....4 D10-085-2210 Key, 0.187 square x 1.0 .......1 13 D25-048-2012 Lockwasher, .375, 316 SS ....4 112-581 Shaft, P300/P400 ........1 14 100-063 Locknut, 1/4-20, SST ......5...
Page 14
P300 Troubleshooting Problem Probable Cause Solution No power. Supply correct power according to motor requirements. Blown fuse/tripped circuit Replace/reset, eliminate circuit overload. breaker. Shaft coupling to pump not in Install proper coupling hardware (see parts list). place. Motor/Pump Current overload - motor. Motor not rated for pump operating conditions - install proper motor. Does Not Thermal overload - motor. Motor not rated for pump and/or ambient operating conditions - supply Operate: cooling or install proper motor. Faulty motor drive/controller. Repair/replace. Faulty motor. Repair/replace. Low liquid level in supply tank Fill tank. (if low-level shut-off is used). Supply tank empty. Fill tank. Loss of prime Re-prime using Initial Start-Up Procedure. Inlet line or strainer clogged. Clear debris and flush, or replace. Inadequate supply pressure at Increase supply pressure by raising fluid level in tank, raising tank, or pump inlet.
P300 Replacement Parts Kits TO ORDER REPLACEMENT PARTS KIT: A Replacement Parts Kit contains 9 digits corresponding to customer-specified design options. Order Digit Code Description Pump Configuration Kit Contents Kit Designator For all P300 Pumps Part Number† Description Kit Designator • • D03-018-___ Diaphragm Complete Fluid End Kit* • • • D25-073-___ O-ring, manifold Diaphragm Kit* • •...
P300 Warranty Limited Warranty Wanner Engineering, Inc. Wanner Engineering, Inc. extends to the original purchaser of equipment manufactured by it and bearing its name, a World Headquarters & Manufacturing limited one-year warranty from the date of purchase against Wanner Engineering, Inc defects in material or workmanship, provided that the 1204 Chestnut Avenue, equipment is installed and operated in accordance with the Minneapolis, MN 55403 USA recommendations and instructions of Wanner Engineering, Phone: 612-332-5681 ● Fax: 612-332-6937 Inc. Wanner Engineering, Inc. will repair or replace, at its Toll-Free Fax (USA): 800-332-6812 option, defective parts without charge if such parts are Email: sales@wannereng.com...
