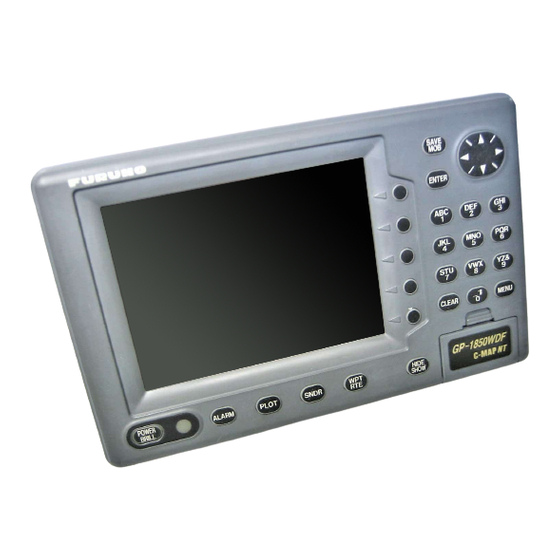

COLOR GPS/PLOTTER/SOUNDER
COLOR DGPS/PLOTTER/SOUNDER
GP-1850WF
GP-1850WDF
PRINTED IN JAPAN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP-1850WF and is the answer not in the manual?

Questions and answers

Related Manuals for Furuno GP-1850WF

Summary of Contents for Furuno GP-1850WF

  • Page 1 COLOR GPS/PLOTTER/SOUNDER COLOR DGPS/PLOTTER/SOUNDER GP-1850WF GP-1850WDF PRINTED IN JAPAN...
  • Page 2 www.reelschematic.com www.reelschematic.com Y o u r L o c a l A g e n t / D e a l e r 9 - 5 2 , A s h i h a r a - c h o , N i s h i n o m i y a , J a p a n T e l e p h o n e : 0 7 9 8 - 6 5 - 2111...
  • Page 3 www.reelschematic.com www.reelschematic.com SAFETY INSTRUCTIONS Safety Instructions for the Installer WARNING WARNING CAUTION CAUTION Do not work inside the Ground the equipment to equipment unless totally prevent electrical shock familiar with electrical and mutual interference. circuits. Confirm that the power supply voltage Hazardous voltage which can is compatible with the voltage rating shock, burn or cause serious...

  • Page 4: Table Of Contents

    3.3 Antenna Height ......................3-4 3.4 DGPS Setting ......................3-5 3.5 External Equipment Setup (Option)................3-7 3.6 Selecting the Echo Sounder Output Power ..............3-9 4. INCORPORATION OF DGPS BEACON RECEIVER KIT (for GP-1850WF) ...................4-1 PACKING LIST OUTLINE DRAWINGS INTERCONNECTION DIAGRAM SCHEMATIC DIAGRAM...

  • Page 5: System Configuration

    SYSTEM CONFIGURATION The GP-1850WF/1850WDF mainly consists of a display unit, a GPS antenna and a dual frequency transducer. A DGPS beacon receiver is provided inside the display unit for GP-1850WDF type. The mini chart card drive in the display unit loads electronic charts.

  • Page 6: Equipment Lists

    EQUIPMENT LISTS Standard supply Name Type Code No. Remarks GP-1850WF-E Display Unit GP-1850WDF-E GPA-017 for GP-1850WF Antenna Unit GPA-019 for GP-1850WDF Fuse Spare Parts* SP14-02501 004-375-260 Installation CP14-05200 000-041-496 Power cable, Cable assy. Materials* FP14-02400 000-041-497 FP14-02401, FP14-02402 Accessories* *: Refer to Packing list at the end of this manual.
  • Page 7 www.reelschematic.com www.reelschematic.com EQUIPMENT LISTS Optional equipment (con’t) Name Type Code No. Remarks 520-5PSD 000-015-204 for 600 W w/8 m cable transom mount, 520-5PWD 000-015-126 for 600 W Transducer w/8 m cable and water proof 520-5MSD 000-015-212 connector, for 600 W 50/200-1T 000-015-170 for 1 kW...
  • Page 8 www.reelschematic.com www.reelschematic.com EQUIPMENT LISTS This page is intentionally left blank.

  • Page 9: Installation

    www.reelschematic.com www.reelschematic.com INSTALLATION Installation of Display Unit Mounting considerations The display unit can be installed on a tabletop, on the overhead or flush mounted in a console or panel. Hard Cover Tabletop Overhead Tabletop, overhead mounting methods When selecting a mounting location for the display unit keep the following in mind: •...
  • Page 10 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Mounting procedure Follow the procedure below to mount the display unit on a tabletop or the overhead. Tabletop, overhead mounting 1. Fix the hanger by four tapping screws 5 X 16. 2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts. 3.

  • Page 11: Installation Of Antenna Unit

    www.reelschematic.com www.reelschematic.com 1. INSTALLATION Cutout for flush mount 242 0.5 6-R2.25 Pan head screws 244 1 15 0.5 Flush mount 238 1 Flush mounting of display unit Installation of Antenna Unit Mounting considerations Install the antenna unit referring to the installation diagram on page D-3 or D-4. When selecting a mounting location for the antenna unit, keep in mind the following points: •...

  • Page 12: Installation Of Transducers

    www.reelschematic.com www.reelschematic.com 1. INSTALLATION Installation of Transducers Installing the inside-hull mount transducer Necessary tools You will need the following tools: • Sandpaper (#100) • Silicone sealant Remarks on installation • Do the installation with the boat hauled out of the water. •...
  • Page 13 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Attaching the transducer 1. Clean the transducer face to remove any foreign material. Lightly roughen the transducer face with #100 sandpaper. Also, roughen the inside of the hull where the transducer is to be mounted. 2. Warm the silicone sealant to 40°C before usage to soften it. Coat the transducer face and mounting location with silicone sealant.
  • Page 14 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Observing the picture 1. Press the [POWER] key to turn on the display unit. 2. Press the [SNDR] key to select the sounder display. 3. Press the MODE/FREQ soft key to display the following window. MODE/FREQ AUTO CRUISING AUTO FISHING MANUAL...
  • Page 15 www.reelschematic.com www.reelschematic.com 1. INSTALLATION 11. Press the RETURN soft key. Note the depth seabed. SOUNDER °C RANGE GAIN SHIFT MODE/ FREQ 10.2 SNDR GPS 3D 50kHz FUNC Video sounder picture If the bottom is displayed in reddish brown and the depth indication appears the mounting location is suitable.
  • Page 16 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Installing the thru-hull mount transducer Transducer mounting location This type of mounting provides the best performance of all, since the transducer protrudes from the hull and the effect of air bubbles and turbulence neat the hull skin is reduced. When the boat has a keel, the transducer should be at least 30 cm away from it.
  • Page 17 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Acceptable transducer mounting locations Deep-V hull • Position 1/2 to 1/3 length of the hull from stern. • 15 to 30 cm off center line (inside first lifting strakes.) Transducer mounting location on deep-V hull High speed V-planning hull •...
  • Page 18 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Procedure for installing the thru-hull mount transducer 1. With the boat hauled out of the water, mark the location selected for mounting the transducer on the bottom of the hull. 2. If the hull is not level within 15° in any direction, faring blocks made out of teak should be used between the transducer and hull, both inside and outside, to keep the transducer face parallel with the water line.
  • Page 19 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Installing the transom mount transducer This type of mounting is very commonly employed, usually on reactively small I/O or outboard boats. Do not use this method on an inboard motor boat because turbulence is created by the propeller ahead of the transducer. There are two methods of installation: flush with hull (for flat hulls) and projecting from hull (for deep V-hulls).
  • Page 20 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Installing the transom mount transducer projecting from hull (for deep-V hulls) This method is employed on deep-V hulls and provides good performance because the effects of air bubbles are minimal. Install the transducer parallel with water surface; not flush with hull.
  • Page 21 www.reelschematic.com www.reelschematic.com 1. INSTALLATION φ79 mm 133 mm 2.00"-12 UN threads 7 mm φ51 mm 27 mm 140 mm Dimensions of triducer 525ST-MSD 525ST-PWD ® The Transom Mount Transducer or TRIDUCER Multisensor with Integral Release Bracket 525ST-PWD is manufactured by AIRMAR Co. These instructions are included with the sensor.
  • Page 22 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Tools and materials needed Scissors Masking tape Safety goggles Dust mask Electric drill Drill bit for: Bracket holes: 4mm, #23, or 9/64” Fiberglass hull: chamfer bit (preferred), 6mm, or 1/4” Transom hole: 19mm or 3/4” (optional) Cable clamp holes: 3mm or 1/8”...
  • Page 23 www.reelschematic.com www.reelschematic.com 1. INSTALLATION 75 mm(3") minimum beyond swing radius Mounting location on single drive boat Note 4: For twin drive boat, mount between the drives. Installation of bracket 1. Cut out the installation template shown on the left. 2. At the selected location, position the template, so the arrow at the bottom is aligned with the bottom edge of the transom.
  • Page 24 www.reelschematic.com www.reelschematic.com 1. INSTALLATION 3. Using a 4 mm, #23, or 9/64” bit, drill three holes 22 mm (7/8”) deep at the locations indicated. To prevent drilling too deeply, wrap masking tape around the bit 22 mm (7/8”) from the point. Fiberglass hull: Minimize surface cracking by chamfering the gelcoat.
  • Page 25 www.reelschematic.com www.reelschematic.com 1. INSTALLATION 2. To adjust the sensor’s angle relative to the hull, use the tapered plastic shim provided. If the bracket has been temporarily fastened to the transom, remove it, Key the shim in place on the back of the bracket. 2°-10°...
  • Page 26 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Attaching the sensor to the bracket 1. If the retaining cover near the top of the bracket is closed, open it by depressing the latch and rotating the cover downward. Step 1 Step 2 Latch Pivot arm (2) Retaining Slot (2)
  • Page 27 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Cable routing Route the sensor cable over the transom, through a drain hole, or thorough a new hole drilled in the transom above the waterline. Never cut the cable or remote the connector; this will void the warranty. Always wear safety goggles and a dust mask.

  • Page 28: Installation Of Sensors

    www.reelschematic.com www.reelschematic.com 1. INSTALLATION Installation of Sensors Transom mount water temperature sensor T-02MTB • Fix the cable at a convenient location with cable clamp. • When the cable is led in through the transom board, make a hole of approx. 17 mm diameter to pass the connector.
  • Page 29 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Thru-hull mount water temperature sensor T-02MSB, T-03MSB Select a suitable mounting location considering the following points: • Select a mid-boat flat position. The sensor does not have to be installed perfectly perpendicular. The sensor must not be damaged in dry-docking operation. •...
  • Page 30 www.reelschematic.com www.reelschematic.com 1. INSTALLATION Thru-hull mount water temperature/speed sensor ST-02MSB, ST-02PSB Select a suitable mounting location considering the following: • Select a mid-boat flat position. The sensor does not have to be installed perfectly perpendicular. The sensor must not be damaged in dry-docking operation. •...

  • Page 31: Wiring

    Speed/ External Temperature equipment (Option) DGPS beacon receiver White (option for GP-1850WF, Black RS-232C only) Shield Transducer Display unit, rear view Power cable Connect the power cable to the power connector. Connect the leads to the battery (12 or 24 VDC);...
  • Page 32 www.reelschematic.com www.reelschematic.com 2. WIRING Antenna unit Connect the antenna cable to the ANT connector. Transducer Connect the transducer cable to the XDR connector. Water temperature/speed sensor Connect the water temperature sensor (option) or water temperature/speed sensor (option) to the TEMP/SPD connector. Ground The display unit contains several CPUs.
  • Page 33 www.reelschematic.com www.reelschematic.com 2. WIRING Extension cable line-up (in case of 15 m, 30 m or 50 m) Fabricate the end of the antenna cable and attach the coaxial connector. Details are shown on next page. Antenna unit GPA-019S/GPA-017S : Connector Conversion cable assy.
  • Page 34 www.reelschematic.com www.reelschematic.com 2. WIRING How to attach the N-P-8DFB connector Dimensions in millimeters. Outer sheath Armor Inner sheath shield Remove outer sheath and armor by the dimensions shown left. Expose inner sheath and shield by the dimensions shown left. Cover with heat-shrink tubing and heat. Cut off insulator and core by 10mm.

  • Page 35: Initial Settings

    www.reelschematic.com www.reelschematic.com INITIAL SETTINGS NMEA Setting NMEA port This setting should be done when connecting with other equipment, autopilot, radar or remote display. 1. Press the [MENU] key. 2. Press the CONFIGURATION soft key. 3. Press the SETUP NMEA PORT1 soft key. 4.
  • Page 36 www.reelschematic.com www.reelschematic.com 3. INITIAL SETTINGS DGPS port Set the following when connecting with DGPS beacon receiver GR-80 or the DGPS beacon receiver is incorporated, PC to the DGPS port. Note: Signal level for DGPS port is RS232C. 1. Press the [MENU] key. 2.

  • Page 37: Output Data Sentences

    www.reelschematic.com www.reelschematic.com 3. INITIAL SETTINGS Output Data Sentences Select output data sentences for external equipment as follows. 1. Press the [MENU] key. 2. Press the CONFIGURATION soft key. 3. Press the SETUP NMEA PORT1 soft key. 4. Press the SELECT SNTNC. soft key to display the SELECT SENTENCE window. SELECT SELECT SENTENCE SNTNC.

  • Page 38: Antenna Height

    www.reelschematic.com www.reelschematic.com 3. INITIAL SETTINGS Input/Output data sentences Port Format Data Remarks Input TLL*, MTW, WPL* WPL: GP only NMEA-0183 Ver. 2.0 NMEA AAM, APB, BOD, BWC/BWR, GREAT CIRCLE: BWC Ver. 1.5 GGA, GLL, RMA, RMB, RMC, RHUMB LINE: BWR Output IEC601162-1 VTG, WPL, XTE, ZDA, DBT/DPT,...

  • Page 39: Dgps Setting

    AUTO: DGPS, WAAS or GPS data can be automatically received, The order of priority is DGPS, WAAS and GPS. Note: If the external DGPS beacon receiver GR-80 is connected to the GP-1850WF, refer to the interconnection diagram below. Connection with GR-80...
  • Page 40 www.reelschematic.com www.reelschematic.com 3. INITIAL SETTINGS 6. Select BEACON FREQUENCY by the cursor pad. 7. Press the EDIT soft key to display the following window. BEACON FREQUENCY AUTO MANUAL 284.0 kHz Beacon frequency window 8. Select AUTO or MANUAL by the cursor pad. When you select MANUAL, operate the cursor pad to move the cursor to frequency dialog box.

  • Page 41: External Equipment Setup (Option)

    3. INITIAL SETTINGS External Equipment Setup (Option) This section shows you how to set up the GP-1850WF/1850WDF when external equipment is connected. If a water temperature/speed sensor is installed, you should complete this section with the boat in the water and running, to confirm speed/water temperature readout.
  • Page 42 www.reelschematic.com www.reelschematic.com 3. INITIAL SETTINGS Speed Adjustment For speed sensor-equipped set, you may offset the speed readout if it is wrong. Run the boat at various speeds and watch the speed readout at the bottom of the screen. If it is unreasonably wrong.

  • Page 43: Selecting The Echo Sounder Output Power

    www.reelschematic.com www.reelschematic.com 3. INITIAL SETTINGS Selecting the Echo Sounder Output Power If 1 kW transducer (50/200-1T) is installed, the internal setting should be changed from 600 W to 1 kW. Also, attach the TX power label (supplied) to the place shown below, and draw a line through the power which you don't use by oil base magic marker.
  • Page 44 www.reelschematic.com www.reelschematic.com 3. INITIAL SETTINGS 4. Remove ten binding screws (M3 x 12) from the rear of the display unit to separate the panel/chassis assembly from the cover assembly. Removing cover assembly WARNING Do not connect the power ca- ble with the cover removed. 3-10...
  • Page 45 www.reelschematic.com www.reelschematic.com 3. INITIAL SETTINGS 5. Move the jumper block on JP1 from 3-4 to 1-2 on the ANLG Board. ANLG Board 6. Remount the cover assembly. Note: Confirm that the following parts are attached: • Inside of the cover: Shield gaskets, GN gasket (See the figure below.) •...
  • Page 46 www.reelschematic.com www.reelschematic.com 3. INITIAL SETTINGS 7. Tighten nuts to torque shown below and in the order shown in below. No. 1 through No. 5 : 0.74 – 0.78 Nm No. 6 : 1.37 –1.57 Nm + GND 12 - 24 TEMP/SPD DGPS NMEA...
  • Page 47 INCORPORATION OF DGPS BEACON RECEIVER KIT (for GP-1850WF) The DGPS beacon receiver GR-7000A can be incorporated in the GP-1850WF to provide it with DGPS capability. Two kinds of kit are available as shown. GR-7000A-1650-10N-019 GR-7000A-1650-15N-019S Name Type Code No.

  • Page 48: Incorporation Of Dgps Beacon Receiver Kit (For Gp-1850Wf)

    4. INCORPORATION OF DGPS BEACON RECEIVER KIT (for GP-1850WF) Disassembly Procedure 1. Turn off the power. Wait at least one minute before opening the cover, to allow capacitors to discharge. 2. Remove nuts attached to XDR, SPD/TEMP, DGPS, NMEA and power supply connectors at the rear of the display unit.
  • Page 49 4. INCORPORATION OF DGPS BEACON RECEIVER KIT (for GP-1850WF) Installation of beacon receiver Procedure 1. Dismount chassis assembly from panel/chassis assembly by disconnecting the connector and PH8P from J8 on MAIN Board shown in the figure below. Dismounting chassis assembly 2.
  • Page 50 4. INCORPORATION OF DGPS BEACON RECEIVER KIT (for GP-1850WF) Handling of Coaxial Cable • Do not touch the connector with bare hands; use gloves. • Use radio pincers to remove, and pull out straightly. • Plug in connector straightly.
  • Page 51 4. INCORPORATION OF DGPS BEACON RECEIVER KIT (for GP-1850WF) 5. Close the cover of GR-7000A passing the two cables out through respective notches in the cover. 6. Plug PH6P-W-L240 connector to J2 on the GR-7000A through the cover.
  • Page 52 4. INCORPORATION OF DGPS BEACON RECEIVER KIT (for GP-1850WF) 9. Connect J1 of GR-7000A to J8 of ANLG board (Refer to the previous page). 10. Mount chassis assembly on the panel assembly. Connect 8P connector and 6P connector to Main board as shown in the figure below.
  • Page 53 4. INCORPORATION OF DGPS BEACON RECEIVER KIT (for GP-1850WF) Note: When reattaching the cover, confirm the following parts are attached. • Inside of the cover : Shield gaskets, GN gasket (See the figure below.) • On ANLG Board : Connector gasket (See the page 4-2.)
  • Page 54 www.reelschematic.com www.reelschematic.com This page is intentionally left blank.
  • Page 55 www.reelschematic.com www.reelschematic.com A - 1...
  • Page 56 www.reelschematic.com www.reelschematic.com A - 2...

  • Page 57: Packing List

    www.reelschematic.com www.reelschematic.com A - 3 ＰＡＣＫＩＮＧ　ＬＩＳＴ ＰＡＣＫＩＮＧ　ＬＩＳＴ ＰＡＣＫＩＮＧ　ＬＩＳＴ ＰＡＣＫＩＮＧ　ＬＩＳＴ 14CP-X-9858 -0 GP-1850WDF(E) GP-1850WDF(E) GP-1850WDF(E) GP-1850WDF(E) N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット ユニット ユニット ユニット UNIT UNIT UNIT UNIT 指示器 GP-1850WDF-E DISPLAY UNIT 000-041-862 予備品...
  • Page 58 www.reelschematic.com www.reelschematic.com A - 4...
  • Page 59 www.reelschematic.com www.reelschematic.com A - 5...
  • Page 60 www.reelschematic.com www.reelschematic.com...
  • Page 61 www.reelschematic.com www.reelschematic.com...
  • Page 62 www.reelschematic.com www.reelschematic.com...
  • Page 63 www.reelschematic.com www.reelschematic.com...
  • Page 64 www.reelschematic.com www.reelschematic.com...
  • Page 65 www.reelschematic.com www.reelschematic.com...
  • Page 66 www.reelschematic.com www.reelschematic.com...
  • Page 67 www.reelschematic.com www.reelschematic.com...
  • Page 68 www.reelschematic.com www.reelschematic.com...
  • Page 69 www.reelschematic.com www.reelschematic.com...
  • Page 70 www.reelschematic.com www.reelschematic.com...
  • Page 71 www.reelschematic.com www.reelschematic.com...
  • Page 72 www.reelschematic.com www.reelschematic.com...
  • Page 73 www.reelschematic.com www.reelschematic.com...
  • Page 74 www.reelschematic.com www.reelschematic.com...
