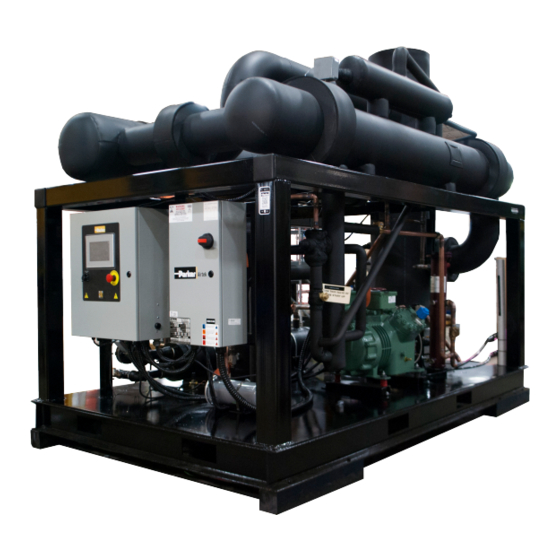

Magnum Refrigerated Air Dryers
Models MSC4000 - MSC15000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Airtek Magnum MSC4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Parker Airtek Magnum MSC4000

Summary of Contents for Parker Airtek Magnum MSC4000

  • Page 1 Magnum Refrigerated Air Dryers Models MSC4000 - MSC15000...
  • Page 2 Please have the dryer serial number and model ready when contacting the factory. Factory Contact Information Phone 1-800-343-4048 For pricing, availability, and purchase orders: GSFOrders@parker.com For technical support and aftermarket: GSFsupport@parker.com For product applications and technical sales: FAFQuotes@parker.com...

  • Page 3: Table Of Contents

    MSC4000 - MSC15000 USER MANUAL Contents 1. Transporation/Inspection .................4 1.1 Environmental & Location Considerations ................... 4 2. Dryer Installation ....................5 2.1 Plumbing the Air Lines .......................... 5 2.2 Electrical Connections ........................... 5 2.3 Installation of Dewpoint Probe ......................6 3. Start Up Procedure ...................7 3.1 When Operating Dryer ...........................

  • Page 4: Transporation/Inspection

    MSC4000 - MSC15000 USER MANUAL 1. Transport / Inspection Before unpacking/uncrating your new dryer, inspect the carton/crate for damage. Please note any damage on the freight bill, and file notice of concealed damage if: (a) there are any dents or visibly broken parts (b) there is any sign of oil on the skid or floor File these claims with the carrier immediately! Otherwise, proceed with unpacking/uncrating the unit.

  • Page 5: Dryer Installation

    MSC4000 - MSC15000 USER MANUAL 2. Dryer Installation • Never work on unit under pressure! CAUTION • Never work on unit when power is connected. • Do not over-pressurize unit. • Install unit in a clean, cool (50º - 100ºF / 10º - 38ºC); well lighted location •...

  • Page 6: Installation Of Dewpoint Probe

    MSC4000 - MSC15000 USER MANUAL 2.3. Installation of Dewpoint Probe • Dryer will not run if Dewpoint Probe is not connected to the cable from the controller. • Do NOT run the dryer without the probe installed as shown and described below! •...

  • Page 7: Start Up Procedure

    MSC4000 - MSC15000 USER MANUAL 3. Start Up Procedure Preliminary Checks Before starting the dryer, verify that the compressed air valves are closed so there is no airflow through the dryer, the dryer supply voltage is correct, and there is sufficient water supply to the unit (water cooled). Also ensure unit is level at this time.

  • Page 8: When Operating Dryer

    MSC4000 - MSC15000 USER MANUAL Restart dryer using this procedure after maintenance, power outage or prolonged periods of shutdown (2 hours or more). • Note: The refrigerant compressor may require additional oil added. Oil level will need to be verified at the same time as the expansion tank refrigerant level (within 24 to 48 hours) to ensure correct system operation and adjustment.
  • Page 9 MSC4000 - MSC15000 USER MANUAL Start Up Checklist...
  • Page 10 MSC4000 - MSC15000 USER MANUAL Comments / Recommendations / Observations _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ Completed By: (Print) ___________________________ Cert.# (REQUIRED)______________________________ Signature: _____________________________________ Customer Signature: ____________________________...
  • Page 11 MSC4000 - MSC15000 USER MANUAL...

  • Page 12: Controls/User Interface

    MSC4000 - MSC15000 USER MANUAL 4. Controls / User Interface 4.1 Main Display User Controls 1. Menu Icon – Touch to display the menu icons on the sides of the display. 2. Snapshot Icon – Touch to save a snapshot of any screen to the flash drive. 3.

  • Page 13: Status & State Messages

    MSC4000 - MSC15000 USER MANUAL Status & State Messages 1. Status Message Line – Displays one or more of the following including any active alarms ALL SYSTEMS OK – There are no active alarms ALARM SHUTDOWN – An alarm condition has resulted in the dryer shutting down. Refer to Alarm screen for assistance.
  • Page 14 MSC4000 - MSC15000 USER MANUAL Main Screen Indicators Direct Drive Models (-A4, -W4) Output Meter – Shows the dryer output in percent Compressor Indicators Compressor State – The compressor icon will turn on if the compressor(s) is running. Compressor state indicators 1 through 4 – On dryers with more than one compressor use corresponding indi- cators to determine which compressors are currently running.

  • Page 15: Menu Icons

    MSC4000 - MSC15000 USER MANUAL Menu Icons Trending Icon – Touch to access the trending screens Alarms Icon – Touch to access the active alarms, alarm history, and alarm troubleshooting. Sensors Icon – Touch to display real-time sensor values, including user sensors I/O Screens Icon –...

  • Page 16: Settings

    MSC4000 - MSC15000 USER MANUAL 4.2 Settings User Settings Dewpoint (M) – Set the target dew point from 36 to 50 degrees F. High Inlet Temperature Warning (M) Setting – Use to adjust the High Inlet Temperature Warning threshold Enabled/Disabled – Touch to Disable or Enable the warning Low Inlet Pressure Warning (M) Setting –...

  • Page 17: Drain Settings

    MSC4000 - MSC15000 USER MANUAL Drain Settings Drain type (M) Set to “None” if using pneumatic drains. Set to “Level” if using solenoid demand float drains. Autotest Time (M) – Set the time (between 30 to 1440 minutes) between Autotest cycles for drains which use a drain level switch.

  • Page 18: Advanced Settings

    MSC4000 - MSC15000 USER MANUAL Advanced Settings Note: Changing these settings may negatively affect the performance of the dryer or disable key monitoring func- tions. Be certain you understand the potential effects before changing these settings. High Ambient/Water Temperature Alarm (M) – Touch to adjust the High Ambient or Water Temperature Alarm threshold Enable Oil Level Monitoring Alarm (M) –...

  • Page 19: User Sensor Settings

    MSC4000 - MSC15000 USER MANUAL User Sensor Settings There are two 4-20mA inputs on the PLC for the user. Sensor Input 1 is settable from -32768 to 32767 with a resolution of one unit. Sensor Input 2 is settable from -3276.8 to 3276.7 with a resolution of one tenth of a unit. Sensor Description (M) –...

  • Page 20: Sensor Calibration

    MSC4000 - MSC15000 USER MANUAL Sensor Calibration Pressure Sensors The following settings apply to each pressure sensor. Sensor Range (S) – Enter the minimum and maximum limits of the sensor range. Offset Correction (S) – Enter an offset value for the sensor range. Pressure Units (M) –...

  • Page 21: Temperature Sensors

    MSC4000 - MSC15000 USER MANUAL Temperature Sensors Offset Correction (S) – Use to correct the offset for each temperature sensor. Temperature Units (M) – Select units for temperature values used on all displays and logs. Supervisor level access required Service level access required...

  • Page 22: Factory Settings

    MSC4000 - MSC15000 USER MANUAL Factory Settings These settings are to be changed only by the Dryer Manufacturer’s Factory or Service Personnel and are included here for reference only. Dryer Operation Select (F) – Use to select the dryer Compressor Off Offset (F) – In cycling and VSD oper- mode of operation for the controller ation, the compressor will turn off when the dewpoint •...
  • Page 23 MSC4000 - MSC15000 USER MANUAL Restore Factory Settings Key (M) – Return the dryer to the state that it was at when the Store Factory Settings key was last pressed Variable Speed Drive Settings key (S) – On dryers with a variable speed drive, touch this key to troubleshoot operation related to the compressor drive.

  • Page 24: Variable Speed Drive

    MSC4000 - MSC15000 USER MANUAL Factory Settings – Variable Speed Drive These settings are to be changed only by the Dryer Manufacturer’s Factory or Service Personnel and are included here for reference only. Caution: Changes to these settings may result in unstable dryer response. Number of Compressor (F) –...

  • Page 25: Trending

    MSC4000 - MSC15000 USER MANUAL 4.3 Trending • There are 8 trend windows, each focusing on a different set of data. • Most of the trending displays are historical data only and will not automatically update as new data is logged. To refresh the data, you must hit one of the zoom or page buttons.

  • Page 26: Trend Elements

    MSC4000 - MSC15000 USER MANUAL Trend Elements 1. Current Time/ Date Drop down time span select – select from spans of 10 minutes to 14 days. 2. Scale – shows the scale for the corresponding colored data. 3. Value box – shows the value of the data at the cursor line. 4.

  • Page 27: User Controls

    MSC4000 - MSC15000 USER MANUAL Trending - User Controls 1. Export Data (M) - Sends data to the Flash Port in Excel readable format 2. Clear Data (M) - Clear data log 3. << – Moves to Start of data log <...

  • Page 28: I/O Screens

    MSC4000 - MSC15000 USER MANUAL 4.4 I/O Screens...

  • Page 29: Input States

    MSC4000 - MSC15000 USER MANUAL Input States Low Refrig Switch Sense Input • ON indicates that the pressure at the low side of the compressor is above the mechanical setting of the low pressure switch. • Indicator is off when the switch opens due to low refrigerant pressure. •...

  • Page 30: Ouput States

    MSC4000 - MSC15000 USER MANUAL Output States Suction/Liquid Line Solenoids – ON indicates that the suction and liquid line valves are both open, indicating the refrigeration system is active. Unloader Bypass Solenoid – ON indicates that the bypass valve across the compressor is open. Does not apply to dryers with variable speed drives.

  • Page 31: Sensors

    MSC4000 - MSC15000 USER MANUAL 4.5 Sensors The Sensors screen displays all of the pressure and temperature sensor values in graphical form. Also displays the values of the optional user sensor inputs (shown in area indicated)

  • Page 32: Service Screen

    MSC4000 - MSC15000 USER MANUAL 4.6 Service Screen Service Timer (M) Touch to access the service timer screen for setting the service timer and resetting the associated alarm. (See Service Timer section) Reference Guide Touch to access Reference Guide for access to maintenance schedule and information on dryer operation. Reboot Display (M) This is the preferred method of rebooting the display panel should it be necessary.

  • Page 33: Service Timer

    MSC4000 - MSC15000 USER MANUAL Service Timer Reset Key (M) – Touch to reset the service timer and corresponding alarm. Service Timer Setting (M) – Set the number of days between service internals from 0 to 365 days. Set to 0 to see effects of alarm. Disable Service Timer (M) –...

  • Page 34: Real Time Clock

    MSC4000 - MSC15000 USER MANUAL Real Time Clock Changing the time and Date Touch the time and date fields to change the corresponding time and date values Setting Daylight Savings Time Daylights savings time can be set to automatically adjust by selecting the setting. Daylights savings time can be manually adjusted by touching the DST ON/OFF key.

  • Page 35: Reference Guide

    MSC4000 - MSC15000 USER MANUAL Reference Guide...
  • Page 36 MSC4000 - MSC15000 USER MANUAL...
  • Page 37 MSC4000 - MSC15000 USER MANUAL...
  • Page 38 MSC4000 - MSC15000 USER MANUAL...

  • Page 39: Support Screen

    MSC4000 - MSC15000 USER MANUAL 4.7 Support Screen Only users with Factory or Service level password can change this information.

  • Page 40: Alarm Screens

    MSC4000 - MSC15000 USER MANUAL 4.8 Alarm Screens Active Alarm States Alarm indicators (codes 101 through 199) will display in RED. Warning Indicators (code 201 through 299) will display in YELLOW. Touch the indicator will display corresponding troubleshooting information.
  • Page 41 MSC4000 - MSC15000 USER MANUAL Alarm History Displays a log of all alarm and event activity since the last time the history log was cleared. User Buttons Page Up / Down – Move up and down through the log Clear History (M) – Clears the log Export Log Data (M) –...
  • Page 42 MSC4000 - MSC15000 USER MANUAL Alarm Relay The alarm relay is triggered whenever there is a new alarm and reset when the alarm silence or alarm reset button is pressed. The alarm state can bet set to normally open or normally closed operation in the USER SETTINGS screen. Regardless of this setting, the relay contacts will open when the dryer is powered off.

  • Page 43: Alarm Information Screens

    MSC4000 - MSC15000 USER MANUAL Alarm Information Screens The following are informational screens available by touching the icon for each alarm on the alarm state screen. WARNING! All service should be performed by qualified personnel.
  • Page 44 MSC4000 - MSC15000 USER MANUAL...
  • Page 45 MSC4000 - MSC15000 USER MANUAL...
  • Page 46 MSC4000 - MSC15000 USER MANUAL...
  • Page 47 MSC4000 - MSC15000 USER MANUAL...
  • Page 48 MSC4000 - MSC15000 USER MANUAL...
  • Page 49 MSC4000 - MSC15000 USER MANUAL...
  • Page 50 MSC4000 - MSC15000 USER MANUAL...
  • Page 51 MSC4000 - MSC15000 USER MANUAL...

  • Page 52: Communications

    MSC4000 - MSC15000 USER MANUAL 4.9 Communications WARNING! – DO NOT ATTEMPT TO CHANGE SETTINGS OR OTHERWISE OPERATE THE DRYER REMOTELY WITHOUT A FIRM UNDERSTANDING OF DRYER OPERATION. IMPROPER SETTINGS OR CONTROL MAY RESULT IN DAMAGE TO THE DRYER. THE MODBUS PORT AND MODBUS REGISTERS ARE NOT PROTECTED FROM UNAUTHORIZED ACCESS ON THE NETWORK.
  • Page 53 MSC4000 - MSC15000 USER MANUAL Configuring Static IP Settings Step 1. Place Dryer in Standby Mode Step 2. Exit dryer’s HMI program Step 3. Configure the Ethernet communications for the dryer. Note: A password may be required to perform the following steps. Contact customer support if the HMI requests a password in order to access the Instrument Settings.
  • Page 54 MSC4000 - MSC15000 USER MANUAL Serial Modbus Port Signal Signal Signal Name Type Number Direction Frame Ground Transmit Data Output RS232C Receive Data Input RS232C Request to Send Output RS232C Clear to Send Input RS232C Data Set Ready Input RS232C 5V-/ Signal Ground RS232C...
  • Page 55 MSC4000 - MSC15000 USER MANUAL Modbus Map Modbus Address Description Range 1x0001 Control State - Load Unload Mode State 1 or 0 1x0002 Control State - Cycling Mode State 1 or 0 1x0003 Control State - Auto Mode State 1 or 0 1x0004 Control State - Running State 1 or 0...
  • Page 56 MSC4000 - MSC15000 USER MANUAL 1x0044 Alarm State - 224-Compressor #4 Oil Level 1 or 0 1x0045 Not used 1x0046 Not used 1x0047 Not used 1x0049 Alarm State - 231-Aux Input #1 - Low 1 or 0 1x0050 Alarm State - 232-Aux Input #1 - High 1 or 0 1x0051 Alarm State - 233-Aux Input #2 - Low...
  • Page 57 MSC4000 - MSC15000 USER MANUAL 1x0092 Not used 1x0093 Output State - Compressor #1 Running 1 or 0 1x0094 Output State - Compressor #2 Running 1 or 0 1x0095 Output State - Compressor #3 Running 1 or 0 1x0096 Output State - Compressor #4 Running 1 or 0 1x0097 Not used...
  • Page 58 MSC4000 - MSC15000 USER MANUAL 3x0010 Suction Pressure 0 to 200 psi 3x0011 Discharge Pressure 0 to 200 psi 3x0012 Dewpoint Temperature 0 to 200 °F 3x0013 Ambient/Water Temperature 0 to 200 °F 3x0014 Optional Sensor Input #1 -32868 to 32867 3x0015 Optional Sensor Input #2 - resolution is 1/10 units -32678 to 32767...
  • Page 59 MSC4000 - MSC15000 USER MANUAL 4x0012 Control Setting - Number of Compressors 1 to 4 4x0013 Control Setting - Number of Compressor Cylinders 0 to 2 4x0014 Control Setting - Number of Fan Banks 0 to 3 4x0015 Control Setting - Fan Bank#1 Off Pressure Setting 100 to 400 psi 4x0016 Control Setting - Fan Bank#1 On Pressure Setting...
  • Page 60 MSC4000 - MSC15000 USER MANUAL 4x0055 Calibration - Sensor Offset Set - User Sensor #1 -32678 to 32767 4x0056 Calibration - Sensor Offset Set - User Sensor #2 -32678 to 32767 4x0057 Calibration - Sensor Offset Set - Inlet Temperature -10 to 10 °F 4x0058 Calibration - Sensor Offset Set - Outlet Temperature...
  • Page 61 MSC4000 - MSC15000 USER MANUAL 4x0105 Control Setting - Enable User #2 Analog Input 1 or 0 4x0106 Alarm Setting - Silence alarms 4x0107 Alarm Setting - Reset all alarms 4x0108 Alarm Setting - High Inlet Temp Alarm Enable 1 or 0 4x0109 Alarm Setting - Low Inlet Pressure Alarm Enable 1 or 0...

  • Page 62: Remote Plc Operation

    MSC4000 - MSC15000 USER MANUAL 4.10 Remote PLC Operation There are five inputs on the PLC dedicated to using external switches or relays to control the dryer operation. These inputs require a 120VAC signal. Refer to the dryers wiring schematic for details. Alarm Reset (PLC input 20) •...
  • Page 63 MSC4000 - MSC15000 USER MANUAL Condenser (Water Cooled Units) The water cooled condenser should be checked and cleaned annually if necessary. To check the condenser, water flow to the condenser should be shut off, air flow to the machine should be shut off, and the unit should be taken out of a run mode.

  • Page 64: Maintenance Schedule

    MSC4000 - MSC15000 USER MANUAL 6. Maintenance Schedule The maintenance chart below indicates the components that should be checked while performing routine maintenance on the dryer. The chart also indicates how often a specific check should be done. Refrigerated Series Maintenance Schedule Part Weekly Monthly...

  • Page 65: Alarms, Troubleshooting & Service

    MSC4000 - MSC15000 USER MANUAL 7. Alarms, Troubleshooting & Service Alarm (100’s) / Fault Code Rules & Causes Possible Remedy Warning (200’s) Rules: • Shut down if the VSD alarm relay contacts open • The compressor’s internal thermal over- load protection resets as the compressor cools COMPRESSOR •...
  • Page 66 MSC4000 - MSC15000 USER MANUAL Alarm (100’s) / Fault Rules & Causes Possible Remedy Warning (200’s) Code Refer to electrical schematic when trouble shooting power circuit Note: Be careful that the orientation of all sensor connectors are marked before remov- ing a connector from its sensor.
  • Page 67 MSC4000 - MSC15000 USER MANUAL Alarm (100’s) / Fault Rules & Causes Possible Remedy Warning (200’s) Code Rules: • Always actuve except for 10 minutes after RUN is pressed • Ignored when dryer is displaying Oil Man- agement message • Warn if the dew point if 15°F higher than the dew point setting for 20 seconds HIGH DEW POINT •...
  • Page 68 MSC4000 - MSC15000 USER MANUAL Alarm (100’s) / Fault Rules & Causes Possible Remedy Warning (200’s) Code Rules: • Warning if the pressure drop across the dryer is at or above the setting for 5 minutes • Setting is accessed from the User Settings HIGH screen DIFFERANTIAL...
  • Page 69 MSC4000 - MSC15000 USER MANUAL Alarm (100’s) / Fault Rules & Causes Possible Remedy Warning (200’s) Code Rules: • There are 2 separate auxiliary 4-20mA inputs for connecting flow meters or other user AUXILIARY devices. ANALOG 231-236 • Refer to User Sensor Settings screen for INPUT enabling, set points, ranges, etc.

  • Page 70: General Service / Troubleshooting / Oil Management Mode

    Only qualified, experienced and certified refrigeration technicians should do repair work on these units. This section is a list of hints and instructions for the skilled serviceman and relating specifically to the Parker MSC refrigeration system. Recharging Dryer – Refrigerant, Oil and filter-dryers Refer to the dryer information tag on the front of the unit for the approximate charge needed for each unit.
  • Page 71 MSC4000 - MSC15000 USER MANUAL Do not charge vapor. The charge should be installed as quickly as possible so oil is return to the compressor in a timely manner. • If the system is short on refrigerant the it must be checked for leaks and repaired as necessary. •...

  • Page 72: Technical Data

    MSC4000 - MSC15000 USER MANUAL 8. Technical Data MSC-P Dryers (Standard MSC Dryers) Water Cooled models Remote Electrical Compressor Fan Motor Dryer Only Condenser Only Model V / Ph /Hz Max. Fuse Max. Fuse MSC4000- 460/3/60 37.2 47.5 MSC5000- 460/3/60 44.0 56.0 MSC6000-...
  • Page 73 MSC4000 - MSC15000 USER MANUAL Air Cooled models Remote Electrical Compressor Fan Motor Dryer Only Condenser Only Model V / Ph /Hz Max. Fuse Max. Fuse MSC4000- 460/3/60 56.0 MSC5000- 460/3/60 51.2 65.0 MSC6000- 460/3/60 64.4 81.5 MSC8000- 460/3/60 96.2 10.5 121.3 MSC10000-...
  • Page 74 MSC4000 - MSC15000 USER MANUAL MSC-PV Dryers (Standard MSC Dryers with Variable Speed Drive Option) Water Cooled models Remote Electrical Compressor Fan Motor Dryer Only Condenser Only Model V / Ph /Hz Max. Fuse Max. Fuse MSC4000- 460/3/60 27.1 34.9 W4PV MSC5000- 460/3/60...
  • Page 75 MSC4000 - MSC15000 USER MANUAL Air Cooled models Remote Electrical Compressor Fan Motor Dryer Only Condenser Only Model V / Ph /Hz Max. Fuse Max. Fuse MSC4000- 460/3/60 33.2 42.5 A4PV MSC5000- 460/3/60 56.0 A4PV MSC6000- 460/3/60 51.2 65.0 A4PV MSC8000- 460/3/60 73.9...

  • Page 76: Spare Parts Lists

    MSC4000 - MSC15000 USER MANUAL 9. Spare Parts Lists MSC-P Spare Parts List Model Replacement parts MSC4000-*4P MSC5000-*4P MSC6000-*4P MSC8000-*4P MSC10000-*4P MSC12000-*4P MSC15000-*4P Refrigerant compressor 460V-3PH-60Hz (x2) DP16302- (x2) DP16301- DP16297-404-2 DP16298-404-1 DP16300-404-1 DP16303-404-1 DP16305-404-1 (W/C) 404-1 404-1 460V-3PH-60Hz (x2) DP16300- (x2) DP16301- (x2) DP16303- DP16298-404-1...
  • Page 77 MSC4000 - MSC15000 USER MANUAL Model Replacement parts MSC4000-*4P MSC5000-*4P MSC6000-*4P MSC8000-*4P MSC10000-*4P MSC12000-*4P MSC15000-*4P Unloader valve DP32301 DP32301 DP32301 DP32084-C coil (A/C) Suction line DP4816000- DP484000 DP485500 DP488000-1 DP4812500 DP4815000 exchanger (W/C) Suction line DP485500 DP488000-1 DP4812500 exchanger (A/C) Thermal expan- DP33015-4 DP33020-4...
  • Page 78 MSC4000 - MSC15000 USER MANUAL MSC-P Spare Parts List Model Replacement parts MSC10000- MSC12000- MSC15000- MSC4000-*4P MSC5000-*4P MSC6000-*4P MSC8000-*4P Air inlet temperature DP5060-T15 probe Air outlet temperature DP5060-T15 probe Ambient/water temp. DP5060-T15 sensor Refrig. suction temp. DP5060-T15 sensor Refrig. liquid temp. DP5060-T15 sensor Drain level sensor...
  • Page 79 MSC4000 - MSC15000 USER MANUAL MSC-PV Spare Parts List Model Replacement parts MSC4000-*4PV MSC5000-*4PV MSC6000-*4PV MSC8000-*4PV MSC10000-*4PV MSC12000-*4PV MSC15000-*4PV Refrigerant compressor 460V-3PH-60Hz (x2) DP16302- (x2) DP16301- DP16297-404-2 DP16298-404-1 DP16300-404-1 DP16303-404-1 DP16305-404-1 (W/C) 404-1 404-1 460V-3PH-60Hz (x2) DP16300- (x2) DP16301- (x2) DP16303- DP16298-404-1 DP16300-404-1 DP16301-404-1...
  • Page 80 MSC4000 - MSC15000 USER MANUAL MSC-PV Spare Parts List Model Replacement parts MSC10000- MSC12000- MSC15000- MSC4000-*4PV MSC5000-*4PV MSC6000-*4PV MSC8000-*4PV *4PV *4PV *4PV Check Valve DP24105 DP24106 (W/C) Check Valve (A/C) DP24105 DP24106 Liquid line drier (x4) DP28315-C core (W/C) Liquid line drier (x2) DP28315-C (x4) DP28315-C core (A/C)
  • Page 81 MSC4000 - MSC15000 USER MANUAL Model Replacement parts MSC10000- MSC12000- MSC15000- MSC4000-*4PV MSC5000-*4PV MSC6000-*4PV MSC8000-*4PV *4PV *4PV *4PV Drain level sensor DP6060-S (Lower Drain) Drain control solenoid valve TP8101-1P (Lower Drain) Drain valve, actuated ball TP6605-5 valve (Lower Drain) Drain level DP6060-S sensor (Upper Drain)

  • Page 82: Associated Drawings

    MSC4000 - MSC15000 USER MANUAL 10. Associated Drawings...
  • Page 83 MSC4000 - MSC15000 USER MANUAL...
  • Page 84 MSC4000 - MSC15000 USER MANUAL...
  • Page 85 MSC4000 - MSC15000 USER MANUAL...
  • Page 86 MSC4000 - MSC15000 USER MANUAL...
  • Page 87 MSC4000 - MSC15000 USER MANUAL...
  • Page 88 MSC4000 - MSC15000 USER MANUAL...
  • Page 89 MSC4000 - MSC15000 USER MANUAL...
  • Page 90 MSC4000 - MSC15000 USER MANUAL...
  • Page 91 MSC4000 - MSC15000 USER MANUAL...
  • Page 92 MSC4000 - MSC15000 USER MANUAL...
  • Page 93 MSC4000 - MSC15000 USER MANUAL...
  • Page 94 MSC4000 - MSC15000 USER MANUAL...
  • Page 95 MSC4000 - MSC15000 USER MANUAL...
  • Page 96 MSC4000 - MSC15000 USER MANUAL...
  • Page 97 MSC4000 - MSC15000 USER MANUAL...
  • Page 98 MSC4000 - MSC15000 USER MANUAL...
  • Page 99 MSC4000 - MSC15000 USER MANUAL...
  • Page 100 MSC4000 - MSC15000 USER MANUAL...
  • Page 101 MSC4000 - MSC15000 USER MANUAL...
  • Page 102 MSC4000 - MSC15000 USER MANUAL...
  • Page 103 MSC4000 - MSC15000 USER MANUAL...
  • Page 104 MSC4000 - MSC15000 USER MANUAL...
  • Page 105 MSC4000 - MSC15000 USER MANUAL...

  • Page 106: Maintenance Charts

    MSC4000 - MSC15000 USER MANUAL 11. Maintenance Charts Maintenance Log Date Service Performed Parts Replaced Initials...

  • Page 107: Warranty

    WARRANTY REGISTRATION Important! E-mail today! Send your Service Warranty form and it will be registered immediately. We are here to help. For more information call the Service Department at 1-855-587-9323. E-mail to: fafwarranty@parker.com Model #___________________________________________________ Serial #___________________________ Company_____________________________________________________________________________________ Address______________________________________________________________________________________ City_______________________________________________________ State/Province___________ Zip_________...
  • Page 108 MSC4000 - MSC15000 USER MANUAL...
  • Page 109 MSC4000 - MSC15000 USER MANUAL...
