Summary of Contents for Parker DME012-RX

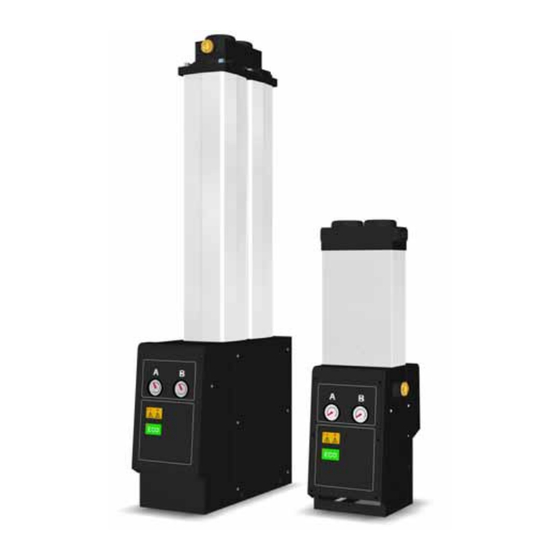

- Page 1 Medical Air Dryer electromechanical filtration DME012-RX - DME080-RX fluid & gas handling User Guide hydraulics pneumatics Original Language process control sealing & shielding...
-
Page 3: Table Of Contents
DME012-RX - DME080-RX Contents Safety Information 1.1 Markings and symbols 1.2 Hazardous Substances Description 2.1 Technical Specification 2.1.1 Dimensions 2.2 Unpacking the equipment 2.3 Overview of the equipment Installation & Commissioning 3.1 Locating the equipment 3.2 Mechanical Installation 3.3 Electrical Installation 3.3.1 Mains supply... -
Page 4: Safety Information
DME012-RX - DME080-RX Safety Information Important: Do not operate this equipment until the safety information and instructions in this user guide have been read and understood by all personnel concerned. Only competent personnel trained, qualified, and approved by domnick hunter should perform commissioning, service and repair procedures. -
Page 5: Markings And Symbols
DME012-RX - DME080-RX 1.1 Markings and symbols The following markings and international symbols are used on the equipment and within this user guide: Risk of electric shock. Wear ear protection. Highlights actions or procedures which, When disposing of old parts always... -
Page 6: Description
DME012-RX - DME080-RX Description domnick hunter desiccant dryers are designed to remove moisture vapour from compressed air. The dryer comprises of an inlet and outlet manifold joined together by an aluminium column. The column has two internal chambers filled with desiccant material. -
Page 7: Technical Specification
DME012-RX - DME080-RX 2.1 Technical Specification This specification is valid when the equipment is located, installed, operated, and maintained as specified within this user guide. Parameter Units DME012-RX - DME040-RX DME050-RX - DME080-RX bar g Minimum Inlet Pressure (psi g / MPa g) (58 / 0.4) -
Page 8: Dimensions
DME012-RX - DME080-RX 2.1.1 Dimensions DME012-RX - DME040-RX DME050-RX - DME080-RX 110VAC HYGROMETER POWER DEWPOINT SUPPLY RELAY 110VAC HYGROMETER POWER DEWPOINT SUPPLY RELAY Weight Model (inches) (inches) (inches) (inches) (inches) (lbs) DME012-RX (32.9) (11.9) (11.2) (31.26) (13.86) (70) 1003 DME015-RX (39.5) -
Page 9: Unpacking The Equipment
DME012-RX - DME080-RX Unpacking the equipment It is recommended that the equipment is moved into position before removing the packaging. Remove the equipment from its packaging using the illustrations shown below for guidance and check that it has not been damaged in transit. -
Page 10: Overview Of The Equipment
DME012-RX - DME080-RX 2.3 Overview of the equipment Referring to diagram below, the major parts of the dryer are as follows: DME012-RX - DME040-RX DME050-RX - DME080-RX 110VAC HYGROMETER POWER DEWPOINT SUPPLY RELAY 110VAC HYGROMETER POWER DEWPOINT SUPPLY RELAY Mains Supply Cable... -
Page 11: Installation & Commissioning
DME012-RX - DME080-RX Installation & Commissioning Only competent personnel trained, qualified, and approved by domnick hunter should perform installation, commissioning and service procedures. Warning 3.1 Locating the equipment Identify a suitable location for the equipment taking into consideration the minimum space requirements for maintenance and lifting equipment as shown in the diagram below. -
Page 12: Mechanical Installation
DME012-RX - DME080-RX 3.2 Mechanical Installation The Dewpoint Dependent Switching (DDS) system requires a sampling point to be inserted into the piping at the outlet of the dryer. It is important to ensure that all piping materials are suitable for the application, clean and debris free. The diameter of the pipes must be sufficient to allow unrestricted inlet air supply to the equipment and outlet gas / air supply to the application. -
Page 13: Hygrometer Relay
DME012-RX - DME080-RX The equipment should be connected to the electrical supply through a switch or circuit breaker. This device should be clearly and indelibly marked as the disconnecting device for the equipment and located in close proximity to the equipment and be easily accessible to the operator. -
Page 14: Operating The Equipment
DME012-RX - DME080-RX Operating the equipment 4.1 Overview of Controls The facia of the dryer consists of indicators only as follows: Power “ON” Indicator ECO (DDS) Indicator Column A Pressure Gauge Column B Pressure Gauge 4.2 Starting the equipment Start-up should be undertaken by a domnick hunter trained, qualified and approved service engineer. -
Page 15: Servicing
DME012-RX - DME080-RX Servicing The recommended Service procedures identified in table 5.2 and all other repair and calibration work should be undertaken by a domnick hunter trained, qualified and approved engineer. 5.1 Cleaning Clean the equipment with a damp cloth only and avoid excessive moisture around any electrical sockets. If required you may use a mild detergent, however do not use abrasives or solvents as they may damage the warning labels on the equipment. -
Page 16: Service Kits
Kit: Column Seals DME012-RX - DME040-RX 608203733 E – Desiccant Service Kit: Column Seals DME050-RX - DME080-RX 608330010 Snow storm filler DME012-RX - DME040-RX 608200622 Snow storm filler DME050-RX - DME080-RX 608201051 DME012-RX DME015-RX DME020-RX DME025-RX DME030-RX DME040-RX DME050-RX DME060-RX DME080-RX Dryfil AA Seals... -
Page 17: Service Record
DME012-RX - DME080-RX 5.4 Service Record Date of Commissioning Serviced By Service Hours Date Comments / Observations (Hours) Shown Print Initials 4,000 8,000 16,000 20,000 24,000 28,000 32,000 36,000 40,000... -
Page 18: Troubleshooting Guide
DME012-RX - DME080-RX Troubleshooting guide In the unlikely event that a problem occurs on the equipment, this troubleshooting guide can be used to identify the probable cause and remedy. Troubleshooting should only be attempted by competent personnel. All major repair, and calibration work should be undertaken by a domnick hunter trained, qualified and approved engineer. - Page 19 Declaration of Conformity Parker Hannifin ltd, Industrial division Dukesway, TVTE, Gateshead, Tyne & Wear, NE11 0PZ. UK Adsorption Dryer DME012-RX, DME015-RX, DME020-RX, DME025-RX, DME030-RX, DME040-RX, DME050-RX, DME060-RX, DME080-RX Directives 97/23/EC 2006/95/EC 2004/108/EC 93/68/EEC, 92/31/EEC Standards used EN 61010-1 : 2001...
- Page 21 (from AT, BE, CH, CZ, DE, DK, ES, FI, FR, IE, parker.finland@parker.com IT, NL, NO, PL, PT, RU, SE, UK, ZA) A division of Parker Hannifin Corporation Copyright Parker Hannifin ltd 2010 Parker Hannifin ltd Publication Reference: 176034100 01/10 Rev.000...
