TORNADO INDUSTRIES, LLC
3101 WICHITA COURT
FORT WORTH, TX 76140
PHONE 800-VACUUMS
FAX 817-551-0719
WWW.TORNADOVAC.COM
Operations & Maintenance Manual
For Commercial Use Only

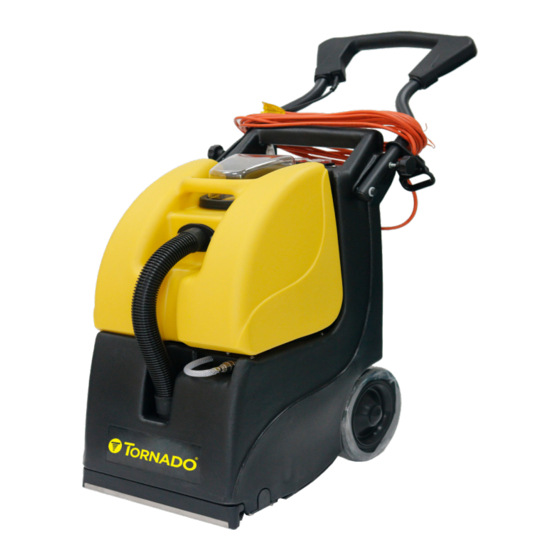

3 GALLON Self Contained Extractor
MODEL NO. 98103
Form No. L8103 DA 11/21 ©Tornado Industries, LLC. All rights reserved
Save These Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tornado 98103
Summary of Contents for Tornado 98103

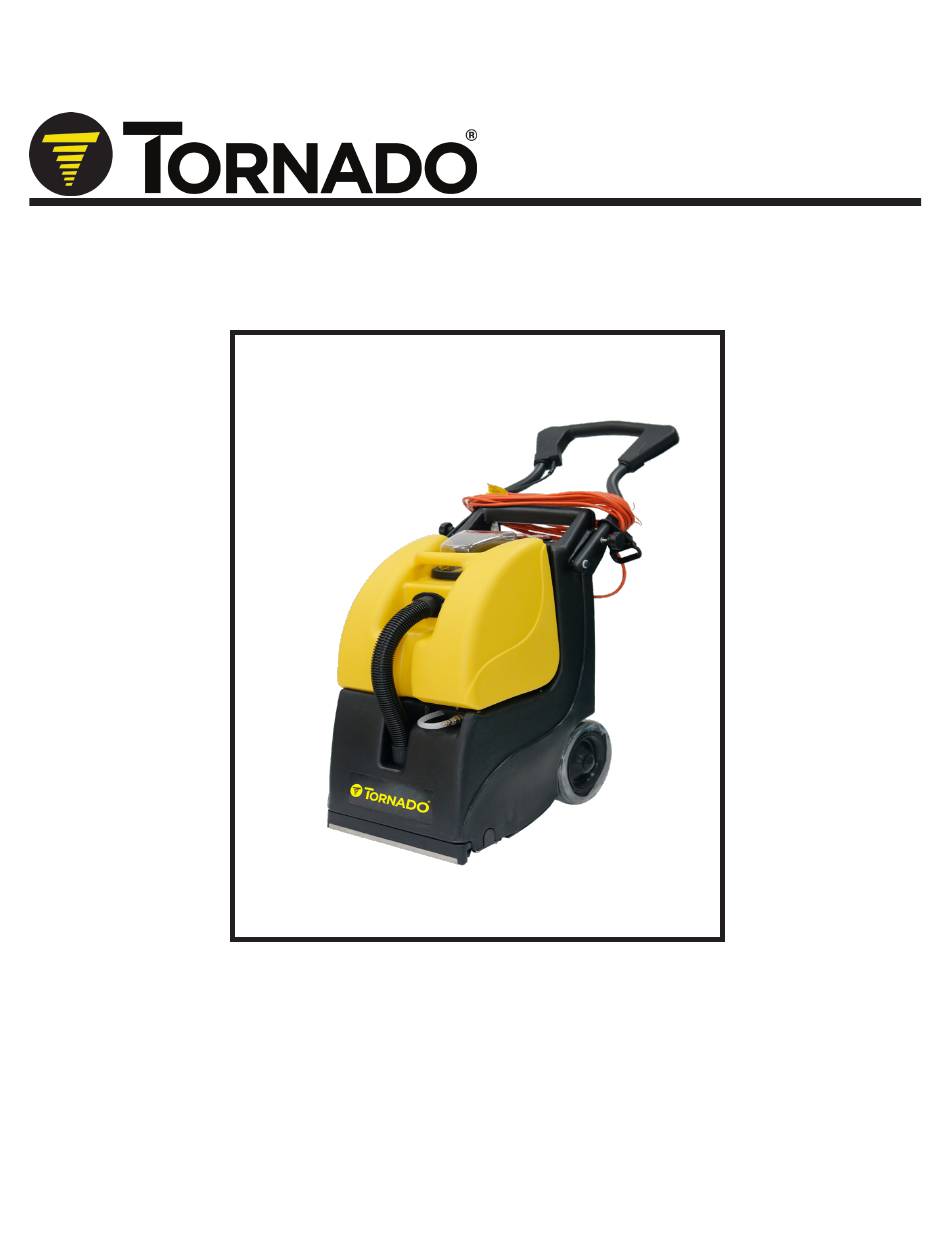

- Page 1 3101 WICHITA COURT FORT WORTH, TX 76140 PHONE 800-VACUUMS FAX 817-551-0719 WWW.TORNADOVAC.COM Operations & Maintenance Manual For Commercial Use Only 3 GALLON Self Contained Extractor MODEL NO. 98103 Form No. L8103 DA 11/21 ©Tornado Industries, LLC. All rights reserved Save These Instructions...
- Page 2 NOTES Within 30 days, to activate the warranty, go to; https://tornadovac.com/services/warranty-registration-form.aspx For warranty information go to www.tornadovac.com...
-
Page 3: Safety Instructions And Warnings
SAFETY INSTRUCTIONS & WARNINGS IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT Read and understand this owner’s manual and all labels on the unit before operating. Safety is a combination of common sense,staying alert and knowing how your unit works. Use this unit only as described in this manual. -
Page 4: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS Voltage/Frequency ACV/Hz 120/60 Pump Pressure Input Power 950/8.5 Cleaning Width Solution Tank gallon Recovery Tank gallon Dimensions (L x W x H) 21 x 14 x 34 Weight (Empty) lbs. Power Cable Length Sound level dB (A) COMMON REPAIR PARTS Part Number Description SC339... -
Page 6: Key Features
KEY FEATURES SOLUTION SPRAY PUSH BUTTON CARRYING HANDLE RECOVERY (WASTE) TANK TANK COVER & HANDLE VACUUM HOSE SOLUTION (CLEAN WATER) SOLUTION TANK HOSE FIG. 1... -
Page 7: Solution Tank
PRE-OPERATION INSTRUCTIONS NOTE - FOR COLOR FASTNESS: Before using carpet cleaning chemicals, test on an inconspicuous part of the carpet for color fastness. Place the solution on a small piece of clean white cloth or tissue. Rub the carpet area vigorously with the cleaning chemical. Excessive amounts of dye showing on the material would indicate that the colors are not colorfast, and should not be wet cleaned. -
Page 8: General Instructions
GENERAL INSTRUCTIONS OPERATION INSTRUCTIONS VACUUM BRUSH SOLUTION SWITCH SWITCH SWITCH FIG. 2 STORAGE WHEN CLEANING IS FINISHED: 1. Disconnect the SOLUTION HOSE on the front of the machine by pushing in on the ring of the solution fitting. 2. Connect the drain hose (clipped to the back) to the SOLUTION HOSE fitting and place the other end into the RECOVERY TANK (FIG. -
Page 9: Routine Maintenance Instructions
ROUTINE MAINTENANCE INSTRUCTIONS DAILY 1. The filter in the solution tank (FIG. 4) should be kept clean. It can be removed if necessary. A damaged filter should be replaced, otherwise blockages and/or damage to the pump head and spray jet can occur. 2. -
Page 10: Troubleshooting
TROUBLESHOOTING MOTORS NOT RUNNING CAUSE SOLUTION 1) Power not reaching main switch. 1) Check power supply. Check fuses/circuit breaker. Contact service center. 2) Defective power cord. 2) Contact manufacturer or service center. 3) Faulty switches or wiring. 3) Contact manufacturer or service center. 4) Blown fuse or tripped circuit breaker. - Page 11 Form No. L8103 DA 11/21...
