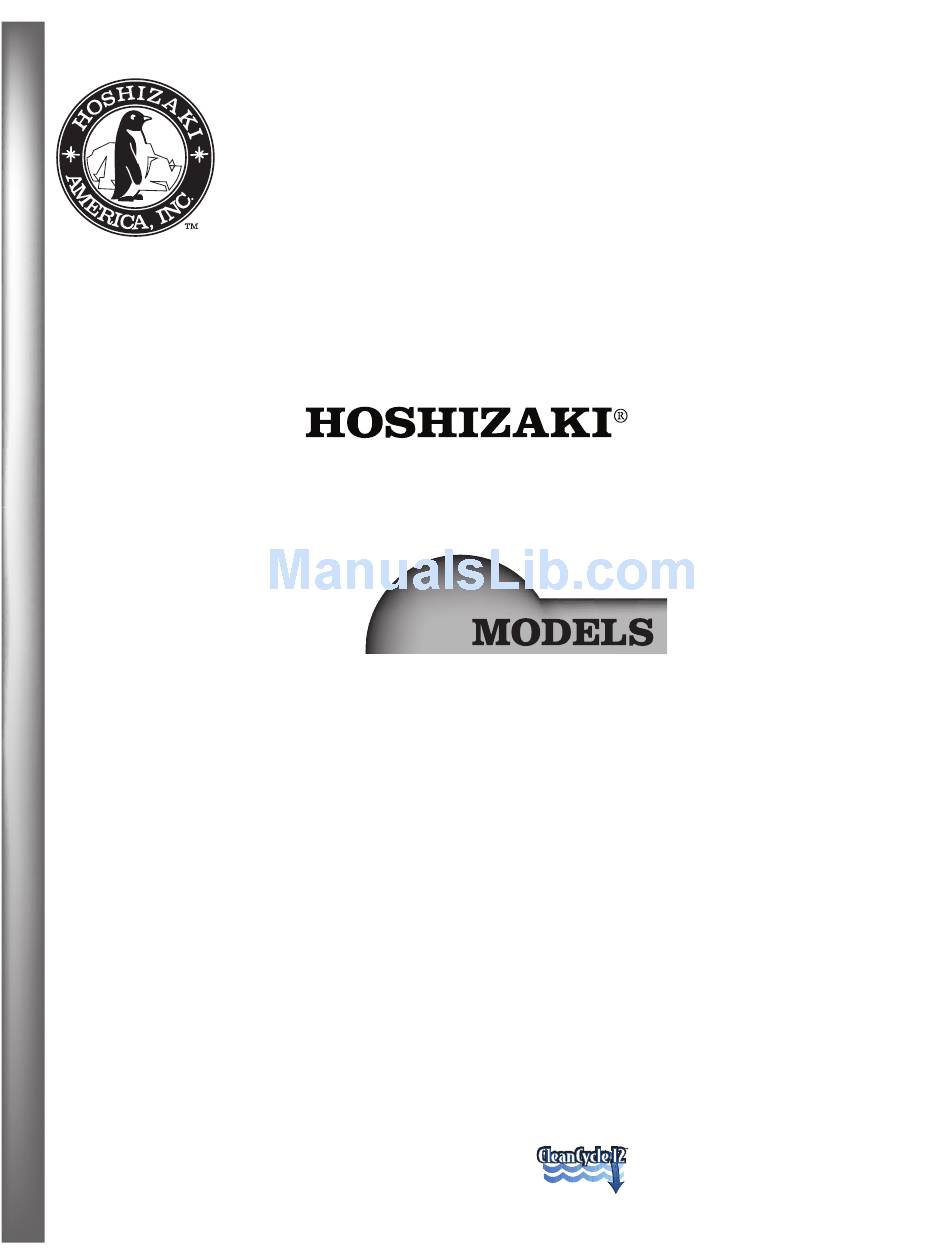

- Page 1 Reliability is a beautiful thing MODULAR FLAKER F-2000MLF-22 INSTRUCTION MANUAL August 27, 1999 ISSUED: January 5, 2005 REVISED:...
- Page 2 HOSHIZAKI provides this manual primarily to assist qualified service technicians in the installation, maintenance and service of the icemaker. Should the reader have any questions or concerns which have not been satisfactorily addressed, please call or write to the HOSHIZAKI Technical Support Department for assistance.
-
Page 3: Table Of Contents
• Keep this manual with the icemaker for later reference. I. Specifications ... 4 1. Nameplate Rating ... 4 2. Dimensions/Connections ... 5 [a] F-2000MLF-22 ... 5 [b] With Storage Bin ... 6 II. Installation and Operating Instructions ... 7 1. Checks Before Installation ... 7 2. -
Page 4: Specifications
See the nameplate for electrical and refrigeration specifications. This nameplate is located on the upper right hand side of the rear panel. We reserve the right to make changes in specifications and design without prior notice. HOSHIZAKI ICE MAKER MODEL NUMBER SERIAL NUMBER AC SUPPLY VOLTAGE... -
Page 5: Dimensions/Connections
2. Dimensions/Connections [a] F-2000MLF-22 Units = inches [mm.]... -
Page 6: [B] With Storage Bin
[b] With Storage Bin Units = inches [mm.]... -
Page 7: Installation And Operating Instructions
5) See the nameplate on the rear panel, and check that your voltage supplied corresponds with the voltage specified on the nameplate. 6) This icemaker needs a storage bin. The recommended storage bin is HOSHIZAKI ICE STORAGE BIN, Model B-500 series. -
Page 8: Location
7) The flake size is adjustable to small (fine flakes) or large (coarse flakes). The unit is shipped from the factory to produce fine flakes. To produce coarse flakes, the upper cutter head must be removed. If adjustment is desired, please contact an authorized Hoshizaki service company. WARNING Fig. 2... - Page 9 8) Replace the top panel and the front panel in their correct positions, and secure the front panel with the screw. 9) Install enough length of two copper tubings provided with Aeroquip couplings between the icemaker and the condensing unit. The liquid line should be 3/8" OD and the suction line should be 5/8"...
-
Page 10: Electrical Connection
5. Electrical Connection 1. Electrical connection must be made in accordance with the instructions on a “WARNING” tag, provided with the pig tail leads in the junction box. 2. This icemaker requires a ground that meets the national and local electrical code requirements. -
Page 11: Water Supply And Drain Connections
6. Water Supply and Drain Connections - See Fig. 5 • External filters, strainers or softeners may be required depending on the water quality. • Water supply inlet is 1/2" female pipe thread (FPT). • A water supply line shut-off valve and drain valve should be installed. A minimum of 3/8" OD copper tubing is recommended for the water supply lines. -
Page 12: Final Checklist
7. Final Checklist 1) Is the icemaker level? 2) Is the icemaker in a site where the ambient temperature is within +45°F to +100°F and the water temperature within +45°F to +90°F all year around? 3) Is there at least 6" clearance at rear and sides and 24" at top for maintenance or service? 4) Have all shipping carton, tape(s) and packing been removed from the icemaker? 5) Have all electrical and piping connections been made? -
Page 13: Startup
8. Startup 1. The evaporator pressure regulator should be adjusted. (See “II. 4. Setup.”) The other parts are factory-adjusted. Improper adjustments may result in failure. 2. If the unit is turned off, wait for at least 3 minutes before restarting the icemaker to prevent damage to the evaporator. - Page 14 6) Turn on the power supply, and then drain out all water from the water line. 7) Turn off the power supply. 8) Turn off the power switch on the control box. 9) Replace the front panel in its correct position. 10) Close the drain valve.
-
Page 15: Cleaning And Maintenance
[a] Cleaning Solution Dilute 4.8 fl. oz. (142 ml) of recommended cleaner Hoshizaki “Scale Away” or “LIME-A-WAY” (Economics Laboratory, Inc.) with 0.8 gallons (3 l) of warm water. This is a minimum amount. Make more solution if necessary. -
Page 16: [C] Sanitizing Solution
9) Pour the cleaning solution over the extruding head until the evaporator assembly and the reservoir are filled and the solution starts to overflow into the drain pan. Note: If there is excess scale on the extruding head, fill the evaporator assembly and reservoir as described above, then use a clamp on the reservoir hose between the reservoir and evaporator assembly to block flow. -
Page 17: [E] Sanitizing Procedure - Final
4) Pour the sanitizing solution over the extruding head until the evaporator assembly and the reservoir are filled and the solution starts to overflow into the drain pan. 5) Remove the thumbscrews securing the proximity switch to the chute assembly. 6) Remove the chute assembly from the icemaker. - Page 18 5) Remove the strap connecting the spout to the chute assembly. 6) Remove the thumbscrews securing the spout and lift it off. 7) Pour the sanitizing solution over the extruding head until the evaporator assembly and the reservoir are filled and the solution starts to overflow into the drain pan. 8) Replace the spout and strap in their correct positions.
-
Page 19: Maintenance
More frequent inspection and maintenance are recommended. Consult with your local distributor about inspection and maintenance service. To obtain the name and phone number of your local distributor, call Hoshizaki Care at 1-800-233-1940 in the USA. 1) Stainless Steel Exterior To prevent corrosion, wipe the exterior occasionally with a clean and soft cloth. - Page 20 HOSHIZAKI HOSHIZAKI AMERICA, INC. 618 HIGHWAY 74 SOUTH PEACHTREE CITY, GA 30269 U.S.A. PHONE: 770-487-2331 www.hoshizakiamerica.com 91U2CV11B...
