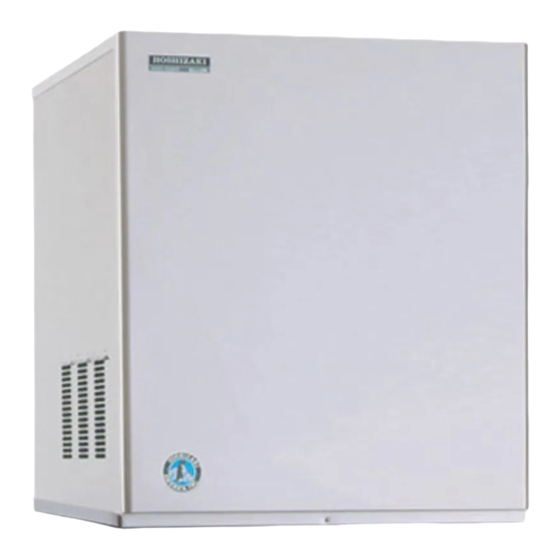

Hoshizaki F-2000MLH Service Manual

Modular flaker
Hide thumbs Also See for F-2000MLH:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
73116
NO:
ISSUED: JULY 16, 2004
REVISED: AUG. 20, 2004

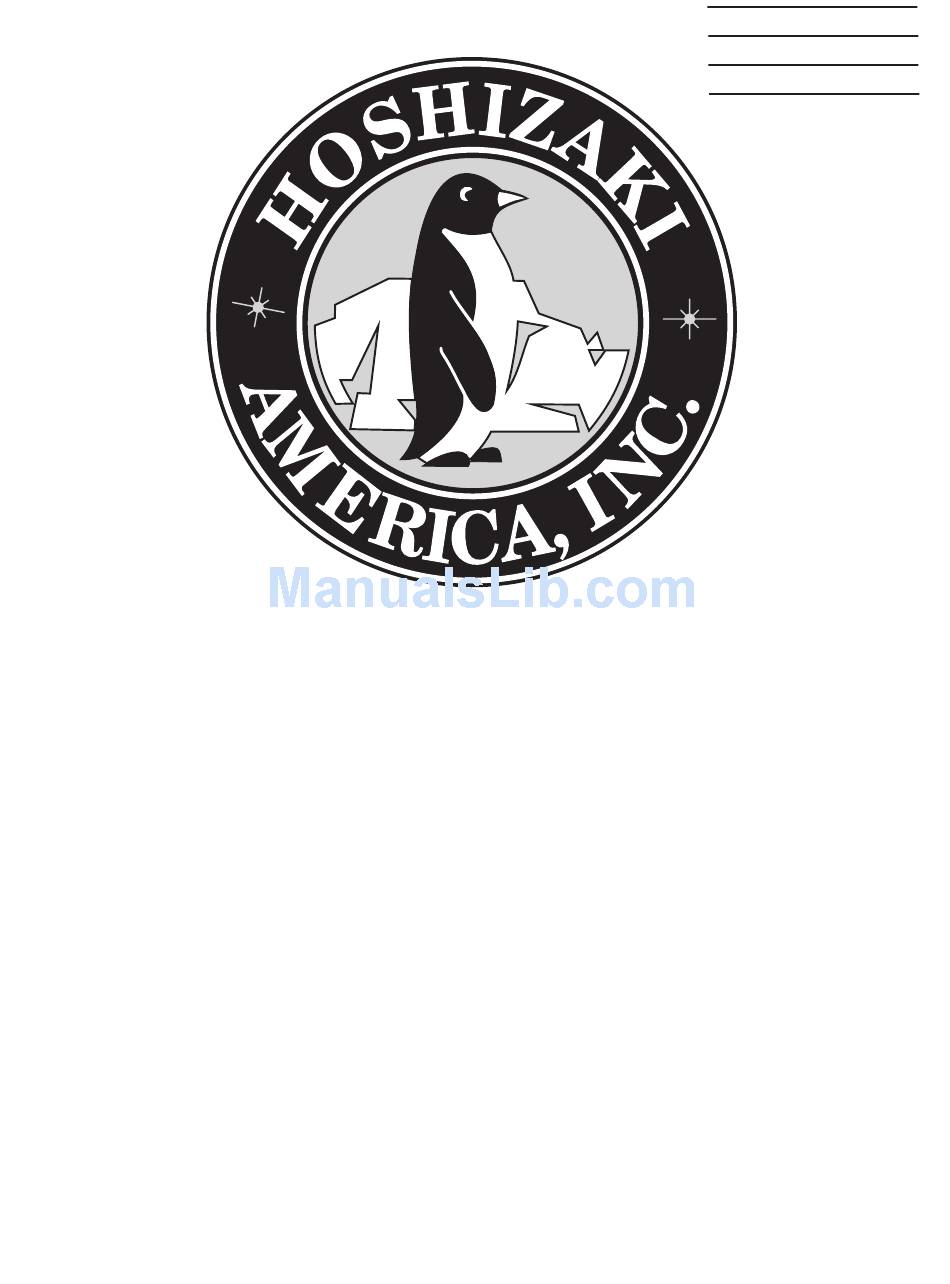

HOSHIZAKI
MODULAR FLAKER
MODEL
F-2000MWH/-C
F-2000MRH/-C
F-2000MRH3/-C
F-2000MLH/-C
SERVICE MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Hoshizaki F-2000MLH

Summary of Contents for Hoshizaki F-2000MLH

  • Page 1 73116 ISSUED: JULY 16, 2004 REVISED: AUG. 20, 2004 HOSHIZAKI MODULAR FLAKER MODEL F-2000MWH/-C F-2000MRH/-C F-2000MRH3/-C F-2000MLH/-C SERVICE MANUAL...
  • Page 2 No such service or maintenance should be undertaken until the technician has thoroughly read this Service Manual. HOSHIZAKI provides this manual primarily to assist qualified service technicians in the service and maintenance of the icemaker. Should the reader have any questions or concerns which have not been satisfactorily addressed, please call or write to the HOSHIZAKI Technical Support Department for assistance.

  • Page 3: Table Of Contents

    F-2000MWH ... 5 F-2000MWH-C ... 6 F-2000MRH ... 7 F-2000MRH-C ... 8 F-2000MRH3 ... 9 F-2000MRH3-C ... 10 F-2000MLH ... 11 F-2000MLH-C ... 12 2. CONDENSER UNIT ... 13 URC-20F ... 13 II. GENERAL INFORMATION ... 15 1. CONSTRUCTION ... 15 F-2000MWH/-C ...
  • Page 4 10. REMOVAL AND REPLACEMENT OF CONTROL WATER VALVE ... 69 11. REMOVAL AND REPLACEMENT OF FLUSH WATER VALVE ... 70 12. REMOVAL AND REPLACEMENT OF SOLENOID VALVE - F-2000MLH/-C ONLY ... 71 13. REMOVAL AND REPLACEMENT OF EVAPORATOR PRESSURE REGULATOR (E.P.R.) - F-2000MLH/-C ONLY ... 72 14.

  • Page 5: Specification

    I. SPECIFICATION 1. ICEMAKER F-2000MWH AC SUPPLY VOLTAGE COMPRESSOR GEAR MOTOR FAN MOTOR OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER (USA ONLY) MAX. CIRC. BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./day ( kg/day ) Reference without *marks SHAPE OF ICE ICE QUALITY...

  • Page 6: F-2000Mwh-C

    F-2000MWH-C AC SUPPLY VOLTAGE COMPRESSOR GEAR MOTOR FAN MOTOR OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER (USA ONLY) MAX. CIRC. BREAKER (CANADA ONL MINIMUM CIRCUIT AMPACITY APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./day ( kg/day ) Reference without *marks SHAPE OF ICE ICE QUALITY APPROXIMATE STORAGE CAPACITYN/A ELECTRIC &...

  • Page 7: F-2000Mrh

    F-2000MRH AC SUPPLY VOLTAGE COMPRESSOR GEAR MOTOR FAN MOTOR REMOTE OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER (USA ONLY) MAX. CIRC. BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./day ( kg/day ) Reference without *marks SHAPE OF ICE ICE QUALITY APPROXIMATE STORAGE CAPACITY...

  • Page 8: F-2000Mrh-C

    F-2000MRH-C AC SUPPLY VOLTAGE COMPRESSOR GEAR MOTOR FAN MOTOR REMOTE OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER (USA ONLY) MAX. CIRC. BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./day ( kg/day ) Reference without *marks SHAPE OF ICE ICE QUALITY APPROXIMATE STORAGE CAPACITY...

  • Page 9: F-2000Mrh3

    F-2000MRH3 AC SUPPLY VOLTAGE COMPRESSOR GEAR MOTOR FAN MOTOR REMOTE OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER (USA ONLY) MAX. CIRC. BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./day ( kg/day ) Reference without *marks SHAPE OF ICE ICE QUALITY APPROXIMATE STORAGE CAPACITY...

  • Page 10: F-2000Mrh3-C

    F-2000MRH3-C AC SUPPLY VOLTAGE COMPRESSOR GEAR MOTOR FAN MOTOR REMOTE OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER (USA ONLY) MAX. CIRC. BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./day ( kg/day ) Reference without *marks SHAPE OF ICE ICE QUALITY APPROXIMATE STORAGE CAPACITY...

  • Page 11: F-2000Mlh

    F-2000MLH AC SUPPLY VOLTAGE GEAR MOTOR FAN MOTOR OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER (USA ONLY) MAX. CIRC. BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./day ( kg/day ) Reference without *marks SHAPE OF ICE...

  • Page 12: F-2000Mlh-C

    F-2000MLH-C AC SUPPLY VOLTAGE GEAR MOTOR FAN MOTOR OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER (USA ONLY) MAX. CIRC. BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./day ( kg/day ) Reference without *marks SHAPE OF ICE...

  • Page 13: Condenser Unit

    2. CONDENSER UNIT URC-20F...
  • Page 14 MODEL: URC-20F EXTERIOR DIMENSIONS (W x D x H) REFRIGERANT CHARGE URC-20F WEIGHT CONNECTIONS REFRIGERANT ELECTRICAL CONDENSER HEAD PRESSURE CONTROL AMBIENT CONDITION SPECIFICATIONS Galvanized Steel 46-3/8" x 15-11/16" x 25-15/16" (1178 x 398 x 659 mm) R404A 7 lbs. 11 oz. (3500 g) Net 104 lbs.

  • Page 15: General Information

    II. GENERAL INFORMATION 1. CONSTRUCTION F-2000MWH/-C...

  • Page 16: F-2000Mrh/-C, F-2000Mrh3/-C

    F-2000MRH/-C, F-2000MRH3/-C...

  • Page 17: F-2000Mlh/-C

    F-2000MLH/-C...

  • Page 18: Control Box Layout

    2. CONTROL BOX LAYOUT F-2000MWH/-C, F-2000MRH/-C Note: The above component names are identical with the Wiring Label, but not with the Parts List.

  • Page 19: F-2000Mrh3/-C

    F-2000MRH3/-C...

  • Page 20: F-2000Mlh/-C

    F-2000MLH/-C...

  • Page 21: Technical Information

    III. TECHNICAL INFORMATION 1. WATER CIRCUIT AND REFRIGERATION CIRCUIT F-2000MWH/-C...

  • Page 22: F-2000Mrh/-C, F-2000Mrh3/-C

    F-2000MRH/-C, F-2000MRH3/-C...

  • Page 23: F-2000Mlh/-C

    F-2000MLH/-C...

  • Page 24: Wiring Diagrams

    2. WIRING DIAGRAMS F-2000MWH/-C...

  • Page 25: F-2000Mrh/-C

    F-2000MRH/-C...

  • Page 26: F-2000Mrh3/-C

    F-2000MRH3/-C...

  • Page 27: F-2000Mlh/-C

    F-2000MLH/-C...

  • Page 28: Sequence Of Electrical Circuit

    3. SEQUENCE OF ELECTRICAL CIRCUIT [a] When Power Switch is moved to “ON” position and Flush Switch to “ICE” position, water starts to be supplied to Reservoir.
  • Page 29 [b] When Reservoir has been filled, Gear Motor starts immediately.
  • Page 30 [c] Compressor starts [F-2000MLH/-C only, two solenoid valves open] about 60 sec. after Gear Motor starts.
  • Page 31 [d] Bin Control operates, and about 6 sec. later, Compressor and Gear Motor stop simultaneously. (F-2000MLH/-C, two solenoid valves close.)
  • Page 32 [e] Low Water (Except Water-cooled Model where Compressor will operate intermittently)
  • Page 33 [f] When Flush Timer operates (for 15 min. every 12 hours) or when Flush Switch is moved to “FLUSH” position, Flush Water Valve opens and flushes Reservoir and Evaporator.
  • Page 34 [g] For single-phase machines, when 208-230V are supplied to Circuit Protect Relay, it protects the circuit from being miswired. If the power supply is properly connected, the contact of Circuit Protect Relay does not move even when the coil is energized.
  • Page 35 [h] When Pressure Switch opens, power supply to the control board is cut off causing the Compressor and Gear Motor to turn off immediately.

  • Page 36: Timing Chart

    4. TIMING CHART 1. CIRCUIT PROTECT RELAY UPPER 2. WATER LEVEL LOWER BOTTOM UPPER 3. FLOAT SWITCH LOWER 4. WATER CONTROL RELAY 5. CONTROL WATER VALVE 1 - 2 6. FLUSH TIMER 2 - 3 FLUSH 7. FLUSH SWITCH 8. FLUSH WATER VALVE 9.
  • Page 37 LOW WATER 1. CIRCUIT PROTECT RELAY UPPER 2. WATER LEVEL LOWER BOTTOM UPPER 3. FLOAT SWITCH LOWER 4. WATER CONTROL RELAY 5. CONTROL WATER VALVE 1 - 2 6. FLUSH TIMER 2 - 3 FLUSH 7. FLUSH SWITCH 8. FLUSH WATER VALVE 9.
  • Page 39 1. CIRCUIT PROTECT RELAY UPPER 2. WATER LEVEL LOWER BOTTOM UPPER 3. FLOAT SWITCH LOWER 4. WATER CONTROL RELAY 5. CONTROL WATER VALVE 1 - 2 6. FLUSH TIMER 2 - 3 FLUSH 7. FLUSH SWITCH 8. FLUSH WATER VALVE 9.
  • Page 40 16. SPOUT CONTROL RELAY 17. THERMOSTAT/ CONTROL (2000MWE) Compressor Discharge Temp.: 225°F Compressor Discharge Temp.: 203°F...

  • Page 41: Performance Data

    5. PERFORMANCE DATA F-2000MWH APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./DAY ( kg/day) APPROXIMATE ELECTRIC CONSUMPTION watts APPROXIMATE WATER CONSUMPTION PER 24 HR. (TOTAL) gal. / day (m /day) EVAPORATOR OUTLET TEMP. °F (°C) HEAD PRESSURE PSIG (kg/sq.cmG) SUCTION PRESSURE PSIG (kg/sq.cmG) WATER FLOW FOR CONDENSER HEAT OF REJECTION FROM CONDENSER...

  • Page 42: F-2000Mwh-C

    F-2000MWH-C APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./DAY ( kg/day) APPROXIMATE ELECTRIC CONSUMPTION watts APPROXIMATE WATER CONSUMPTION PER 24 HR. (TOTAL) gal. / day (m /day) EVAPORATOR OUTLET TEMP. °F (°C) HEAD PRESSURE PSIG (kg/sq.cmG) SUCTION PRESSURE PSIG (kg/sq.cmG) WATER FLOW FOR CONDENSER HEAT OF REJECTION FROM CONDENSER HEAT OF REJECTION FROM COMPRESSOR 2910 BTU/h (AT 90°F /WT 70°F) Note: The data without *marks should be used for reference.

  • Page 43: F-2000Mrh

    F-2000MRH APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./DAY ( kg/day) APPROXIMATE ELECTRIC CONSUMPTION watts APPROXIMATE WATER CONSUMPTION PER 24 HR. gal. / day (l/day) EVAPORATOR OUTLET TEMP. °F (°C) HEAD PRESSURE PSIG (kg/sq.cmG) SUCTION PRESSURE PSIG (kg/sq.cmG) CONDENSER VOLUME HEAT OF REJECTION FROM CONDENSER HEAT OF REJECTION FROM COMPRESSOR Note: The data without *marks should be used for reference.

  • Page 44: F-2000Mrh-C

    F-2000MRH-C APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./DAY ( kg/day) APPROXIMATE ELECTRIC CONSUMPTION watts APPROXIMATE WATER CONSUMPTION PER 24 HR. gal. / day (l/day) EVAPORATOR OUTLET TEMP. °F (°C) HEAD PRESSURE PSIG (kg/sq.cmG) SUCTION PRESSURE PSIG (kg/sq.cmG) CONDENSER VOLUME HEAT OF REJECTION FROM CONDENSER HEAT OF REJECTION FROM COMPRESSOR Note: The data without *marks should be used for reference.

  • Page 45: F-2000Mrh3

    F-2000MRH3 APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./DAY ( kg/day) APPROXIMATE ELECTRIC CONSUMPTION watts APPROXIMATE WATER CONSUMPTION PER 24 HR. gal. / day (l/day) EVAPORATOR OUTLET TEMP. °F (°C) HEAD PRESSURE PSIG (kg/sq.cmG) SUCTION PRESSURE PSIG (kg/sq.cmG) CONDENSER VOLUME HEAT OF REJECTION FROM CONDENSER HEAT OF REJECTION FROM COMPRESSOR Note: The data without *marks should be used for reference.

  • Page 46: F-2000Mrh3-C

    F-2000MRH3-C APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./DAY ( kg/day) APPROXIMATE ELECTRIC CONSUMPTION watts APPROXIMATE WATER CONSUMPTION PER 24 HR. gal. / day (l/day) EVAPORATOR OUTLET TEMP °F (°C) HEAD PRESSURE PSIG (kg/sq.cmG) SUCTION PRESSURE PSIG (kg/sq.cmG) CONDENSER VOLUME HEAT OF REJECTION FROM CONDENSER 16750 BTU/h (AT 90°F /WT 70°F) HEAT OF REJECTION FROM COMPRESS 3000 BTU/h (AT 90°F /WT 70°F) Note: The data without *marks should be used for reference.

  • Page 47: F-2000Mlh

    F-2000MLH APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./DAY ( kg/day) APPROXIMATE ELECTRIC CONSUMPTION watts APPROXIMATE WATER CONSUMPTION PER 24 HR. (TOTAL) gal. / day (m /day) EVAPORATOR OUTLET TEMP. °F (°C) HEAD PRESSURE PSIG (kg/sq.cmG) SUCTION PRESSURE PSIG (kg/sq.cmG) Note: The data without *marks should be used for reference.

  • Page 48: F-2000Mlh-C

    F-2000MLH-C APPROXIMATE ICE PRODUCTION PER 24 HR. lbs./DAY ( kg/day) APPROXIMATE ELECTRIC CONSUMPTION watts APPROXIMATE WATER CONSUMPTION PER 24 HR. (TOTAL) gal. / day (m /day) EVAPORATOR OUTLET TEMP. °F (°C) HEAD PRESSURE PSIG (kg/sq.cmG) SUCTION PRESSURE PSIG (kg/sq.cmG) Note: The data without *marks should be used for reference.

  • Page 49: Adjustment Of Components

    IV. ADJUSTMENT OF COMPONENTS 1. ADJUSTMENT OF WATER REGULATING VALVE - WATER-COOLED MODEL ONLY The Water Regulating Valve or also called “WATER REGULATOR” is factory-adjusted. No adjustment is required under normal use. Adjust the Water Regulator , if necessary, using the following procedures.

  • Page 50: Adjustment Of Flake Size

    2. ADJUSTMENT OF FLAKE SIZE To adjust the flake size, change the number of the Cutter Heads on the top of the Auger, according to the following procedures: 1) Remove the Bolt. 2) Take off the upper Cutter Head of the two (coarse flakes) or set the upper Cutter Head on the lower (fine flakes).

  • Page 51: Adjustment Of Evaporator Pressure Regulator (E.p.r) - F-2000Mlh/-C Only

    1) Remove the Cap from the E.P.R. Access Valve, and connect a pressure gauge (The E.P.R. needs no adjustment if the pressure gauge shows 22 PSIG for F-2000MLH/-C.) 2) Remove the Cover from the E.P.R., and rotate the Adjustment Screw by a hexagon wrench until the pressure gauge shows 22 PSIG (F-2000MLH/-C).

  • Page 52: Service Diagnosis

    V. SERVICE DIAGNOSIS 1. NO ICE PRODUCTION PROBLEM POSSIBLE CAUSE [1] The icemaker will not a) Power Supply start. b) Power Switch (Control Box) c) Fuse (Control Box) d) Circuit Protect Relay e) Flush Timer f) Flush Switch g) Transformer h) Control Water Valve i) Shut-off Valve j) Plug and Receptacle...
  • Page 53 (Printed Circuit Board) f) Gear Motor Protect Relay [4] Gear Motor starts, a) Pressure Switch but Compressor (for [Except Solenoid Valves) will F-2000MLH/-C] not start (open) or operates (opens) intermittently X2 Relay on Control Timer Starter [Except three phase model and...
  • Page 54 PROBLEM POSSIBLE CAUSE Compressor [Except F-2000MLH/-C] f) Power Supply g) Solenoid Valve [F-2000MLH/-C only] [5] Gear Motor and a) Refrigerant Line Compressor start (for F-2000MLH/-C, two Solenoid Valves open), but no ice is produced b) Shut-off Valves on Condensing Unit...

  • Page 55: Low Ice Production

    [1] Low ice production a) Refrigerant Line High-side Pressure Too High c) Expansion Valve (not adjustable) d) Evaporator Pressure Regulator [F-2000MLH/-C only] REMEDY 1. Gas leaks. 1. See "1. [5] a) Refrigerant Line." 2. Refrigerant line 2. Replace the clogged clogged.

  • Page 56: Others

    3. OTHERS PROBLEM POSSIBLE CAUSE [1] Abnormal noise a) Fan Motor b) Compressor [Except F-2000MLH/-C] c) Refrigerant Lines d) Gear Motor (Ice Making) e) Evaporator f) Evaporator Pressure Regulator [F-2000 MLH/-C only] Overflow from a) Water Supply Reservoir (Water b) Control Water Valve does not stop.)

  • Page 57: Removal And Replacement Of Components

    The refrigerant charge on the F-2000MLH/-C is provided from the external Compressor Rack Assembly. In the event that service is required on the F-2000MLH/-C, close the Suction and Liquid Line Shut-off Valves located at the rear of the unit. Attach the Service Manifold Hoses to the high side, low side and Evaporator Pressure Regulator (E.P.R.) access ports...
  • Page 58 5) Disconnect the Vacuum Pump, and attach a Refrigerant Service Cylinder to the High- side line. Remember to loosen the connection, and purge the air from the Hose. See the Nameplate for the required refrigerant charge. Hoshizaki recommends only virgin refrigerant or reclaimed refrigerant which meets ARI Standard No. 700-88 be used.

  • Page 59: Brazing

    2. BRAZING 1. Refrigerant R-404A itself is not flammable at atmospheric pressure and temperatures up to 176° F. 2. Refrigerant R-404A itself is not explosive or poisonous. However, when exposed to high temperatures (open flames) R-404A can be decom- posed to form hydrofluoric acid and carbonyl fluoride both of which are hazardous.

  • Page 60: Removal And Replacement Of Compressor - Except F-2000Mlh/-C

    3. REMOVAL AND REPLACEMENT OF COMPRESSOR - EXCEPT F-2000MLH/-C Always install a new Drier every time the sealed refrigeration system is opened. Do not replace the Drier until after all other repair or replacements have been made. 1) Turn off the power supply, and remove the panels.

  • Page 61: Removal And Replacement Of Drier - Except F-2000Mlh/-C

    16) Replace the panels in their correct position, and turn on the power supply. 4. REMOVAL AND REPLACEMENT OF DRIER - EXCEPT F-2000MLH/-C Always install a new Drier every time the sealed refrigeration system is opened. Do not replace the Drier until after all other repair or replacements have been made.

  • Page 62: Removal And Replacement Of Expansion Valve

    7) Install the new Drier [except F-2000MLH/-C]. 8) Check for leaks using nitrogen gas (140 PSIG) and soap bubbles. 9) Evacuate the system. Charge it with refrigerant [except F-2000MLH/-C]. For the water- cooled models, see the Nameplate for the required refrigerant charge and type. For the remote air-cooled models, see the label on the Control Box.

  • Page 63: Removal And Replacement Of Water Regulating Valve - Water-Cooled Models Only

    13) Replace the panels in their correct position, and turn on the power supply. 6. REMOVAL AND REPLACEMENT OF WATER REGULATING VALVE - WATER-COOLED MODELS ONLY. Always install a new Drier every time the sealed refrigeration system is opened. Do not replace the Drier until after all other repair or replacements have been made.

  • Page 64: Removal And Replacement Of Condensing Pressure Regulator (C.p.r.) - Remote Air-Cooled Models Only

    7. REMOVAL AND REPLACEMENT OF CONDENSING PRESSURE REGULATOR (C.P.R.) - REMOTE AIR-COOLED MODELS ONLY Always install a new Drier every time the sealed refrigeration system is opened. Do not replace the Drier until after all other repairs or replacements have been made. 1) Turn off the power supply.

  • Page 65: Removal And Replacement Of Evaporator Assembly

    8. REMOVAL AND REPLACEMENT OF EVAPORATOR ASSEMBLY 1) Turn off the power supply. For F-2000MLH/-C, close the Shut-off Valves to the Compres- sor Rack Assembly. 2) Remove the panels. 3) Move the Flush Switch to the “FLUSH” position. 4) Turn on the power supply and drain out all water from the water line.
  • Page 66 Always install a new Drier every time the sealed refrigeration system is opened. Do not replace the Drier until after all other repair or replace- ments have been made. 14) Remove the Bulb of the Expansion Valve. 15) Disconnect the brazing-connections of the Expansion Valve and the Copper Tube- Low Side from the Evaporator, using brazing equipment.
  • Page 67 (b) Replace the Drier [except F-2000MLH/-C] (c) Check for leaks using nitrogen gas (140 PSIG) and soap bubbles. (d) Evacuate the system. Charge it with refrigerant [except F-2000MLH/-C]. For the water- cooled models, see the Nameplate for required refrigerant charge and type. For the remote air-cooled models, see the label on the Control Box.

  • Page 69: Removal And Replacement Of Fan Motor

    9. REMOVAL AND REPLACEMENT OF FAN MOTOR 1) Turn off the power supply and remove the panels. 2) Remove the wire connectors from the Fan Motor leads. 3) Remove the Fan Motor Bracket and Fan Motor. 4) Install the new Fan Motor. 5) Replace the panels in their correct position, and turn on the power supply.

  • Page 70: Removal And Replacement Of Flush Water Valve

    11. REMOVAL AND REPLACEMENT OF FLUSH WATER VALVE 1) Turn off the power supply, remove the panels and close the Water Supply Line Shut-off Valve. 2) Remove the Clamp and disconnect the Flush Water Valve. Note: Water may still remain inside the Evaporator. Be sure to drain the water into the Drain Pan.

  • Page 71: Removal And Replacement Of Solenoid Valve - F-2000Mlh/-C Only

    12. REMOVAL AND REPLACEMENT OF SOLENOID VALVE - F-2000MLH/-C ONLY 1) Turn off the power supply. 2) Close the Shut-off Valves to the Compressor Rack Assembly. 3) Remove the panels. 4) Recover the refrigerant and store it in an approved container.

  • Page 72: Removal And Replacement Of Evaporator Pressure Regulator (E.p.r.) - F-2000Mlh/-C Only

    13. REMOVAL AND REPLACEMENT OF EVAPORATOR PRESSURE REGULATOR (E.P.R.) - F-2000MLH/-C ONLY 1) Turn off the power supply. 2) Close the Shut-off Valves to the Compressor Rack Assembly. 3) Remove the panels. 4) Recover the refrigerant and store it in an approved container.

  • Page 73: Removal And Replacement Of By-Pass Valve - F-2000M_H/-Cseries Only [Except F-2000Mlh/-C]

    14. REMOVAL AND REPLACEMENT OF BY-PASS VALVE - F-2000M_H/-C SERIES ONLY [EXCEPT F-2000MLH/-C] Always use a capillary tube of the same diameter and length when replacing the by-pass lines; otherwise the performance may be reduced. Always install a new Drier every time the sealed refrigeration system is opened.
  • Page 74 11) Connect the new Solenoid leads. 12) Attach the Solenoid to the valve body, and secure it with a screw. 13) Replace the panels in their correct position. 14) Turn on the power supply.

  • Page 75: Cleaning And Maintenance Instructions

    VII. CLEANING AND MAINTENANCE INSTRUCTIONS Ensure all components, fasteners and thumbscrews are securely in place after any maintenance or cleaning is done to the equipment. 1. PREPARING THE ICEMAKER FOR LONG STORAGE When shutting off the icemaker for an extended time, drain out all water from the water line and remove the ice from the Storage Bin.

  • Page 76: [Water-Cooled Models]

    Ensure all components, fasteners and thumbscrews are securely in place after any maintenance or cleaning is done to the equipment. 1. HOSHIZAKI recommends cleaning this unit at least once a year. More fre- quent cleaning, however, may be required in some existing water conditions.
  • Page 77 For safety and maximum effectiveness, use the solution immediately after dilution. <STEP 2> Use the cleaning solution to remove lime deposits in the water system. 1) Turn off the power supply. 2) Close the Water Supply Line Shut-off Valve. 3) Remove all ice from the Storage Bin. 4) Remove the Front Panel and the Top Panel.
  • Page 78 Use 3/4 gal. of the sanitizing solution to sanitize the icemaker. 1) Close the Water Supply Line Shut-off Valve. 2) Remove the Control Water Valve by releasing the Fitting Nut. 3) Remove the Cover of the Reservoir. 4) Fill the Reservoir with the sanitizing solution. 5) Replace the Cover of the Reservoir and the Control Water Valve in their correct positions.
  • Page 79 3) Remove the Gasket at the bottom of the Ice Chute and another at the Spout. 4) Remove the three Ties and the Insulation of the Chute. 5) Remove the six Wing Nuts and two Baffles. When installing the Baffles, make sure that the bent surface (the one without the studs) faces the Activator so that the bent surface can guide the ice to the center of the Activator.

  • Page 80: Maintenance Instructions

    More frequent inspection and maintenance are recommended. Consult with your local distributor about inspection and maintenance service. To obtain the name and phone number of your local distributor, call Hoshizaki Technical Support at 1-800-233-1940 in the USA. IMPORTANT...
  • Page 81 1) Stainless Steel Exterior To prevent corrosion, wipe the exterior occasionally with a clean and soft cloth. Use a damp cloth containing a neutral cleaner to wipe off oil or dirt build up. 2) Storage Bin and Scoop • Wash your hands before removing ice. Use the plastic scoop provided (Bin accessory). •...
