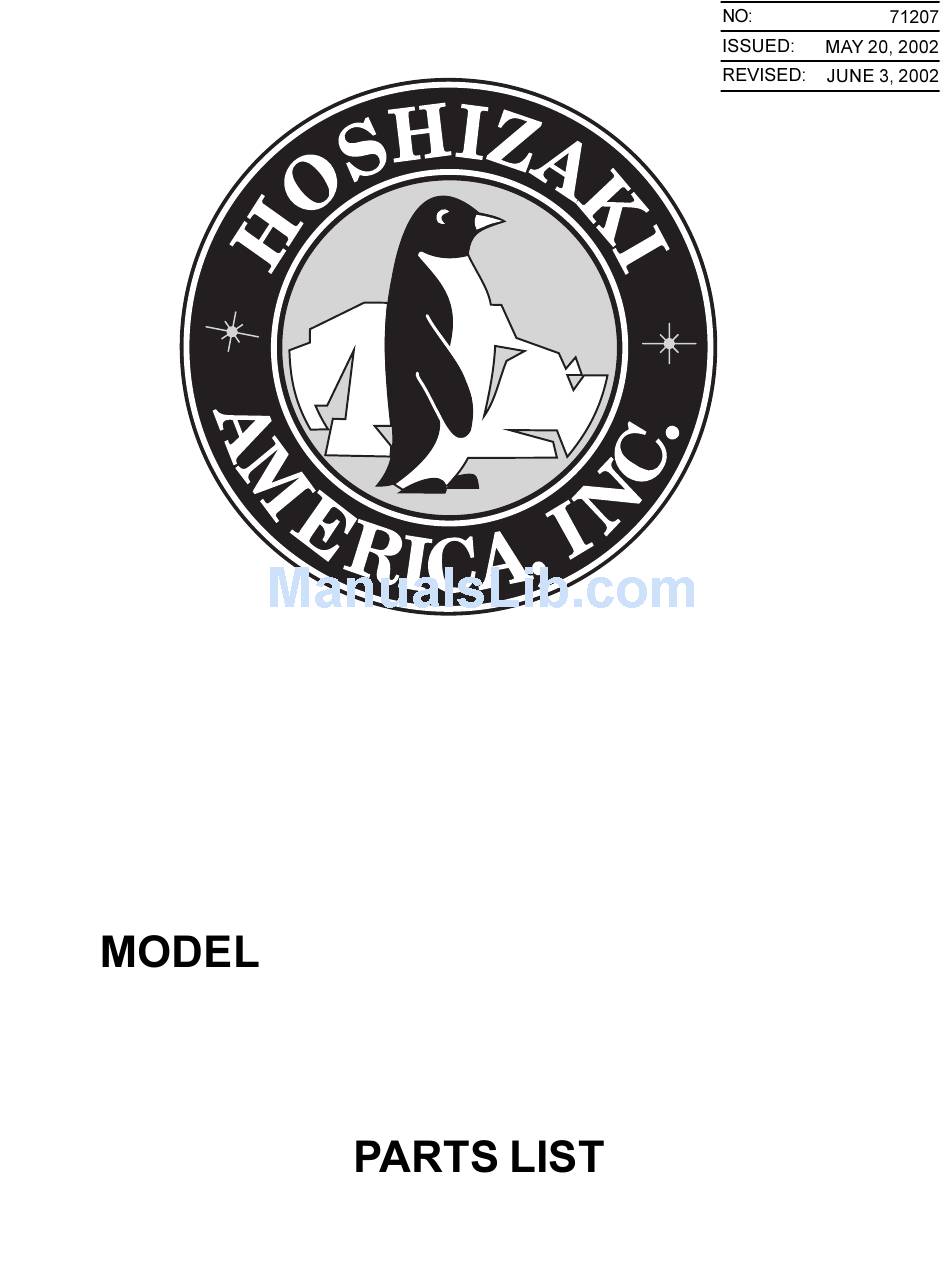

- Page 1 HOSHIZAKI MODULAR ICEMAKER F-2000MWH(-C)
-
Page 3: Material Abbreviations
ALUMINUM Aluminum COPPER Copper PLASTIC Acrylonitritrile -butadiene - styrene Polyacetal Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride RUBBER Vinyl Nitrile EPDM EP rubber Nitrile butadiene rubber Natural rubber Neoprene SI.R... -
Page 4: Ice Flaker Assembly
F-2000MWH(-C) A. ICE FLAKER ASSEMBLY L-0, M-0... - Page 5 F-2000MWH(-C) MODEL INDEX DESCRIPTION EVAPORATOR ASSEMBLY EVAPORATOR ASSEMBLY REFRIGERATION UNIT WATER CIRCUIT ASSEMBLY CHUTE ASSEMBLY SPOUT ASSEMBLY CONTROL BOX ASSEMBLY TRUSS HEAD SCREW FAN MOTOR ASSEMBLY TRUSS HEAD SCREW LABEL LOCATION LABEL LOCATION CHASSIS REAR PANEL FT SCREW HEX HEAD BOLT...
- Page 6 F-2000MWH(-C) MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER FRONT FRAME FT SCREW BRACKET - RESERVOIR T2 SCREW DRAIN PAN HEX HEAD BOLT SS, 8X12 SOCKET HEAD HEX. SS, 10xP1.5 BOLT SPRING WASHER SS, M5 GEAR MOTOR BARRIER TRUSS HEAD SCREW...
- Page 7 F-2000MWH(-C) MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER TOP PANEL FRONT PANEL LOUVER (B) PUSH RETAINER CLAMP BUSHING SB-1500-21 WIRE SADDLE VWS4218-C WIRE SADDLE VWS42105-C BUSHING SR-34-2 AIR FILTER (A) A. ICE FLAKER ASSEMBLY TITLE PART REQUIRED NUMBER NUMBER L-0 M-0...
-
Page 8: Evaporator Assembly
F-2000MWH(-C) B. EVAPORATOR ASSEMBLY L-0, M-0... - Page 9 F-2000MWH(-C) MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER GEAR MOTOR MGZ2400UL- 150E COUPLING HOUSING HEX HEAD BOLT SS, 8X25 WASHER SS, M8 SPLIT LOCK WASHER SS, M8 "O" RING MECHANICAL SEAL HK9A-MN AUGER EVAPORATOR SOCKET HEAD CAP SS, 10X20 SCREW...
-
Page 10: Refrigeration Unit
F-2000MWH(-C) C. REFRIGERATION UNIT... - Page 11 F-2000MWH(-C) C. REFRIGERATION UNIT...
- Page 12 F-2000MWH(-C) MODEL INDEX DESCRIPTION COMPRESSOR TERMINAL COVER GROMMET SPACER BOLT PRESSURE SWITCH PRESSURE SWITCH BRACKET T2 SCREW CONDENSER - WATER- COOLED HEX HEAD BOLT W/WASHER (LF) WASHER DRIER BRACKET - DRIER FT SCREW EXPANSION VALVE EXPANSION VALVE COVER CLAMP HOLDER / EXP. V - 1/2...
- Page 13 F-2000MWH(-C) MODEL MATERIAL OR INDEX DESCRIPTION MODEL NUMBER COPPER TUBE (A) - COPPER HIGH SIDE COPPER COPPER TUBE (B) - COPPER HIGH SIDE COPPER COPPER TUBE (C) - COPPER HIGH SIDE HEAT EXCHANGER COPPER WATER LINE TUBE (A) COPPER COPPER...
-
Page 14: Water Circuit
F-2000MWH(-C) D. WATER CIRCUIT L-0, M-0... - Page 15 F-2000MWH(-C) MODEL INDEX DESCRIPTION W ATER SUPPLY PIPE T2 SCREW W ATER VALVE BRACKET (A) TRUSS HEAD SCREW W ATER VALVE W ASHER INLET - RESERVOIR RESERVOIR COVER - RESERVOIR FLOAT SW ITCH SEPARATOR - RESERVOIR FITTING T2 SCREW W ATER VALVE...
- Page 16 F-2000MWH(-C) MODEL INDEX DESCRIPTION HOSE CLAMP CABLE TIE HOSE CLAMP HOSE CLAMP COLLAR THUMBSCREW D. WATER CIRCUIT TITLE MATERIAL PART OR MODEL NUMBER NUMBER L-0 M-0 4A2017-05 CV-150 7920-0003 4A2017-01 4A2017-02 423416-03 415949G04 REQUIRED NUMBER...
-
Page 17: Chute Assembly
F-2000MWH(-C) E. CHUTE ASSEMBLY L-0, M-0... - Page 18 F-2000MWH(-C) MODEL INDEX DESCRIPTION CHUTE INSULATION - CHUTE BAFFLE (A) - CHUTE BAFFLE (B) - CHUTE WING NUT BIN CONTROL ASSEMBLY ACTUATOR SHAFT SNAP PIN PLATE THUMBSCREW THUMBSCREW PROXIMITY SWITCH TRUSS HEAD SCREW PACKING E. CHUTE ASSEMBLY TITLE MATERIAL PART...
-
Page 19: Spout Assembly
F-2000MWH(-C) F. SPOUT ASSEMBLY L-0, M-0... - Page 20 F-2000MWH(-C) MODEL INDEX DESCRIPTION SPOUT ACTUATOR BELT SWITCH SWITCH COVER THUMBSCREW LABEL - DIRECTION F. SPOUT ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER 105378G01 327038-01 BS500 440973-01 327037-01 SS, ABS 415949G04 PVC FILM 442816-01 REQUIRED NUMBER...
-
Page 21: Control Box Assembly
F-2000MWH(-C) G. CONTROL BOX ASSEMBLY L-0, M-0... - Page 22 F-2000MWH(-C) MODEL INDEX DESCRIPTION CONTROL BOX COVER - CONTROL BOX TRUSS HEAD SCREW TIMER SCREW CONNECTOR TRANSFORMER T2 SCREW RELAY RELAY RELAY TAPPING SCREW MAGNETIC CONTACTOR TRUSS HEAD SCREW TIMER BOARD BOARD SUPPORT STARTER T2 SCREW START CAPACITOR CAPACITOR CAPACITOR...
- Page 23 F-2000MWH(-C) MODEL INDEX DESCRIPTION FUSE HOLDER FUSE ROCKER SWITCH LAMP PROTECTOR 12P PLUG HOUSING 6P PLUG HOUSING 02P PLUG HOUSING G. CONTROL BOX ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER L-0 M-0 4A0892-01 4A0893-01 4A0558-01 62111929-0-0- 4A1821-01 4A2672-01 440972-01...
-
Page 24: Fan Motor Assembly
F-2000MWH(-C) H. FAN MOTOR ASSEMBLY L-0, M-0... - Page 25 F-2000MWH(-C) MODEL INDEX DESCRIPTION BRACKET - FAN MOTOR GS FAN MOTOR SCREW BUSHING FAN BLADE HEX NUT WASHER H. FAN MOTOR ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER L-0 M-0 227639-01 440917-01 B8HBER16 436863-01 SB-625-8 420470-01 434959-01 4A1345-01 435983-01...
-
Page 26: Label Location
F-2000MWH(-C) J. LABEL LOCATION L-0, M-0... - Page 27 F-2000MWH(-C) MODEL MATERIAL INDEX DESCRIPTION OR MODEL NUMBER INSTRUCTION SHEET PAPER EMBLEM MODEL NUMBER (F-2000MW H) LABEL MODEL NUMBER (F-2000MW H-C) LABEL LABEL - PENGUIN - HA- INSTRUCTION LABEL PVC FILM LABEL - CLEANING PVC FILM NAMEPLATE (F-2000MW H) (F-2000MW H)
- Page 28 F-2000MWH(-C) MODEL INDEX DESCRIPTION INSTRUCTION MANUAL UNIVERSAL BRACE HEX HEAD BOLT LABEL – FASTENER TRUSS HEAD SCREW PACKAGING CARTON CORNER POST CORNER POST SIDE PROTECTOR WOOD BLOCK B PALLET TRAY K. ACCESSORIES & PACKAGING TITLE MATERIAL PART OR MODEL NUMBER...
