Summary of Contents for Hoshizaki F-2000MRF

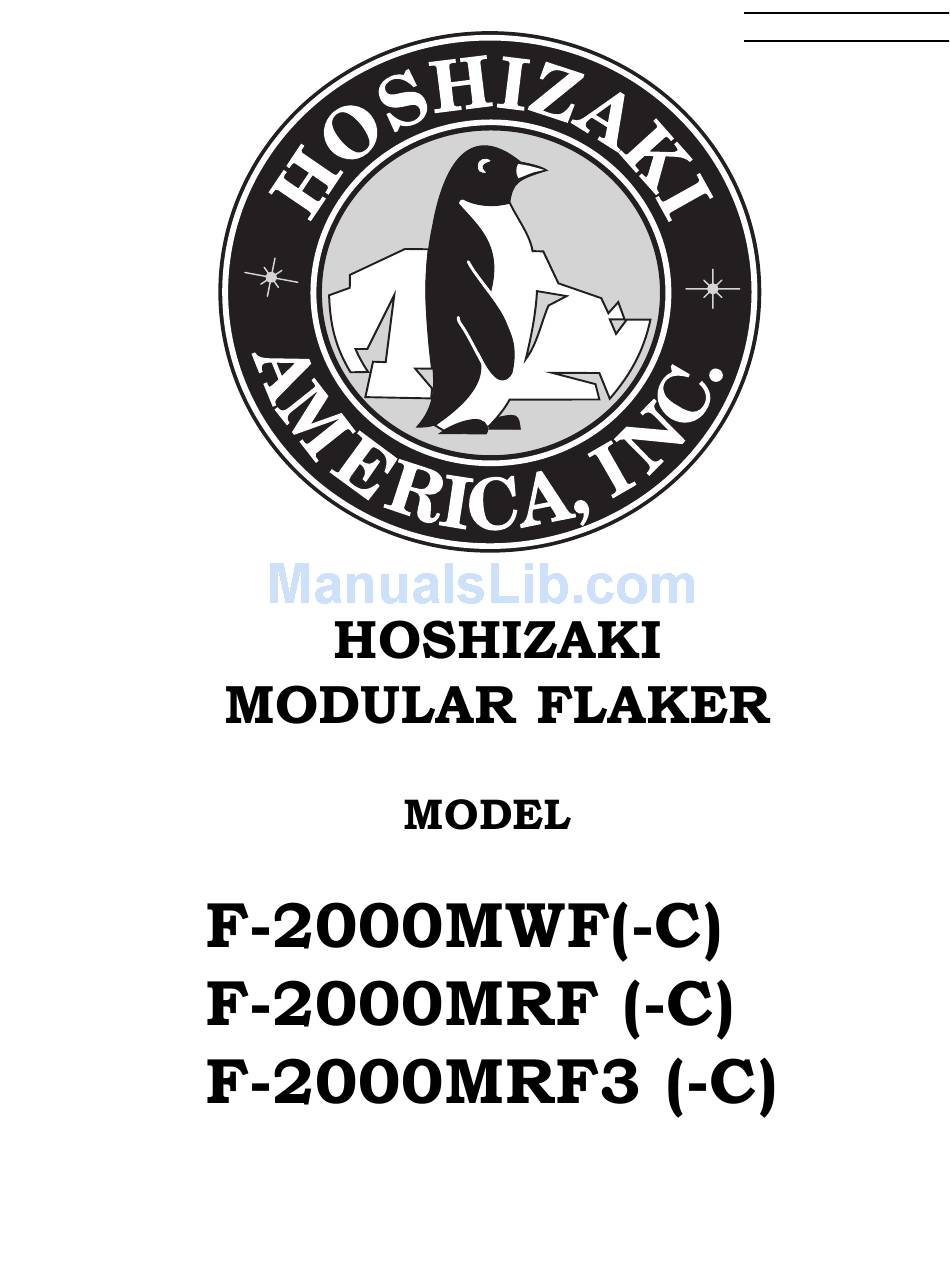

- Page 1 FEB. 23, 1998 ISSUED: INSTRUCTION MANUAL...
- Page 2 HOSHIZAKI provides this manual primarily to assist qualified service technicians in the installation, maintenance and service of the icemaker. Should the reader have any questions or concerns which have not been satisfactorily addressed, please call or write to the HOSHIZAKI Technical Support Department for assistance.
-
Page 3: Table Of Contents
• Keep this manual with the icemaker for later reference. I. SPECIFICATIONS ... 4 1. NAMEPLATE RATING ... 4 [a] F-2000MWF, F-2000MWF-C (Water-cooled) ... 4 [b] F-2000MRF, F-2000MRF-C (Remote Air-cooled) ... 5 [c] F-2000MRF3, F-2000MRF3-C (Remote Air-cooled)... 6 2. DIMENSIONS/CONNECTIONS ... 7 [a] F-2000MWF, F-2000MWF-C ... 7 [b] F-2000MRF, F-2000MRF-C ... -
Page 4: Specifications
We reserve the right to make changes in specifications and design without prior notice. NOTE: Only the “MODEL NUMBER” is replaced for F-2000MWF-C. HOSHIZAKI ICE MAKER 208-230/60/1 (3 wire with neutral for 115V) 240V 10.8RLA... -
Page 5: [B] F-2000Mrf, F-2000Mrf-C (Remote Air-Cooled)
We reserve the right to make changes in specifications and design without prior notice. NOTE: Only the “MODEL NUMBER” is replaced for F-2000MRF-C. HOSHIZAKI ICE MAKER 208-230/60/1 (3 wire with neutral for 115V) 240V 10.8RLA... -
Page 6: [C] F-2000Mrf3, F-2000Mrf3-C (Remote Air-Cooled)
This Nameplate is located on the upper right hand side of rear panel. We reserve the right to make changes in specifications and design without prior notice. NOTE: Only the “MODEL NUMBER” is replaced for F-2000MRF3-C. HOSHIZAKI ICE MAKER 240V 9.0RLA 120V 5.6FLA 0.54HP... -
Page 7: Dimensions/Connections
2. DIMENSIONS/CONNECTIONS Unit = inches [mm.] [a] F-2000MWF, F-2000MWF-C... -
Page 8: [B] F-2000Mrf, F-2000Mrf-C
[b] F-2000MRF, F-2000MRF-C, F-2000MRF3, F-2000MRF3-C Unit = inches [mm.]... -
Page 9: [C] With Storage Bin
[c] WITH STORAGE BIN Unit = inches [mm.]... -
Page 10: [D] Condenser Unit Model Urc-20F
[d] CONDENSER UNIT MODEL URC-20F Unit = mm. [inches]... -
Page 11: Installation And Operating Instructions
6) See the Nameplate on the Rear Panel, and check that your voltage supplied corresponds with the voltage specified on the Nameplate. 7) This icemaker needs a storage bin. The recommended storage bin is HOSHIZAKI ICE STORAGE BIN, Model B-500 series. -
Page 12: Location
The adjustment is made by rotating the Cutter Head on the Auger Pin. The unit is shipped from the factory in the medium flake position. If adjustment is de- sired, please contact an authorized Hoshizaki service company. 8) Replace the Top Panel and the Front Panel in their correct positions, and secure the Front Panel by a screw. -
Page 13: Electrical Connection
5. ELECTRICAL CONNECTION 1. Electrical connection must be made in accordance with the instructions on a “WARNING” tag provided with the pig tail leads in the Junction Box. 2. This icemaker requires a ground that meets the national and local electrical code requirements. -
Page 14: Installation Of Remote Condenser Unit
6. INSTALLATION OF REMOTE CONDENSER UNIT [a] CHECKS BEFORE INSTALLATION 1) Unpack and remove shipping carton, tape(s) and packing. 2) Check that the refrigerant lines do not rub or touch lines or other surfaces, and that the fan blade turns freely. 3) Make sure that the icemaker, line sets and remote condenser unit all use R-404A refrigerant. -
Page 15: [C] Set Up
The two copper tubings should be insulated separately. See Fig. 7. • Precharged tubing kits, available as optional equipment from HOSHIZAKI AMERICA, are recommended. 4) Line sets fabricated in the field should be evacuated through the charging ports on the Aeroquip couplings and charged with R-404A refrigerant vapor to a pressure of 15-30 PSIG. -
Page 16: [D] Electrical Connection
3) Connect the Fan Motor leads in the Junction Box of the remote condenser unit to the Fan Motor leads in the Junction Box of the HOSHIZAKI remote air-cooled icemaker. 4) Install a ground wire from the icemaker to the remote condenser unit. -
Page 17: [E] Stacking Condenser Unit
[e] STACKING CONDENSER UNIT 1) Secure the lower condenser unit to the Legs with eight bolts (not included). 2) Attach the upper condenser unit on the top of the lower. 3) Secure the upper condenser unit with the four screws provided. 4) Install refrigerant lines, and make electrical connection for each Fan Motor as shown in Items [c] and [d]. - Page 18 F-2000MRF F-2000MRF3 F-2000MWF Fig. 10...
-
Page 19: Final Check List
8. FINAL CHECK LIST 1) Is the icemaker level? 2) Is the icemaker in a site where the ambient temperature is within +45°F to +100°F and the water temperature within +45°F to +90°F all year around? 3) Is there at least 6" clearance at rear and sides and 24" at top for maintenance or service? 4) Have all shipping carton, tape(s) and packing been removed from the icemaker? 5) Have all electrical and piping connections been made? -
Page 20: Start Up
9. START UP 1. All parts are factory-adjusted. Improper adjustments may result in failure. 2. If the unit is turned off, wait for at least 3 minutes before restarting the icemaker to prevent damage to the Compressor. 1) Clean the Storage Bin. (See “III. 2. MAINTENANCE INSTRUCTIONS.”) 2) Open the Water Supply Line Shut-off Valve. -
Page 21: Preparing The Icemaker For Long Storage
10. PREPARING THE ICEMAKER FOR LONG STORAGE - See Fig. 11 When shutting off the icemaker for an extended time, drain out all water from the water line and remove the ice from the Storage Bin. The Storage Bin should be cleaned and dried. Drain the icemaker to prevent damage to the water supply line at sub-freezing temperatures, using air or carbon dioxide. -
Page 22: Cleaning And Maintenance Instructions
III. CLEANING AND MAINTENANCE INSTRUCTIONS 1. CLEANING INSTRUCTIONS 1. HOSHIZAKI recommends cleaning this unit at least once a year. More frequent cleaning, however, may be required in some existing water conditions. 2. To prevent injury to individuals and damage to the icemaker, do not use ammonia type cleaners. - Page 23 3) Remove all ice from the Storage Bin. 4) Remove the Front Panel and the Top Panel. 5) Move the Flush Switch to the “FLUSH” position. 6) Turn on the power supply and drain out all water from the water line. 7) Turn off the power supply.
- Page 24 <STEP 3> Use 3/4 gal. of the sanitizing solution to sanitize the icemaker. 1) Close the Water Supply Line Shut-off Valve. 2) Remove the Control Water Valve by releasing the Fitting Nut. Do not lose the packing. 3) Remove the Cover of the Reservoir. 4) Fill the Reservoir with the sanitizing solution.
- Page 25 3) Remove the Gasket at the bottom of the Ice Chute and another at the Spout. 4) Remove the three Ties and the Insulation of the Chute. 5) Remove the six Wing Nuts and two Baffles. When installing the Baffles, make sure that the bent surface (the one without the studs) faces the Activator so that the bent surface can guide the ice to the center of the Activator.
-
Page 26: Maintenance Instructions
More frequent inspection and maintenance are recommended. Consult with your local distributor about inspection and maintenance service. To obtain the name and phone number of your local distributor, call Hoshizaki Technical Support at 1-800-233-1940 in the USA. IMPORTANT... - Page 27 1) Stainless Steel Exterior To prevent corrosion, wipe the exterior occasionally with a clean and soft cloth. Use a damp cloth containing a neutral cleaner to wipe off oil or dirt build up. 2) Storage Bin and Scoop • Wash your hands before removing ice. Use the plastic scoop provided (Accessory). •...
- Page 28 HOSHIZAKI HOSHIZAKI AMERICA, INC. 618 HIGHWAY 74 SOUTH PEACHTREE CITY, GA 30269 U.S.A. PHONE: 770-487-2331 91U2CS10A...
