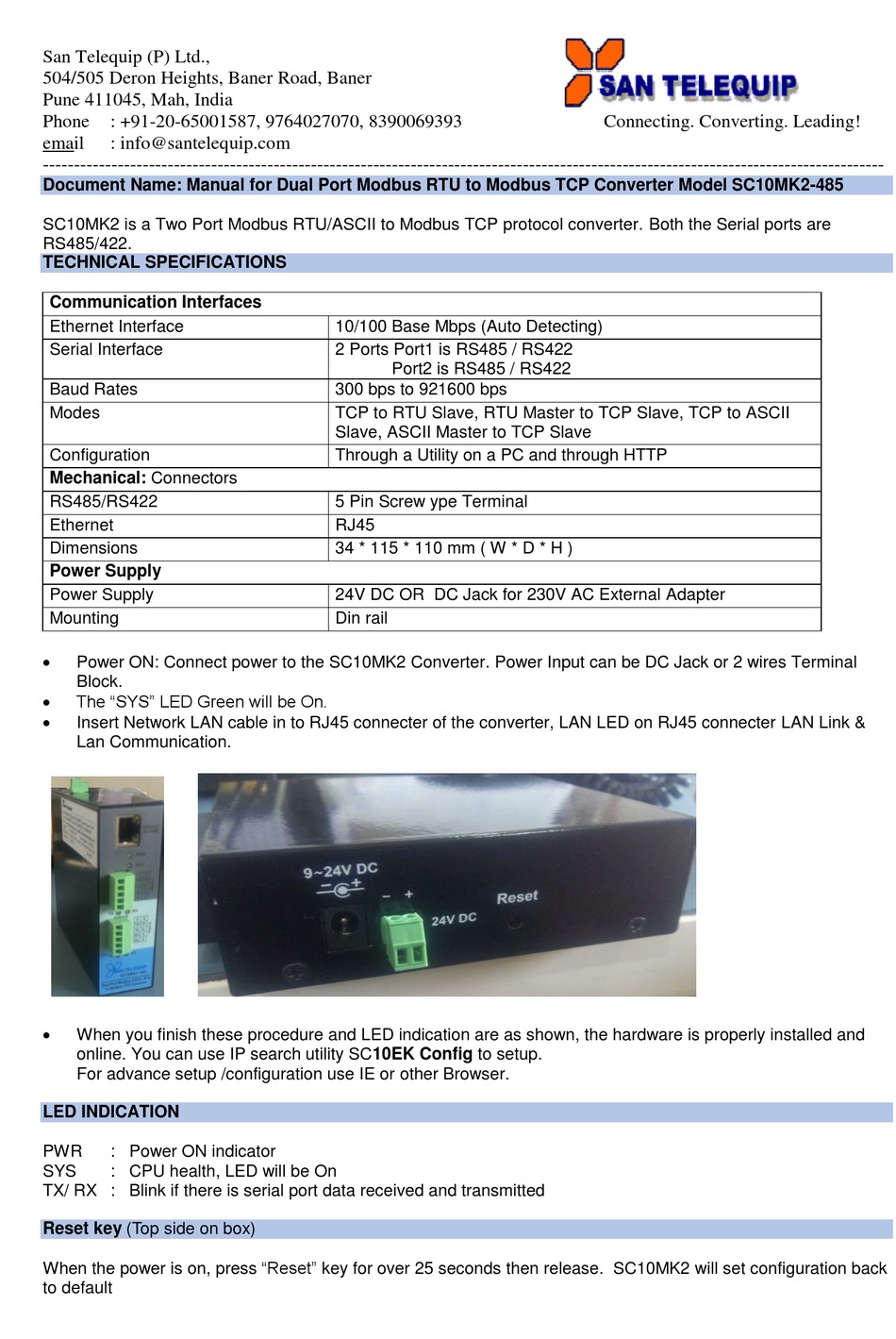

Document Name: Manual for Dual Port Modbus RTU to Modbus TCP Converter Model SC10MK2-485
SC10MK2 is a Two Port Modbus RTU/ASCII to Modbus TCP protocol converter. Both the Serial ports are
RS485/422.
TECHNICAL SPECIFICATIONS
Communication Interfaces
Ethernet Interface
Serial Interface
Baud Rates
Modes
Configuration
Mechanical: Connectors
RS485/RS422
Ethernet
Dimensions
Power Supply
Power Supply
Mounting

Power ON: Connect power to the SC10MK2 Converter. Power Input can be DC Jack or 2 wires Terminal
Block.

The "SYS" LED Green will be On.

Insert Network LAN cable in to RJ45 connecter of the converter, LAN LED on RJ45 connecter LAN Link &
Lan Communication.

When you finish these procedure and LED indication are as shown, the hardware is properly installed and
online. You can use IP search utility SC10EK Config to setup.
For advance setup /configuration use IE or other Browser.
LED INDICATION
PWR : Power ON indicator
SYS : CPU health, LED will be On
TX/ RX : Blink if there is serial port data received and transmitted
Reset key (Top side on box)
When the power is on, press "Reset" key for over 25 seconds then release. SC10MK2 will set configuration back
to default
10/100 Base Mbps (Auto Detecting)
2 Ports Port1 is RS485 / RS422
Port2 is RS485 / RS422
300 bps to 921600 bps
TCP to RTU Slave, RTU Master to TCP Slave, TCP to ASCII
Slave, ASCII Master to TCP Slave
Through a Utility on a PC and through HTTP
5 Pin Screw ype Terminal
RJ45
34 * 115 * 110 mm ( W * D * H )
24V DC OR DC Jack for 230V AC External Adapter
Din rail
