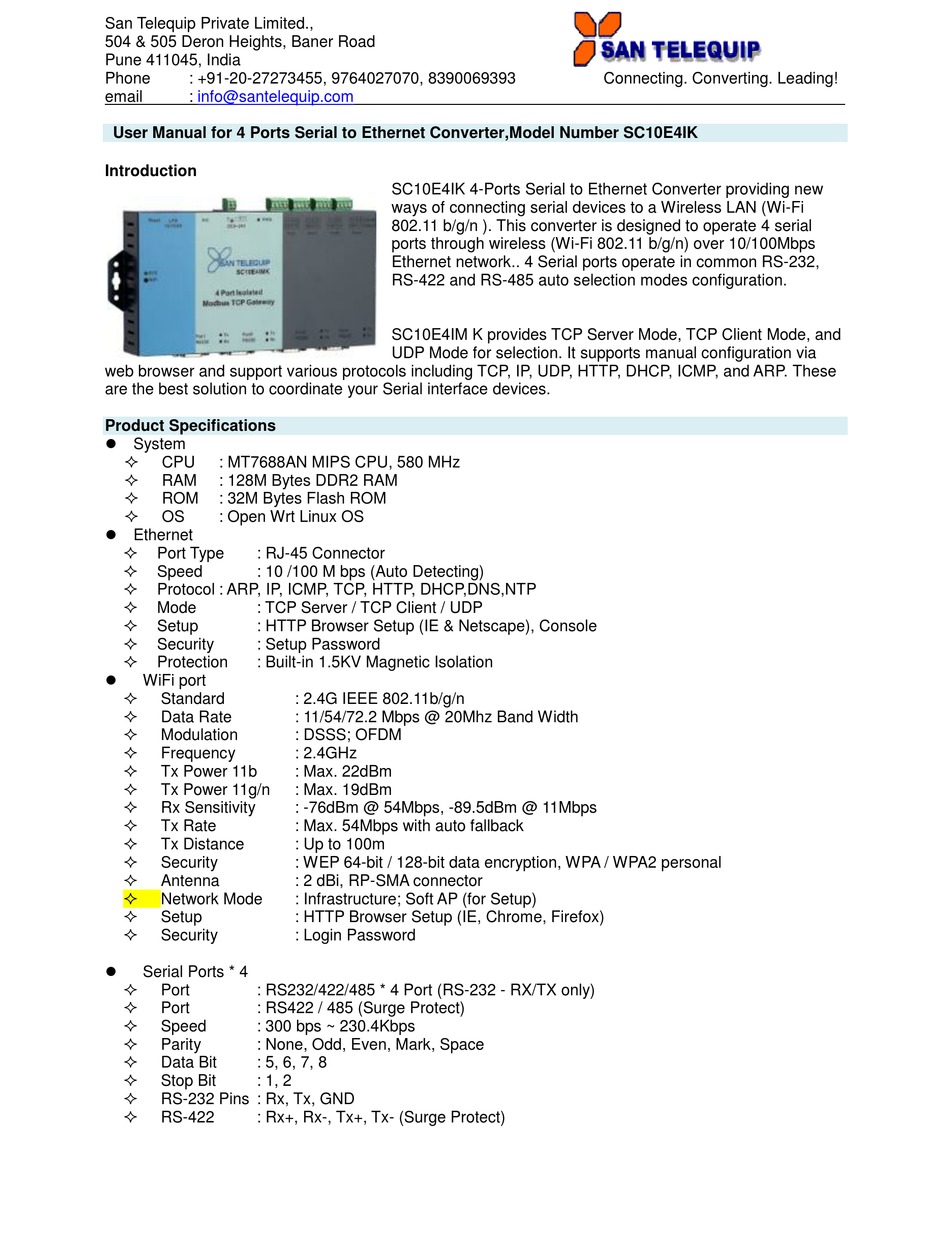

User Manual for 4 Ports Serial to Ethernet Converter,Model Number SC10E4IK
Introduction
web browser and support various protocols including TCP, IP, UDP, HTTP, DHCP, ICMP, and ARP. These
are the best solution to coordinate your Serial interface devices.
Product Specifications
System
CPU
: MT7688AN MIPS CPU, 580 MHz
RAM
: 128M Bytes DDR2 RAM
ROM
: 32M Bytes Flash ROM
OS
: Open Wrt Linux OS
Ethernet
Port Type
: RJ-45 Connector
Speed
: 10 /100 M bps (Auto Detecting)
Protocol : ARP, IP, ICMP, TCP, HTTP, DHCP,DNS,NTP
Mode
: TCP Server / TCP Client / UDP
Setup
: HTTP Browser Setup (IE & Netscape), Console
Security
: Setup Password
Protection
: Built-in 1.5KV Magnetic Isolation
WiFi port
Standard
Data Rate
Modulation
Frequency
Tx Power 11b
Tx Power 11g/n
Rx Sensitivity
Tx Rate
Tx Distance
Security
Antenna
Network Mode
Setup
Security
Serial Ports * 4
Port
: RS232/422/485 * 4 Port (RS-232 - RX/TX only)
Port
: RS422 / 485 (Surge Protect)
Speed
: 300 bps ~ 230.4Kbps
Parity
: None, Odd, Even, Mark, Space
Data Bit
: 5, 6, 7, 8
Stop Bit
: 1, 2
RS-232 Pins : Rx, Tx, GND
RS-422
: Rx+, Rx-, Tx+, Tx- (Surge Protect)
SC10E4IK 4-Ports Serial to Ethernet Converter providing new
ways of connecting serial devices to a Wireless LAN (Wi-Fi
802.11 b/g/n ). This converter is designed to operate 4 serial
ports through wireless (Wi-Fi 802.11 b/g/n) over 10/100Mbps
Ethernet network.. 4 Serial ports operate in common RS-232,
RS-422 and RS-485 auto selection modes configuration.
SC10E4IM K provides TCP Server Mode, TCP Client Mode, and
UDP Mode for selection. It supports manual configuration via
: 2.4G IEEE 802.11b/g/n
: 11/54/72.2 Mbps @ 20Mhz Band Width
: DSSS; OFDM
: 2.4GHz
: Max. 22dBm
: Max. 19dBm
: -76dBm @ 54Mbps, -89.5dBm @ 11Mbps
: Max. 54Mbps with auto fallback
: Up to 100m
: WEP 64-bit / 128-bit data encryption, WPA / WPA2 personal
: 2 dBi, RP-SMA connector
: Infrastructure; Soft AP (for Setup)
: HTTP Browser Setup (IE, Chrome, Firefox)
: Login Password
Connecting. Converting. Leading!
Advertisement
Related Manuals for San Telequip SC10E4IK
Summary of Contents for San Telequip SC10E4IK
- Page 1 : +91-20-27273455, 9764027070, 8390069393 Connecting. Converting. Leading! email info@santelequip.com User Manual for 4 Ports Serial to Ethernet Converter,Model Number SC10E4IK Introduction SC10E4IK 4-Ports Serial to Ethernet Converter providing new ways of connecting serial devices to a Wireless LAN (Wi-Fi 802.11 b/g/n ). This converter is designed to operate 4 serial ports through wireless (Wi-Fi 802.11 b/g/n) over 10/100Mbps...
-
Page 2: Warranty
LED will blink during data transferring. Serial Port of RS232/RS422/RS485 Connect the serial data cable between the SC10E4IK Converter and the Serial interface device. Follow the web page parameter setup procedures to configure the Converter. DC-IN Power Outlet The Serial to Ethernet +Wi-Fi Converter is powered by a single 12V DC (Inner positive, outer negative) power supply and 1.0mA of current. - Page 3 San Telequip Private Limited., 504 & 505 Deron Heights, Baner Road Pune 411045, India Phone : +91-20-27273455, 9764027070, 8390069393 Connecting. Converting. Leading! email info@santelequip.com If any chance you forgot the login password, or have incorrect settings making Converter inoperable. When the power is on and the “SYS” LED light on, use a point tip to press this button and hold it and wait for more than 25 seconds.
- Page 4 “SC10E4IK” is a self-extract-install program. Double click it to install this Wi-Fi IP Searching tool into host computer. SC10E4IK Finder will pop up on the screen after installation or you may double click the icon on desk top of host computer to open this tool.
- Page 5 San Telequip Private Limited., 504 & 505 Deron Heights, Baner Road Pune 411045, India Phone : +91-20-27273455, 9764027070, 8390069393 Connecting. Converting. Leading! email info@santelequip.com Wi-Fi IP Address :10.0.0.1 Click “Setup” button will pop up a window. You may change Name, Description, IP & Netmask of device.
- Page 6 San Telequip Private Limited., 504 & 505 Deron Heights, Baner Road Pune 411045, India Phone : +91-20-27273455, 9764027070, 8390069393 Connecting. Converting. Leading! email info@santelequip.com Click “Goto” button will open a web page of configuration. (default ID: admin; password: admin). Now you have successfully connected to the Converter.
- Page 7 San Telequip Private Limited., 504 & 505 Deron Heights, Baner Road Pune 411045, India Phone : +91-20-27273455, 9764027070, 8390069393 Connecting. Converting. Leading! email info@santelequip.com System: where you can change Password, set up Auto Reset time and modify Device Name, Description of device.
- Page 8 San Telequip Private Limited., 504 & 505 Deron Heights, Baner Road Pune 411045, India Phone : +91-20-27273455, 9764027070, 8390069393 Connecting. Converting. Leading! email info@santelequip.com Click to select the file with specified version and click “Confirm” button. When the selected file name appears on the input column, click “Update” button Setup is successfully configured.
- Page 9 San Telequip Private Limited., 504 & 505 Deron Heights, Baner Road Pune 411045, India Phone : +91-20-27273455, 9764027070, 8390069393 Connecting. Converting. Leading! email info@santelequip.com Network setup Wireless section Type: to select “INFRASTRUCTURE” or “ACCESS POINT” Mode: “STATIC”: To input assigned IP address, Subnet Mask.
- Page 10 San Telequip Private Limited., 504 & 505 Deron Heights, Baner Road Pune 411045, India Phone : +91-20-27273455, 9764027070, 8390069393 Connecting. Converting. Leading! email info@santelequip.com Ethernet: select STATIC or DHCP to assign IP address. Converter and DNS: To check with MIS for right IP address.
- Page 11 There are “Over TCP/IP” 1, 2, 3, 4 TCP Server: In TCP Server Mode, SC10E4IK is configured with a unique Port combination on a TCP/IP network. In this case, SC10E4IK waits passively to be contacted by the device. After a connection is established, it can then proceed with data transmission.
- Page 12 San Telequip Private Limited., 504 & 505 Deron Heights, Baner Road Pune 411045, India Phone : +91-20-27273455, 9764027070, 8390069393 Connecting. Converting. Leading! email info@santelequip.com TCP Client: In TCP Client Mode, device can establish a TCP connection with serve. Destination IP Set the IP address of host.
- Page 13 San Telequip Private Limited., 504 & 505 Deron Heights, Baner Road Pune 411045, India Phone : +91-20-27273455, 9764027070, 8390069393 Connecting. Converting. Leading! email info@santelequip.com Reset button (if needed) Ensure power is on, press “Reset” button for over 20 seconds then release. SC10E4IM K will set...
