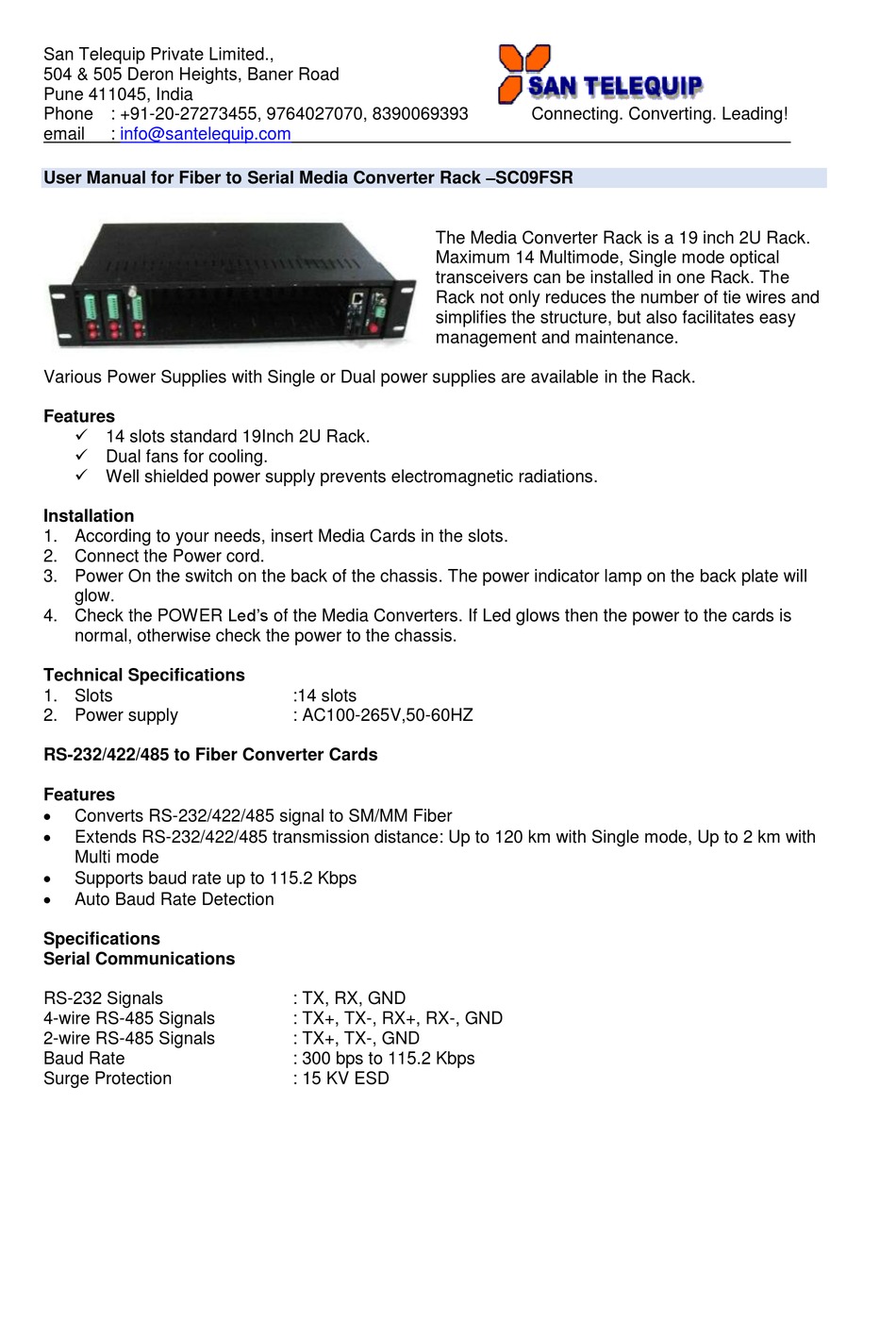

San Telequip SC09FSR User Manual

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : +91-20-27273455, 9764027070, 8390069393
email : info@santelequip.com
User Manual for Fiber to Serial Media Converter Rack –SC09FSR
Various Power Supplies with Single or Dual power supplies are available in the Rack.

Features

 14 slots standard 19Inch 2U Rack.
 Dual fans for cooling.
 Well shielded power supply prevents electromagnetic radiations.

Installation

1. According to your needs, insert Media Cards in the slots.
2. Connect the Power cord.
3. Power On the switch on the back of the chassis. The power indicator lamp on the back plate will
glow.
4. Check the POWER Led's of the Media Converters. If Led glows then the power to the cards is
normal, otherwise check the power to the chassis.

Technical Specifications

1. Slots
2. Power supply
RS-232/422/485 to Fiber Converter Cards
Features

Converts RS-232/422/485 signal to SM/MM Fiber

Extends RS-232/422/485 transmission distance: Up to 120 km with Single mode, Up to 2 km with
Multi mode

Supports baud rate up to 115.2 Kbps

Auto Baud Rate Detection

Specifications

Serial Communications
RS-232 Signals
4-wire RS-485 Signals
2-wire RS-485 Signals
Baud Rate
Surge Protection

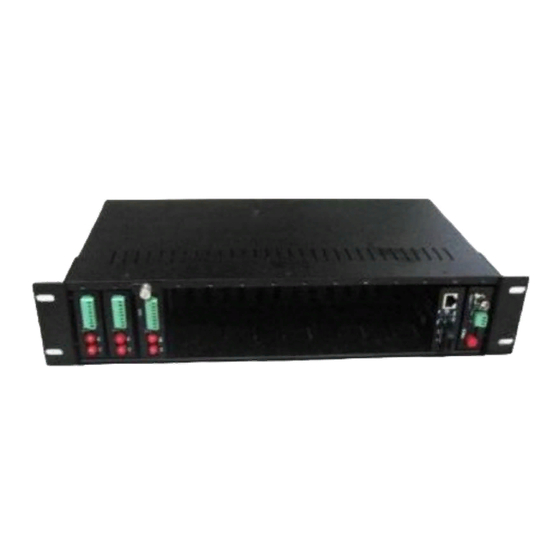

The Media Converter Rack is a 19 inch 2U Rack.
Maximum 14 Multimode, Single mode optical
transceivers can be installed in one Rack. The
Rack not only reduces the number of tie wires and
simplifies the structure, but also facilitates easy
management and maintenance.
:14 slots
: AC100-265V,50-60HZ
: TX, RX, GND
: TX+, TX-, RX+, RX-, GND
: TX+, TX-, GND
: 300 bps to 115.2 Kbps
: 15 KV ESD
