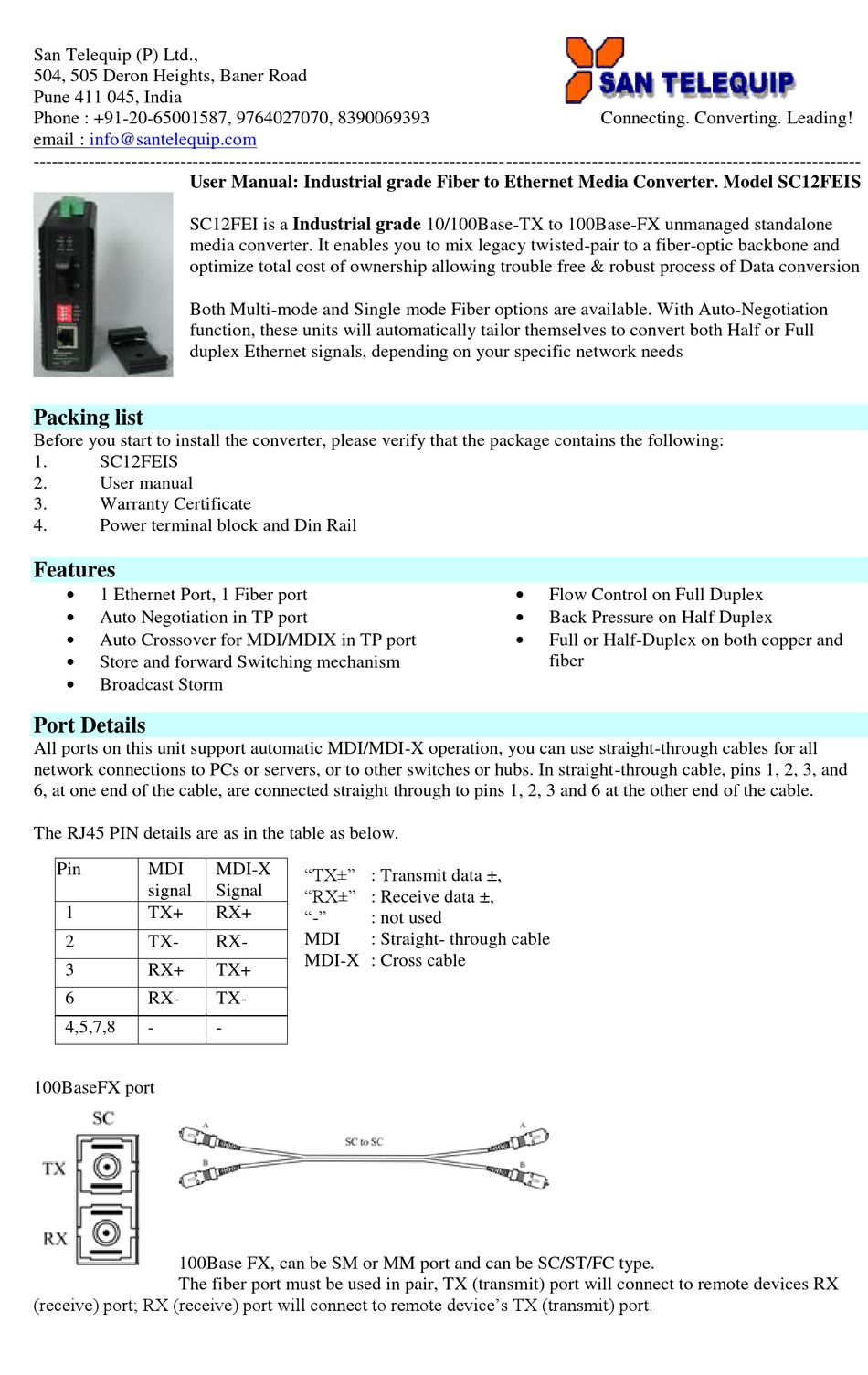

San Telequip SC12FEIS User Manual

San Telequip (P) Ltd.,
504, 505 Deron Heights, Baner Road
Pune 411 045, India
Phone : +91-20-65001587, 9764027070, 8390069393
email : info@santelequip.com
---------------------------------------------------------------------------------------------------------------------------------------
User Manual: Industrial grade Fiber to Ethernet Media Converter. Model SC12FEIS
SC12FEI is a Industrial grade 10/100Base-TX to 100Base-FX unmanaged standalone
media converter. It enables you to mix legacy twisted-pair to a fiber-optic backbone and
optimize total cost of ownership allowing trouble free & robust process of Data conversion
Both Multi-mode and Single mode Fiber options are available. With Auto-Negotiation
function, these units will automatically tailor themselves to convert both Half or Full
duplex Ethernet signals, depending on your specific network needs

Packing list

Before you start to install the converter, please verify that the package contains the following:
1. SC12FEIS
2. User manual
3. Warranty Certificate
4. Power terminal block and Din Rail

Features


1 Ethernet Port, 1 Fiber port

Auto Negotiation in TP port

Auto Crossover for MDI/MDIX in TP port

Store and forward Switching mechanism

Broadcast Storm

Port Details

All ports on this unit support automatic MDI/MDI-X operation, you can use straight-through cables for all
network connections to PCs or servers, or to other switches or hubs. In straight-through cable, pins 1, 2, 3, and
6, at one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable.
The RJ45 PIN details are as in the table as below.
Pin MDI
signal
1 TX+
2 TX-
3 RX+
6 RX-
4,5,7,8 -
100BaseFX port
100Base FX, can be SM or MM port and can be SC/ST/FC type.
The fiber port must be used in pair, TX (transmit) port will connect to remote devices RX
(receive) port; RX (receive) port will connect to remote device's TX (transmit) port.
MDI-X
"TX±" : Transmit data ±,
Signal
"RX±" : Receive data ±,
RX+
"-"
: not used
MDI : Straight- through cable
RX-
MDI-X : Cross cable
TX+
TX-
-
Connecting. Converting. Leading!

Flow Control on Full Duplex

Back Pressure on Half Duplex

Full or Half-Duplex on both copper and
fiber
