San Telequip SC09FED H User Manual

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road,
Pune 411045, India
Phone : +91-20-65001587, 9764027070, 8390069393
email : info@santelequip.com
User Manual for 10/100 Base TX to 100 Base FX Media Converter, Model SC09FED H
The 10/100M Fiber Ethernet Media Converter series is designed to meet the massive needs for
network deployment and able to extend a copper based Fast network via fiber cable to a maximum
distance up to 120KM
SC09FED H Media Converter is fully compliant with IEEE802.3, IEEE802.3U, 10/100Base-TX,
100Base-FX, standards. The installation & operation procedures are simple & straightforward.
Operation status can be locally monitored through a set of Diagnostic LED's.

Technical Specifications

Standards
Connector
Operation mode
Fiber Cable
Ethernet cable
Power Supply
Operation Temperature 0 ℃ to 60 ℃
Relative Humidity
Dimensions
Connection & LED Indicator
Ethernet /RJ-45 interface: The transmission media is CAT5 twisted-pair with typical length of 100
meter supporting MDI/MDI-X
Fiber interface: SC/ST fiber interface is of duplex mode type with two interfaces, namely TX and RX.
When the two sets of optical transceiver are interfaced to a switch with fiber interface, the fiber is in
cross connection, namely "TX-RX", "RX-TX"

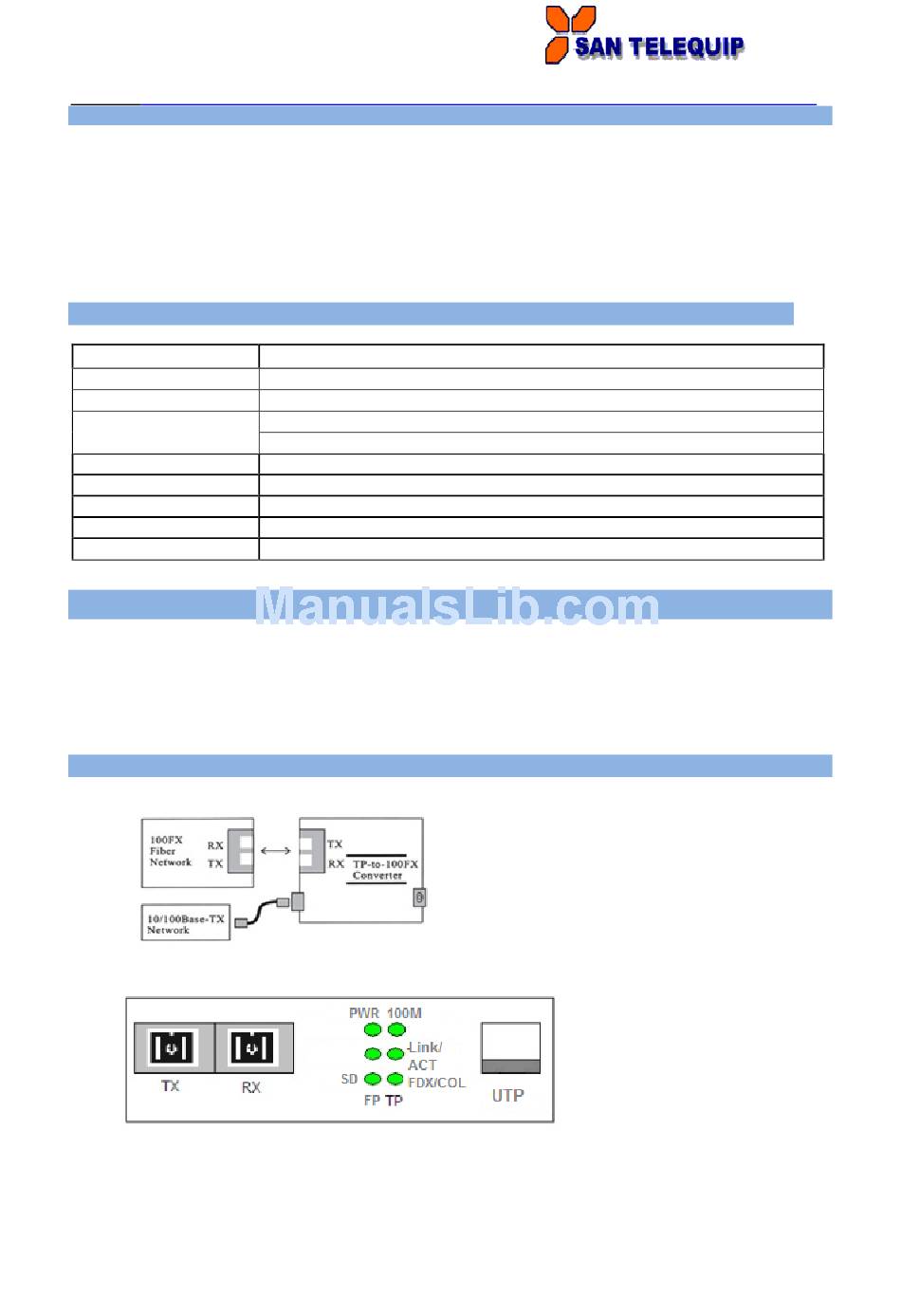

Basic Network Connection

Fig.1 Basic Network Connection
IEEE802.3,10 Base-T standard, IEEE802.3U, 100Base-TX/FX standard
One RJ-45connector & one SC/ST connector
Full duplex mode or Half duplex mode
Multi-Mode : 50/125,62.5/125 or 100/140um
Single mode: 8.3/125,8.7/125,9/125 or 10/125um
Cat 5 UTP cable
230V AC External Adapter
5% to 90% rh Non-condensation.
26mm x 70mm x 95mm
Fig.2 Front Panel
Connecting Converting Leading!
.
