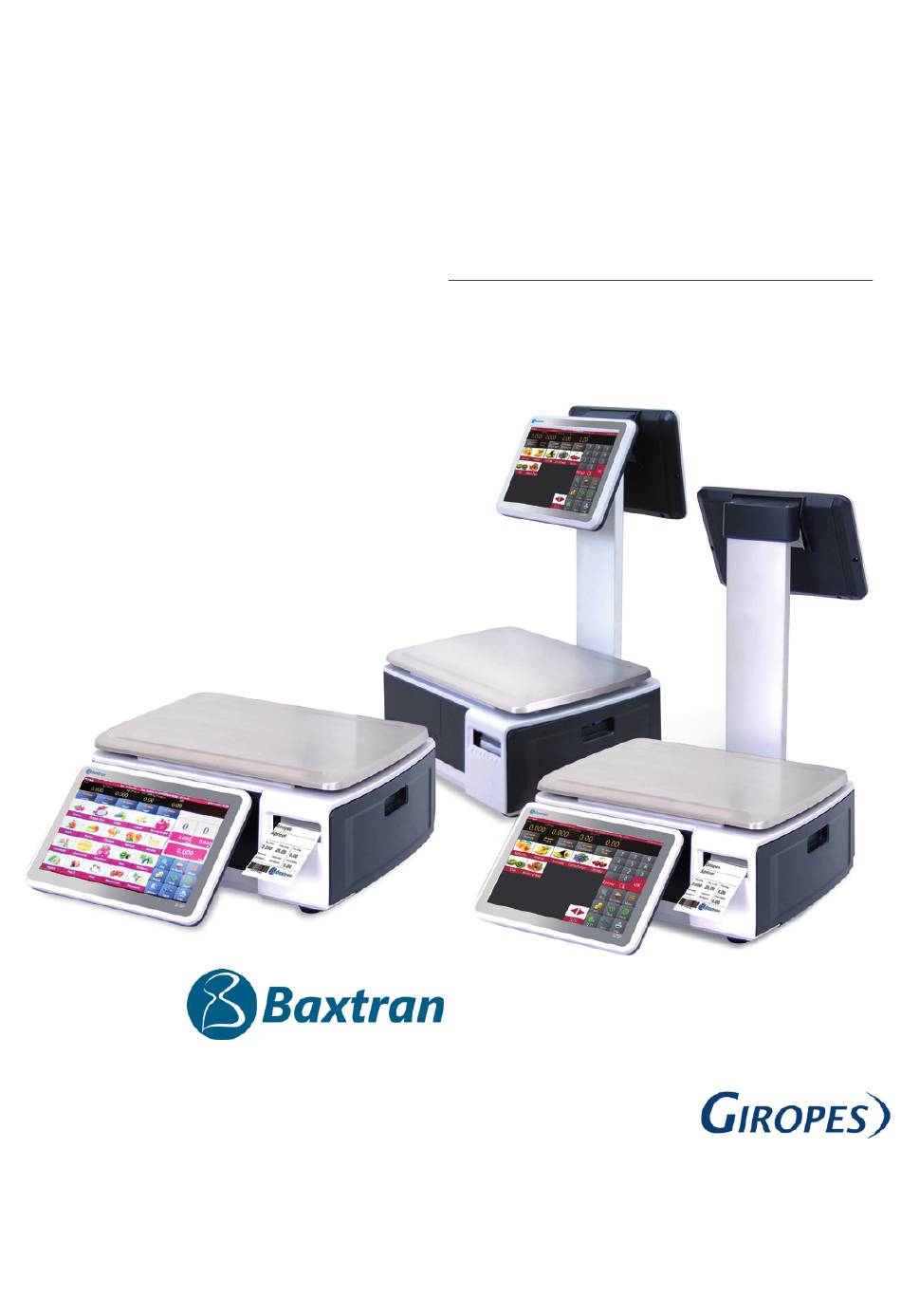

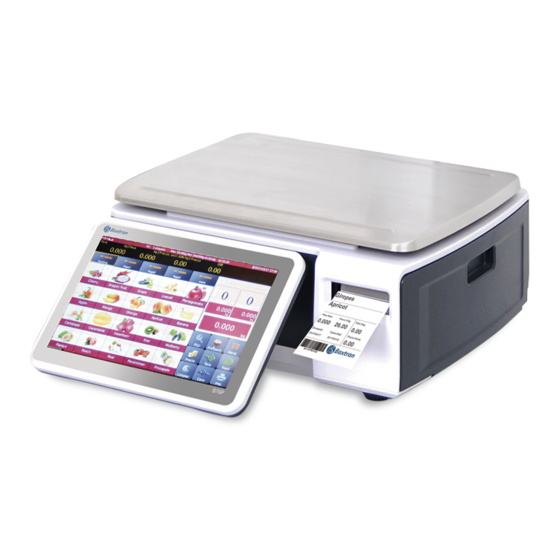

  • Page 1 USER’S GUIDE TOUCH SERIES V1.2 14/01/2022 marca propiedad de | est une marque de | trade mark propiety of: Pol. Empordà Internacional C/ Molló, 3 17469 VILAMALLA - (Girona) SPAIN T. (34) 972 527 212 - F. (34) 972 527 211 El fabricante se reserva el derecho de modificar sin previo aviso las características de sus productos para introducir mejoras técnicas o cumplir con nuevas regulaciones oficiales./Le constructeur se réserve le droit de modifier les caractéristiques de ses produits en vue d’y apporter des améliorations techniques ou de respecter de nouvelles réglamentations./The manufacturer reserves the right to modify the specifications of its products in order to make technical improvements or comply with new regulations.

  • Page 2: Table Of Contents

    USER’S GUIDE S75 1. INTRODUCTION 1.1 MAIN SETTINGS 1.2 CUSTOMER DISPLAY 1.3 SALES PAGE 1.4 BUILT-IN KEYPAD 2. OPERATION 2.1 PRODUCT LOOK-UP 2.1.1 DIRECT PLU (PRODUCT LOOK-UP): 2.1.2 IN-DIRECT PLU(PRODUCT LOOK-UP) 2.2 ZERO SETTING 2.3 TARE 2.4 PRESET TARE 2.5 WEIGHED ITEM PLU OPERATION 2.6.
  • Page 3 USER’S GUIDE S75 5.2.7. SAVE INPUT PRICE 5.2.8. PRICE UPDATE DIALOG 5.2.9. DIRECT EDITING OF PLUS 5.2.10. PRINT COUNT 5.2.11. PLAY AUDIO AFTER PRODUCT SELECTION 5.2.12. INPUT QUANTITY AFTER PRODUCT SELECTION 5.2.13. PRINT METHOD 5.2.14. PRE-PACK MODE 5.2.15. PRINT ONLY THE TOTAL IN THE PRE-PACK 5.2.16.

  • Page 4: Introduction

    USER’S GUIDE S75 1. INTRODUCTION 1.1 MAIN SETTINGS When turning on the balance and before accessing the main menu we must enter a username and a password. By default the user is “admin” and his password is “admin” as well. ICONS NAME DESCRIPTION...

  • Page 5: Customer Display

    USER’S GUIDE S75 1.2 CUSTOMER DISPLAY ICONS NAME DESCRIPTION Product To display the selected product Total Weight To display product’s total weight Unit Price To display the unit price Total Price To display the total price Slogan To display slogan Logo Company Logo 1.3 SALES PAGE...
  • Page 6 USER’S GUIDE S75 Weight Display For displaying tare weight value. Price Display For displaying unit price. Total Display For displaying total price. Product Display For displaying the current product. PLU Keys For display PLU name & number or PLU picture & name. Group Key To categorize products in different groups.

  • Page 7: Built-In Keypad

    USER’S GUIDE S75 1.4 BUILT-IN KEYPAD Keyboard Special symbols keyboard Numeric keyboard 2. OPERATION 2.1 PRODUCT LOOK-UP Click key to enter labeling mode. Product Look-up can be divided into Direct PLU and In-direct PLU...

  • Page 8: Direct Plu (Product Look-Up)

    USER’S GUIDE S75 2.1.1 Direct PLU (Product Look-up): Click the PLU from the pages. Use group key to select different product groups or category. 2.1.2 In-direct PLU(Product Look-up) Click key to enter product look-up page. Product searching by using PLU number Product searching by using names 2.2 ZERO SETTING Zero setting by pressing...

  • Page 9: Non- Weighed Item/ Pcs Plu Operation

    USER’S GUIDE S75 2.6. NON- WEIGHED ITEM/ PCS PLU OPERATION Select a Non –Weighed PLU from the direct PLU list or Indirect PLU list. Display will be show selected product name & number and default number of item. By clicking Quantity Window allows to input required PCS value (provided that we have activated the function: Settings / Operation Settings / “Enter the amount when selecting the product”) Then press...
  • Page 10 USER’S GUIDE S75 Click target window Input the number Click OK key Place the goods on the pan and wait for getting stable, press key to start to print out labels; Remove goods from the plate and load a new item for labeling, it will print automatically next label. TOTAL ACCUMULATED ITEMS FOR THE TARGET OPERATION TOTAL WEIGHED ITEMS FOR THE TARGET OPERATION FOR PRINTING TOTAL...

  • Page 11: Pre-Pack Mode - When In Stable Operation For No Of Weight/Package

    USER’S GUIDE S75 2.7.2. Pre-Pack Mode - When in Stable operation for No of weight/package It’s allows to do the print automatically when the loaded item gets stable and should be return to zero and load an item for next printing. Click key, the display will be show pre-pack operation.

  • Page 12: Pre-Pack Mode - Repeat Print

    USER’S GUIDE S75 TOTAL ACCUMULATED ITEMS FOR THE TARGET WEIGHING TOTAL WEIGHED ITEMS FOR THE TARGET OPERATION FOR PRINTING TOTAL Remove item from the pan for the next operation Note: By pressing key allows clearing the current product name & price, or by selecting a new PLU key will be clear existing PLU name &...
  • Page 13 USER’S GUIDE S75 Target value operation Click target window Input the number Click OK key to confirm of pack pressing key to start to print out labels It will print automatically next label when it’s removed printed label.

  • Page 14: Pre-Pack Mode - Manual

    USER’S GUIDE S75 TOTAL OPERATIONS FOR THE TARGET OPERATION TOTAL PCS ITEMS FOR THE TARGET OPERATION FOR PRINTING TOTAL Note: By pressing key allows clearing the current product name & price, or by selecting a new PLU key will be clear existing PLU name & price automatically. 2.8.2.

  • Page 15: Non Plu-Weight Item Operation

    USER’S GUIDE S75 Press key to get print out label. remove goods from the plater and load a new item on the plater for labeling, it will print automatically next labels. TOTAL OPERATIONS TOTAL PCS FOR PRINTING TOTAL Note: By pressing key allows clearing the current product name &...

  • Page 16: Non Plu / Non-Weighed Item Operation

    USER’S GUIDE S75 2.10 NON PLU / NON-WEIGHED ITEM OPERATION For a non-PLU operation, click on the key to input price for the item. Then click ok to confirm. By clicking on quantity windows allows to input required pieces valour follow to click ok to confirm. The total price will be shown.

  • Page 17: Product

    USER’S GUIDE S75 Select type: editing products ID Products under main category Preset For setting department name/description Preset For printing format Preset For tax values Select type: editing product ID Products under category Select type, editing products ID Products under category 3.1 PRODUCT Click key to add a new product name.
  • Page 18 USER’S GUIDE S75 Product item description ITEM DESCRIPTION PLU Number will be generate automatically or enter 5 digit numeric characters PLU number 00001~99999 Product code 13 Digits numeric characters; Barcode EAN 13. Product name Enter name of the PLU. 1000 alphanumeric characters Abbreviation Enter short name of the PLU.

  • Page 19: Commodity Category

    USER’S GUIDE S75 3.2. COMMODITY CATEGORY Commodity category classify the commodities, serial number can input from 1~29999, Commodity category include Cate- gory2, serial number can input from 30000~59999, Category2 include Category3 the serial number can input >=60000 Click Commodity Category, Category2, Category3 enter into the category setting menu Click to add new main category...

  • Page 20: Print Format

    USER’S GUIDE S75 3.4. PRINT FORMAT Click Print format key to enter into print format setting menu. Click key to add new print format, input print format name Click path, it will pop-up window to select format Select and click the required print format, display will shoud the print format, can tick to default setting Click to save print format...

  • Page 21: Nutritional Components

    USER’S GUIDE S75 3.6. NUTRITIONAL COMPONENTS Click on the nutrition component key to enter the nutrition com- ponent setting interface. Click Add New Nutritional Component Name and Nutri- tional Component Number Click key to save data Click key to return Click to edit the nutritional information.

  • Page 22: Data Storage

    USER’S GUIDE S75 Export data: Insert U disk into the USB2.0 interface Click<Export data>, the data will be exported to the file “scale_data” For example: the product information file show as below 4.1 DATA STORAGE File name in U disk: scale_data “scale_data”...
  • Page 23 USER’S GUIDE S75 • image_category format: “png” resolution: 150x150 ~ 300x300. size: 50kb ~ 100kb name: alphanumeric • format_label Format suffix is .fmt, logo suffix is .bmp File name only support number and character • media– broadcast by customer display 10”...

  • Page 24: Csv File Guidance

    USER’S GUIDE S75 4.2 CSV FILE GUIDANCE Csv file instruction:if the row starts with‘#’, it is note row, will be ignored, no need to input field. • product.csv–product list Shop ID id of the shop the product will be applied to. Branch ID id of the branch the product will be applied to.
  • Page 25 USER’S GUIDE S75 Tax_num product tax Ingredient product ingredient Period product period Recommend product recommend date Label format label format no. in the list Trace reserved function;default: 0 product image; folder name:image_product, all images should be named Image (xxxxx.png)&image name should be same as PLU number Area production area Temp_index...
  • Page 26 USER’S GUIDE S75 5. SETTING Click to enter parameter setting page PERSONNEL OPERATION Technician input technician and password, you could Access all parameters and settings Can Access parameters except weighing settings and calibration. If requires, need to login as Admin admin and press CAL switch.
  • Page 27 USER’S GUIDE S75 SETTING Main menu Submenu Description Company Name input company information which can be displayed in print format Address Telephone Website Logo select logo Slogan Input slogan Shop No. Input shop no. Department input department information User Information Scale No.
  • Page 28 USER’S GUIDE S75 Remote scale Developing function Product Display Setting up Product Display Mode Show PLU/Price Select product to display PLU Number / Price Automatic PLU deselection Clear PLU information after printing Homepage After Print Return to homepage after print Allow price change for zero priced items On/off Enable price key...

  • Page 29: Basic Information

    USER’S GUIDE S75 For setting back display logo from the external USB disk / scale Logo Setting memory Show ad. In main display Select Back display as product picture/ad Slogan setting Set up scrolling captions on the guest display Back Display Advertisement Window Mode Used to choose mode of customer display Slides...

  • Page 30: Price Decimal Places

    USER’S GUIDE S75 5.1.3. Price Decimal Places Select price decimal from the list. From 0 to 0.0000, this will be displayed in unit price and total price window. 5.1.4. CSV Separator For select the CSV columns separator. Comma (,) or Semicolon (;). 5.1.5.

  • Page 31: Total Rounding

    USER’S GUIDE S75 5.1.8. Total Rounding Select the rounding method from the list 5.1.9. Price Unit Setting If the product follows the scale’s price unit, it will automatically transform the price, and make sure the display price unit is always the same. If the product follows its own price unit, it will disregard the price unit of the scale 5.1.10.

  • Page 32: Product Display

    USER’S GUIDE S75 5.2.1. Product Display Types of product display can be set Display the product image and name: The product image and name will be displayed in the sales interfa- ce; if the product does not have a picture, the product name and number will be automatically displayed.

  • Page 33: Allow Price Change For Zero-Priced Items

    USER’S GUIDE S75 5.2.5 Allow price change for zero-priced items Zero-priced items can be set on/off On: unit price can be changed for zero-priced items 5.2.6. Enable price key Used to set to input unit price manually Can be turned on / off On:Allow manual input product prices Off: Manual input product prices is not allowed 5.2.7.
  • Page 34 USER’S GUIDE S75 5.2.9. Direct editing of PLUs Long press edit can be set to open or close Open: When this function is enabled, long press the PLU in the sales interface to open the edit page. Close: When this function is disabled, long pressing the PLU in the sales interface will have no effect.
  • Page 35 USER’S GUIDE S75 5.2.13. Print Method Can set two print modes Manual: it will print after press the print key Auto (when stable): load weights, it will print after stable 5.2.14. Pre-pack Mode Print operation under pre packing mode Auto (when stable): it will print automatically after stable, after zero, put another item, it will print the next label.
  • Page 36 USER’S GUIDE S75 5.2.17. Search by shelf number or PLU number Shelf number and PLU number search are available. PLU number:select product PLU, press key, search products according to PLU. shelf number: select shelf number, press key, search products according to shelf number. 5.2.18.
  • Page 37 USER’S GUIDE S75 5.2.21. Show keypad extension Turn on/off the extended keypad. On: 3 additional function buttons will appear in the standard keypad. Off: Use standard 9-key keypad. 5.2.22. Require Password Turn on/off the password prompt before entering the main menu. On: Password input is required each time Off: If an account has been logged in, there will no longer be a password prompt...
  • Page 38 USER’S GUIDE S75 5.2.25. Print Second Label Turn on/off second label On: A second label will be printed if the PLU has configured a second label format. Off: A second label will not be printed. 5.2.26. Label Reports Turn on/off label reports On: Each label printed will be saved in the database.
  • Page 39 USER’S GUIDE S75 5.3. BACK DISPLAY 5.3.1 Logo Setting For setting back display logo from the external USB disk / scale memory. 5.3.2 Show ad. In main display Show ad. In main display can be set on/off. Select Back display as product picture/ad. On: Back display displays the ads after selecting the product.
  • Page 40 USER’S GUIDE S75 5.3.3 Slogan Setting Enter text for customer display scrolling, and check the checkbox to enable. You may set the scrolling speed and left-to-right option 5.3.4 Advertisement Window Mode Current Product Image: The selected product image will display on the customer screen For Advertisement: Customer display will only display the images and videos 5.3.5 Slides...
  • Page 41 USER’S GUIDE S75 5.4. SYSTEM SETTINGS 5.4.1 Gravity Settings Input gravity for your region 5.4.2 Date format Select date format and separator...
  • Page 42 USER’S GUIDE S75 5.4.3 Language Settings Select the applicable language. Once a new language is selected, the scale will reboot. 5.4.4 Sound Check the touch screen sound to turn off or turn on the touch screen sound. If you can play the product voice, drag the scroll bar to adjust the sound size.
  • Page 43 USER’S GUIDE S75 5.4.7 Reset Database Clear the data in the described fields. This operation should be done with caution. Once the data is deleted, it cannot get recovered. Make sure all data can be regenerated before doing so. 5.5 COMMUNICATION 5.5.1 Com 1 COM1 for connecting printer/PC.
  • Page 44 USER’S GUIDE S75 If select print mode, select ticket printer/label printer from the list PRINTER MODEL REMARK epm205 Built-in ticket printer RTI, RTN, os2130 Argox Label printer OS-2130D, CP 2140,RP80VI rg88v REGO Thermal printer; RG-P88V pos76xx SPRT Dot Matrix Printer; SP-POS76IV etc. rp76 REGO Dot Matrix Printer;...
  • Page 45 USER’S GUIDE S75 6. ERROR MESSAGES Remove the load. Over load --ol-- Re calibrate Underload Minus weight check the platform and restart or calibrate. --Ul-- Zero setting range exceeded due to switching on.(4%max) Zero setting error Err 4 Make sure platform empty. In the case of errors which you cannot eliminate yourself and which are not described in these operating instructions, please contact Baxtran technical support team.
  • Page 46 USER’S GUIDE S75 8. CHANGING THE LABEL ROLL 8.1 OPEN THE COVER ON THE RIGHT SIDE OF THE SCALE BASE. 8.2 UNLOCK THE LABEL ROLL. 8.3 OPEN THE ROLL HOLDERS, REMOVE THE PAPER AND INSERT A NEW ROLL. Close the fasteners, put the label drawer inside, lock the roll and close the cover.
  • Page 47 USER’S GUIDE S75...
