ci5000 Series Printer Operation Guide
Printer Overview
The Printer consists of a Controller cabinet and a printhead that are connected by a Flexible conduit.
They work seamlessly together to create reliable coding product. The cabinet is split into an electronics
compartment and a fluid compartment. The electronics compartment houses the controller PCB, the
touch screen interface, and the interface connectors.
The fluids compartment houses the ink system and the ink and make-up tanks. These tanks are filled
using their respective fill ports located on the top of the printer.
Controller Cabinet
The front half of the controller cabinet consists of the electronics compartment. The cover, also known as
the tablet has the touchscreen display, ciSafeFill Reader and Controller PCB. The right-hand side of the
electronics cabinet houses the air filter*. The left side has the accessory connectors (Beacon, Photocell,
Encoder, Relay, USB, and Ethernet), power plug and the power on/off button.
*not available in the ci5650

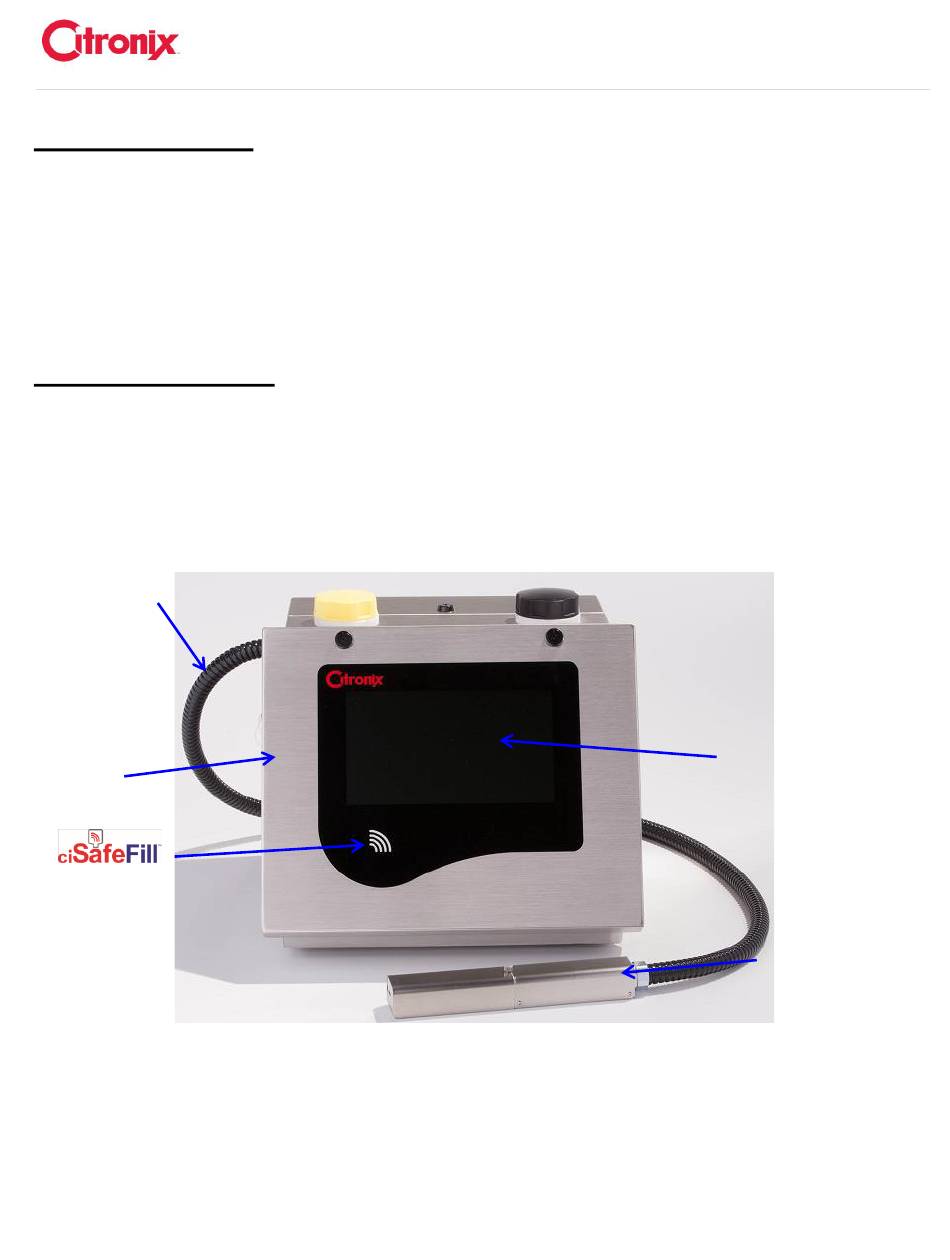

Flexible conduit
Touch Screen
Tablet
Reader
Printhead
