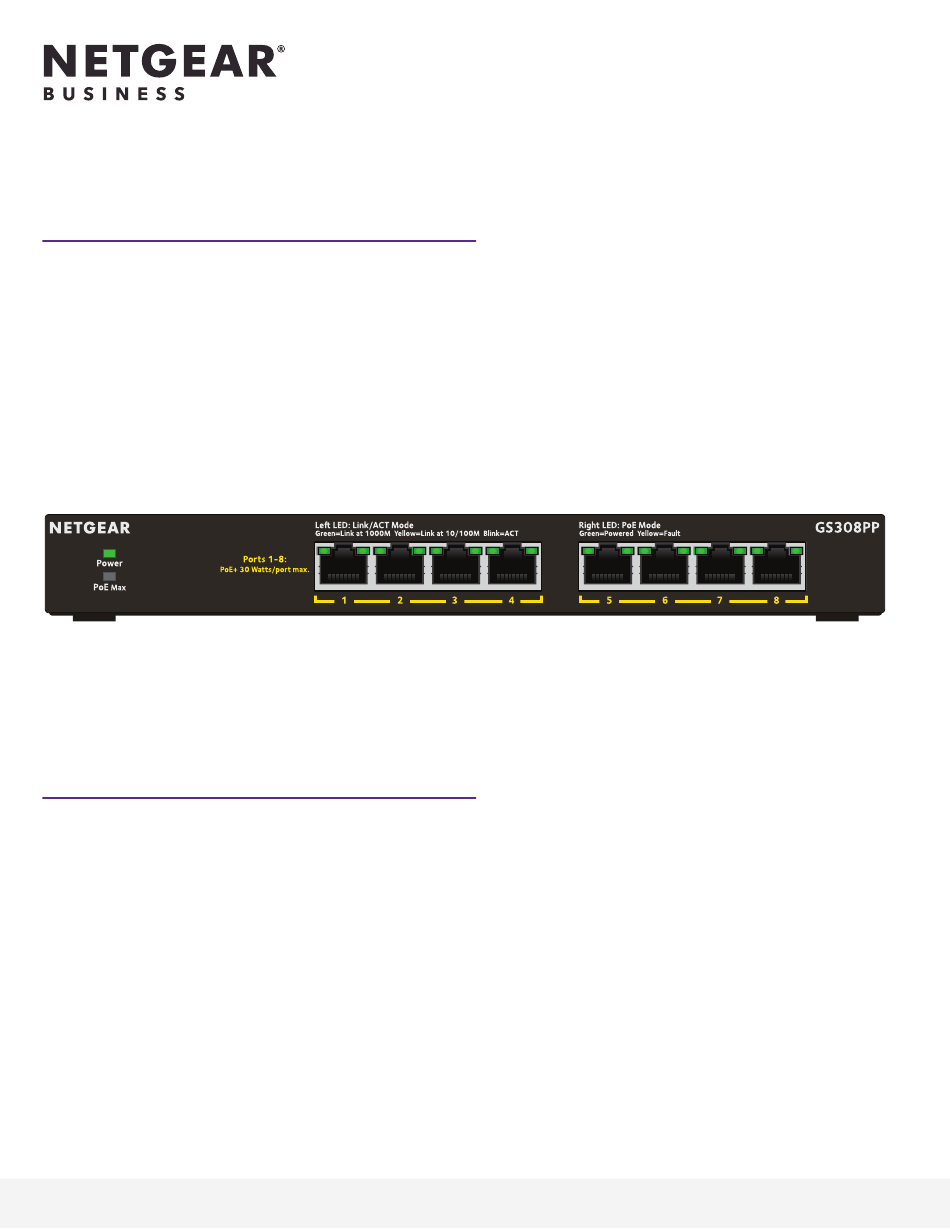

Installation Guide
8-port Gigabit Ethernet Unmanaged
High-Power PoE+ Switch with FlexPoE
Model GS308PP
Package contents
•
Switch
•
Power cord (varies by region)
•
Power Adapter (90W)
•
Wall installation kit
•
Rubber feet
•
Mounting ties (for power adapter)
•
Installation guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the GS308PP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NETGEAR GS308PP

Summary of Contents for NETGEAR GS308PP

  • Page 1 Installation Guide 8-port Gigabit Ethernet Unmanaged High-Power PoE+ Switch with FlexPoE Model GS308PP Package contents • Switch • Power cord (varies by region) • Power Adapter (90W) • Wall installation kit • Rubber feet • Mounting ties (for power adapter) •...

  • Page 2: Connect The Switch

    Register with the NETGEAR Insight app 1. Search for NETGEAR Insight and download the latest app. 2. Set up a NETGEAR account if you do not have one. 3. Tap the menu in the upper-left corner. 4. Tap REGISTER ANY NETGEAR DEVICE.

  • Page 3: Poe Considerations

    PDs that are connected to the The following tables describe the power adapter models that are compatible with the GS308PP switch and the PoE classes and switch allocations: Note: The listed total power budget is the maximum power limit for the switch.
  • Page 4 The PoE voltage of the port is outside the Restart the switch to see if the condition range that the switch permits. resolves itself. © NETGEAR, Inc., NETGEAR and the NETGEAR Logo December 2019 are trademarks of NETGEAR, Inc. Any non-NETGEAR trademarks are used for reference purposes only.
  • Page 5 Check the PoE status Power LED Left Port LEDs Right PoE LEDs PoE in use 1000 Mbps link 100 or 10 Mbps link PoE halted (see troubleshooting) No PoE use (off) Activity (blinking) No link (off) The switch can supply up to 30W PoE+ (IEEE 802.3at) to each port, with a maximum PoE power budget of total 83W with a 90W power adapter and total 123W with a 130W power adapter across all active PoE+ ports.
  • Page 6 Attach the switch to a wall To attach the switch to a wall, you need the wall-mount screws that are supplied with the switch. To attach the switch to a wall: 2. Mark and drill two mounting holes in the wall where you want to mount the switch.
  • Page 7 Description Network interfaces 8 Gigabit Ethernet RJ-45 ports that support 1G, 100 M, and 10 M 8 PoE/PoE+ ports Power adapter input Power cord varies by region. Power adapter output The switch supports two power adapters: • 90W: 54V @ 1.66A •...
  • Page 8 Support Thank you for purchasing this NETGEAR product. You can visit https://www.netgear.com/support/ to register your product, get help, access the latest downloads and user manuals, and join our community. We recommend that Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français canadien à...
