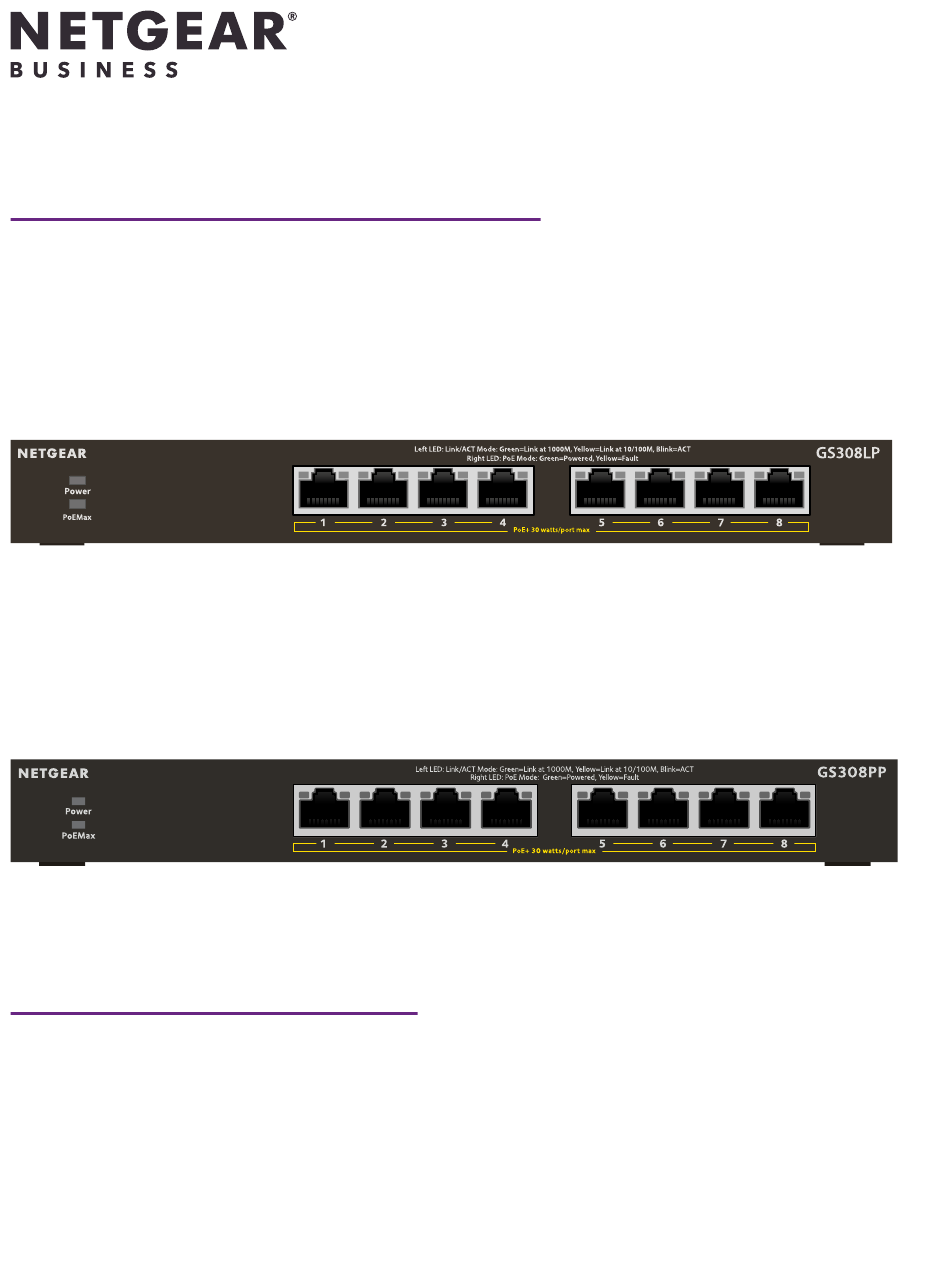

Installation Guide
8-Port Gigabit Ethernet PoE+ Unmanaged
Essentials Switch with FlexPoE
Model GS308LP
8-Port Gigabit Ethernet High-Power PoE+
Unmanaged Essentials Switch with FlexPoE
Model GS308PP
Package Contents
•
Switch
•
Power adapter: 67.5W (GS308LP), 90W (GS308PP)
•
Power cord (varies by region)
•
Wall installation kit
•
Rubber feet
Advertisement
Related Manuals for NETGEAR GS308LP
Summary of Contents for NETGEAR GS308LP
- Page 1 Essentials Switch with FlexPoE Model GS308LP 8-Port Gigabit Ethernet High-Power PoE+ Unmanaged Essentials Switch with FlexPoE Model GS308PP Package Contents • Switch • Power adapter: 67.5W (GS308LP), 90W (GS308PP) • Power cord (varies by region) • Wall installation kit • Rubber feet...
-
Page 2: Step 1. Register The Switch
From a computer or mobile device that is connected to the Internet, visit my.netgear.com. Log in to your NETGEAR account. NOTE: If you don’t have a free NETGEAR account, you can create one. The My Products page displays. From the menu on the left, select Register a Product. -
Page 3: Step 2. Connect The Switch
Ethernet surge protector inline between the switch and the outdoor device. Failure to do so can damage the switch. Before connecting this switch to outdoor cables or devices, see kb.netgear.com/000057103 for safety and warranty information. - Page 4 Step 3. Check the LED status Description Power Solid green: The switch is powered on and operating normally. Off: Power is not supplied to the switch. Off: Sufficient (more than 7W of) PoE power is available on the PoE Max switch.
-
Page 5: Poe Considerations
(PD) exceed the power budget of the switch, the PD on the high- est-numbered port is disabled. The GS308LP can supply up to 30W PoE+ to each port, with a total maximum PoE power budget of 60W. It can be upgraded to a total maximum PoE budget of 83W or 123W with the purchase of an optional power adapter. - Page 6 Device Compatible Class Maximum Power Class Description Power Supplied Delivered to Standard by the Switch the Device PoE and Low power 7.0W 3.84W–6.49W PoE+ PoE and Mid power 15.4W 6.49W–12.95W PoE+ PoE+ High power 30.0W 12.95W–25.5W PoE troubleshooting Here are some tips for correcting PoE problems that might occur: •...
- Page 7 Change the switch’s PoE budget As an option, you can move the slider on the back of the switch to increase or decrease the PoE budget. You can increase the PoE budget if you purchase a higher wattage power adapter. You also can move the slider to a PoE budget that is lower than the power adapter wattage.
-
Page 8: Mount The Switch To A Wall
No. 2 Phillips screwdriver. Leave about 0.15 in. (4 mm) of each screw protruding from the wall so that you can insert the screws into the holes on the bottom panel. NOTE: The GS308LP and GS308PP switch models do not support rack mounting. -
Page 9: Specifications
1.32 lb (0.6 kg) Operating temperature 32–104°F (0–40°C) Operating humidity 10%–90% relative humidity, noncondensing Compliance • Model GS308PP: FCC class A, CB, CE class A, VCCI class A, RCM class A, KC, BSMI • Model GS308LP: FCC class A, CB, CE class A... - Page 10 See the regulatory compliance document before connecting the power supply. For NETGEAR’s Privacy Policy, visit netgear.com/about/privacy-policy. By using this device, you are agreeing to NETGEAR’s Terms and Conditions at netgear.com/about/terms-and-conditions. If you do not agree, return the device to your place of purchase within your return period.
