BAC-5000 LCD Digital Fan Coil Thermostat-Installation Instruction

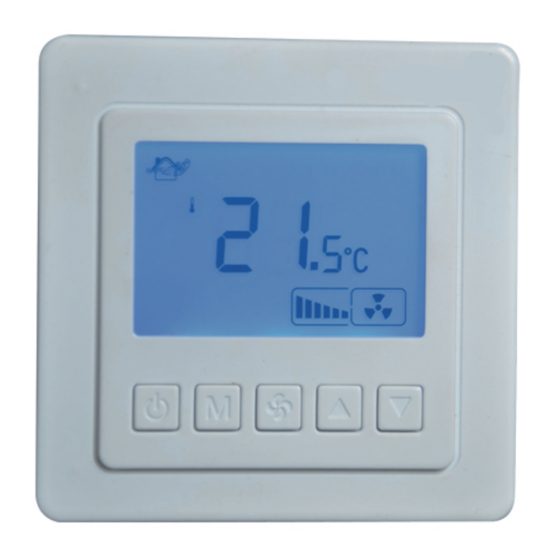

Figure 1: T5000 LCD Digital Fan Coil Thermostat

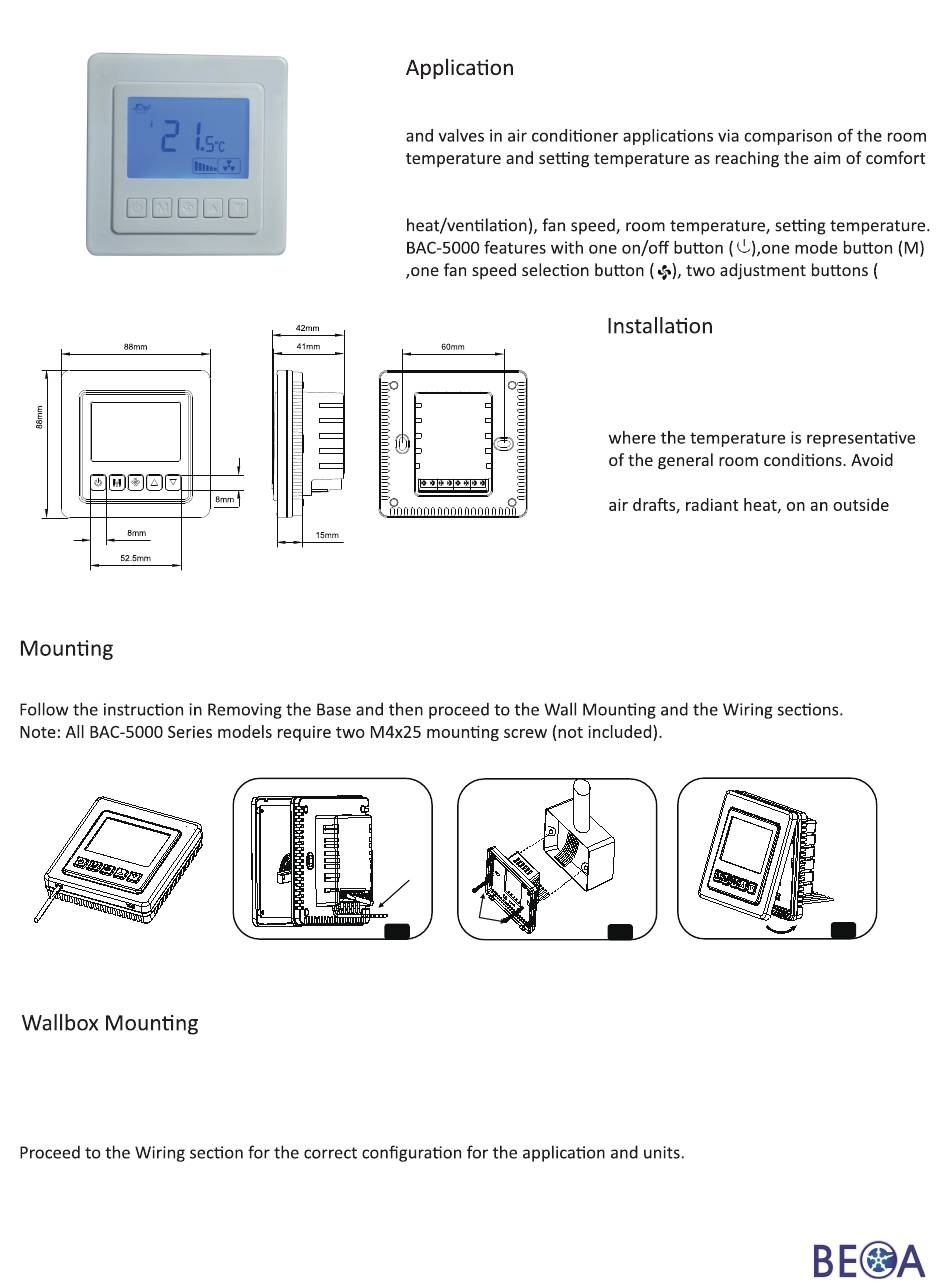

Figure 2: BAC-5000 Series Thermostat Dimensions in (mm)

Mount the BAC-5000 Series thermostat to a 75x75x35mm standard electrical wallbox. (See Figure 3)

To mount the BAC-5000 Series Thermostat:

Pull the external ﬁeld wiring from the wall through the rectangular opening in the base.

Fasten the base to the wallbox using the appropriate two holes, as shown in Figure 2,

and two M4 x 25 screws.

BAC-5000 series thermostats are designed to on/oﬀ control the fans

and saving energy. BAC-5000 are microprocessor based thermostat

with LCD display. It shows the following items: working states (cool/

2×1.5mm

1×2.5 mm

M4X25

Figure 3: Installation Procedure

Install the BAC-5000 where the occupant

can read the display and adjust the

setpoint easily. Situate the thermostat

installing the BAC-5000 near cold or warm

wall, or in direct sunlight.

▲▼).
