BECA BRT-100 User Manual

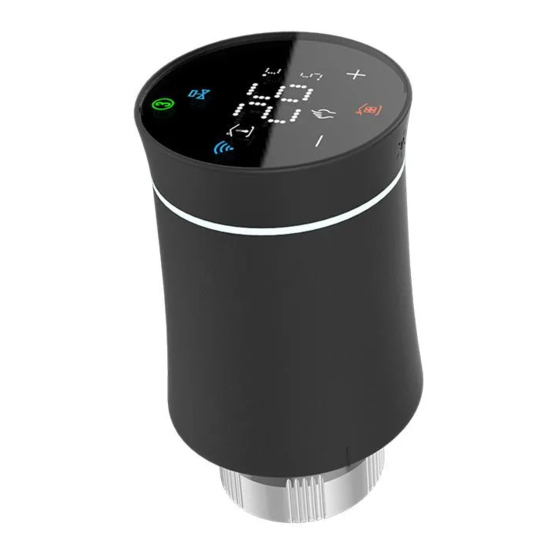

BRT-100 Radiator Thermostat
(TRV)
User Guide
Zigbee Type
Welcome
Thank you for your purchase. We always made high-quality
products with our high-end technology, high-quality
craftsmanship, safe and reliable materials .The new radiator
thermostat will bring you a more comfortable smart life .
Please read this installation/ programming manual for installing
and operating. Please also make sure someone qualified to install
the radiator .
Comply with all local regulations.
FEATURES
1. LED display, no window, wider perspective
2. Colorful display
3. Graceful arc waist shape
4. Rubber stretch paint, feel like baby skin
5. Night Halo colors your home
6. Low power consumption,battery can last 1 year for normal use and
standby for 2 years.
7. Low battery tip
8. Diagram of temperature curve added in APP
9. Vary colors are available like white, Black, gray etc.
In the box you will find
Raditor Thermostat 1pc
Special note: The Zigbee version of
User Guide 1pc the temperature control valve should
be used with a Zigbee gateway com-
RA Adapter 1pc
patible with "Tuya iot'".
RAV Adapter 1pc
The package does not include the
RAVL Adapter 1pc
battery and gateway.
Comap Adapter 1pc
T+A Herz Adapter 1set
Herz Adapter 1pc

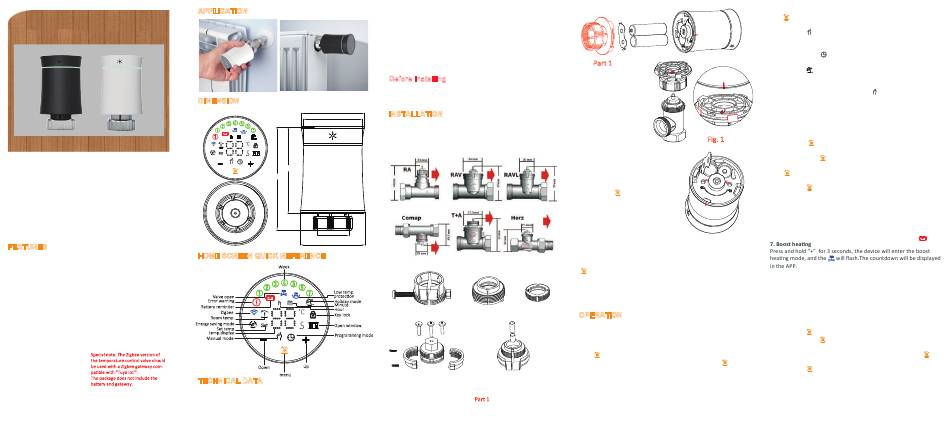

APPLICATION
DIMENSION
52.0
Unit: mm
48.5
71.5
85.0
M30*1.5
53.0
HOME SCREEN QUICK REFERENCE
Week
Low temp.
Valve open protection
Error warning
Holiday mode
Minute
Battery reminder
Hour
Zigbee
Key lock
Room temp.
Energy saving mode
Open window
Set temp.
temp.display
Programming mode
Manual mode
Up
Down
menu
TECHNICAL DATA
Power Supply: 3 V,2xAA Batteries, Packaging not have battery.
Maximum stroke: 4.5mm
Accuracy: ± 0.5°C
Set Temp. Range: 5~45 °C
Display temp. Range: 0~70°C
Ambient Temp.: 0 ~ 45 °C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.: -5~ 45 °C
Timing Error: < 1%
Protection Class: IP 20
Buttons: Capacitive Touch Buttons
Before installing
To avoid damages to the product during installation,please read the
manual carefully before installing TRV .
INSTALLATION
Step 1
: Select the adapter.TRV is usually connected with
M30*1.5mm valve. If you have different valves, please determine
your valve type according to the picture below, and choose the
correct adapter from the package. If you do not find the valve that
matches your use in the picture below, please buy it carefully.
Step 2
: Install the adapter.Install the adapter on your valve as the
picture below. If you don't need an adapter, please ignore this step.
RA RAV Comap
RAVL T+A Herz
Step 3:
Install the thermostat mounting plate.Remove the
mounting plate of the thermostat (Part 1 in the picture below)
counterclockwise.
Part 1
Follow the instructions
in the figure below to
install the mounting plate
on the valve. Pay attention
to the red label in the picture.
Fig. 1
Step 4:
Install battery
Follow the picture below to install the
battery in the correct direction. After
the battery is installed correctly, the
thermostat will be turned on. At this
time, click the (only once),
the thermostat will display and flash
"F1", when the "F1" stops flashing,
the thermostat motor It will all
shrink to facilitate the connection of
the thermostat and the mounting plate.
Step 5:
Connect the thermostat and the mounting board
When "F1" stops flashing, find the "mark point" of the
thermostat, shown Fig. 1.Turn clockwise to complete the connection
between the thermostat and the mounting plate. After clicking the
(only once), the thermostat will display "F2".
When "F2 "disappears, while the screen remains on, turn the
thermostat clockwise to adjust the screen to your liking direction.
Installation finished.
OPERATION
1. Power: After installing the battery, it will automatically turn on. It
can't be turned off till the battery is removed.
When the TRV is turned on, it will enter the self-check program, and
all icons will be displayed firstly.
Press , the screen flashes "F1", indicating that the temperature
control valve is shrinking; when "F1" stops flashing, press again,
The screen displays "F2",Indicates that the temperature control valve
is measuring.; when the screen displays the room temperature, it
indicates that the temperature control valve has completed the
stroke measurement, and you can start using the temperature
control valve normally.
2. Mode selection
Press to switch between manual, programming, vacation
modes.
Manual mode - In this mode, the device executes manual
temperature setting. When the set temperature is lower than the
"minimum temperature", the valve is closed (forced closed);
Programming mode -In this mode, the device executes a preset
week programming temperature time and temperature;
Holiday mode - In this mode, for example, the vacation mode is
set for 10 days and the temperature is set to 15 degrees Celsius. After
10 days, the device will automatically switch to programming mode;
Temporary manual mode - In this mode, icon will flash. At this
time, the device executes the manually set temperature and returns
to the weekly programming mode in the next time period.
3. Set the temperature
Press "+"/"-" key to adjust the temperature
4. Set the clock
Press and hold for 3 seconds, the screen will display "h" and
numbers, indicating that the hour is being set, set the hour by press
"+" / "-" keys; press again, the screen will display "m", indicating
that the minute is being set, press "+" /"-" keys to set the minutes;
press again, the screen will display "number", indicating that the
day of the week is being set, and the day of the week can be set by
"+" /"-" ;press again, the screen will flash "number, h, m",
indicating that the number of days in the vacation mode is set, which
can be set by the "+" and "-" keys;
5. Lock your Radiator
Press the +" and"-" keys together for 3 seconds to lock or unlock the
keys.
6. Low voltage reminder
When the voltage is lower than 1.8V, the screen will display .
8. Adjusting/Setting the Programmable Schedules
Method one;
Manually set a week of programming settings, specific operations are
as follows:
Method Two;
Use APP for one week of programming settings, please refer to the
second page "Programming your Radiator"
Manual editing:
Press and hold for 3 seconds. When you see the flashing numbers
on the screen, press 4 times to skip the clock setting. When the
screen displays "①②③④⑤" (means Monday to Friday), flashing
numbers and "h", you can set the hour with "+" and "-"; press
again, flashing numbers and "m", you can use " +" "-" Set the
minutes; press again, the screen displays "Set", and the
temperature can be set by "+" "-". This completes the setting of the
programmed temperature for one week in the morning from Monday
to Friday.
By analogy, refer to the one-week programming temperature default
table to complete one-week programming settings.
