BECA BHP-8000 User Manual

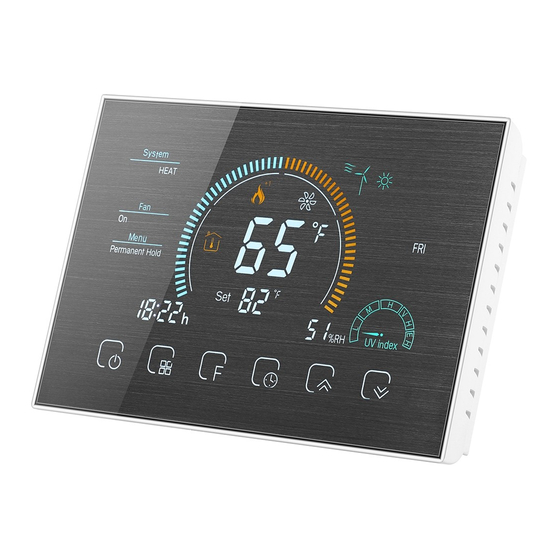

BHP-8000 Room Thermostat
User Guide
WIFI TYPE
Welcome
Thank you for your purchase.
Your new thermostat will provide uniform and comfortable temperature
control throughout every room in your peoperty. We bring together technology,
reliable product combined with sleek, contemporary design. Please read this
In the box you will find
Thermostat 1pc Screws 4pc
User Guide 2pc QC Passed 1pc
SYSTEM TYPE
1. Warm air, hot water, high efficiency furnaces, heat pumps, steam, gravity.
2. Heat only--including power to open and close zone valves, and normally
open zone valves.
3. Heat only with fan.
4. Cool only.

FEATURES

On Appearance
2. 4.8 inch large colorful display creates your colorful life.
4. Amazing silver frame opens your modern life.
2cm (0.787 inch).
7. Wall mounted
and Italy etc,.
increase the
the temperature sensing accuracy.
10. 12 terminals are available for many systems.
2. 1℉/0.5℃accuracy keeps temperature within the level you set.
3.℃ or ℉ choice.
4. 7 days four periods programmable.
5. Temporary programmable.
6. Holiday mode.
8. No limit to add thermostats in App.
9. Support Smart Scene.
10. Support to make two stage grouops.
11. Support device sharing.
12. Weather, UV index, humidity display help you decide what to wear today.

TECHNICAL DATA

Power Supply: 24VDC/AC ±10%
Sensor: NTC3950, 10K
Set Temp. Range: 42-122℉(5~50℃)
Accuracy: ±1℉
Display Temp. Range: 41~210℉(5~99℃)
Ambient Temp: 32~113℉(0~45℃)
Ambient Humidity: 5~95%RH(Non Condensing)
Storage Temp: 23~113℉ (-5~45℃)
Timing Error: <1%
Shell Material: PC+ABS(Fireproof)
Hole Distance of 86±3mm (USA and Italy etc,.)
Wire Terminals: Wire 2×1.5mm2 or 1×2.5mm2

DIMENSION

Unit: mm (inch)
130.0 (5.12)
103.8 (4.09)
20.9 (0.82)
17.2 (0.68)
104.5 (4.11)
82.3 ± 3（5.12 ± 0.12）
60.0 ± 3（2.36 ± 0.12）

HOME SCREEN QUICK REFERENCE

1 2 4 5 6 7 8 9
3
25
24
23
22
21
20
27
26
19 18 17 16 15 14
1 Wifi（AP mode） 14 Down Button
Wifi（EZ mode） 15 Up Button
2
16 Clock
3 AUX Heat
Permanent Hold/Temporary
1st Stage Heat
4
17
Hold/Using Schedule/Hold Until (holiday)
+1: 2nd Stage Heat
18 Auto/Cool/Heat/Off/EMER
5 1st Stage Cool
Power on/off
19
+1: 2nd Stage Cool
Time Display
20
Fan
6
21 Set temp.
Wind speed
7
22 Menu
Weather
8
23 Room Temp.
9 Periods
24 Fan On/Auto
Monday to Sunday
10
25 System mode
11 External sensor
26 Lock/Unlock
Ultraviolet intensity
12
27 Filter Reminder
13
Outdoor Humidity
Set Temp.

BEFORE WIRING AND INSTALLING

3. Installer must be a trained, experienced service technician.
CAUTION
Electrical Shock or Equipment Damage Hazard. Can shock individuals or
short equipment circuitry.
For wiring , please refer to another page.

INSTALLATION

Your thermostat can be mounted horizontally on the wall or on a 4 in. x 2 in.
(101.6 mm x 50.8 mm) wiring box.
I
NO
YES
NO
NO
5FEET
(1.5METERS)
Don't install your thermostat where it could be affected by:
— Hot or cold air from ducts.
— Radiant heat from sun or appliances.
— Concealed pipes and chimneys.
— Unheated (uncooled) areas.
Steps
Step 1. Keep the electricity off.
Fig 1
Step 3. Complete the wiring according to the wiring diagram and select the appropriate
10
Fig 2
11
12
13
Fig 2
thermostat display panel. See Fig 3.
Fig 3
Fig 2
See Fig 4.
Fig 4

OPERATION

1. Power On/off: Press to turn the thermostat on/off.
Press to select the mode AUTO, COOL,
HEAT, OFF, EMER
COOL — Thermostat controls the cooling system.
EMER — Emergency heat cycles to maintain temperature. Compressor is
locked out (used only for 2H/1C or 3H/2C heat pump systems) and auxiliary
heat turns on as second stage if needed.
:
Press to set the Permanent Hold, Temporary Hold, Using Schedule
Permanent Hold - Manual. In this mode, press / to set
temperature by manual.
Temporary Hold. During Using Schedule or in this mode, press /
next scheduled period.
Using Schedule. 7 days a week, four periods programmable daily.
Holiday Mode.
of days.
Press
Touch the icon / to set your minute.
Then press , ; Touch the icon /
set your hour.
Then press
set your week.
How to adjust your schedule?
Press the icon then use the / arrows to set the temp. for the 1st
period. Repeat this process for periods 2-4.
Get Up — Period when you awaken and want your home at a
comfortable temperature.
Go Out — Period when you are away from home and want an
energy-saving temperature.
Go Home — Period when you return home and want your home
back to a comfortable temperature.
Sleep — Period when you are asleep and want an energy saving
temperature.
Fact
Setpoints
Schedule Period Time
Heat Cool
72℉ 72℉
Get Up 6:00 AM
(22℃) (22℃)
72℉ 72℉
Go Out 8:00 AM
(22℃) (22℃)
72℉ 72℉
Go Home 11:30 AM
(22℃) (22℃)
72℉ 72℉
Sleep 01:30 AM
(22℃) (22℃)
How to adjust your holiday?
Press displays and days flash on
the screen then click / arrows to set the days of holiday .
When the flashing of days stops, you can press / arrows
to set the temp. Holiday mode will be valid immediately.
4.
:
Then press to change the different items. You can press /
User Setup
Function Setting and options Default
Number
1 Fan ON / AUTO 0: Fan AUTO; 1: Fan ON 0
2 Temperature Calibration -8 ° F to 8 ° F (-4 ° C to 4 ° C) 0℉
Compressor delay time for heat
3 0-5 minutes 0
pump
Changeover Valve—O/B Terminal 0: cooling O/B = 0,
Energized in Heating or Cooling heating O/B = 1;
4 1
(Heat Pumps Only). Only shown if 1: cooling O/B = 1,
heat pump system is chosen. heating O/B = 0;
5 Minimum setting temperature 42 ° F to 62 ° F (5 to 15 ° C) 42℉(5℃)
6 Maximum setting temperature 62 ° F to 122 ° F (15 to 45 ° 122℉(45℃)
C)
0: 12-hour clock;
7 Time display 1
1: 24-hour clock
Dead-band temperature in Auto
mode for heat pump. Heating and
cooling setpoints can be set no
8 0 ° C to 5 ° C (0 ° F to 10 ° F) 3℃
closer than chosen value. Shown
only if automatic changeover is
selected.
9 Filter cleaning reminder 0-5 months 3
A Standby screen brightness 1-99 4
Temperature Indication
B 0: ℃ display; 1: ℉ display 1
Scale
Deadzone temperature for turning
C 1 ° C to 5 ° C (2 ° F to 10 ° F) 1℃
on/off load
0: Without control;
D Fan Control in Heating 1
1: With control
Change the system of heat pump 0: Heat pump
E 0
and air conditioning 1: Air conditioning
to
