Summary of Contents for BECA BHT-1000GBLW

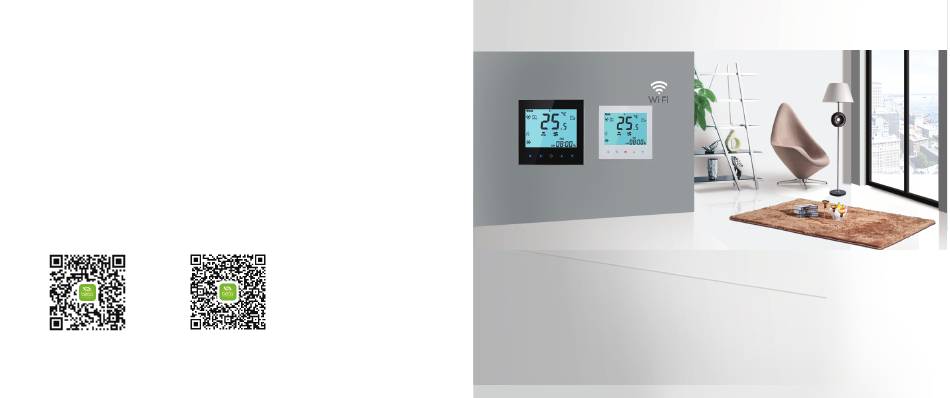

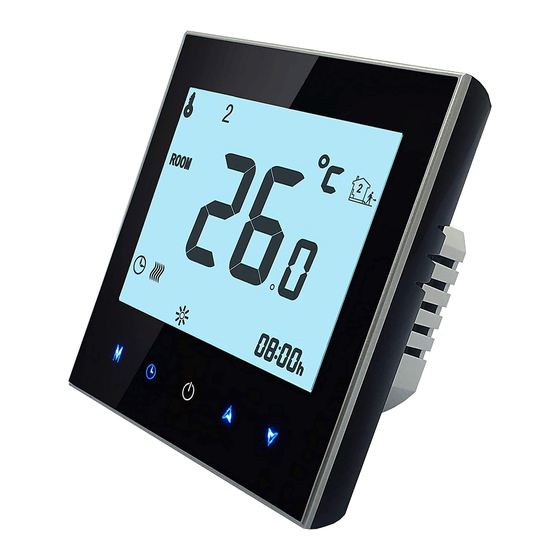

- Page 1 BUILDING ENERGY SAVING WIFI HEATING THERMOSTAT Android...
- Page 2 FEATURES Clear, Concise, Convenient operation. Option of piano black or diamond white casings. Manage your heating 24/7 from anywhere Fashionable, contemporary design to suit any Take your modern life. décor Outstanding performance, outstanding quality Remote control via the APP on your smartphone or tablet Touch panel display –...
- Page 3 Welcome * Your Wi-Fi thermostat supports DHCP protocol only. Please ensure your router is DHCP enabled prior to Thank you for your purchase. the connection process. Your new thermostat will provide uniform * Your Wi-Fi thermostat supports WPA & WPA2 only. and comfortable temperature control It does NOT support WEP.
-
Page 4: Warranty
Warranty DIMENSION 13.0 26.0 Unit: mm Your thermostat carries an 18 month warranty from date of purchase. Service outwith the 86.0 65.9 warranty period may incur a charge. YOUR THERMOSTATS The BHT-1000 Wi-Fi range has been developed to control electric underfloor, water heating or 50.3 boiler systems using your smartphone or tablet via the thermostat’s App. -
Page 5: Home Screen Quick Reference
HOME SCREEN QUICK REFERENCE 1. Power 2. Temperature Up 3. Temperature Down 4. Time 5. Periods 6. Week 7. Room Temperature 12. Mode 8. Wi-Fi 13. Heating On 9. Set Temperature 14. Valve On 10. Manual 15. Clock 11. Lock 16. -
Page 6: Technical Data
WIRING TECHNICAL DATA Sensor：NTC AC 95~240V AC 95~240V Accuracy：±1℃ IP20 IP20 LOAD Set Te mp. Range：5-35℃ Room Temp. Range：5-99℃ 1 2 3 4 Power Consumption：< 1.5W Timing Error：<1％ Power Supply：AC95 ~ 240V, 50 ~60Hz Current Load：3A（water heating)， 16A（electric heating) Shell material：PC+ABS (flame retardant) AC 95~240V Note: Dimension：86x86x13.3mm... -
Page 7: Installing Your Thermostat
INSTALLING YOUR THERMOSTAT Your thermostat is suitable for installation within a standard 86mm pattress box or European 60mm round pattress box. Fig 3 Fig 4 Step 5. Fasten body of thermostat and the mounting plate Step 1. Keep power off. See Fig 1. Step 2. -
Page 8: Operation/Programming
OPERATION/PROGRAMMING will show on the screen of your thermostat. Press to revert back to room temperature. will disappear. 1. Power on/off 5. Locking your thermostat to turn on/off. Press Press and hold at the same time for 5 sec,. 2. Adjusting/setting the temperature to lock/unlock your thermostat. - Page 9 Touch M (mode) to change between manual mode Repeat the above process to set the weekend and programme mode. In manual mode, will schedule. Press M once more to confirm and exit. show in the bottom left of the screen. In programme Default settings for program schedule mode, touch and hold the icon M until the weekday WEEKDAY (MONDAY –...
-
Page 10: System Function Settings
8. System function settings Code Function Setting & options Default With power off, press and hold both M and for 5 Air temperature Range is -9°C to +9°C for internal sensor calibration seconds to enter the System Functions. Press M to Range is 1°C to 5°C The number of degrees above/below set temperature before scroll through the available functions, and use the... - Page 11 WI-FI CONNECTION For ANDROID devices, search for BECA ENERGY in Google Play and download. Alternatively, scan the Before using your Wi-Fi thermostat for the first time, relevant QR code here (See Fig 1-3). you must configure the Wi-Fi signal and settings through your smartphone or tablet.
- Page 12 (Fig 2) (Fig 3) Open the App (Fig 3) and you will be taken to (Fig 4-1) (Fig 4-2) the first settings page (Fig 4-1 & 4-2)
- Page 13 Click Language Choice and select the one you need. Then press DONE. (Fig 4-1 & 4-2) You will then be taken to the home page. (Fig 5) Press the “+” icon to add your room. You will be taken to the second settings page. Note 1: The room details will show: set temperature, room temperature, room name, Wi-Fi signal indicator and...
- Page 14 Click in the first window to name your room (Emma’s bedroom, Lounge, Kitchen etc.) In the “Choose your equipment” window please select “For Heating” in the drop-down list. Your room name Connect the wireless signal by touching the image to the right of the “Search your network” Fan Coil system or Heating System window.
- Page 15 Note 1: Click on your room from the home screen and begin programming your thermostat (image 7) Power On/Off button. If button is red, the power is “On”. If button is grey, the power is “Off”. Lock/Unlock button. If button is green, the screen is “locked”.
- Page 16 Program button. When this button shows, your Schedule Setting thermostat is in program mode and will follow any Working Days Weekend pre-set heating schedule. When in Manual mode, press the button to select 0 8 ： 3 0 the Program mode and vice-versa.
- Page 17 App will send your schedule to your thermostat and confirm the schedule has been saved. Your thermostat can be controlled by multiple devices. Simply download the BECA ENERGY App and go through the initial set-up/connection process. Multiple devices cannot control one thermostat simultaneously.
