BECA BHT-1000 User Manual

Heating Room Thermostat
User Guide
Model：BHT-1000
Welcome
Your new thermostat will provide years of reliable
service. Using this digital thermostat will provide
more uniform comfort in your home through the
seasons. Thank you for buying the product!
Please read this manual for complete instructions
on installing and operating your thermostat. If you
require further assistance, please feel free to
contact us.
In the box you will find
1pc
Thermostat
Screws
2pc
User Guide
1pc
Wall plate
1pc
Service
We offer the warranty of 18 months from the sales day
If it is not the problem of quality or beyond the warranty
time, we will charge for the after-sale service.

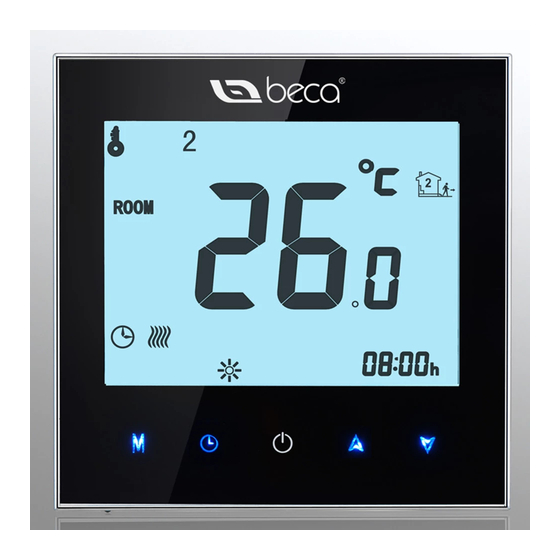

About your thermostat
BHT-1000 is a thermostat, used as
controlling floor electric heating or water heating
system electric actuators open or close. The
thermostat is used in the commercial, industrial,
hospital, hotel, hotels, civil buildings and villas for
heating control.
Features of your thermostat
Modern design similar as a cell phone.
Beautiful Frame CHROME creates elegant life.
Acrylic lenses to avoid the finger scrath.
Touch Button makes simple operation.
Large screen display with backlight is easy to
read—even in the dark.
5+2 six periods program schedules
maximize comfort and economy. .
One-touch temp control overrides program
schedule at any time.
Precise comfort control keeps temperature within
1°C of the level you set.
Internal and external sensor selectable is
suitable for any place.
Data memory when power is off. (customized)
Easy installation.
Suitable for 86mm hidden box and european 60mm
round box.
RS485/MODBUS communication is optional.
Home screen quick reference
Week Temp.
Lock
Room Temp.
Set Temp.
Floor Temp.
Heating On
Programmable
Manual
Mode
Clock Power Up Down
Model definition of your thermostat
GA: Water heating, 3A
GB: Electric floor Heating, 16A
N/A: Internal sensor only
S2: Both internal sensor and floor external sensor
L: Backlight
P: Weekly programmable
N: RS485
P and N could not be compatible at the same time.
For example: BHT-1000 GAS2LP
Technical Data of your thermostat
Sensor：NTC
Accuracy：±1℃
Set Temp. Range：5-35℃
Room Temp. Range：5-99℃
Power Consumption：< 1.5W
Timing Error：<1％
Power Supply：95 ~ 240VAC, 50 ~60Hz
Current Load：3A（water heating)，
Shell material：PC+ABS (flame retardant)
Dimension：86x86x13.3mm
Ambient Temp.：0-45℃，5-95％RH
Storage Temp.：-5-55℃
Installation Hole distance: 60mm
Operation
1. Setting Power on/off
Press to turn on/off the power.
2. Setting Temperature
Press to set the temperature.
Period
3. Setting the Clock
Press to set minute, hour and week.
Press for adjusting.
The setting will confirm automatically several sec. later.
3. Adjusting program schedules
AM/PM
Time
Press M to change manual and weekly programmable.
Timing on/off
Press to set the time. The order is min.-hour-week.
Press , 12345 will display on the screen.
Press to time setting of the first period.
Press to temperature setting of the first period.
16A（electric heating)
（Non-condensing）
