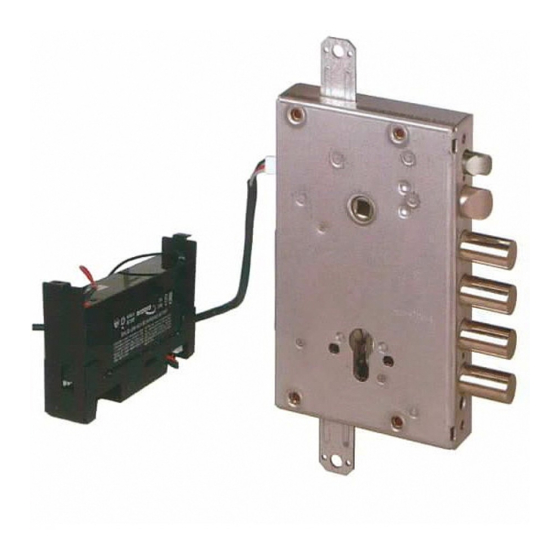

CISA E-volution E6515 Series User Manual

GB
E-volution – a quick user's guide (version with options)
(Series E6515, E6615, E6535)
���������������
������������
��������������

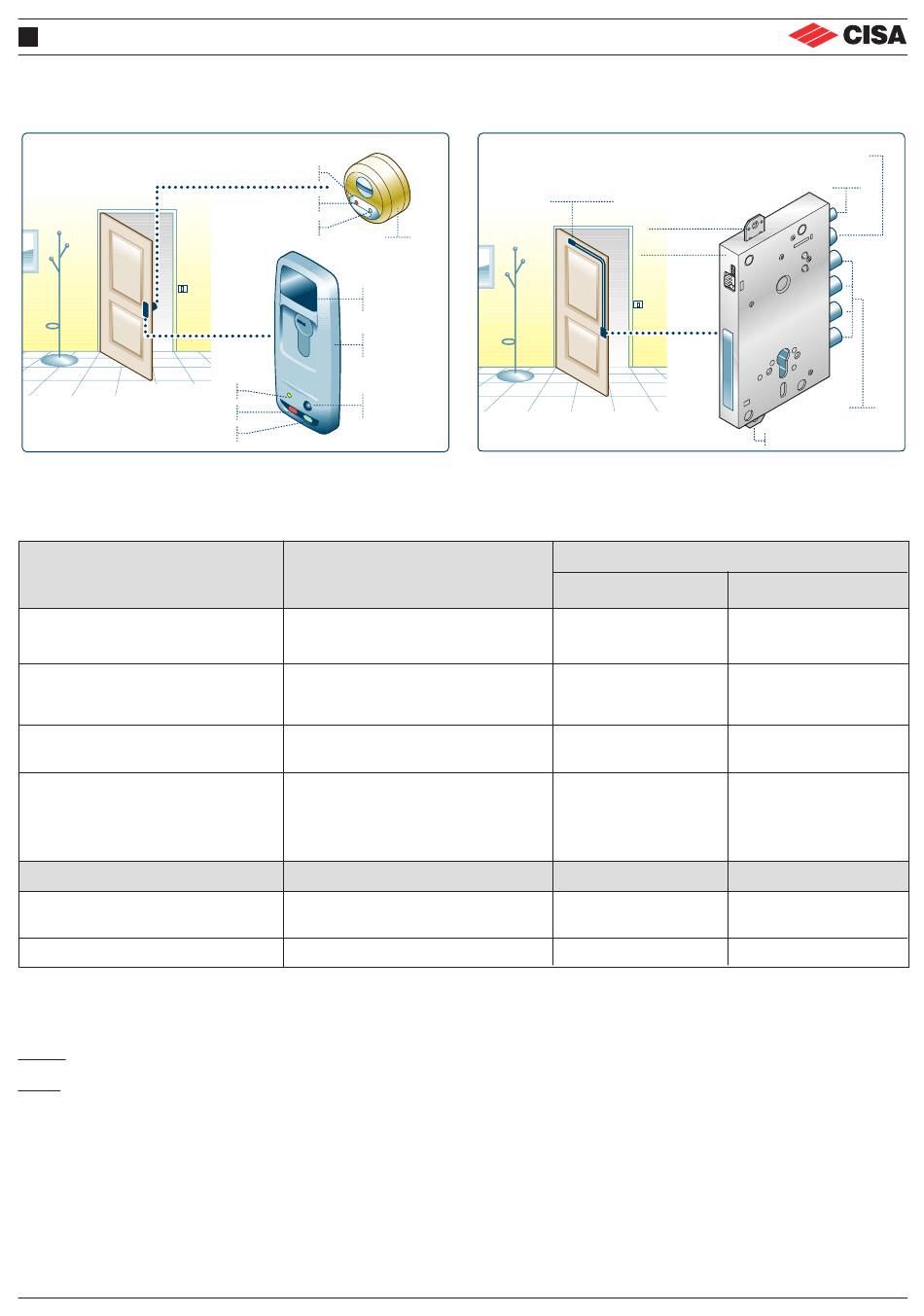

OPENING AND CLOSING OPERATIONS AND SIGNALS
OPERATION
Opening from the outside.
Opening from the inside.
Closing.
Emergency opening (closing) with
mechanical key.
ONLY perform if neither the electronic key
nor the opening button can be used.
STATUS
Door open or closed with latchbolt C only
Safely closed door.
NOTE: The signals available on the Outside Protector (L) reproduce those available on the Inside Escutcheon and will remain active for no more than about 10
seconds.
For versions without options proceed as follows:
Opening: insert the mechanical key and turn in the opening direction to about 30°, then turn back the key to its extraction position. The deadbolts will be automati-
cally withdrawn.
Closing: close the door. The deadbolts will be automatically closed.
OPERATION MODE CONFIGURATION
Deadbolt automatic closing disabling
It is possible to disable automatic deadbolt closing by pressing and holding down the Inside Escutcheon closing button M2 for at least 5 seconds:
• YELLOW LED off ⇒ the deadbolts will not be automatically closed after closing the door;
• YELLOW LED on ⇒ the deadbolts will be automatically closed after closing the door (factory pre-setting).
�����������������
������������
��������������
��������
�������������
��������
�����������
�������
��������������
���������
����������
�������������
ACTION
Place the electronic key near the outside protec-
tor, in the reading area (L1). The deadbolts will
be automatically withdrawn
Press the opening button (M1) on the inside
escutcheon (M). The deadbolts will be
automatically withdrawn.
On closing the door, the deadbolts will be
automatically closed.
Insert the mechanical key in the cylinder and
turn in the opening (closing) direction like in a
traditional mechanical lock.
DEADBOLT POSITION
Withdrawn.
Closed.
Battery (F)
Transmission (E)
Lock (A)
SIGNAL
GREEN LED
Flashing, if opening with the
electronic key is enabled.
Flashing.
No signal.
No signal.
GREEN LED
Lit.
Off.
Latchbolt (C)
Position detecting (D)
Deadbolts (B)
Transmission (E)
RED LED
1 flash if opening with
electronic key is not enabled.
No signal.
Flashing.
No signal.
RED LED
Off.
Lit.
