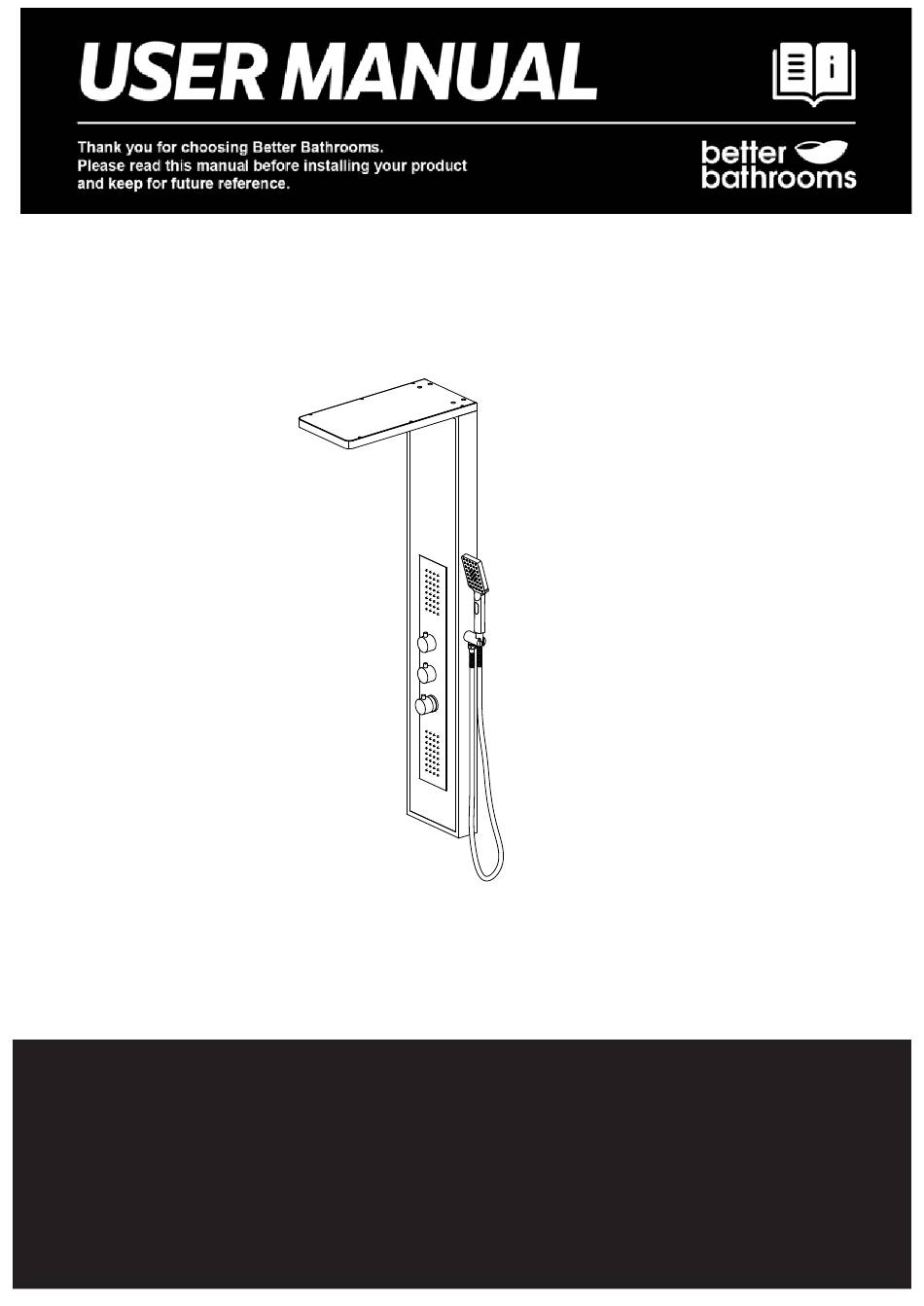

Luni Thermostatic Shower Tower
BeBa_28181&BeBa_28182
Pleasenote:Imageisforillustrative purposesonlyandmay differslightlytothe
actualproduct
• Multi-person assembly
• Tools required
• We always recommend using professional
tradespeople to install your product
Congratulationsonyourpurchase
V1_26.08.21
Advertisement
Related Manuals for Better Bathrooms Luni BeBa 28181
Summary of Contents for Better Bathrooms Luni BeBa 28181
- Page 1 Luni Thermostatic Shower Tower BeBa_28181&BeBa_28182 Pleasenote:Imageisforillustrative purposesonlyandmay differslightlytothe actualproduct • Multi-person assembly • Tools required • We always recommend using professional tradespeople to install your product V1_26.08.21 Congratulationsonyourpurchase...
- Page 2 Congratulations on your purchase And welcome to our growing gang of savvy shoppers We're on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day.
-
Page 3: Table Of Contents
Contents • Parts / Diagrams • Tools required • Installation • Using • Troubleshooting • Maintenance • Cleaning... -
Page 4: Parts/ Diagrams
Parts/ Diagrams 1. OverheadShower 2. ShowerPanel 3. Func on Control Handle 4. On/Off Control Handle 5. Temperature ControlHandle 6. Diverter Valve 7. On/Off Cartridge 8. ThermostatincStopRing 9. Temperature Dial 10. WallScrewsx4 WallPlugsx4 12. WallHangingBracket x2 13. HandShower 14. HoseSealsx2 15. ShowerHose 16. -
Page 5: Tools Required
Toolsrequired Spanner Silicone Drillanddrillbit SpiritLevel Pencil TapeMeasure Hammer Screwdriver Installation Preparethewatersupply pipestofeedtheshowerwithhotontheleftandcoldonthe right,setapproximately atthe heightand widthshownbelow. Thesupply pipesshouldhavea ½” maleend to connect to the 1.2” femalenut on the flexi - pipes Before commencing installation andwith the tray or bath installedto acceptthewater, turn on the watersupply tothewater pipes and flushthesystemforaminimumof 15 seconds,toremoveanydebrisinthesystem . - Page 6 Using themeasurements provided below,markthepositionofthewall hangingbrackets,usingaspiritlevel toensurethisarealignedonthewall Ifdrillingintotile,it is recommended to tape the walltopreventthedrillfrom slipping. 35 mm Drillthewall35mmdeepusinga6mm drill bit. Insertthewallplugsandtapflushtothe finishedwallsurface. Holdthewallhangingbrackettothe walloverthe drilled holesandsecure usingthe wall plugs provided.
- Page 7 Fitthe handshower holder and outlet to the mainpanel. Push the threadedtailsectionof the holder throughtheholeinthesideofthepanel. Fitthe washersoverthetailinsidethe panel andconnectthenut. Ensuringthattheholderisalignedandthe wideropeningintheholderforthehand shower Isfacingupwards,tighten the nut. Ensuringthesealisfittedconnectthepipe whichrunsfromthemixerandwhichwill connecttothe holderandtightenthenut. Connecttheoverheadshowertothe panel. Insert the water pipe from the shower head to shower panel body. Positiontheshowerheadontothepanel andaligntheholes.
- Page 8 Connectthewatersupplypipes totheflexi-pipesontherear of the panel,ensuringhotis on the leftand thatthesealsare fitted,then tighten the nut. Ensurethatflexi-pipescannot becomekinkedorflattened. Once connectedliftandhang the assembly ontothehanging brackets. Fitthe seal intothenut endof theshower hose and connectthenuttotheoutletonthehandshower holderandtighten,if using a spanner,place a cloth aroundthenuttopreventdamage. Place the secondsealintotheconeendofthe showerhoseandconnectthistothe handshower andtighten.
-
Page 9: Using P9
Using Turn on the on/off control handle, and turn the function control handle to switch among shower head, body jet and handshower, turn off the on/off control handle after shower. To control the temperature,turnthetemperaturecontrolhandleuntilthedesired temperatureisreached. Thehandlewillturnuntilitreachesastopposition,whichwillbeapproximately 38c, to increase the temperature,pressthebuttononthehandleandwhileholdingthisdownturn the handle. -
Page 10: Maintenance
Maintenance PoorFlowMaintenance: 1. Removetheshowertowerflexi -connectorsfromthetowerandturnonthewater supplytoensuresufficientwaterisreachingtheunit,if it is poor flow,thisisnota productfault Remove the flexi-pipe connectedtotheoverhead andturnonthewatert o checkwaterflowissufficient,iftheabove is good andthis testhaspoorflowa blockagemay bepresent in the flexi-pipe,trytoclearby bending and stretching the pipe todis-lodgeany blockage,if this doesnot workreplacethepipe Carry outthesamewiththehand showerandbodyjets 2. - Page 11 ThermostatRemoval 2. 5m m Flat blade screwdriver Plier Allen wrench Waterdrippingafterbeing turnedoff Maintenance 1. Loosenthegrub screw insideon/off control handle 2. Pullthehandlefromthevalve 3. Using aspannerandtaking care not to damage the panel surface removethe retainingnut 4. Once thisisremovedpullthe valvefromthepanel,eithercleanthevalveorreplace asnecessary 5. Re-fitthecomponentsandfullytightentheretainingnuttopreventanyleaks.
-
Page 12: Cleaning
Cleaning To maintain the surfaceof yourproduct, wipewithacleandampclothandwipedry,do notuseanyabrasivecleaningagentsormaterials . Itisrecommendedto wipeanddryon aregularbasis.
