3. Remove the drive, which has amber LED ON.

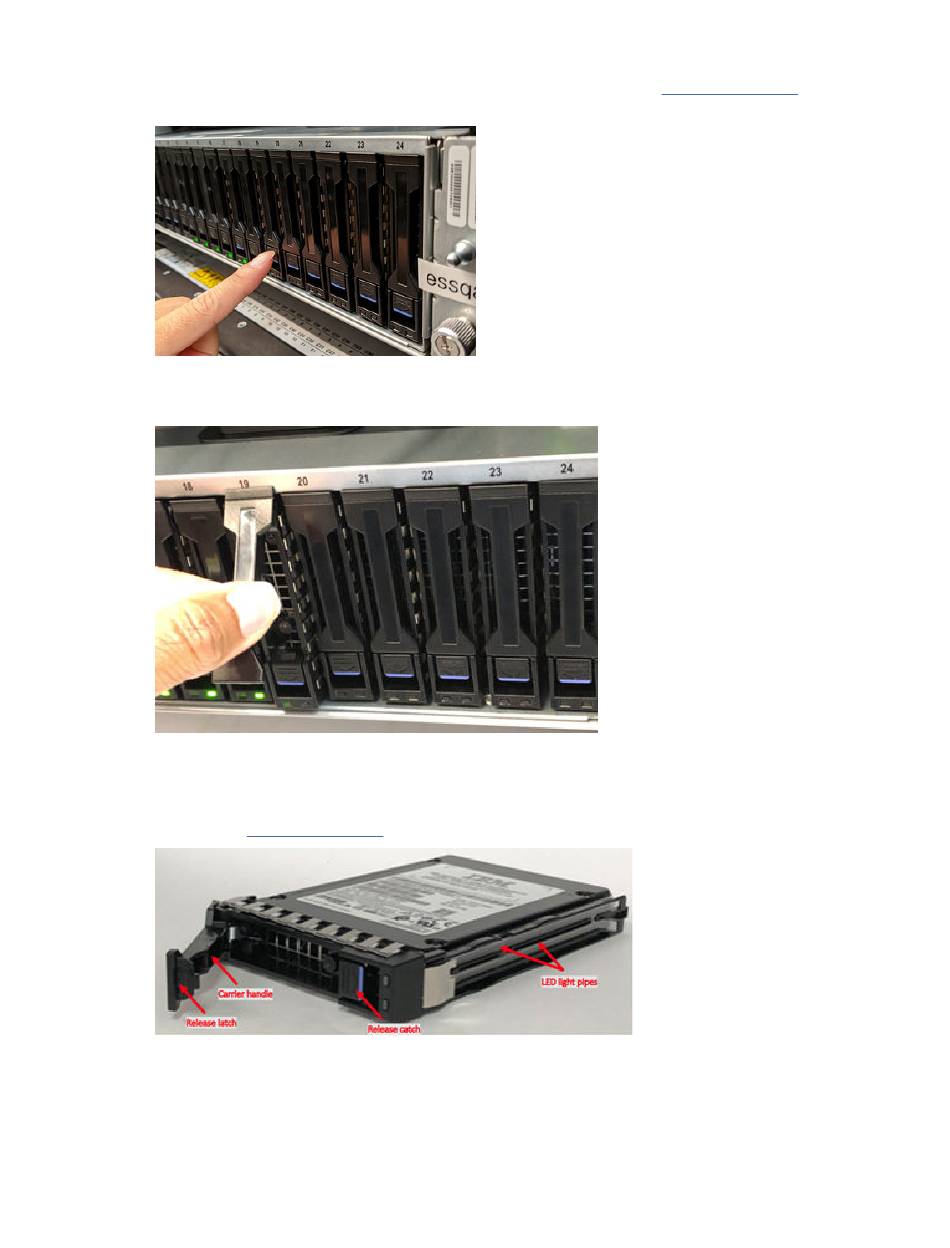

a) Press the blue touchpoint to unlock the latching handle, as shown in Figure 5 on page 4.

Unlocking the drive and release latch.

Figure 5. Unlocking the drive and release latch
b) Lift the handle and slide the drive out of the enclosure, as shown in the following figure.
Figure 6. Removing NVMe drive
4. Insert the FRU replacement drive into the slot.
a) Press the release catch on the drive carrier in the direction of the arrow to open the handle as
identified in Figure 7 on page 4. The cam releases from the locked position.
Figure 7. Releasing catch
b) Grab the frame beneath the touch point and gently push the drive carrier assembly into the drive
bay until the carrier handle engages.
c) Press the release handle downward until the release latch connects with the release catch and the
drive carrier assembly locks into place.
