IBM Elastic Storage System 3200 Service Manual page 30

a) Grab the ear caps (shown in Figure 27 on page 17) on the front left and right sides of the enclosure
front.
b) Slowly pull the enclosure forward until it locks into the serviceable position, which is accompanied
by an audible click.
c) The enclosure is extended into the serviceable position. Proceed to replace the bezel kit.
3. Remove and replace the left ear cap.
a) First, remove the left ear cap from the back side of the left flange by removing the two screws, as
highlighted in Figure 28 on page 18, by using a Phillips driver.

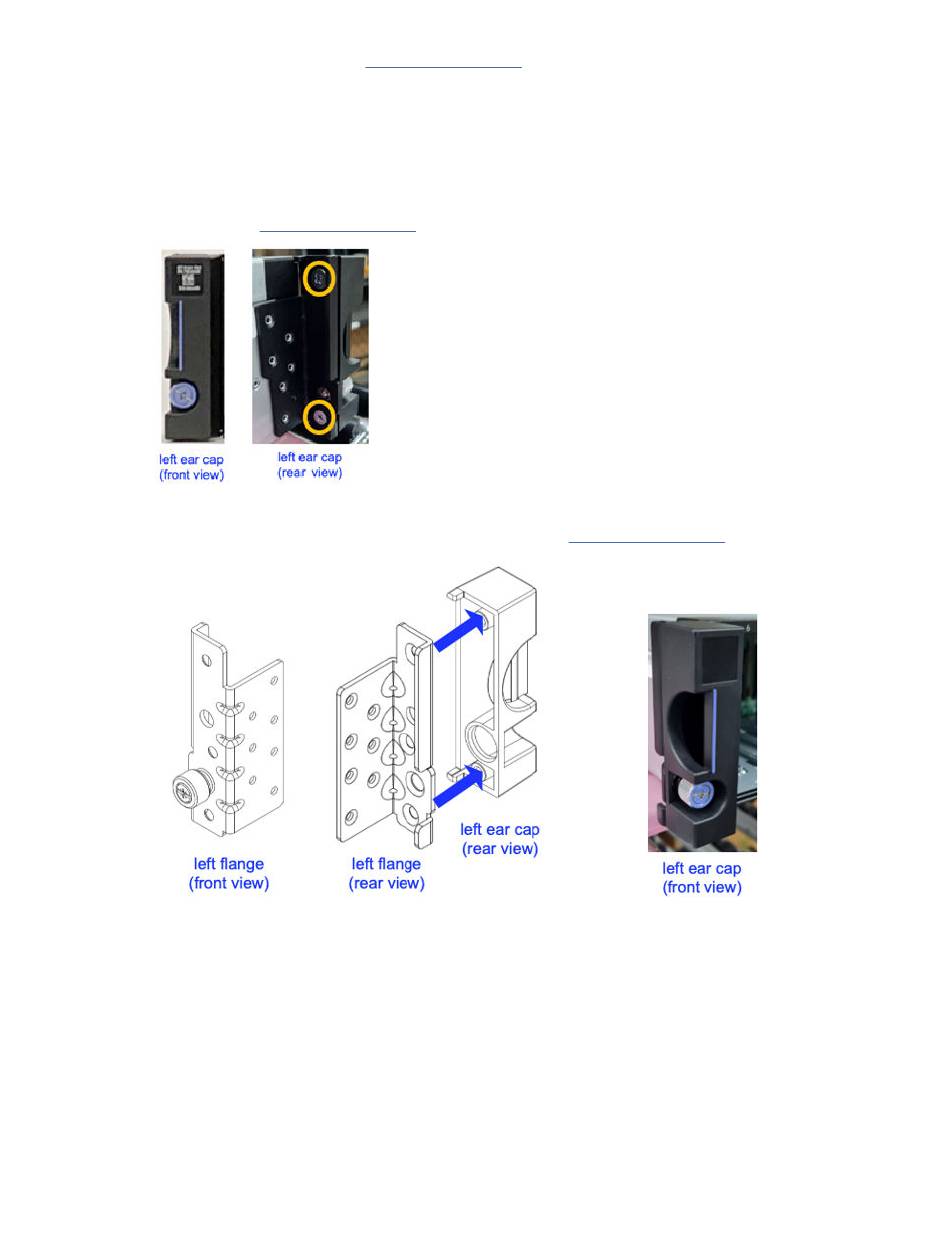

Figure 28. Displaying left ear cap front view
b) Next, install the left ear cap part (01LL677) as shown in Figure 29 on page 18.
Figure 29. Replacing left ear cap
4. Remove and replace the right ear cap.
a) Remove the right ear cap by removing the two screws from the back side of the right flange by using
a Phillips driver.
18 IBM Elastic Storage System 3200: Service Guide
