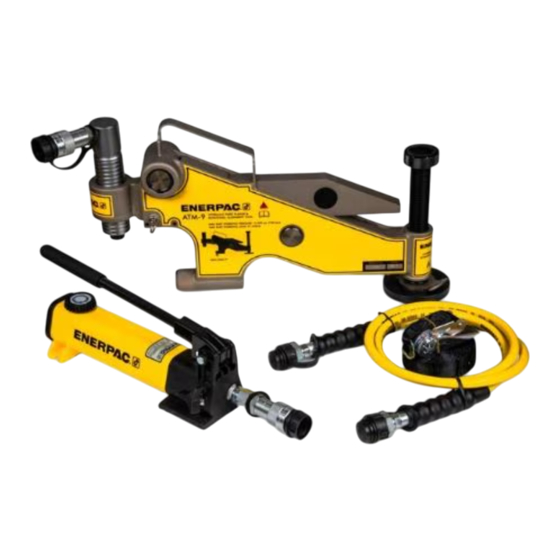

Hydraulic flange alignment tool
Hide thumbs Also See for ATM-9:
Table of Contents

Advertisement

Quick Links

Download this manual
L4065
Rev. C
Paragraph
1.0 Receiving Instructions . . . . . . . . . . . . . . . . 2
2.0 Safety Issues . . . . . . . . . . . . . . . . . . . . . . . 2
3.0 Product Description . . . . . . . . . . . . . . . . . 2
4.0 Safety Information . . . . . . . . . . . . . . . . . . 3
5.0 List of Equipment . . . . . . . . . . . . . . . . . . . 3
6.0 Misalignment Determination . . . . . . . . . . . 3
7.0 Installation and Operation . . . . . . . . . . . . . 4
9.0 Dismantling the ATM-9 . . . . . . . . . . . . . . . 5
For other languages go to www.enerpac.com.
Weitere Sprachen finden Sie unter www.enerpac.com.
Para otros idiomas visite www.enerpac.com.
Pour toutes les autres langues, rendez-vous sur www.
enerpac.com.
Per altre lingue visitate il sito www.enerpac.com.
09/19
page
1
Instruction Sheet
Hydraulic Flange Alignment Tool
Model ATM-9
10.0 Inspection and Examination . . . . . . . . . . 6
11.0 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . 6
13.0 Troubleshooting . . . . . . . . . . . . . . . . . . . 7
14.0 Air Lock Removal . . . . . . . . . . . . . . . . . . 7
16.0 Application Range . . . . . . . . . . . . . . . . . 7
18.0 Weights and Dimensions . . . . . . . . . . . 11
その他の言語はwww.enerpac.comでご覧いただけます。
이 지침 시트의 다른 언어 버전은 www.enerpac.com.
Ga voor de overige talen naar www.enerpac.com.
For alle andre språk henviser vi til www.enerpac.com.
Para outros idiomas consulte www.enerpac.com.
如需其他语言，请前往 www.enerpac.com.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATM-9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enerpac ATM-9

Summary of Contents for Enerpac ATM-9

  • Page 1: Table Of Contents

    17.0 Range of Application Tables ..8-10 9.0 Dismantling the ATM-9 ....5 18.0 Weights and Dimensions ... 11 その他の言語はwww.enerpac.comでご覧いただけます。...

  • Page 2: Receiving Instructions

    Enerpac equipment. The operator is responsible for 3.0 PRODUCT DESCRIPTION this activity towards other persons. The ATM-9 Alignment Tool is intended for use in typical WARNING: To avoid personal injury and maintenance and installation procedures. It allows the possible equipment damage, make sure all...

  • Page 3: Safety Information

    Note: All hydraulic components are rated for 10,000 psi [700 bar] operation. 6.0 MISALIGNMENT DETERMINATION PROCEDURE • The ATM-9 must not be attached to a flanged joint Strap prior to the misalignment determination procedure being carried out. Refer to warning statement in section 4.0.

  • Page 4: Installation And Operation

    Note: The ATM-9 hydraulic cylinder is rated at 10,000 psi [700 bar] operating pressure. The P-142 hydraulic 4. Attach the hook of the strap through one of the slots pump contains a built-in safety relief valve that opens on the buckle (located above the drop leg pad).

  • Page 5: Rotational Or Twist Misalignment

    6. When alignment is completed, the flange bolts may 4. The ATM-9 can then be attached at another point on be inserted and tightened. After replacing all of the the joint‘s circumference (see Fig. 9) pushing against bolts in all open bolt holes (except for the bolt hole in the inserted bolt.

  • Page 6: Inspection And Examination

    10.0 INSPECTION AND EXAMINATION Fig. 11 • After finishing the job and before the ATM-9 is Spring Pins placed back into service, the completeness of the tool must be established and items examined to ensure that they are serviceable. • Any missing or damaged items are to be replaced as soon as possible and prior to the tool being used again.

  • Page 7: Troubleshooting

    Two basic dimensions, A and B, will determine if the A. There may be air in the hydraulic system restricting ATM-9 can be used to align the joint. If the flange joint the force on the flanges. to be aligned is between 3.66 inch [93 mm] and 9 inch B.

  • Page 11: Weights And Dimensions

    18.0 WEIGHTS AND DIMENSIONS Note: Weights shown are approximate. WEIGHTS Tool with hydraulic cylinder and strap ..........33.3 lbs [15,1 kg] Hand pump .
