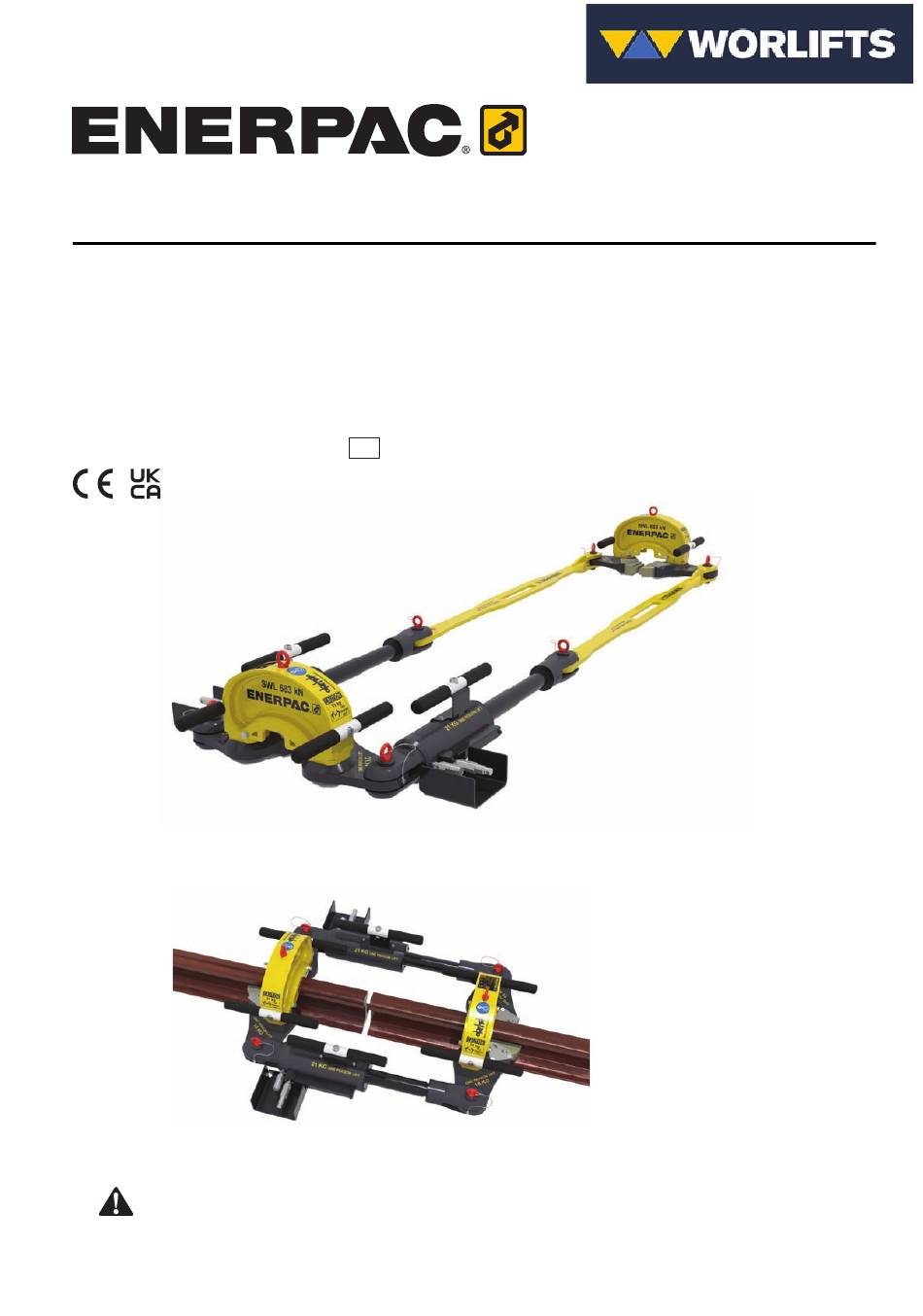

Distributed by Worlifts Tele: 0121 460 1113 Email: rail@worlifts.co.uk www.worlifts.co.uk Operation and Maintenance Manual Enerpac RP70A Hydraulic Rail Puller/Stressor Document Number: L4578 Document Revision: F Document Revision Date: 08-AUG-2024 Document Language: ENGLISH EN Pull: 70 Tons Stretch: 45 Tons To reduce the risk of injury, user must read and understand this document before use.
1. Safety 1.1 Safety Precautions WARNING Failure to observe and comply with the following precautions could result in death or serious personal injury. Property damage could also occur. DANGER WARNING CAUTION NOTICE L4578_f...
Page 6
NOTICE Failure to observe and comply with the following precautions could result in property damage and/or void the product warranty. CAUTION Failure to observe and comply with the following precautions could result in minor or moderate personal injury. Property damage could also occur. L4578_f...
4. Transport, Load- 2.1 Compliance Statements ing and Unloading 70 Ton Hydraulic Rail Puller/Stressor of the System Model RP70A NOTICE CAUTION 3. Intended Use When lifting one clamp with only arms attached, watch out for the rotation of the arms because these can fall when they rotate unintended.
7. Features & Components 7.1 Feature Diagram PULLING MODE Clamp close up view STRECHING MODE Figure 2: Major Features and Components of RP70A 7.2 Spare Parts NOTICE L4578_f...
There is a risk of ice accretion at temperatures below 0ºC. If ice has accreted on machine components, they cannot be used since they may lock up. Consult Enerpac if you want to apply the system by Figure 3: Pulling Mode Top View other temperatures.
8.3 Dimensional table CYLINDER FEATURES Dimension WEIGHTS Item Weight Can be carried by... 8.2 Dimensional Callout Art A / L K / M Figure 5: RP70A Dimensions L4578_f...
Side load is not permitted for hydraulic rail puller/ stressor. 9.3 Inspect the parts 9.2 Initial Setup 9.2.1 Hoisting Instructions Figure 6: RP70A parts 9.4 Assemble the System WARNING Follow the safety measures as given in Section 1 of this manual.
Page 13
9.4.2 Install the swing arms on the clamps WARNING Do not use this tool if the rail grips are seized L4578_f...
Page 14
9.4.3 Connect the hydraulics Figure 7: RP70A Couplers Connection 9.4.4 Pulling configuration 1800 mm NOTICE NOTICE NOTICE L4578_f...
Page 15
9.4.5 Stretching Configuration NOTICE WARNING Do not operate if the clamp assemblies are not square to the rail. WARNING Do not operate if the rails are without this range. L4578_f...
Serious personal injury and property damage could result if stressor strikes persons or objects in its path. WARNING Keep hands and feet away from cylinder and workpiece during operation. WARNING Use the safety measures as given in Section 1. 9.5.1 Pulling and stretching WARNING Do not exceed the rated input pressure as given in Section 7.1.
Storage Maintenance 10.1 System NOTICE NOTICE NOTICE 11.1 Rules to be observed for main- tenance Short term storage: NOTICE Long term storage: NOTICE 10.2 Hydraulic hoses Diameter er Figure 8: Hose bracket L4578_f...
12.4 Cylinder Figure 14: Pull Cylinder Main Components (first view) Repair Parts List, Figure 14 Item Description Qty. Part number L4578_f...
Page 24
NOTES Secure with Loctite 222. Torque with 6 Nm. 1/4 NPTF threads. Use Loctite 542 or te on tape. Torque 35-40 Nm. 3/8 NPTF threads. Use Loctite 542 or te on tape. Torque 40-50 Nm. 3/8 NPTF threads. Use Loctite 542 or te on tape. Torque 70-80 Nm. 3/8 NPTF threads.
