R.V.R. Elettronica TRDS 4001 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TRDS 4001
User Manual
Manufactured by
Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRDS 4001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for R.V.R. Elettronica TRDS 4001

Summary of Contents for R.V.R. Elettronica TRDS 4001

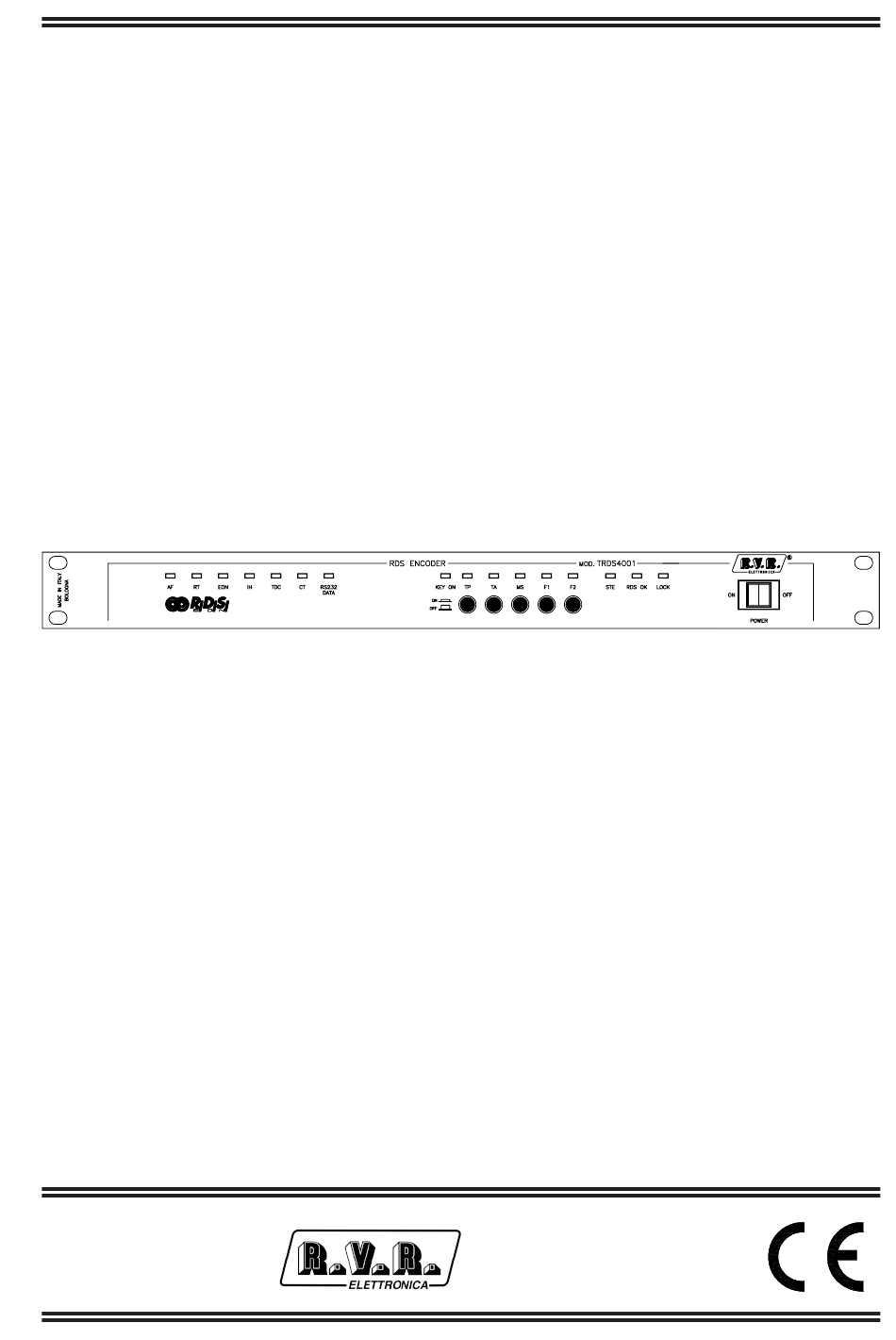

  • Page 1 TRDS 4001 User Manual Manufactured by Italy...
  • Page 2 TRDS 4001 - User Manual Version 4.0 © Copyright 1993-2001 R.V.R. Elettronica SpA Via del Fonditore 2/2c - 40138 - Bologna (Italia) Telefono: +39 051 6010506 Fax: +39 051 6011104 Email: info@rvr.it Web: www.rvr.it All rights reserved Printed and bound in Italy. No part of this manual may be reproduced,...

  • Page 3: Table Of Contents

    TRDS 4001 Table of Contents 1. Preliminary instructions 2. Warranty 3. First Aid 3.1 Treatment of electrical shocks 3.1.1 If victim is not responsive 3.1.2 If victim is responsive 3.2 Treatment of electrical Burns 3.2.1 Extensive burned and broken skin 3.2.2 Less severe burns (1st and 2nd degree)
  • Page 4 TRDS 4001 This page was intentionally left blank Rev. 4.0 - 23/03/2001 User Manual...

  • Page 5: Preliminary Instructions

    In this case can be requested to user to take the necessary measures. R.V.R. Elettronica SpA reserves the right to modify the design and/or the technical specifications of the product and this manual without notice. User Manual Rev.
  • Page 6 TRDS 4001 Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 2 / 36 Rev. 4.0 - 23/03/01 User Manual...

  • Page 7: Warranty

    TRDS 4001 2. Warranty Any product of R.V.R. Elettronica is covered by a 12 (twelve) month warranty. For components like tubes for power amplifiers, the original manufacturer’s warranty applies. R.V.R. extends to the original end-user purchaser all original manufacturers warranties which are transferable and all claims are to be made directly to R.V.R.
  • Page 8 TRDS 4001 DO NOT RETURN UNITS WITHOUT OUR AUTHORIZATION AS THEY WILL BE REFUSED. a Be sure to enclose a written technical report where mention all the problems found and a copy of your original invoice establishing the starting date of the warranty.

  • Page 9: First Aid

    TRDS 4001 3. First Aid The personnel employed in the installation, use and maintenance of the device, shall be familiar with theory and practice of first aid. 3.1 Treatment of electrical shocks 3.1.1 If victim is not responsive follow the A-B-C's of basic life support •...

  • Page 10: If Victim Is Responsive

    TRDS 4001 3.1.2 If victim is responsive Keep them warm • Keep them as quiet as possible • • Loosen their clothing (a reclining position is recommended) Call for medical help as soon as possible • 3.2 Treatment of electrical Burns 3.2.1 Extensive burned and broken skin...

  • Page 11: General Description

    TRDS 4001 4. General Description 4.1 Introduction The necessity to immediately know the working parameters of several device in a system or to transmit with all the several units which have to manage a firm, is a more and more greater need in all circles.
  • Page 12 TRDS 4001 The registry of transmission is at packages of lenght 104 bits (87.6 ms) named GROUPS, each of them composed of 4 blocks of 26 bits. Every block is composed of 16 bits of information and of 10 bits of protection, which are properly studied to allow the recovery of an erroneous word with a maximum of 5 wrong bits.

  • Page 13: Encoder External Description

    TRDS 4001 To automatically change over from a station which doesn’t transmit traffic news; M/S - MUSIC/SPEECH SWITCH: it’s used to modify the music and the spoken volume one by one. PIN - PROGRAM- ITEM NUMBER: it’s used to plan the receiver to receive certain programs at preselected date and hour.

  • Page 14: Rear Panel

    TRDS 4001 9 RDS OK green LED, when lit it indicates the correct generation of the RDS signal 10 LOCK green LED, when lit it indicates that the encoder is locked on the supplied pilot tone 11 ON mains switch 4.3.2 Rear panel...

  • Page 15: Technical Specifications

    TRDS 4001 4.5 Technical Specifications Electrical Specifications RDS Signal as in CENELEC EN 50067 specs Codification Differential at two levels Modulation DSB with suppressed carrier Frequency 57 Khz Range ±2.4 Khz MPX INPUT 0/+12 dBm on 600 Ohm OUTPUT MPX + RDS...
  • Page 16 TRDS 4001 This page was intentionally left blank 12 / 36 Rev. 4.0 - 23/03/01 User Manual...

  • Page 17: Electrical Description

    TRDS 4001 5. Electrical Description 5.1 Introduction This chapter describes the TRDS4001 ENCODER function . For utility, the device is divided in subassemblies which will be deeply discussed in the following paragraph. 5.2 Power Supply The power supply section is composed from a 220 V transformer (double primary 110-110 V) which supplies a +12 V voltage for the analogical part and a +5 V voltage for the digital logical one.
  • Page 18 TRDS 4001 This page was intentionally left blank 14 / 36 Rev. 4.0 - 23/03/01 User Manual...

  • Page 19: Installation Procedures

    This chapter contains the useful information for the TRDS4001 installation and preliminary check-in. The R.V.R. ELETTRONICA S.p.A. supplies the following equipment: N. 1 19" 1U rack, which contains the TRDS4001 RDS codifier; N. 1 VDE cable for the A.C. supply of the system;...

  • Page 20: Hardware Installation

    Clean the system only with a dry and soft cloth in order to avoid finishings damages. In case of damages, switch off the system and contact directely the firm R.V.R. ELETTRONICA s.p.a. 6.4 Hardware Installation The TRDS4001 RDS encoder can be connected to an exciter basically in two ways: •...
  • Page 21 TRDS 4001 MPX in Exciter RF out Stereo coder Left Right MPX out Exciter 19 kHz RDS in RF out Left Right If all the connections have been right realized, the coder will be working in 2-3 seconds and sending the RDS messages.

  • Page 22: Software Installation

    TRDS 4001 6.5 Software Installation The supplied software has been planned in wise to simplify the use also by unpractised user; every performance is complete with a different available options list in order to reduce the difficult on setting. In case of, for any reason, on the screen are nonsense indications or the PC jams, we recommend to reset it and to repeat the procedure from the beginning.
  • Page 23 TRDS 4001 a) finger CD ENGLISH <INVIO> (program in italian language); b) finger RDS <INVIO> (to start the management program); On the screen you can see the followings presentation window: In this window we recommend to finger: to use serial port COM1...
  • Page 24 TRDS 4001 N.B. In the up-link sat encoders, before the chief menu, select the place (or the encoder) you desire to connect to. A) MAIN MENU The main menu allows the following functions: Identification code SET Transmissiona mode SET P.I.N. SET...
  • Page 25 TRDS 4001 B) IDENTIFICATION CODE SETTING It’s used to set or change the identification code of a broadcaster (PROGRAM IDENTIFICATION CODE - PI) which has to be univocal into the broadcaster covering area. It’s depends from the country of the braodcaster and from the same broadcaster covering areas.
  • Page 26 TRDS 4001 For the planning it’s necessary to select the sended programmes type, in the TRANSMISSION CLASS window (ex. command ENTER on VARIOUS or NOTICES) and to select the transmission type used in the TRANSMISSION TYPE window (ex. command ENTER on STEREO).
  • Page 27 TRDS 4001 ENTER when is lighting the screen-command UPDATE; they are neglected on pressing the ABORT screen-command. The "P.I.N. SET" shows as follows: E) ALTERNATIVE FREQUENCIES MANAGEMENT - AF - It’s used to set or change the broadcaster sinthony frequencies lists in its diffusion areas.
  • Page 28 TRDS 4001 For the alternative frequencies transmission, the program uses two methods: A (default selectioned) and B. The two methods use the following size: A METHOD: every station send a nearly frequencies list, after the contained frequencies number (max. 25);...
  • Page 29 TRDS 4001 a submenu: the user has to choose which messages he wants to modify (or to simply visualize); the new menu shows as follows: At this point, the user selects one of the 8 messages (ex. message number 1) and the current message contain appears.
  • Page 30 TRDS 4001 MODIFY or press RETURN on the screen command EXIT. On selecting the window "MODIFY", the new menu appears, which are listed the selectable message types in; the new menu is the following: The possible type are four: Message with Date and Time;...
  • Page 31 TRDS 4001 In case of "MESSAGE with DATE and TIME", the message will contain as first 2 words, of the 16 ones, the date and the hour. In case of "MESSAGE with DATE", the message will contain as first word, of the 16 ones, the data.
  • Page 32 TRDS 4001 To set/defuse a message it’s necessary to press the command SPACE on the keyboard when the cursor is connected with the message. The active messages are where appears a "X". To change place from the column ACTIVATION to the HOUR one, it’s necessary to press the command TAB.
  • Page 33 TRDS 4001 To ability the service "Radio Text" it’s necessary to place the cursor on the window "RTEXT ON/OFF" and to press the spacebar; if a "X" appears, the procedure is right. In order to take place into the text from a word to another one, it’s sufficient to use the command TAB;...
  • Page 34 TRDS 4001 At this point, the user selects one of the 16 items (ex. Network N. 1) and the new menu is the follows: In this menu the system asks the information about Network Program Identification. To plan, it’s necessary to select the country in the window COUNTRY SELECT (ex.
  • Page 35 TRDS 4001 In this menu it’s possible realize the following settings: Program types sended; Program-item number (P.I.N.); Program service (PS), at most of 8 characters; Abilitation of TP services (Traffic-Program Identification), and TA (Traffic-Announcement Identification). When all the choices are made, on continuing to realize the further ones, take place on the screen command "CONTINUE"...
  • Page 36 TRDS 4001 In this menu the user could set the syntony frequencies list of the broadcaster in its diffusion areas. Also in this case, as in the "Alternative Frequencies Management" one, the program is provided with two methods for the management of the frequencies list, the A, in default setted, and the B one, indicated for very long frequencies lists.
  • Page 37 TRDS 4001 The setted data within this moment are revised on the encoder only on pressing <ENTER> when appears the screen command UPDATE; they are neglected on pressing the screen command EXIT. L) TRANSPARENT CHANNEL MANAGEMENT - TDC - This option is used for the transmission of any type of data.
  • Page 38 TRDS 4001 To ability the service "IN House Application", it’s necessary to place the cursor on the window "HOUSE ON/OFF" and press the spacebar; if a “X” appears, the procedure is right. To take place into a text from a word to another one, use the command "TAB"; to take place into a word, use the directional arrows "RIGHT"...
  • Page 39 TRDS 4001 The TRDS4001/SAT Encoder version, in the chief menu, is provided with a further option, as follows: O) STATION SELECTION The RDS SAT version codifier provides the messages planning with a directely connected Pc and with a remote connection of the PC to the UP-LINK transmitter.
  • Page 40 TRDS 4001 This option allows to select 1,2,..N, all the encoders (identified by the station where they are placed in) to send the message to; if no encoder is selected, none of the other voices into the chief menu are setable.

  • Page 41: Appendix

    Questa parte del manuale contiene i dettagli tecnici riguardanti la costruzione delle singole schede componenti il TRDS 4001. L’appendice è composta dalle seguenti sezioni: This part of the manual contains the technical details about the different boards of the TRDS 4001.
  • Page 42 TRDS 4001 Pagina lasciata intenzionalmente in bianco This page intentionally left blank 2 / 2 4.1 - 05/11/02 User Manual Technical Appendix...
  • Page 43 TRDS 4001 Appendice Tecnica Rev. 1.0 - 23/03/2001 SLRDSCOD-002 - 1 / 10...
  • Page 44 TRDS 4001 2 / 10 - SLRDSCOD-002 Rev. 1.0 - 23/03/2001 Technical Appendix...
  • Page 45 TRDS 4001 G N D Appendice Tecnica Rev. 1.0 - 23/03/2001 SLRDSCOD-002 - 3 / 10...
  • Page 46 TRDS 4001 G N D G N D G N D 4 / 10 - SLRDSCOD-002 Rev. 1.0 - 23/03/2001 Technical Appendix...
  • Page 47 TRDS 4001 Appendice Tecnica Rev. 1.0 - 23/03/2001 SLRDSCOD-002 - 5 / 10...
  • Page 48 TRDS 4001 6 / 10 - SLRDSCOD-002 Rev. 1.0 - 23/03/2001 Technical Appendix...
  • Page 49 TRDS 4001 SLRDSCOD-002 Bill Of Materials Page1 Item Qty Reference Part ______________________________________________ CN1,CN10 DB9FSO CN3,CN4,CN5,CN6,CN7 BNC_IS90 CN04MR XLRFCS CN11 DB25FSO 120pF C2,C3,C154 10pF C4,C5,C6,C7,C8,C23,C35, 10uF C43,C46,C56,C83,C104, C105,C106,C107,C122,C123 68pF 30pF C11,C13,C14,C15,C16,C17, 0.1uF C18,C19,C22,C24,C25,C27, C28,C29,C36,C39,C40,C41, C42,C44,C45,C50,C51,C55, C70,C72,C75,C77,C80,C88, C89,C101,C102,C103,C108, C110,C116,C117,C118,C120, C121,C145,C146,C151,C152, C153 47uF...
  • Page 50 TRDS 4001 D10,D12 D13,D14,D15,D16,D17,D18, Z5V1 D19,D20 Z12V Z5V6 FIX1,FIX2,FIX3,FIX4,FIX5, FIX35 FIX6,FIX7,FIX8 CN10PD CN16PD JP3,JP7,JP8,JP11 STM03S JP4,JP12,JP13 STM02S JP5,JP9 STF10S STM06D JP10 STM04S JP14 STM16D JSMDC J2,J3,J4,J5,J6,J7 JSMD L1,L2,L3,L4,L5,L6,L7 2W10 BC547 RAFF1,RAFF2 RAF220 RR1,RR2,RR3,RR4 RV1,RV2 100K RY2,RY3,RY4 RLYTQ2_12 R1,R33,R34,R52,R53,R57, R58,R101,R102,R103,R104, R105,R106,R107,R108...
  • Page 51 TRDS 4001 6K98 R75,R79 51H0 R76,R80,R95 2K49 604H0 47H5 4K99 R87,R90 1K33 316K0 22H0 R100 10H0 R109 390H0 R110,R122 R116,R117 S24V R134 15K0 SWDIP4H SW2,SW3 SWDIP2H TP1,TP2,TP3,TP4,TP5,TP6, TP7,TP8,TP9 80C552 74HC573 27C512 M48Z35 BQ3287 U6,U36 74HC04 MAX232 74HC4060 74HC02 74HC163 74HC4046...
  • Page 52 TRDS 4001 Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 10 / 10 - SLRDSCOD-002 Rev. 1.0 - 23/03/2001 Technical Appendix...
  • Page 53 TRDS 4001 Appendice Tecnica Rev. 1.1 - 05/11/02 SLPANRDS9901 - 1 / 6...
  • Page 54 TRDS 4001 2 / 6 - SLPANRDS9901 Rev. 1.1 - 05/11/02 Technical Appendix...
  • Page 55 TRDS 4001 SLPANRDS9901 Bill Of Materials Page1 Item Q.ty Reference Part ____________________________________________________________________________________________ C1,C3,C4,C6,C7,C8 0.1uF C2,C5 10uF D1,D2,D3,D4,D5,D6,D7,D8, LED-G5 D9,D10,D11,D12,D13,D14, D15,D16 D17,D18,D19,D20,D21,D22, 1N4148 D23,D24 FIX1,FIX2,FIX3,FIX4,FIX5, FIX35 FIX6,FIX7 CN16PD R1,R2,R3,R4,R5,R6,R8,R10, R11,R12,R13,R14,R15,R16 10H0 R17,R18,R19 2K20 R20,R21,R22 N.C. R23,R24 U5,R25,R26,R27 SW1,SW2,SW3,SW4,SW5 SWMEC4 U1,U4 4094...
  • Page 56 TRDS 4001 Versione precedente, solo per riferimento Former version, for reference only 4 / 6 - SLPANRDS9901 Rev. 1.1 - 05/11/02 Technical Appendix...
  • Page 57 TRDS 4001 G N D Versione precedente, solo per riferimento Former version, for reference only Appendice Tecnica Rev. 1.1 - 05/11/02 SLPANRDS9901 - 5 / 6...
  • Page 58 TRDS 4001 SLPANRDS9901 Bill of Materials Page1 Item Qty Reference Part ______________________________________________ U1,C1,U2,U3,U4,C4,U5,C5, C6,C7,C8,R17,R18,R19,R25, R26,R27 10uF 0.1uF D1,D2,D3,D4,D5,D6,D7,D8, LED-G5 D9,D10,D11,D12,D13,D14, D15,D16 D17,D18,D19,D20,D21,D22, 1N4148 D23,D24 FIX1,FIX2,FIX3,FIX4,FIX5, FIX35 FIX6,FIX7 CN16PD R1,R2,R3,R4,R5,R6,R8,R10, R11,R12,R13,R14,R15,R16 10H0 R20,R21,R22,R23,R24 SW1,SW2,SW3,SW4,SW5 SWMEC4 6 / 6 - SLPANRDS9901 Rev. 1.1 - 05/11/02...
  • Page 59 TRDS 4001 Appendice Tecnica Rev. 1.0 - 23/03/2001 PSUP003 - 1 / 4...
  • Page 60 TRDS 4001 2 / 4 - PSUP003 Rev. 1.0 - 23/03/2001 Technical Appendix...
  • Page 61 TRDS 4001 SDC100B.SCH Bill Of Materials Page1 Item Reference Part ______________________________________________ CM100PF CD1KPF CM10KPF 1/25 C5,C20 1000/35 C6,C23 100/35 C7,C8,C16,C19,C21 CM.1uF C9,C10,C11,C12,C13,C14 220/25 CP10KP-5% C17,C18 CD560PF .1uF D1,D4,D5,D7 11DQ06 1N5402 1N4004 KBL04 1.5AT JP1,JP2 KB2/KS2 JP3,JP4 KB4/KS4 L1,L2,L3,L4,L5 VK200 BUK455-100A...
  • Page 62 TRDS 4001 Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - PSUP003 Rev. 1.0 - 23/03/2001 Technical Appendix...
