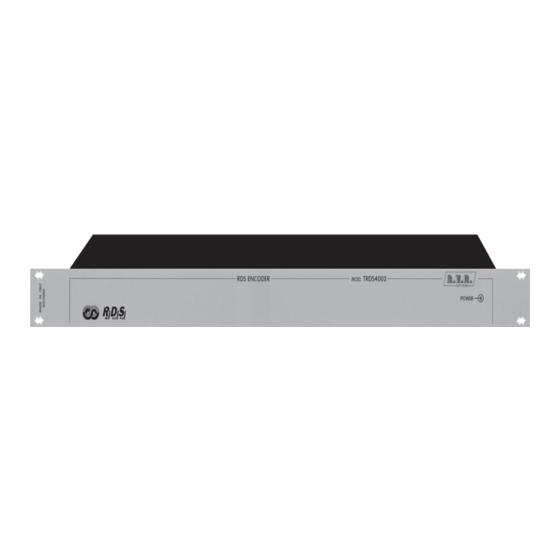

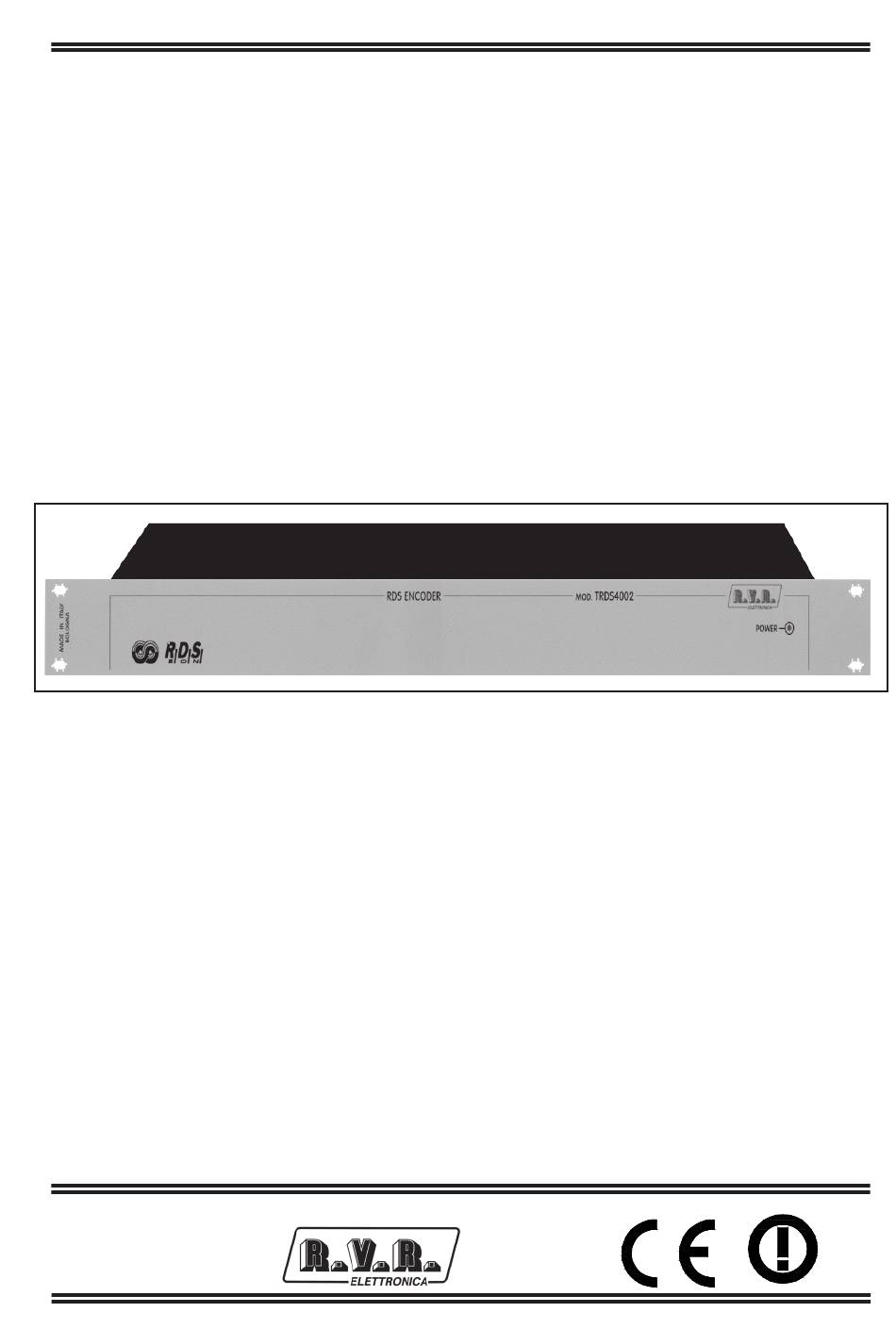

  • Page 1 TRDS4002 User Manual Volume 1 Manufactured by Italy...
  • Page 2 Limitations of use can apply in respect of operating freuency, transmitter power and/or channel spacing. Declaration of Conformity Hereby, R.V.R. Elettronica SpA, declares that this FM transmitter is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 3: Table Of Contents

    TRDS4002 Table of Contents 1. Preliminary Instructions 2. Warranty 3. First Aid 3.1 Treatment of electrical shocks 3.2 Treatment of electrical Burns 4. General Description 4.1 Overview of the RDS service 4.2 - RDS - radiodata 4.3 Features RDS 4.4 Applications 4.5 Definition of terms...
  • Page 4 TRDS4002 Rev. 1.0 - 03/08/05 User Manual...

  • Page 5: Preliminary Instructions

    2. Warranty number. R.V.R. Elettronica SpA Any product of R.V.R. Elettronica is covered by a 24 Via del Fonditore, 2/2c (twenty-four) month warranty. 40138 BOLOGNA ITALY Tel.

  • Page 6: Treatment Of Electrical Burns

    TRDS4002 Treatment of electrical Burns • clear out mouth if necessary and observe for breathing 3.2.1 Extensive burned and broken skin • if not breathing, begin artificial breathing (Figura 2): tilt head, pinch nostrils, make Cover area with clean sheet or cloth.

  • Page 7: General Description

    TRDS4002 4. General Description 4.1 Overview of the RDS service There is a growing, global interest, both on the part of industry, as well as broadcasters, in information systems which utilize a data channel inserted into radiophonic transmissions. The interest in these new systems has been stimulated by the continuing evolution of...
  • Page 8 TRDS4002 Radiodata is the fruit of work undertaken by a specialized UER group, based on five proposals formulated by Sweden, The Netherlands, Great Britain, Finland and France. The superiority of this system results mainly from its protection from transmission errors, crucial for in-car reception, high speed to synchronize the data groups, from its high data rate, its potential for new applications and flexibility of use.
  • Page 9 TRDS4002 Figure 2 To avoid phase ambiguity on recovering the 57 KHz subcarrier, in the case of coherent demodulation, the binary data signal undergoes differential encoding prior to biphase encoding. Fig.3 gives an example of the 57 KHz subcarrier after modulation by the data signal.
  • Page 10 TRDS4002 Figure 3 The system satisfies the protection ratios specified by the CCIR for mono and stereophonic transmissions. Figure 4: Protection ratios for FM radiophony (max. deviation: ± 75 KHz) 6 / 42 Rev. 1.0 - 03/08/05 User Manual...
  • Page 11 TRDS4002 Fig.5 shows the protection ratio curves for the three services. Figure 5 The structure of the data signal is shown in fig.5. Base-band structure of Radiodata The structural element is the “group” containing 104 bits. Each group comprises 4 blocks of 26 bits each, of which 16 are information and 10 are for protection.

  • Page 12: Features Rds

    TRDS4002 There is a choice, therefore, between simple error detection which will not recover the message and full error correction which will do so. From the results of reception tests carried out in Sweden, it would seem that the optimum decoding strategy, both for domestic as well as in-car reception, requires correction of single errors and adjacent double errors and the detection of long error strings.

  • Page 13: Definition Of Terms

    TRDS4002 For example, it will be possible to transmit a commentary to the main program, as a RADIOTEXT message comprising text made up of alphanumeric characters (ASCII) that will appear on a display integrated into the receiver, and ultimately be able to control a voice synthesizer.
  • Page 14 TRDS4002 The car radio, as well as being tuned to the station transmitting traffic announcements, has to be enabled to receive ARI INFO or TA. Once the announcement has been made, the radio automatically reverts to cassette listening. This function is analogous to ARI.
  • Page 15 TRDS4002 25.Country Music 26.National Music 27.Oldies Music 28.Folk Music 29.Documentary 30.Alarm Test 31.Alarm Decoder Identifier (DI) This function allows the identification of 16 different modes of operation including: • monophonic transmission stereophonic transmission • • artificial stereophonic transmission • processed mono •...
  • Page 16 TRDS4002 This service, which is similar to Radiotext, allows serial alphanumeric information, corresponding to computer software or other non displayable information, to be transmitted. Clock Time (CT) As per CCIR standards, information relating to time and date is defined by Coordinated Universal Time (UTC) and by Modified Julian Day (MJD).

  • Page 17: Quick Guide For Installation And Use

    2. Position the encoder away from sources of heat. Avoid humid sites with extremes of temperature. 3. Check that the line voltage is suitable for the TRDS4002 before connection with the cable supplied. The voltage is selected internally and can be 220 VAC or 110 VAC (50/60 Hz).

  • Page 18: Interconnection

    TRDS4002 A special device is required to maintain the normal signal. This device will insert the RDS signal to every individual transmitter. Such a device is the RDS MIXER MKII. 5.3 Interconnection The RDS data encoder must be connected between the stereo encoder and the transmitter.
  • Page 19 TRDS4002 To install the program, go to the CDROM reader drive, and double click on the Setup.exe icon. The program will be automatically installed and a link will be created on the program bar. To execute the program, click on the Start button on the applications bar with the left button of the mouse.
  • Page 20 TRDS4002 Select the RS232 icon and the following window will appear: Let’s now see the parameters and their meaning: - RSD Option This is used to choose whether a coder programmed locally or via satellite is involved. This choice affects all the programming windows and disables or enables certain functions.
  • Page 21 TRDS4002 searches the communication parameters of the serial port. It may in any event always be entered manually. - Serial Port Choice of the communication port: COM1, COM2, COM3 or COM4. - Baudrate Choice of the transmission speed. It must be set according to all set on the dipswitches of the coder.
  • Page 22 TRDS4002 Let’s see the parameters and their meaning. A box at the left hand part is displayed where the coder address is entered. The default address is ?????. The Send Address push button at the side of this text box is used to activate the coder for programming, whether this is done “locally”...
  • Page 23 TRDS4002 Up to 50 PSN’s can be programmed. Programming is quite simple. Enter the Time (sec) (transmission time in seconds) of each PSN (it is advisable to enter a time of less than 3 sec). Edit the PSN, which may have a length of 8 characters, including spaces.
  • Page 24 TRDS4002 Let’s examine the programming of the Radio Text. As described earlier, click on the board Radio Text tab. The following window will be displayed. Following the same programming procedure as that for the PSN, enter the transmission Time (sec) of the string of characters then, in the Radio Text box, enter the text of up to 64 characters.
  • Page 25 TRDS4002 Enter the date of the Day when the programming is to be made. Enter the programming beginning Time. Select the programming mode amongst those offered. Now, going on to a new setting, the 4-figure PIN code will automatically be created. The last box shows whether the setting has already been made (Yes) or whether it is still to be processed (No).
  • Page 26 TRDS4002 Let’s now analyse the AF Method A board. This board consists of 25 frequencies. Only with this method will it be possible to enter frequencies with steps of 25 KHz. The last of this type of frequency causes the...
  • Page 27 TRDS4002 Method B enables the entry of frequencies with steps of 50 KHz. Up to 50 groups of alternative frequencies can be entered. Each group can bear up to 12 alternative frequencies, plus the main frequency. To make the setting, select the list desired. A comment concerning this group can be entered in the Description field.
  • Page 28 TRDS4002 The PTYN is an extension of the PTY. Once the PTY type has been selected, enter the specification of that type in the right box. 8 characters at the most can be used. For example PTY sport, Name football.
  • Page 29 TRDS4002 Let’s now analyse the menu used to set the Program Service Name. Up to 200 settings can be programmed using this menu. For example: we want to broadcast page 7 at 10:30 on the 14th June 2000. In this case, as it is the first setting, select the Plan Nr.000 line, enter 10.30 in the Time box, then 14-06-2000 in the Date box and then in the PSN page, enter the page bearing our setting 7 and finally enable the setting, Enable On.
  • Page 30 TRDS4002 In a very simple manner, the date and time can be assigned. The CT OFFSET function is used to enter the time zone difference, (this function is normally used in America). The DATE PSN function is used to decide in which PSN the date must appear.
  • Page 31 TRDS4002 In the following board, the parameters of the Program Identifier can be entered together with relative further extensions. The first setting to be made is the type of language used in transmission (Language Identification Code), then select the country (Country Selection), then the type of coverage (Coverage area Selection) and finally the ID.
  • Page 32 TRDS4002 The TP option can be selected on the left side. The options relative to the type of transmission are available on the right side. Once the choices have been made, sent the update to the coder using the Send push button. Use the Read push button to read the information set previously.
  • Page 33 TRDS4002 Let’s now see the EON - LI - TA EON boards. 10 pages are offered to make the required settings. Depending on the properties of the network, the parameters are entered, then in the same manner as the other boards, the parameters are read or sent to the coder using the Read and Send push buttons.
  • Page 34 TRDS4002 frequencies in the boxes at the side of AF Method A writing, in our case 102.0 and 106.5 in the second box. Finally enter code 5155 in the PI box. Let’s now program the second radio connected. Select page number 1, enter the name of the radio in the PSN box, in our case radio SUN, enter the two frequencies in the boxes at the side of AF Method A writing, in our case 100.0 and 104.5 in the...
  • Page 35 TRDS4002 Then enter code 5160 in the PI box. At this stage simply send the settings to the rds coder. From the Linkage Information board, some parameters relative to the network transmission can be attributed. In particular using the Linkage Actuator push button,...
  • Page 36 TRDS4002 We have still another board, TA EON, which is used only to send all the TA EON selected all together. 32 / 42 Rev. 1.0 - 03/08/05 User Manual...
  • Page 37 TRDS4002 The last functions available relate to the Transparent Data Channel, to the In House Applications and to the Traffic Message Channel. These functions have been designed in compliance with the Cenelec EN50067 standards and can be used only with special decoders.
  • Page 38 TRDS4002 Let’s now analyse the board of the In House Applications. The pages available are pointed out by the lighting up of the relative traffic light. To modify a page, retrieve it using the combo box. From the editing window, make the desired modifications and then save the page using the Write Page push button or send it using the Send push buttons.
  • Page 39 TRDS4002 In the two tables relative to the Traffic Message Channel, refer to the CEN TC 278 SWG7.3 E pr ENV/278/7/3/004 of the CEN TC 278 WG7 for the specific codes. The LTN code is found in this board, Location Table Number, together with the SID Service Identifier, plus the setting of the coverage area, which can be considered as an identification code of the sender, similar to the PI.
  • Page 40 TRDS4002 Let’s see the board. The Location parameter is used to establish where the event has occurred. The Event parameter establishes the type of event. The Duration parameter establishes how long the event lasts presumably. The Direction parameter establishes the direction in which the event has occurred.
  • Page 41 TRDS4002 Type-in On, in the EnableGroupFunction=Off item. Then save the file and open it again using the Open command from the main window of the program. Do not make any other modifications in this file, otherwise errors may be produced in the program.
  • Page 42 RDSPCSAT.rds loaded default configuration with all the most frequently used parameters. OldLocal.rds to be used only with previous versions of TRDS4002 and STARGATE MK1 (they may be identified by the two 9-pin connectors on the back of the panel). Full.rds this configuration is used to modify all the parameters of the RDS coder.

  • Page 43: External Description

    TRDS4002 6. External Description 6.1 Front Panel Description of front panel On the front panel is present only the LINE switch. 6.2 Rear Panel Description of rear panel controls [1] LINE INPUT Line input. [2] 19 KHz IN Input connector 19 KHz pilot only.

  • Page 44: Technical Specifications

    TRDS4002 7. Technical specifications 7.1 RDS Generator RDS signal Standard specification EBU Doc. Tech. 3244- E and Cenelec PrEn 50067 Coding Differential and Biphase Modulation DSB-suppressed carrier Frequency 57 KHz Bandwidth ± 2.4 KHz RDS injection into MPX signal - infinite ÷ - 16 dB...

  • Page 45: Connection Pc - Rs232

    TRDS4002 7.5 Connection PC - RS232 7.6 Sample connection Remote User Manual Rev. 1.0 - 03/08/05 41 /42...

  • Page 46: Jumper & Dip Setting

    TRDS4002 7.7 Jumper & Dip Setting ↑ ↑ ↑ ↑ ↑ ↓ ↓ ↓ ↓ ↓ Preset dip ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↑ ↑ ↑ ↑ ↑ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓...
