JWA WILSHERE 69732 Assembly Instruction Manual

Coffee table
Hide thumbs

Advertisement

Quick Links

Download this manual

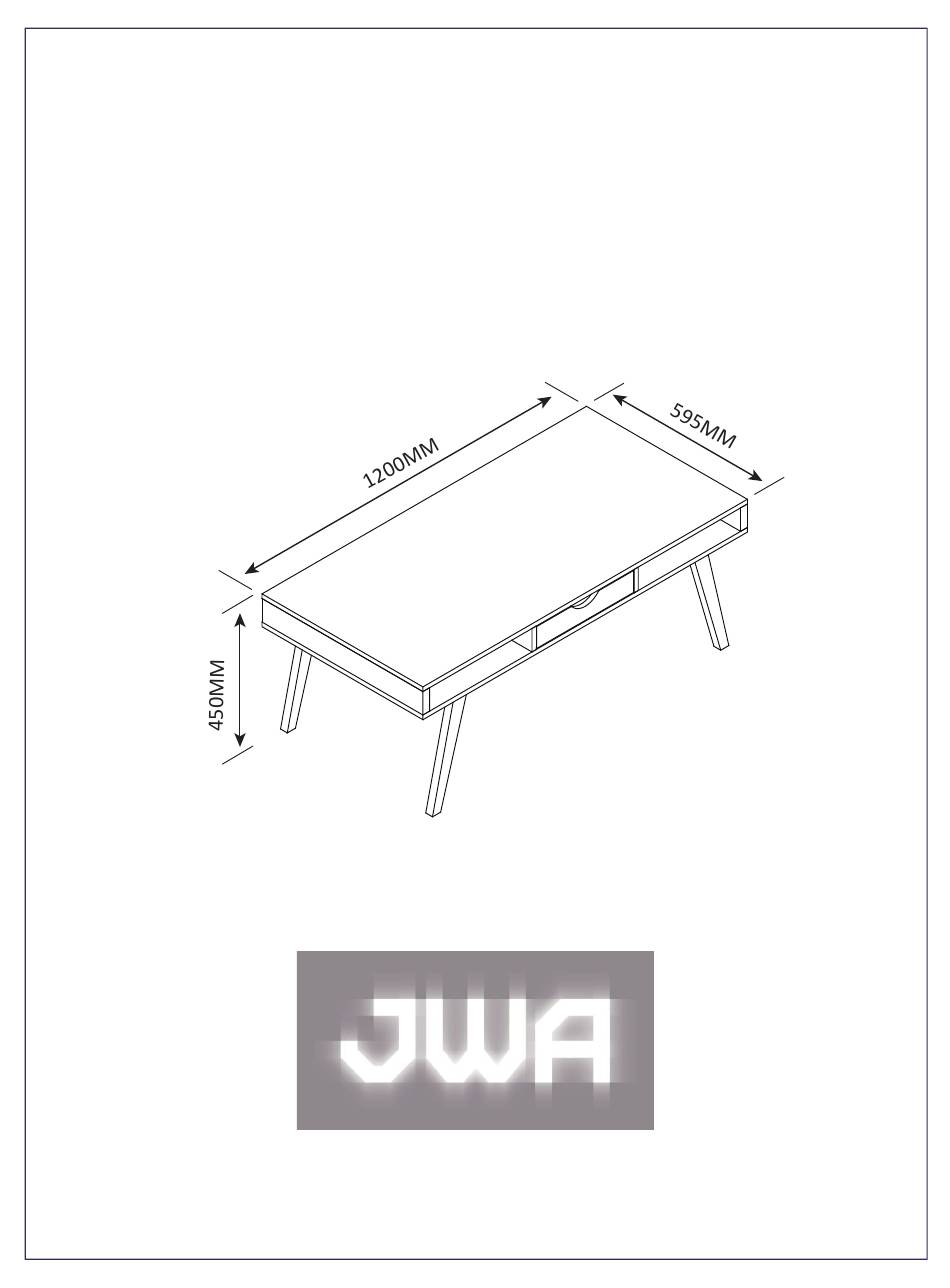

ASSEMBLY INSTRUCTION
WILSHERE Coffee Table
ITEM CODE 69732
Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WILSHERE 69732 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JWA WILSHERE 69732

Summary of Contents for JWA WILSHERE 69732

  • Page 1 ASSEMBLY INSTRUCTION WILSHERE Coffee Table ITEM CODE 69732 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when li�ing. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.

  • Page 3: Parts List

    PARTS LIST M8X30mm M5X40mm M6X43mm M15X12mm 26pcs 16pcs 16pcs 12pcs M6X50mm M6X12mm M6X30mm M12X10mm 2pcs 2pcs 8pcs 4pcs M4X30mm M3X12mm 2pcs 2pcs 4pcs 1pcs M6X60mm 7pcs DRAWER BACK PANEL TOP PANEL DRAWER LEFT PANEL SIDE PANEL DRAWER RIGHT PANEL MIDDLE PANEL DRAWER BOTTOM PANEL SUPPORT PANEL BOTTOM PANEL...
  • Page 4 Fix cam pin (C) and plas�c parts (J) to panel(1). STEP 1: STEP 2: Insert dowls (A) to panels (2) (3).
  • Page 5 STEP 3: A�ach panels (2) (3)to panel (1) with cam lock (D). STEP 4: A�ach panel(4) to panel (5) with screws(I).
  • Page 6 STEP 5: A�ach panel(5) to the body with screws(B). STEP 6: Insert dowls (A) to panel (6).
  • Page 7 A�ach leg (7) to panel (6) with nuts (F) and screws (E) STEP 7: by allen key (L). STEP 8: Insert dowels (A) as shown.
  • Page 8 STEP 9: A�ach leg parts to the body with screws (M) by allen key (L). Insert dowels (G) to panels(8)(9)(10). STEP 10:...
  • Page 9 STEP 11: A�ach panel(9) (10)to panel (8) with screws(B). STEP 12: Insert drawer base(11) as shown.Fix cam pin (C) to panel (12).
  • Page 10 STEP 13: A�ach drawer front to the body with cam lock parts. STEP 14: S�ck part (K) to the bo�om of drawers,and assemble drawers to the body.
  • Page 11 ASSEMBLY COMPLETE...
  • Page 12 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
