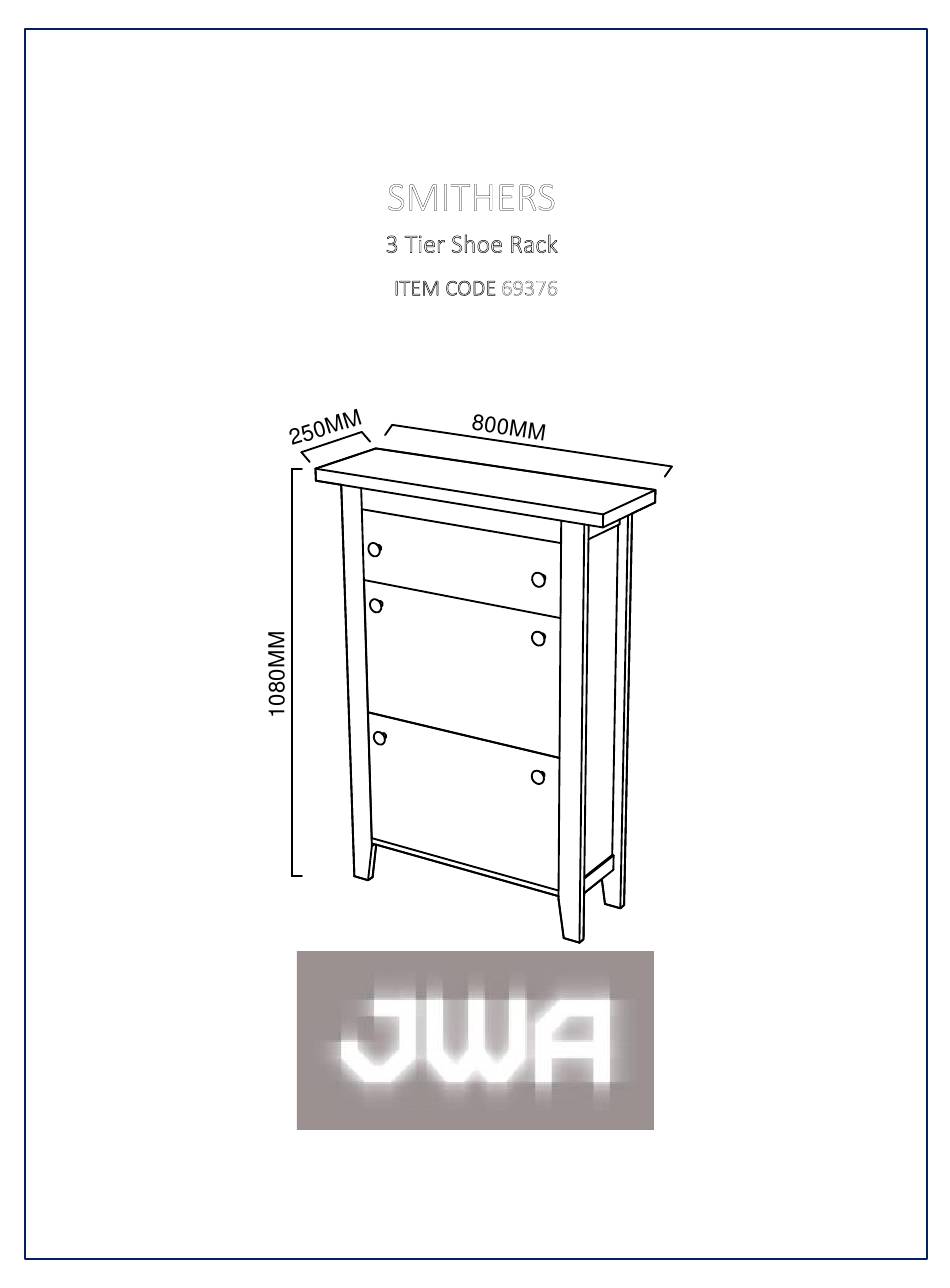

- Page 1 ASSEMBLY INSTRUCTION SMITHERS 3 Tier Shoe Rack ITEM CODE 69376 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when li�ing. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instruc�ons carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST... - Page 4 PARTS LIST ITEM QTY NO. ITEM 16PCS 4PCS Φ6*35 4PCS 16PCS Φ15*10 22PCS 2PCS Φ3*12 6PCS 2PCS Φ6*30 16PCS 4PCS Φ4*30 12PCS 6PCS Φ3.5*12 4PCS 2PCS Φ4*16 ITEM QTY NO. ITEM 1 PC 1 PC RIGHT SIDE PANEL DRAWER BACK 1 PC LEFT SIDE PANEL 1 PC...
- Page 5 STEP 1: STEP 2:...
- Page 6 STEP 3: Ensure the cam lock is lined up with the cam bolt when fixing. STEP 4: Ensure the cam lock is lined up with the cam bolt when fixing.
- Page 7 STEP 5: Ensure the cam lock is lined up with the cam bolt when fixing. STEP 6:...
- Page 8 STEP 7: STEP 8:...
- Page 9 STEP 9: Ensure the cam lock is lined up with the cam bolt when fixing. STEP 10: WALL...
- Page 10 STEP 11: ASSEMBLY IS COMPLETE...
- Page 11 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 12 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
