Festo DADM-EP-G6 Operating Instructions

DADM-EP-G6
Intermediate-position module
Operating instructions
8159559
2021-11d
[8159561]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1

Applicable Documents

All available documents for the product è www.festo.com/sp.
2

Safety

2.1

Safety instructions

– Only use the product in its original condition without unauthorised modifica-
tions.
– Take into account the ambient conditions at the location of use.
– Observe the identifications on the product.
– Only use the product if it is in perfect technical condition.
– Store the product in a cool, dry environment protected from UV and corrosion.
Keep storage times short.
– Before working on the product, switch off the compressed air supply and lock it
to prevent it from being switched on again.
– Observe the tightening torques. Unless otherwise specified, the tolerance is
± 20%.
2.2

Intended use

The product is intended to be used as an external stop for a linear drive and
enables the slide to be placed in an intermediate position within the stroke range.
2.3

Foreseeable misuse

Operating the product without suitable cushioning will destroy it.
– Use suitable cushioning components è www.festo.com/catalogue.
2.4

Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have skills and
experience in dealing with electropneumatic (open-loop) control technology.
3

Additional information

– Contact the regional Festo contact if you have technical problems
è www.festo.com.
– Accessories and spare parts è www.festo.com/catalogue.
4 Function
The stop lever of the intermediate-position module swivels in and out when
the pneumatic ports are pressurised. In the swivelled-out status, the cushioning
component in the shock absorber retainer advances to the stop lever. The slide of
the linear drive is therefore in an intermediate position. The position of the stop
lever can be queried by the proximity switch in the slots .
5
10
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
9
www.festo.com
8

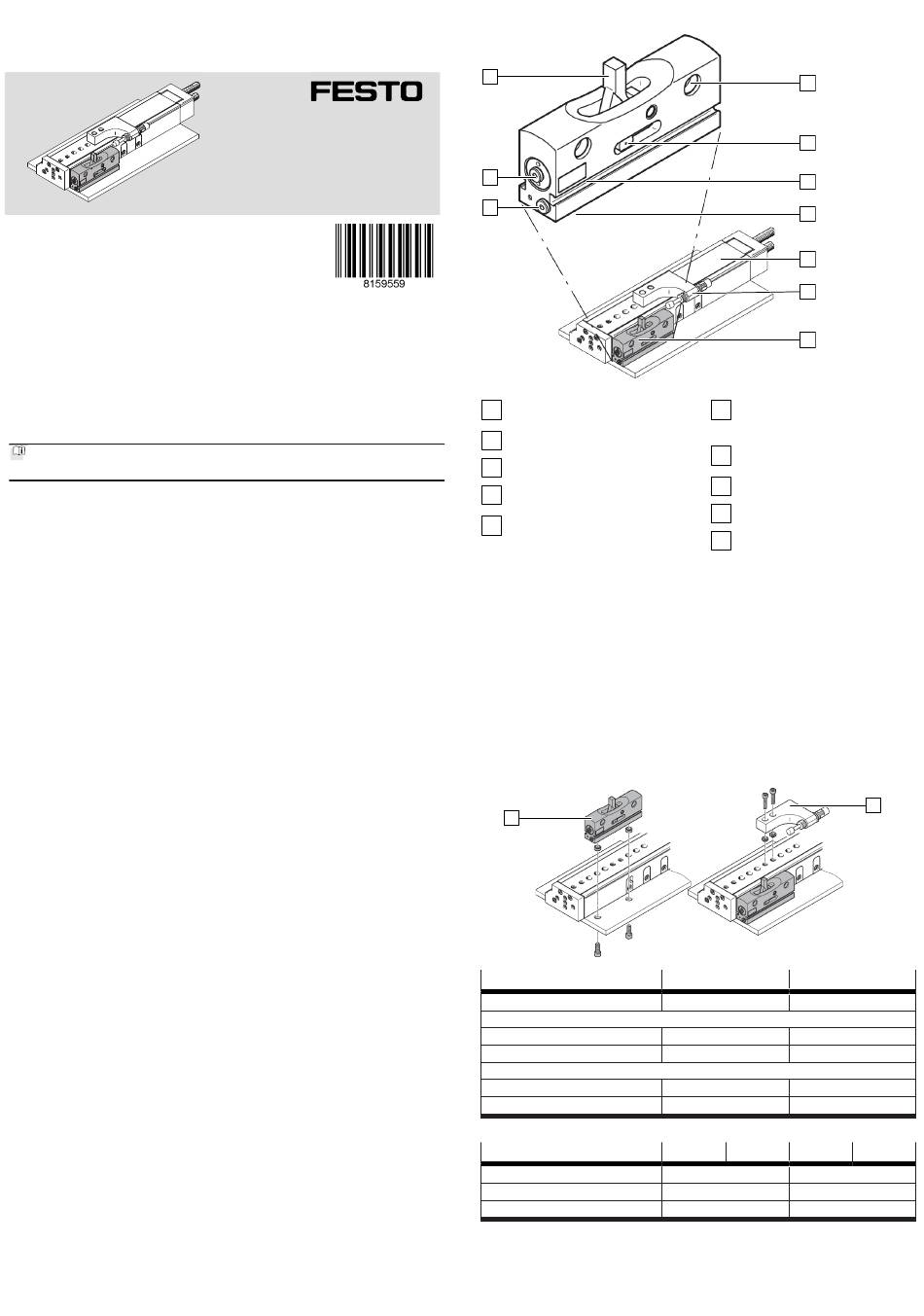

Fig. 1: Product design
1
2
3
4
5
6
6.1
1. Fasten the intermediate-position module to the mounting surface with two
screws and the accompanying centring sleeves . Tightening torque è Tab. 1
Tightening torque for mounting the intermediate position module. The inter-
mediate position is fine-tuned during commissioning by screwing the cush-
ioning component in or out.
The following mounting interfaces are possible:
– Mounting interface, lateral
– Mounting interface, underneath
2. Fasten the shock absorber retainer to the slide of the linear drive with two
screws . Tightening torque è Tab. 2 Tightening torque for mounting shock
absorber retainer on linear drive DGSL.
DADM-EP-G6
Centring sleeve
Mounting interface, underneath
Screw
Tightening torque
Mounting interface, lateral
Screw
Tightening torque
Tab. 1: Tightening torque for mounting the intermediate position module
DGSL
Centring sleeve
Screw
Tightening torque
Tab. 2: Tightening torque for mounting shock absorber retainer on linear drive

Product design

Mounting interface
lateral (2x)
Sliding pad
Slot for proximity switch (2x)
Mounting interface
underneath (2x)
Linear drive
- DGSL
- DGST

Assembly

Mount the intermediate position module on the linear drive DGSL
7
-10
ZBV-10-9
M6
[Nm] 10
M5
[Nm] 6
-12
ZBV-12-7
M5
[Nm] 6
DGSL
1
2
3
4
5
6
7
Shock absorber retainer
6
- DADP-ES-G6 for DGSL
- DADP-ES-G8 for DGST
Intermediate-position module
7
DADM-EP-G6
Pneumatic port 1
8
Pneumatic port 2
9
Stop lever
10
6
-16
ZBH-12
M8
10
M6
10
-16 -20 -25
ZBV-12-9
M6
10
