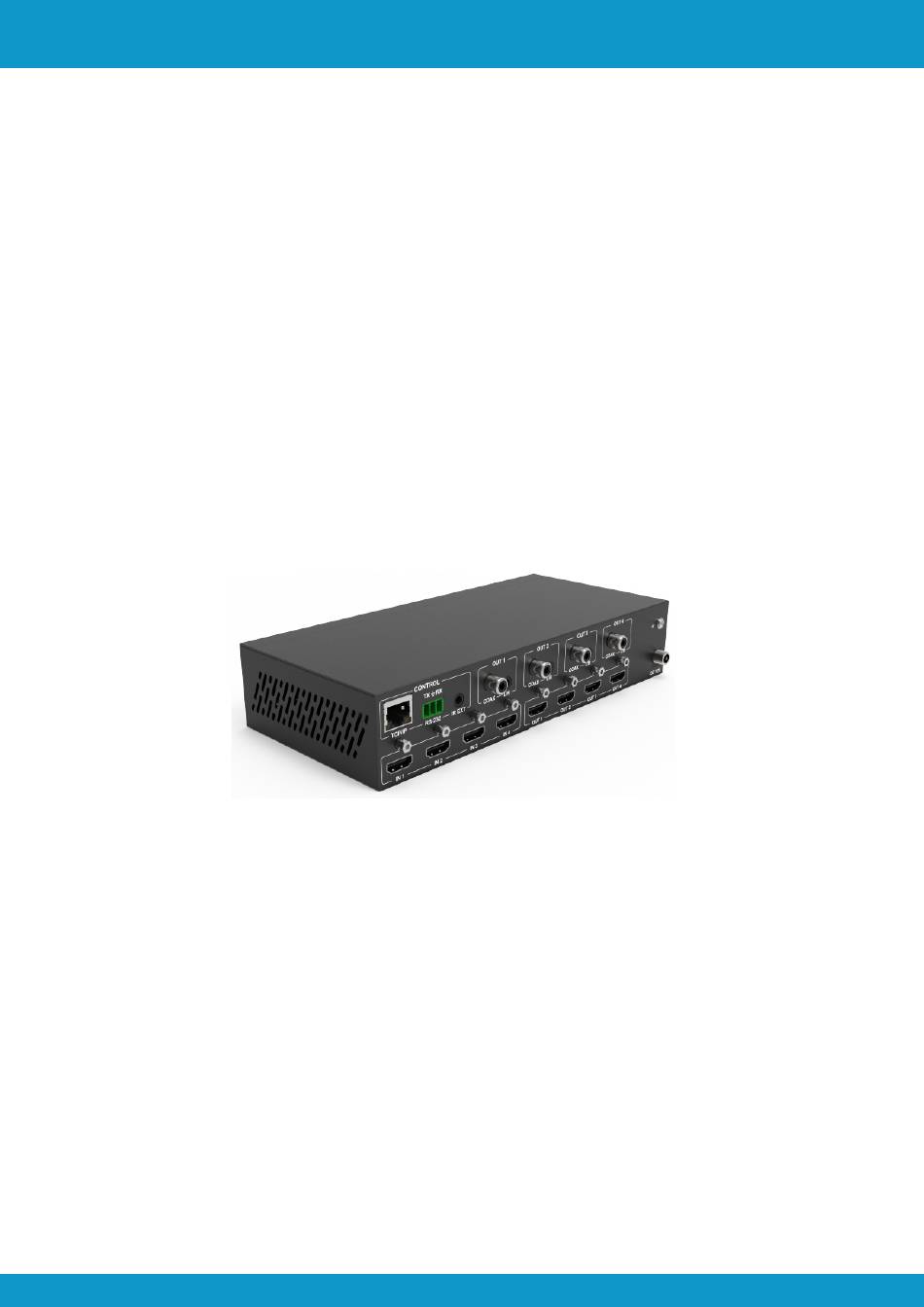

- Page 1 Scion Tech SC04.MX44+ User Manual 18Gbps 4 x 4 HDMI Matrix Switch with ARC and Downscaler SC04.MX44+ User Manual Version 1.0 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
-
Page 2: Table Of Contents
8.7 ARC (audio return channel) and Stream............10 8.8 Network Settings....................11 8.9 System....................... 11 9. API Control Command........................12 10. ASCII Commands........................... 13 11. Application Drawing........................16 12 . Maintenance and Warranty......................17 Page 1 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 3: Introduction
● Control: Front panel, IR control, RS232 and TCP/IP Web GUI 3. Package contents 1. Main Unit (SC04.MX44+) 2. Power Adaptor 12V/2.5A 3. IR Remote 4. Mounting Brackets 5. IR External Cable 6. 3-Pin Phoenix Terminal 7. User Manual Page 2 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 4: Specifications
Safety and Emissions: CE, FCC, RoHS Resolution and Cable Lengths (IN/OUT) 15m @ 1080p/60Hz 10m @ 4K/30Hz 3m @ 4K/60Hz Note: Premium High Speed HDMI cables are required to achieve these results. Page 3 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 5: Front & Rear Panel Description
Scion Tech SC04.MX44+ User Manual 5. Front & Rear Panel Description SCION 18Gbps 4 x 4 HDMI Matrix www.scion-tech.co.uk OUT 1 OUT 2 OUT 3 OUT 4 Number Name Function / Description Infra-Red sensor Power LED The LED illuminates Red when the product is on or in standby... -
Page 6: Ir Remote
Output 2 Output 3 Output 4 HDMI Matrix Button Function / Description Power ON and Standby Output 1 ↔ 4 Selects input source to outputs. Selects the next or last input. Activates the downscaler Page 5 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 7: Preparing Your Pc's Ip Address
Set you computers IP address the the same network segment as the matrix. For example: IP address 192.168.1.200 and subnet mask: 255.255.255.0. Avoid using the matrix default settings when entering the computers IP address. Page 6 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 8: Web Gui
4 x 4 HDMI Matrix Admin Log Out Standby Status Status Model SC04.MX44+ Video Firmware Version V1.00.04/1.37 Input Hostname Op-module Output IP Address 192.168.1.100 Subnet Mask 255.255.255.0 Network Gateway 192.168.1.1 System Mac Address 6C:DF:FB:02:11:D6 Page 7 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 9: Video
HDMI 4 Input 4 4K/60_444, HD Audio 7.1 HDR Load EDID to User Memory Network Upload Select EDID File: Browse… System Load EDID to Computer Download HDMI 1 Select EDID File: Page 8 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 10: Edid Settings
2. Select either “User 1” or “User 2” from the drop-down list. 3. Click the “Upload” button. The EDID data from any input or from User 1 and User 2 locations can be read and stored on your PC. Page 9 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 11: Outputs
The ARC buttons enable or disable the display device audio to the coaxial audio outputs. If the ARC function is enabled the L/R audio ports will have no audio output simultaneously. The stream buttons enable or disable the output for the respective output. Page 10 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 12: Network Settings
Log Out Standby Panel Lock Status Beep (sound) Video Input Serial Baud Rate 4800 9600 19200 38400 57600 115200 Output Firmware Update Network Browse… Update System Factory Reset: Reset Reboot: Reboot Page 11 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 13: Api Control Command
4. When all four inputs are requested by the same command, the response will report each input on a separate line. 5. When all four outputs are requested by the same command, the response will report each output on a separate line. Page 12 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 14: Ascii Commands
Set hdmi output y port hdcp status y=0~4 (0=all), z=0~1 (1=active, hdmi 1 hdcp active 0=off) r hdmi y hdcp! Get hdcp staus of hdmi out y, y=0~4 (0=all) hdmi 1 hdcp active Page 13 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... - Page 15 Please use “s net reboot!” Command S ip addr or re-power device to apply new Set network IP address xxx.xxx.xxx.xxx! config! DHCP on, device can’t config static address, set DHCP off first. Page 14 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
- Page 16 Get network telnet port Telnet port:23 Network rebbot… IP Mode: Static IP: 192.168.1.100 Subnet Mask: 255.255.255.0 s net reboot! Reboot network modules Gateway: 192.168.1.1 Mac address: 00:1C:91:03:80:01 TCP/IP port=8000 Telnet port=10 Page 15 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
-
Page 17: Application Drawing
COAX TCP/IP RS232 IR EXT COAX DC 5V IN 1 IN 2 IN 3 IN 4 OUT 1 OUT 2 OUT 3 OUT 4 Display Display HDMI Source 1 ↔ 4 Display Display Page 16 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 18: Maintenance And Warranty
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number and/or email address where you can be reached. Page 17 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... - Page 19 RESPONSIBILITY. This returns policy does not affect your legal rights. Details of your legal rights are available from Trading Standards or Citizens Advice Consumer Service. Scion Tech Limited Thatcham, Berkshire, United Kingdom Page 18 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
