Scion-Tech SC35.MX88 User Manual

Hdbaset 8x8 matrix switcher over cat6/6a
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SC35.MX88
HDBaseT™ 8×8 Matrix Switcher
over CAT6/6a
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC35.MX88 and is the answer not in the manual?

Questions and answers

Related Manuals for Scion-Tech SC35.MX88

Summary of Contents for Scion-Tech SC35.MX88

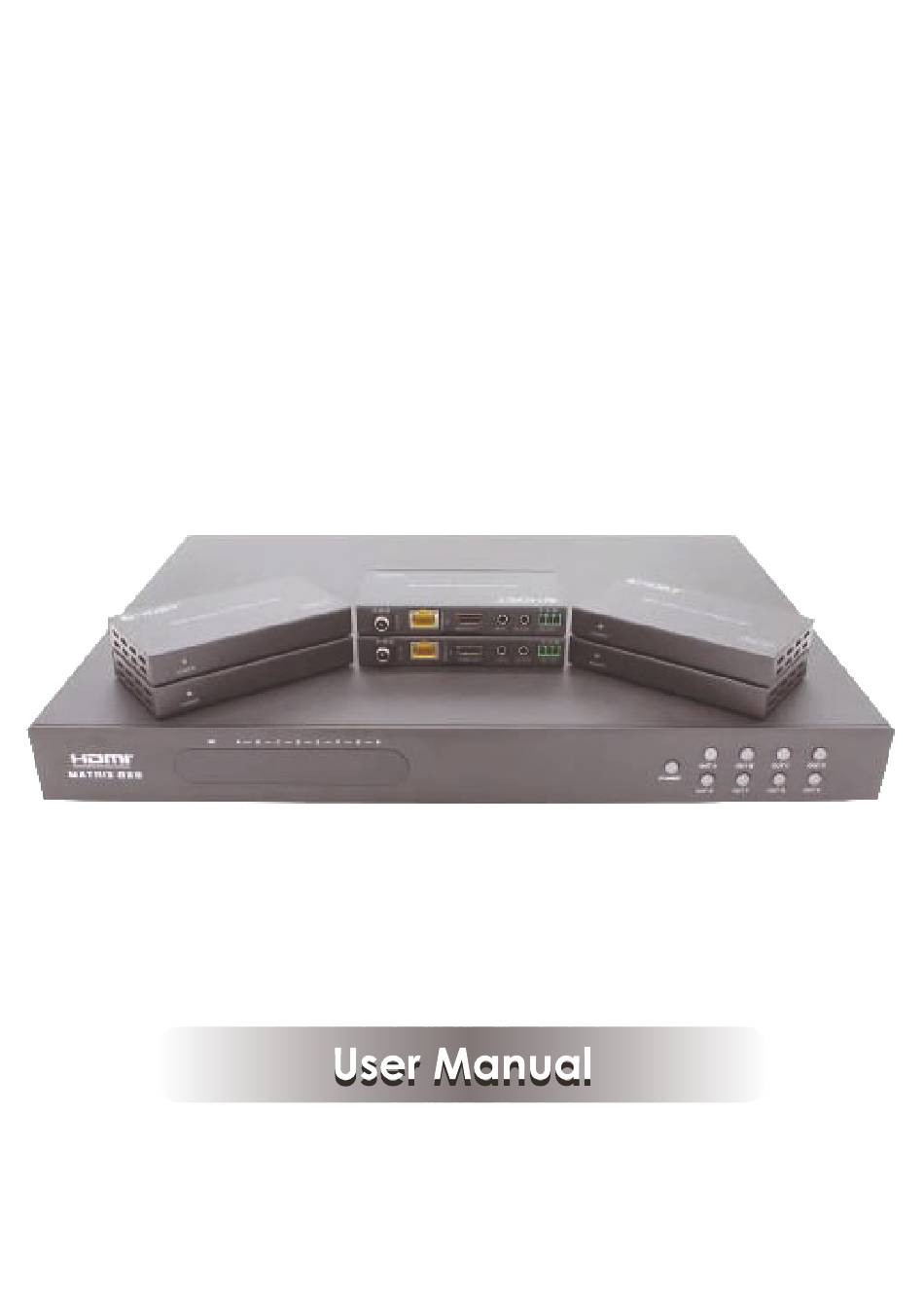

  • Page 1 SC35.MX88 HDBaseT™ 8×8 Matrix Switcher over CAT6/6a VER 1.0...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The HDBaseT™ 8x8 Matrix Switcher supports the transmission of video (up to 4K2K@60Hz YUV4:4:4, 8-bit, 18Gbps, HDCP 2.2) and multi-channel digital audio such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master audio from 8 HDMI sources to 6 HDBaseT™ outputs and 2 independent HDMI outputs.

  • Page 4: Specifications

    4. Specifications Technical Video Bandwidth 600MHz[18Gbps] 480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/ Video Resolution 50/60, 4Kx2K@30, 4Kx2K@60 (4:4:4) Input Ports: 8×HDMI Type A [19-pin female] 9×IR input [3.5mm Stereo Mini-jack] 1×RS-232 [Phoenix connector] 1×LAN [RJ45 connector] Matrix Output Ports: 2×HDMI Type A [19-pin female] 6×HDBaseT Out [RJ45] 9×IR output [3.5mm Stereo Mini-jack]...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Front panel Name Number Function description Standby indicator light.The LED will illuminate Standby LED red when the unit is standby status If the unit is working, the LED light will not illuminate. IR receiver window. Display information for each input channel Nixie tube from OUT A~OUT H button input.

  • Page 6: Remote Controller

    IR OUTPUT interface. For further details, please IR OUTPUT refer to the IR control system introduction. De-embedded audio output ports. By default, it outputs HDMI out A audio. But user can select Audio OUTPUT other output ports audio via Web GUI. NOTE: Optical port can support PCM and compressed audio formats, but L/R port only supports PCM audio.

  • Page 7: Ir Control System

    7. IR Control system (IR Call-back of Matrix and Source Devices) The matrix is not only a switcher and extender of multiple HDMI signals to multiple HDMI receivers located remotely, it also passes IR control signals through the IR call-back system to the matrix and HDMI sources for full, independent control of all connected inputs from output locations.
  • Page 8 ② At display end: The matrix has two location HDMI outputs and six HDBT outputs. The location HDMI output has not IR control function. The six HDBT outputs connect HDBT receiver. The HDBT IR INPUT and the matrix IR OUPTU is match. The way of IR control is following video switch to change. The mean is that the output select corresponding input source, the IR control will switch to following output select corresponding input source.

  • Page 9: Web Gui User Guide

    8. Web GUI User Guide The Matrix can be controlled via Web GUI through LAN port. You must know current Matrix IP address. The static IP address is 192.168.1.100. You can connect PC Web GUI through dynamic IP adress. In this unit, you can get the IP address via PC Controller.
  • Page 10 General page ① Display currently the Matrix input and output port status. The “yes” have connected input or output source and “no” represent not connection. ② Power switch. The Matrix will work when open this switch, otherwise, the Matrix will standby. ③...
  • Page 11 EDID page ① Set EDID mode to input source, then click “Set” button. ② Copy EDID from HDMI output port to input source, then click “Set” button. ③ Open EDID file to input source, then click “Set” button. ④ Click “Refresh” button to refresh currently EDID mode. It will diaplay currently input source EDID mode status.
  • Page 12 ◆ In DHCP close status: HDCP switch: If the DHCP switch has been closed, user can set IP, Subnet and Gate address. In this moment, click the “Save Change” button to save current status information. (Attention: If user have set the IP address, click the “Save Change”...

  • Page 13: Hdbt Receiver

    9. HDBT Receiver Number Name Function description This LED illuminates when the device is POWER connected with power supply. Plug the 24V DC power supply into the unit. DC 24V (If the device connect to the matrix, the receiver doesn't need local power supply due to POC from the matrix.) Standard HDBaseT signal input port.

  • Page 14: Application Example

    10. Application Example 12/12...
