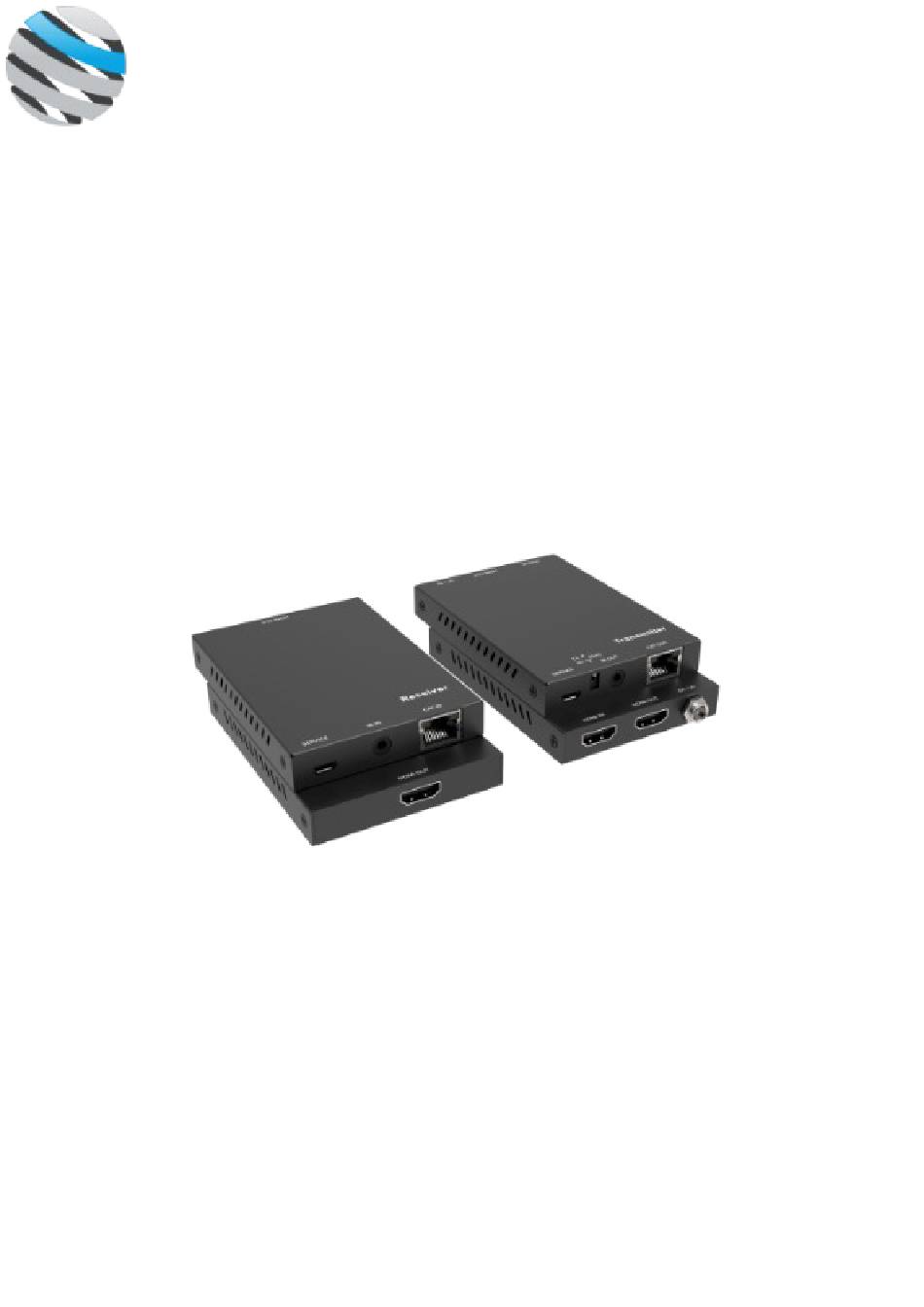

- Page 1 Scion-Tech Ltd Digital Video Distribution SC01.7050 HDMI over CAT6 4K/60Hz, 4:4:4, HDR User Manual Version: 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Table Of Contents

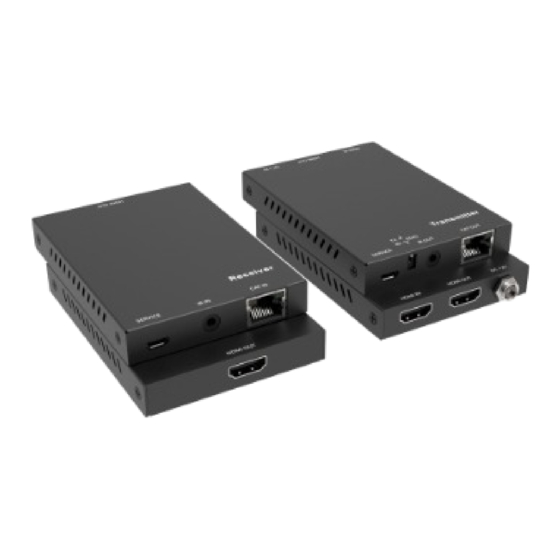

1. Introduction The SC01.7050 extends the distance between the HDMI source and display up to 50m over a single CAT6/6a/7 cable. The extender delivers Ultra HD 4K resolution and return path infra-red for controlling the source device. These units support HDMI 2.0, HDCP 2.2 and HDR making them suitable for most system installations, including... -
Page 4: Specifications
4. Specifications Transmitter Connectivity HDMI Input: 1 x HDMI Type A, 19-Pin Female HDMI Loop: 1 x HDMI Type A, 19-Pin Female CAT6 Output: 1 x RJ45 Data Socket Infra Red: 1 x 3.5mm Jack Socket Power: 1 x DC Jack Receiver Connectivity CAT6 Input: 1 x RJ45 Data Socket Output: 1 x HDMI Type A, 19-Pin Female... -
Page 5: Panel Description
5. Panel Description Transmitter DC 12V HDMI In HDMI Out EDID IR Out Service CAT Output 1. HDMI Input 5. EDID Copy Swi tch Tx/Rx 2. HDMI Looped Output 6. Infra Red Output (emi tter) 3. DC 12V / 1A Power Input 7. -
Page 6: Connecting Devices
6. Connecting Devices 1. Connect the source to the transmitter using a premium quality HDMI cable no longer than 3 meters in length. 2. Connect the looped HDMI output to your local display using a similar HDMI cable. 3. Connect the remote display to the receivers HDMI output using a premium quality HDMI cable no longer that 5 meters in length. -
Page 7: Application Drawing
8. Application Drawing 4K/60Hz Display 4:4:4 Transmitter DC 12V HDMI In HDMI Out EDID IR Out Service CAT Output IR In Service CAT Input Receiver HDMI Out 4K/60Hz Display 4:4:4 Page 5... -
Page 8: Maintenance
9. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzine to clean these devices. 9.1 Servicing Damage requiring service: This product should be serviced by a qualified service engineer if: The DC power cord or AC adaptor has been damaged. ... -
Page 9: 10. Warranty Limits And Exclusions
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. This returns policy does not affect your legal rights. Details of your legal rights are available from Trading Standards or Citizens Advice Consumer Service. Scion-Tech Limited Thatcham, Berkshire United Kingdom Tel: +44 (0) 1635 862484 Email: sales@scion-tech.co.uk...
