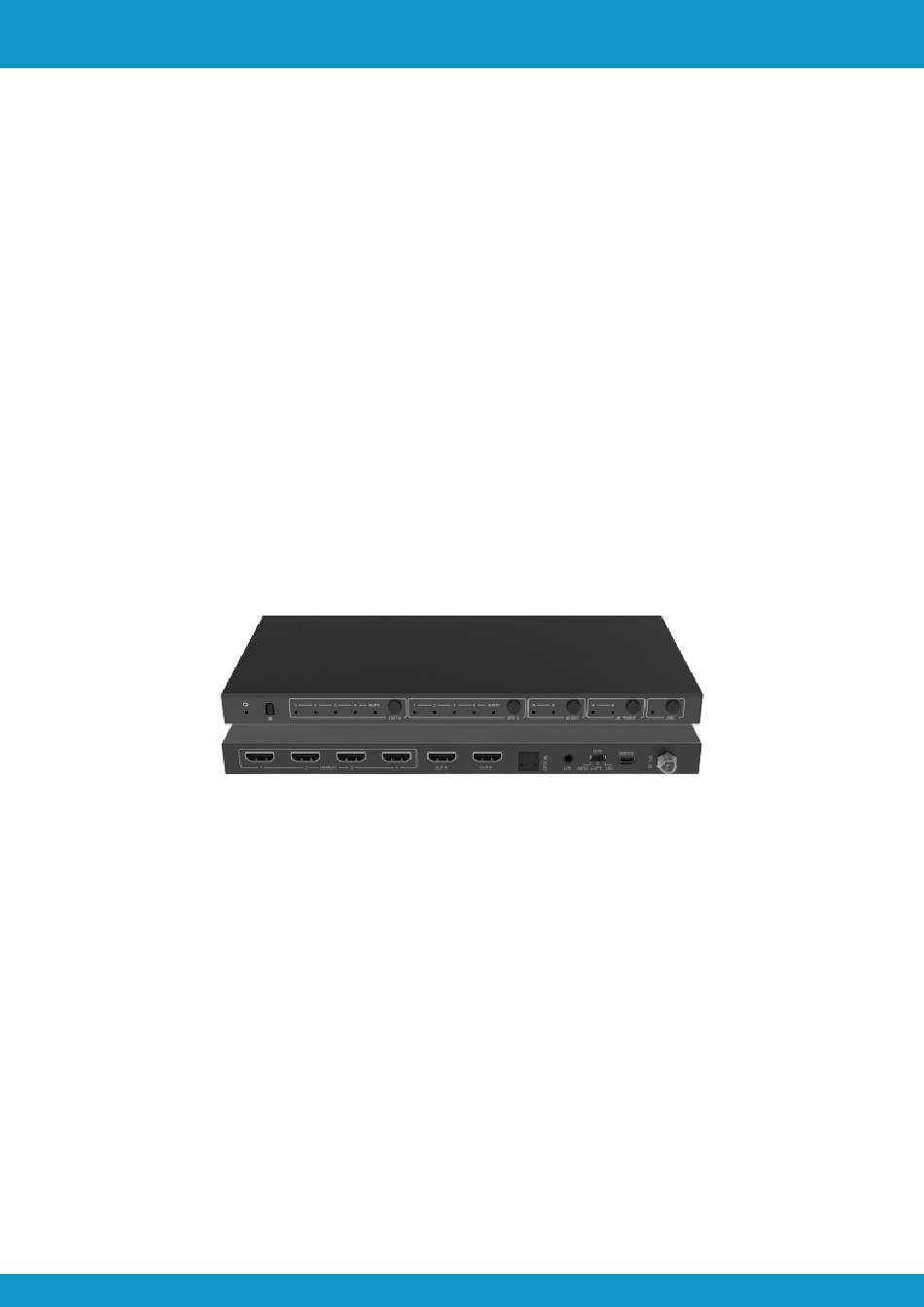

- Page 1 Scion Tech SC04.MX42 User Manual 18Gbps 4 x 2 HDMI Matrix Switch with Audio Extraction/Scale/ARC SC04.MX42 User Manual Version 1.0 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
-
Page 2: Table Of Contents
Scion Tech SC04.MX42 User Manual Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
User Manual 1. Introduction The SC04.MX42 matrix switches 4 x HDMI inputs to 2 x HDMI outputs in a true matrix environment, any input to any output simultainiously and supports 18Gbps video bandwidth with resolutions up to 4K/60Hz 4:4:4, HDR10+ and Dolby Vision™. -
Page 4: Specifications
Scion Tech SC04.MX42 User Manual 4. Specifications Connectivity HDMI Input: 4 x HDMI Type A, 19-Pin Female HDMI Output: 2 x HDMI Type A, 19-Pin Female Analogue Audio: 1 x 3.5mm Jack Socket Digital Audio: 1 x Optical Jack Power: 1 x 2.1mm DC Jack... -
Page 5: Front Panel Description
Scion Tech SC04.MX42 User Manual 5. Front Panel Description IR Sensor AUTO AUTO OUT A OUT B AUDIO 4K - 1080P Number Name Function / Description Power LED Indicator Power LED The LED illuminates Blue when the product is on or in standby... -
Page 6: Rear Panel Description
Scion Tech SC04.MX42 User Manual 6. Rear Panel Description INPUT OUTPUT AUDIO OUT Service EDID DC 5V AUTO COPY OPTICAL Number Name Function / Description Input 1 & 4 Connect to the HDMI source devices with a high quality HDMI cables. -
Page 7: Ir Remote
Scion Tech SC04.MX42 User Manual 7. IR Remote Output A AUTO 4K/HD Output B AUTO 4K/HD Audio HDMI Matrix Button Function / Description Power ON and Standby Output A Selects input 1 or 4 to output A. Output B Selects input 1 or 4 to output B. -
Page 8: Application Drawing
Scion Tech SC04.MX42 User Manual 9. Application Drawing Audio Amplifier INPUT OUTPUT AUDIO OUT Service EDID DC 5V AUTO COPY OPTICAL Speakers HDMI Source Display Display 1 ↔ 4 Page 7 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 9: Maintenance And Warranty
Scion Tech SC04.MX42 User Manual 10. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices. Servicing Damage requiring service: This product should be serviced by a qualified service engineer if: ●... - Page 10 Scion Tech SC04.MX42 User Manual Limited warranty limits and exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages...
