V-TAC VT-7662 Installation Instruction

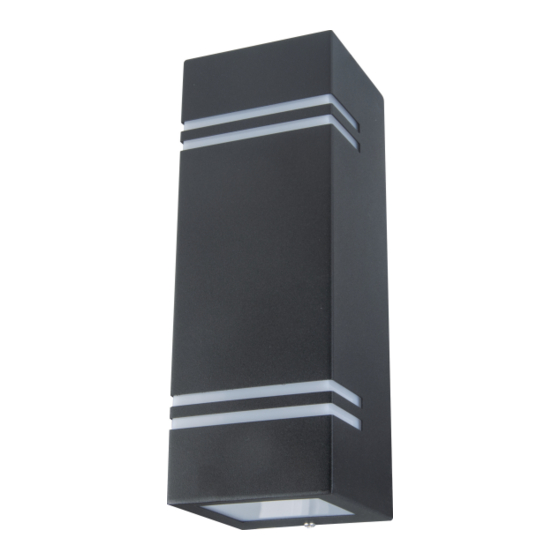

Outdoor wall lamp

INTRODUCTION

Thank you for selecting and buying V-TAC LED Stand Lamp. V-TAC will serve

you the best. Please read these instructions carefully before starting the

installation and keep this manual handy for future reference. If you have

any other query, please contact our dealer or local vendor from whom you

have purchased the product. They are trained and ready to serve you at

the best.

1. ENSURE ELECTRICITY IS SWITCHED OFF BEFORE INSTALL.

2. PLEASE READ THROUGH ALL FOLLOWING INSTRUCTIONS BEFORE

INSTALLING THE UNIT.

3. USER SHOULD PREPARE NECESSARY ACCESSORIES AND SPARE

PARTS (NOT PROVIDED).

INSTALLATION INSTRUCTION

Model: VT-7662

Outdoor Wall Lamp

WEEE Number: 80133970

Table of Contents

Do you have a question about the VT-7662 and is the answer not in the manual?

Page 1 Outdoor Wall Lamp INTRODUCTION Thank you for selecting and buying V-TAC LED Stand Lamp. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other query, please contact our dealer or local vendor from whom you have purchased the product.
Page 2 TECHNICAL PARAMETERS Input Voltage: 220 - 240 V AC, 50 Hz Holder GU10 2x11W (MAX) Protection Rating IP 44 Unit size 85x87x250mm INSTALLATION INSTRUCTIONS Drill two holes on the wall and insert two plastic expansion bolts in it. Fix the plastic plate on the plastic expansion piece with self-tapping screws.
