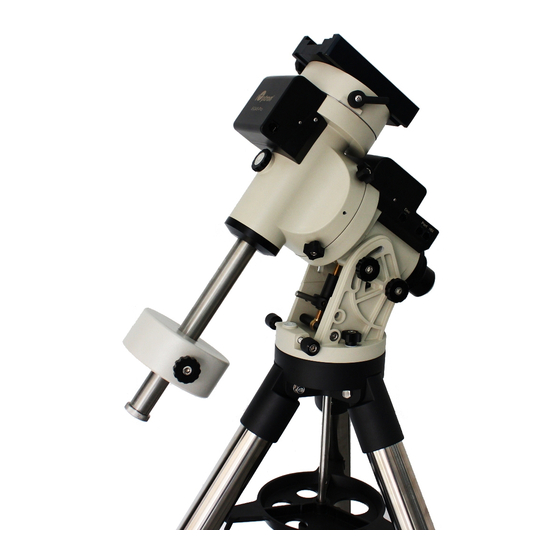

iOptron iEQ30 Adjustment

Focusing Adjustment and Polar Axis Alignment
Polar Scope is a very delicate optical component, especial its reticle which is made from a glass
and mounted on a plastic fitting. If your polar scope axis needs to be re-aligned to the RA axis of
your EQ mount, please do not use excess force onto the reticle adjustment screws.
Tool needed: 2mm Allen wrench

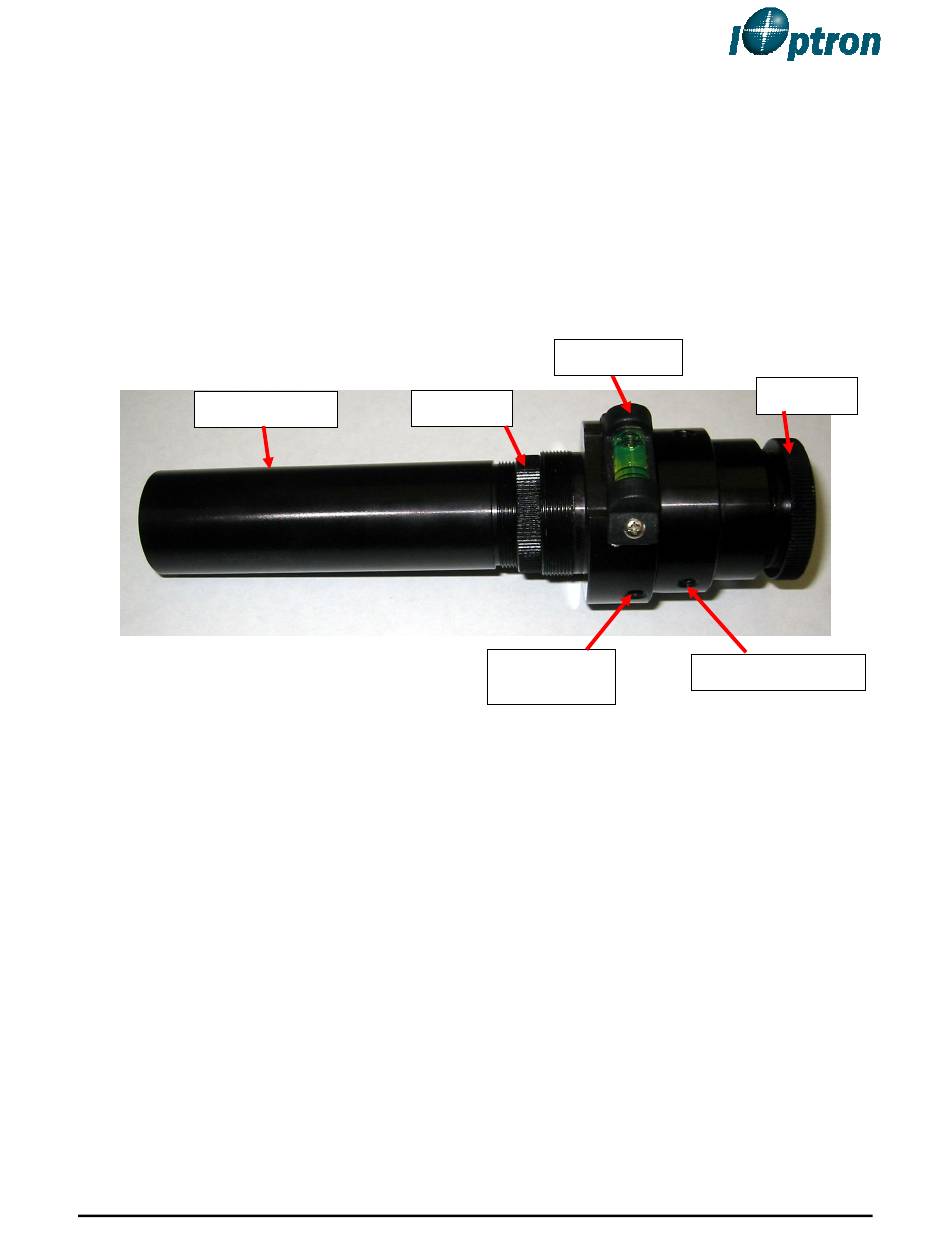

Polar Scope Parts Name:
Objective Lens
♦
Eyepiece: Adjustable, for reticle focusing
♦
Objective Lens: Adjustable, for object focusing
♦
Locking Ring: Lock the objective lens tube
♦
Bubble Level: An easy indicator for polar scope dial position when they are aligned to each
other
♦
Bubble Level Set Screws: M2 hex key setting screws for secure the bubble level
♦
Reticle Adjustment Screws: M2 hex key setting screws for positioning and holding reticle in
place
How to align the bubble level to 12 o'clcok mark of the polar scope dial
1. Move the bubble of the Bubble Level to the center by using hand controller to rotate R.A.
axis;
2. Slightly loosen two Bubble Level Set Screws; (not the reticle adjustment screws!)
3. Turn the Polar Scope slowly to make the 12 o'clock mark at the top by using hand;
4. Secure the Bubble Level Set Screws again.
Instruction for iEQ30/45 Polar Scope
8/2011, Revised 5/2012, 12/2012, 2/2014
Lock Ring
iOptron Corporation, Woburn, MA 01801, USA
Bubble Level
Bubble Level
Set Screws
1
Eyepiece
Reticle Adj. Screws
