iOptron iEQ45 Quick Setup Manual

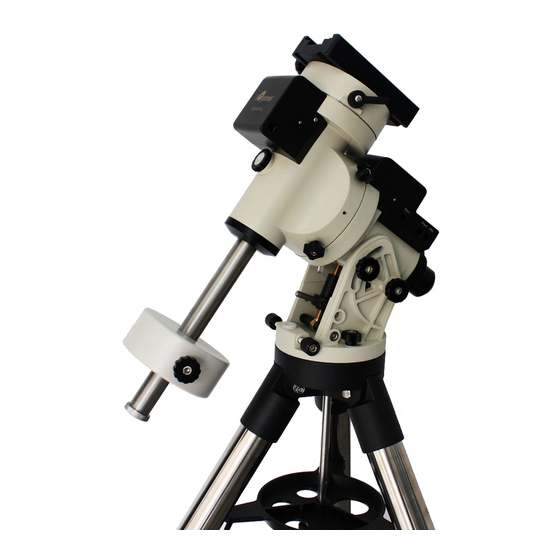

The iEQ45™ GoTo German Equatorial Mount
# 8000

FEATURES

•
Specialized astrophotography mount ideal for entry-level and intermediate astrophotographers
•
Portable, compact, and sturdy German equatorial mount with the highest Payload/Mount ratio (1.7) in the
category
•
Payload: 45 lbs (exclude counterweight)
•
Mount weight: 25 lbs
•
Ultra-accurate tracking with temperature compensated crystal oscillator (TCXO)
•
Gap-free structure for both R.A. and declination worms
•
Resolution: 0.09 arc second
•
#8406 controller with Advanced GoToNova
•
Permanent periodic error correction (PEC)
•
Built-in 32-channel GPS
•
Integrated ST-4 autoguiding port capable of reverse guiding with auto-protection
•
Calibrated polar scope with dark-field illumination and easy polar alignment procedure, allowing for fast and
accurate polar alignment
•
iOptron Port for electronic focuser, laser pointer, dorm control
•
RS232 port for mount firmware upgrade and computer control via ASCOM platform
•
RS485 new command set completely open for user-defined control of the mount
•
Heated hand controller for low temperature operation as low as -20ºC
•
Fits with both Vixen and Losmandy-type mounting plates
•
2 inch heavy-duty stainless steel tripod
•
Optional pier
•
Comes standard with: Vixen and Losmandy-D saddles, 2 x 5kg counterweight, AC adaptor (100V-240V), 12V
DC car plug adaptor, USB cable and RS232 Cable.

PACKAGE CONTENTS

•
Telescope Mount (with built-in GPS)
•
3.5" Vixen type dovetail saddle (installed on the mount)
•
8" Losmandy-D type dovetail saddle
•
#8406 Hand Controller
•
2-inch Tripod
•
Two 5 kg Counterweight
•
Controller Cable X 2
•
Dark field illuminating LED with cable
•
AC adapter (100V-240V)
•
12V DC adaptor cable with car lighter plug
•
USB cable
•
RS232 cable
•
2mm, 5mm and 6mm hex keys
ONLINE CONTENTS (click under "Support" menu) www.iOptron.com
•
Manuals (you will need to refer to the full manual for details on set-up and operation).
•
Tips for set up
•
Hand controller and mount firmware upgrades (check online for latest version)
•
Reviews and feedback from other customers
iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 935-2800 | Toll Free (866) 399-4587 | www.iOptron.com
TM
GoTo Technology and heating mechanism
