Summary of Contents for SP Scientific VIRTIS FREEZEMOBILE SHELL BATH

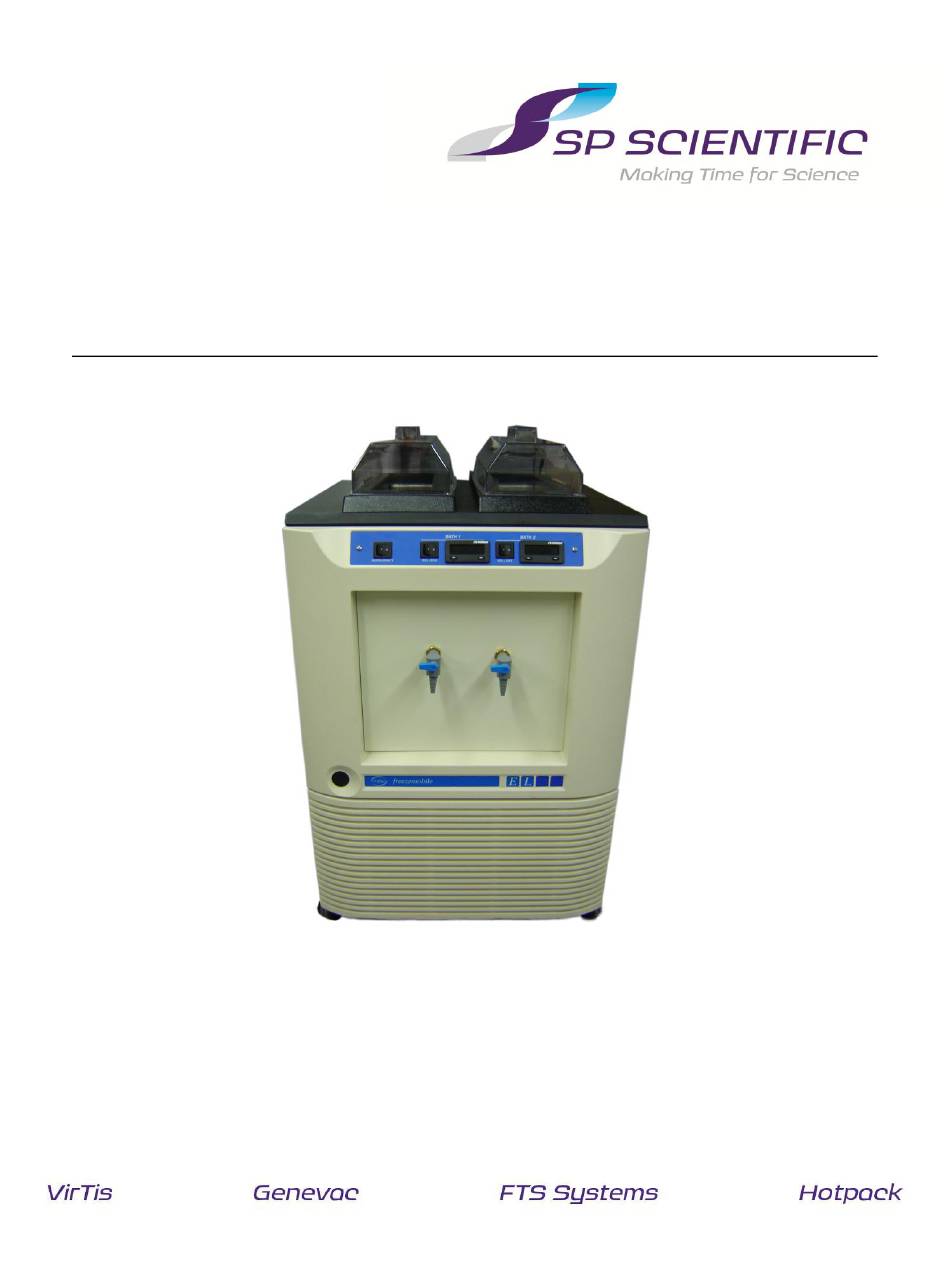

- Page 1 ’ HELL PERATOR ANUAL REEZEMOBILE HELL HELL REEZER...
- Page 3 The information in this document is subject to change without prior notice. Always confirm with SP Scientific that you are using the most current version of this document. SP Scientific is free to modify any of its products and services, in any manner and at any time, notwithstanding the information contained in this document.
-
Page 4: Important Symbols
A residual risk is always preset and stored as pressurized gas refrigerant in the unit even when unplugged; Handle and transport with care. Never Transport or store unit with fluids and/or products inside the baths. Rev 005, 11/11 © SP Scientific 2011... -
Page 5: Warranty Information
Warranty Information VirTis Freezemobile Shell Bath is warranted by SP Scientific to be free of defects in material and workmanship when operated under normal conditions as specified in the instructions provided in this manual. Please take this opportunity to locate the serial tag on your new VirTis Freezemobile Shell Bath and record the information below for future reference. - Page 6 Rev 005, 11/11 © SP Scientific 2011...
-
Page 7: Table Of Contents
Shell Bath Operation ............................5 Preventing Glassware Breakage .......................... 6 General Maintenance ....................7 Cleaning ................................7 Refrigeration System ............................8 The Air-Cooled Condenser ..........................8 Compressor(s) ..............................8 Bath Covers ................................. 8 Rev 005, 11/11 © SP Scientific 2011... - Page 8 Contents VirTis Freezemobile Shell Bath Rev 005, 11/11 © SP Scientific 2011...
-
Page 9: Introduction

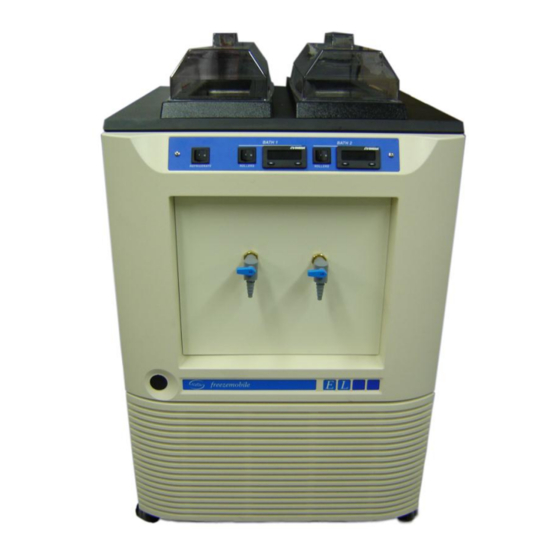

Chapter Introduction VirTis Freezemobile Shell Bath freezers are exceedingly useful in freeze-dry sample preparation. Motor-driven rollers rotate flasks within a refrigerated bath, pre-freezing products with an increased surface area and greatly decreasing overall freeze-drying times. When used in conjunction with VirTis brand laboratory lyophilizers, Freezemobile Shell Baths help to streamline the freeze-drying process. - Page 10 Introduction VirTis Freezemobile Shell Bath Rev 005, 11/11 © SP Scientific 2011...
-
Page 11: Installation And Startup
Note: In the event of shipping damage, SP Scientific will cooperate in the matter of collecting your claim; however, SP Scientific is not responsible for the collection or free replacement of material. -
Page 12: Shell Bath Setup
Installation and Setup VirTis Freezemobile Shell Bath Shell Bath Setup Position your Freezemobile unit so that it rests firmly and level on the floor. Allow yourself sufficient space to easily connect the unit and ensure that the area around the unit provides for adequate air circulation. The back of the Freezemobile should be at least four inches away from the wall. -
Page 13: Basic Operation
Shorten the lift chain until it meets the groove in the polypropylene plug. Allow the flask to hang from the top plug. The flask should be at least partially submerged in process fluid. Rev 005, 11/11 © SP Scientific 2011... -
Page 14: Preventing Glassware Breakage
To prevent glass-to-glass abrasion when placing flasks in glassware washers, do not allow contact with metal racks or other glassware. Note: SP Scientific offers safety-coated glassware to reduce breakage and contain glass in case of implosion. Contact SP Scientific for more information Rev 005, 11/11... -
Page 15: General Maintenance
Remove side panels and carefully clean the unit with compressed air. Let air settle for several minutes and repeat. Note: Ensure that the unit is unplugged before removing side access panels Rev 005, 11/11 © SP Scientific 2011... -
Page 16: Refrigeration System
If the line is warm or just slightly cool to the touch, it usually means that a loss of refrigerant has occurred, and that the condenser and shelf are experiencing cooling problems. Contact SP Scientific for more information. Bath Covers Clean the bath covers with a mild detergent and a soft, lint-free cloth. - Page 18 SP Scientific 815 State Route 208 Gardiner, NY 12525 USA 3538 Main Street Stone Ridge, NY 12484 USA www.SPScientific.com (800) 431-8232 (845) 255-5000...
