SP Scientific LYO-SEA Manual

Sample extractor for lyostar ii
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
E
A
O
'
M
AMPLE
XTRACTOR
SSEMBLY
PERATOR
S
ANUAL
L
-SEA
L
S
II
YO
FOR
YO
TAR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LYO-SEA and is the answer not in the manual?

Questions and answers

Related Manuals for SP Scientific LYO-SEA

Summary of Contents for SP Scientific LYO-SEA

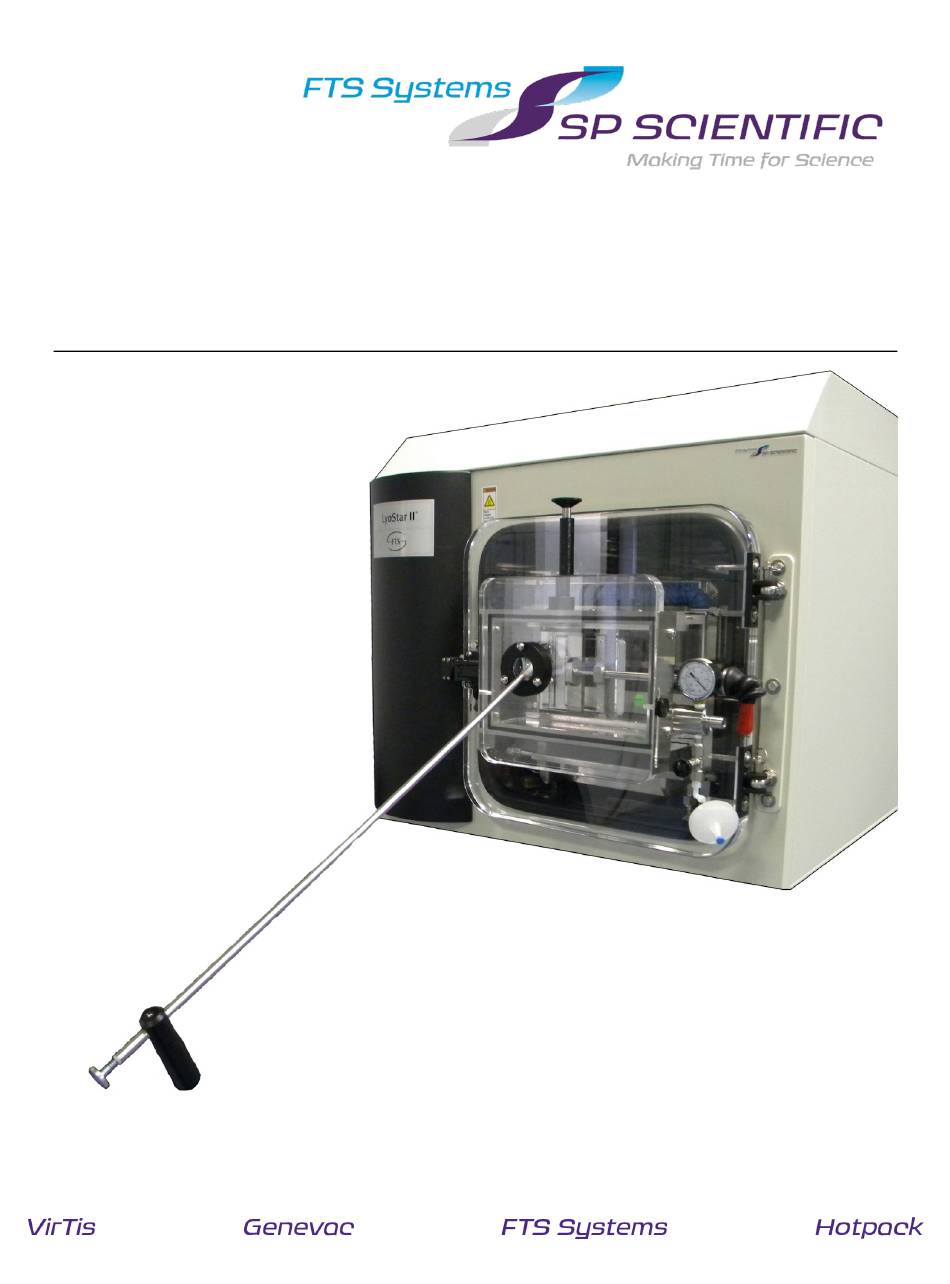

  • Page 1 ’ AMPLE XTRACTOR SSEMBLY PERATOR ANUAL -SEA...
  • Page 3 The information in this document is subject to change without prior notice. Always confirm with SP Scientific that you are using the most current version of this document. SP Scientific is free to modify any of its products and services, in any manner and at any time, notwithstanding the information contained in this document.

  • Page 4: Important Symbols

    Never operate equipment with damaged line cords.  Never operate the unit without cooling fluid in the reservoir / bath chamber.  Never remove warning labels.  Never operate damaged or leaking equipment. Rev 005, 05/11 © SP Scientific 2011...

  • Page 5: Warranty Information

    Please take this opportunity to locate the serial tag on your new Lyo-SEA and record the information below for future reference. SP Scientific also recommends that you complete and return your unit’s warranty registration card.
  • Page 6 Rev 005, 05/11 © SP Scientific 2011...

  • Page 7: Table Of Contents

    Initial Inspection ..............................3 Setup and Installation ............................4 Standard Door Removal ..........................4 Sample Extractor Door Installation ........................5 Operation ........................7 SEA Operation ..............................7 Shelf Area ................................9 Electrical Requirements........................... 9 Rev 005, 05/11 © SP Scientific 2011...
  • Page 8 Contents Lyo-SEA Rev 005, 05/11 © SP Scientific 2011...

  • Page 9: Introduction

    The simplicity of the design and ease of use provides operators with a cost effective methodology for periodic removal of stoppered product containers for sample analysis. The Sample Extractor is a pivotal option when the operator’s mission is product development or stability studies. Rev 005, 05/11 © SP Scientific 2011...

  • Page 10: Key Features

    Stainless steel selector arm. Vacuum Antechamber Acrylic Door Stoppering Ram Vacuum Gauge Antechamber Isolation Door Selector Arm Isolation Door Locking Handle Thumbscrews Jaw Controls Vacuum Pump Port Inert Gas Backfill/ Filter Vacuum Break Valve Rev 005, 05/11 © SP Scientific 2011...

  • Page 11: Installation And Startup

    Should damage or loss be discovered, you may make a written request for inspection by the carrier's agent within 15 days of the delivery date. You may then file a claim with the freight carrier or SP Scientific, depending on the terms of your shipment.

  • Page 12: Setup And Installation

    Open the standard door. An assistant should take position to support the door. Remove the upper and lower quick release pins. Note: The quick-release pins may be saved for replacement pins. Remove the standard door. Quick Release Pins Rev 005, 05/11 © SP Scientific 2011...

  • Page 13: Sample Extractor Door Installation

    With help from an assistant, align the Sample Extractor door in the hinge brackets. Extractor door without front antechamber cover and selector arm. Re-install the quick release pins. Re-install the front plate with selector arm. Rev 005, 05/11 © SP Scientific 2011...
  • Page 14 Installation and Startup Lyo-SEA Rev 005, 05/11 © SP Scientific 2011...

  • Page 15: Operation

    Push the button to open the jaws and release to close them. Place the sample(s) in the antechamber directly beneath the stoppering ram. Shut the isolation door then lower the handle to seal it closed. Rev 005, 05/11 © SP Scientific 2011...
  • Page 16 Loosen the thumb screws and slide the front plate down until it can be opened. Remove the stoppered vials. Open front plate to remove the vials Close the front plate to reseal the chamber for the next run. Rev 005, 05/11 © SP Scientific 2011...

  • Page 17: Sea Operation

    Note: Latching one shelf up will position the other shelves so that a 20 ml vial can be used and increases the accessible shelf area to 240 sq.in. This configuration requires vials to be rotated 90 degrees, to a horizontal position, to be removed. Electrical Requirements • 120V/60hz 6 Amps Rev 005, 05/11 © SP Scientific 2011...
  • Page 18 Operation Lyo-SEA Rev 005, 05/11 © SP Scientific 2011...
  • Page 20 SP Scientific 815 State Route 208 Gardiner, NY 12525 USA 3538 Main Street Stone Ridge, NY 12484 www.SPScientific.com (800) 431-8232 (845) 255-5000...
