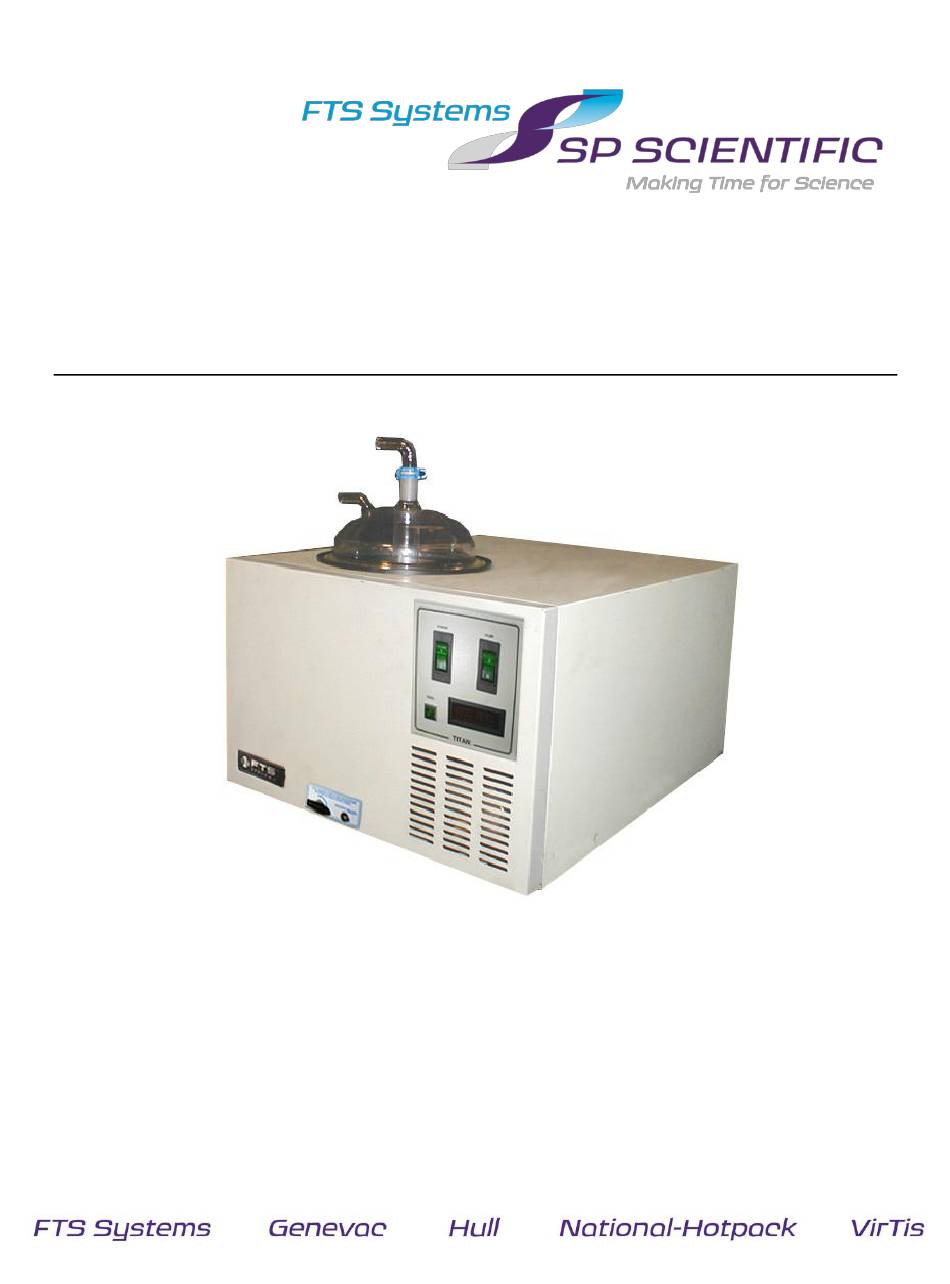

- Page 1 ’ PERATOR ANUAL ™ FTS S YSTEMS ITAN EFRIGERATED...
- Page 3 The information in this document is subject to change without prior notice. Always confirm with SP Scientific that you are using the most current version of this document. SP Scientific is free to modify any of its products and services, in any manner and at any time, notwithstanding the information contained in this document.
-
Page 4: Important Symbols
Always turn off the unit and disconnect the line cord from the available power source prior to moving the unit. Never operate equipment with damaged line cords. Never remove warning labels. Never operate damaged or leaking equipment. Rev 007, 04/12 © SP Scientific 2012... -
Page 5: Warranty Information
Warranty Information FTS Systems Titan-Trap™ cold traps are warranted by SP Scientific to be free of defects in material and workmanship when operated under normal conditions as specified in the instructions provided in this manual. Please take this opportunity to locate the serial tag on your new FTS Systems Titan-Trap™ and record the information below for future reference. - Page 6 Rev 007, 04/12 © SP Scientific 2012...
-
Page 7: Table Of Contents
Vacuum Pump ..............................9 Secondary Traps (Optional) .......................... 10 Vacuum Tubing and Gaskets ........................11 Refrigeration System ............................11 The Air-Cooled Condenser ..........................11 Compressors ..............................12 Appendix A: Troubleshooting ..................13 Vacuum Problems .............................. 13 Rev 007, 04/12 © SP Scientific 2012... - Page 8 Contents FTS Systems Titan-Trap™ Rev 007, 04/12 © SP Scientific 2012...
-
Page 9: Introduction
Titanium coil and PTFE-coated stainless steel chamber. Safety-coated glass dome top. Note: SP Scientific builds each unit according to the options purchased. Review the standard sections, as well as the relevant optional sections of this manual. Rev 007, 04/12... - Page 10 Introduction FTS Systems Titan-Trap™ Rev 007, 04/12 © SP Scientific 2012...
-
Page 11: Installation And Startup
Should damage or loss be discovered, you may make a written request for inspection by the carrier's agent within 15 days of the delivery date. You may then file a claim with the freight carrier or SP Scientific, depending on the terms of your shipment. -
Page 12: Setup
Note: SP Scientific ships domestic units with typical power connectors. International units are shipped without a plug. In either instance, if your outlet configuration requires a different connector, replace the plug according to local, state and/or national electric codes. - Page 13 FTS Systems Titan-Trap™ Installation and Startup Connect your process system to the 1/2-inch fitting on top of the glass dome using an appropriate length of vacuum tubing. Secure the connection with a hose clamp. If your process system utilizes a connection with a different fitting size, you will need to procure an appropriate adapter.
-
Page 14: Vacuum Filters
Installation and Startup FTS Systems Titan-Trap™ Vacuum Filters SP Scientific suggests that you install an Oil Mist Eliminator (OME) to reduce fumes exhausted by the vacuum pump. If an OME is not available, vent the vacuum exhaust externally. Additionally, vacuum filter traps are available for installation between the vacuum pump and the Titan-Trap unit. -
Page 15: Operation
When the Titan-Trap has reached operating temperature and vacuum, enable your process system as required. For example, if you are using a vacuum concentrator, begin spinning your samples. Observe your product to determine when your process is complete. Rev 007, 04/12 © SP Scientific 2012... - Page 16 Operation FTS Systems Titan-Trap™ Switch off the vacuum and refrigeration systems using the rocker switches on the front panel of the Titan-Trap unit. Release vacuum by opening the drain plug on the front of the Titan-Trap or the Vacuum Release Valve, if equipped.
-
Page 17: Maintenance
PROCEDURES. ALWAYS NOTIFY THE SP SCIENTIFIC SERVICE DEPARTMENT BEFORE PERFORMING REPAIRS TO A UNIT THAT IS UNDER WARRANTY. FAILURE TO NOTIFY SP SCIENTIFIC SERVICE WILL VOID THE FACTORY WARRANTY. Proper routine maintenance is the key to an efficiently operating unit with minimal downtime. -
Page 18: Secondary Traps (Optional)
Maintenance FTS Systems Titan-Trap™ Changing Vacuum Pump Oil Periodically wipe down the exterior of the bath, including stainless steel components, using a soft cloth and mild soap solution. Do not use steel wool as it may lead to rusting of the exterior components. Dry the bath using a soft, dry cloth. -
Page 19: Vacuum Tubing And Gaskets
Place a paper towel in front of the intake louvers under the control panel. A properly operating fan will pull in enough air to hold the paper towel in place. If problems persist, contact SP Scientific Service. Rev 007, 04/12 © SP Scientific 2012... -
Page 20: Compressors
Your Titan-Trap contains two compressors. When a cooling problem is suspected, have a qualified refrigeration service technician check the refrigerant charge or contact SP Scientific Service. Each refrigeration system contains a specified charge. This charge is listed on a black charge tag attached to the back of the unit. -
Page 21: Appendix A: Troubleshooting
Replace the vacuum probe tube and retest. Note: If following this checklist does not resolve the vacuum problem, contact SP Scientific Service and a trained technician will assist you. - Page 22 Appendix A: Troubleshooting FTS Systems Titan-Trap™ Rev 007, 04/12 © SP Scientific 2012...
- Page 24 SP Scientific 815 State Route 208 Gardiner, NY 12525 USA 3538 Main Street Stone Ridge, NY 12484 www.SPScientific.com (800) 431-8232 (845) 255-5000...
