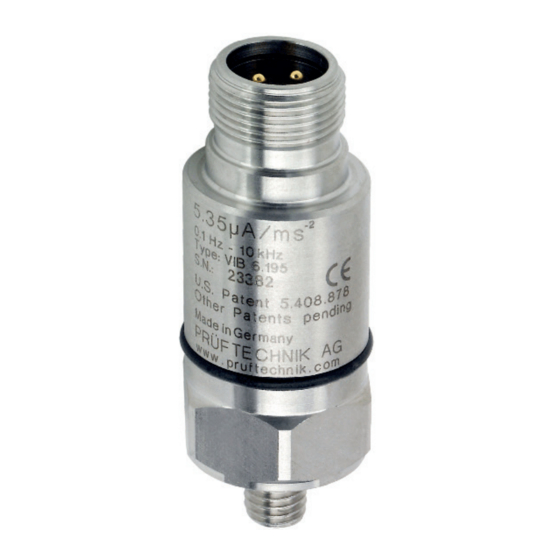

- Page 1 Accelerometer (Wind) VIB 6.195 Installation and Operation...
-
Page 2: Safety Information
Mounting Accelerometers of the VIB 6.195 series are used for the measurement of absolute casing vibrations The frequency response and dynamic range of an on machinery with rotating components. Due to accelerometer can be greatly influenced by the the very low limit frequency, the accelerometers installation. -
Page 3: Adhesive Mounting
Prepare bonding location Maximum torque: • Grind down existing coats to the bare metal (Ø – 11 Nm, accelerometer VIB 6.195 w/ M8 thread > 30 mm, A). – 11 Nm, adapter VIB 3.437 • If necessary, grind down the location (A). -
Page 4: Installation Height
Mount sensor • Clean the contact surfaces of the sensor and the Dimensions in mm VIB 6.195 adapter with solvent. • Allow contact surfaces to dry. • Thinly apply LOCTITE 243 to improve signal transmission. -
Page 5: Technical Data
< 0.1 ms /µm/m Base strain sensitivity Case material Stainless steel VA 1.4305 Cable connector, 2-pole (MIL-C-5015) Connector type 85 g [ 3 oz ] Weight M8 thread bolt (changeable); Mounting thread mounting adapter optional Frequency output - VIB 6.195... -
Page 6: Electrical Connection
• Label the cable ends to avoid confusion. For accelerometer VIB 6.195: • Observe the terminal assignments on the CMS – Sensor cable with silicon coating and straight (see CMS installation manual). - Page 8 LIT 61.201.EN 08.2018 PRÜFTECHNIK 85737 Ismaning, Germany www.pruftechnik.com Productive maintenance technology...
