Summary of Contents for PRÜFTECHNIK VIBXPERT II

  • Page 1 VIBXPERT ® Short instructions...
  • Page 3 VIBXPERT ® FFT data collector Signal analyzer Field balancer Short instructions Version 3.2x Edition April 2012 LIT 53.102.EN...

  • Page 5: Table Of Contents

    (LIT 53.201.EN) contains detailed explanations of all functional features as well as considerable background informa- tion on condition monitoring. The operation of the optional ‘Balancing’ module is described in the ‘VIBXPERT II - Balancing’ operating manual (LIT 53.202.EN).

  • Page 6: Safety Notes

    Safety Safety notes Symbols used Warning of operating errors that can lead to data loss or equip- ment damage. Attention!  Information and tips on operating the data collector. N ote Intended use - The measurement device may only be used for the measurement of machine signals in industrial environments while taking into consideration the technical specifications.

  • Page 7: General Safety Notes

    Safety General safety notes The following notes must be carefully read and completely under- stood before the device is put into service. • During measurement on machines with rotating parts exposed, ensure that no brackets, cables etc. can become caught in rotat- ing machine parts.

  • Page 8: Description

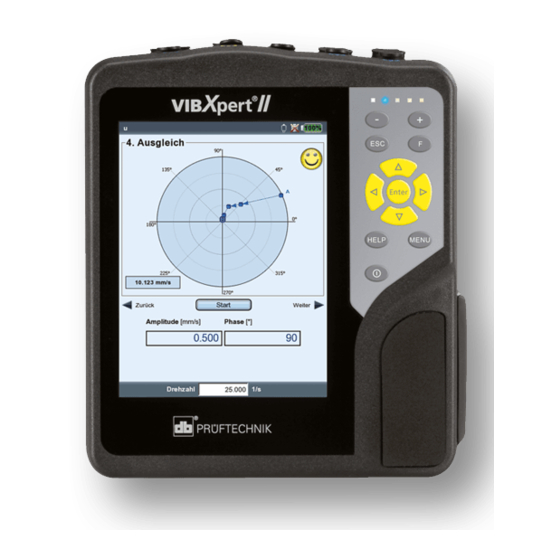

    Description Description Overview Full color display - large, backlit, high-contrast. Light sensor controls key board illumination. LEDs indicate: - Alarm condition - Measurement error - Battery charge status. Keyboard can be com- fortably operated with the thumb. A / B - Measuring chan- nels for analog signals and charging sockets.

  • Page 9: Keyboard

    Description Keyboard Plus (+) / Minus (-) key - Zoom for X axis - Change tab F key for special functions such as tab, fast menu, search,... Navigation keys and Enter key MENU key opens the menu with context-sensitive func- tions On/Off key for switch- ing on, switching off and...

  • Page 10: Led Display

    Description LED display BLUE GREEN YELLOW RED Status indication during measurement YELLOW GREEN BLUE constant Alarm Warning Prewarning Meas. OK flashing Signal Signal Display off/ Battery slow overload unstable Measurem. almost empty incomplete flashing Battery empty Trigger fast (when switching on) signal Flashing LEDs have the higher priority.

  • Page 11: Power Supply

    Description Power supply VIBXPERT is supplied with energy by a Lithium-Ion rechargeable bat- tery. With the power on the battery icon on the display indicates the residual charge of the battery. Battery icon If the battery is almost empty, a message appears on the display and the blue LED flashes.

  • Page 12: Connection To The Pc

    Description Connection to the PC Direct connection RS232 Serial VIB 5.430-2 yellow VIB 5.330SUSB green Patch RJ45 VIB 5.331 Patch RJ45 VIB 5.331 Connection via a network VIB 5.331 Ethernet...

  • Page 13: Connection To The Printer

    Description Connection to the printer USB (Master) VIB 5.330MUSB Generating a report VIBXPERT can generate the following report types: Screenshot: Contains the content of the current screen. Measurement report: Contains the measurement results and infor- mation on the operator and measurement. Route/template report: Contains the results and, if applicable, the exceeded thresholds of a route/template and general data on the measurement tasks.

  • Page 14: Operation

    Operation Operation Basic functions Switching on: Switching on, switching off, • Hold the key down for 2 seconds. resetting VIBXPERT. • The start screen appears after ap- prox. 30 seconds. Switching off: • Hold the key down for 2 seconds. •...

  • Page 15: Examples For Typical Operation Procedures

    Operation: Examples Examples for typical operation procedures Example 1: How to change the setting in a field Select the respective field. Black frame Confirm selection and start edit mode. Grey frame (edit mode) Select new setting. Selection has dotted frame. Save new setting.
  • Page 16 Operation: Examples Example 2: How to navigate in a tree view (File manager,...) Select a tree node in the same hierarchy. Open the parent node and show the child nodes. Example 3: How to enter numbers (Time, Date, IP address,...) Select the respective field.
  • Page 17 Operation: Examples Example 4: How to enter a text (name, comment, ...) • Changing character table -> 0.1 Select the respective character. • Deleting text -> 0.2 • Special characters (, + / ) are not allowed in a file name Backspace ‘key’...

  • Page 18: Off-Route Measurement ('Multimode')

    Operation: Measurement Off-route measurement (‘Multimode’) Switch on VIBXPERT. • see section ‘Basic functions’, p. 12. Start ‘Multimode’. Open tab for overall, signal or advanced measurements. Select measurement icon. • Changing the meas. task -> 1.1 • New / edit task -> 1.2 •...
  • Page 19 Operation: Measurement Save result.  1.1 Changing the measurement task: Note 1.2 New task / edit task: 1.3 Sensor and measurement channel are displayed in the info field. 1.4 Repeating the measurement: In the measurement screen press ‘Enter’ twice.

  • Page 20: Route Measurement

    Operation: Measurement Route measurement Switch on VIBXPERT. • see section ‘Basic functions’, p. 12. Start ‘Route’ mode. Select route. • Prerequisite: Route contains no VIB- CODE location. Select measurement location. • Change view: tree or list -> 2.1 • No meas. location in tree view visible? ->...
  • Page 21 Operation: Measurement Start measurement. • Meas. tasks with the same sensor are performed automatically one after the other. • Results are saved automatically, if ‘AutoSave’ is enabled (-> 2.4). • ‘Route is finished’ appears, if all measurements have been com- pleted.

  • Page 22: Measuring With A Machine Template

    Operation: Measurement Measuring with a machine template Switch on VIBXPERT. • see section ‘Basic functions’, p. 12. Start ‘Machine template’ mode. Select machine template. • Machines where measurements have already been carried out ap- pear subordinate to the associated template. Click on ‘Details’...
  • Page 23 Operation: Measurement Select measurement location. A machine template is set up like a route and resembles a route in opera- tion and workflow. • see section ‘Route’. Select measurement • Connecting the sensor -> 1.3 (page icon. Start measurement. • see section ‘Route’.

  • Page 24: Measuring A Route With Vibcode

    Operation: Measurement Measuring a route with VIBCODE Switch on VIBXPERT. • see section ‘Basic functions’, p. 12. Start ‘Route’ mode. Select route. Connect the VIBCODE transducer to the VIBCODE measurement location. • Measurements start automati- cally, if the location is found in the route.
  • Page 26 Printed in Germany LIT 53.101.EN.04.2012 VIBXPERT , VIBCODE are registered trademarks of PRÜFTECHNIK Dieter Busch AG. PRÜFTECH- ® ® NIK products are the subject of patents granted and pending throughout the world. Contents subject to change without further notice, particularly in the interest of further technical develop- ment.
  • Page 28 Productive maintenance technology PRÜFTECHNIK Condition Monitoring GmbH Oskar-Messter-Str. 19-21 85737 Ismaning, Germany www.pruftechnik.com Tel.: +49 89 99616-0 Fax: +49 89 99616-300 eMail: info@pruftechnik.com www.pruftechnik.com A member of the PRÜFTECHNIK group...
