BASES AND RISER FRAMES

Base

M6x16mm screw
(09070801-01)

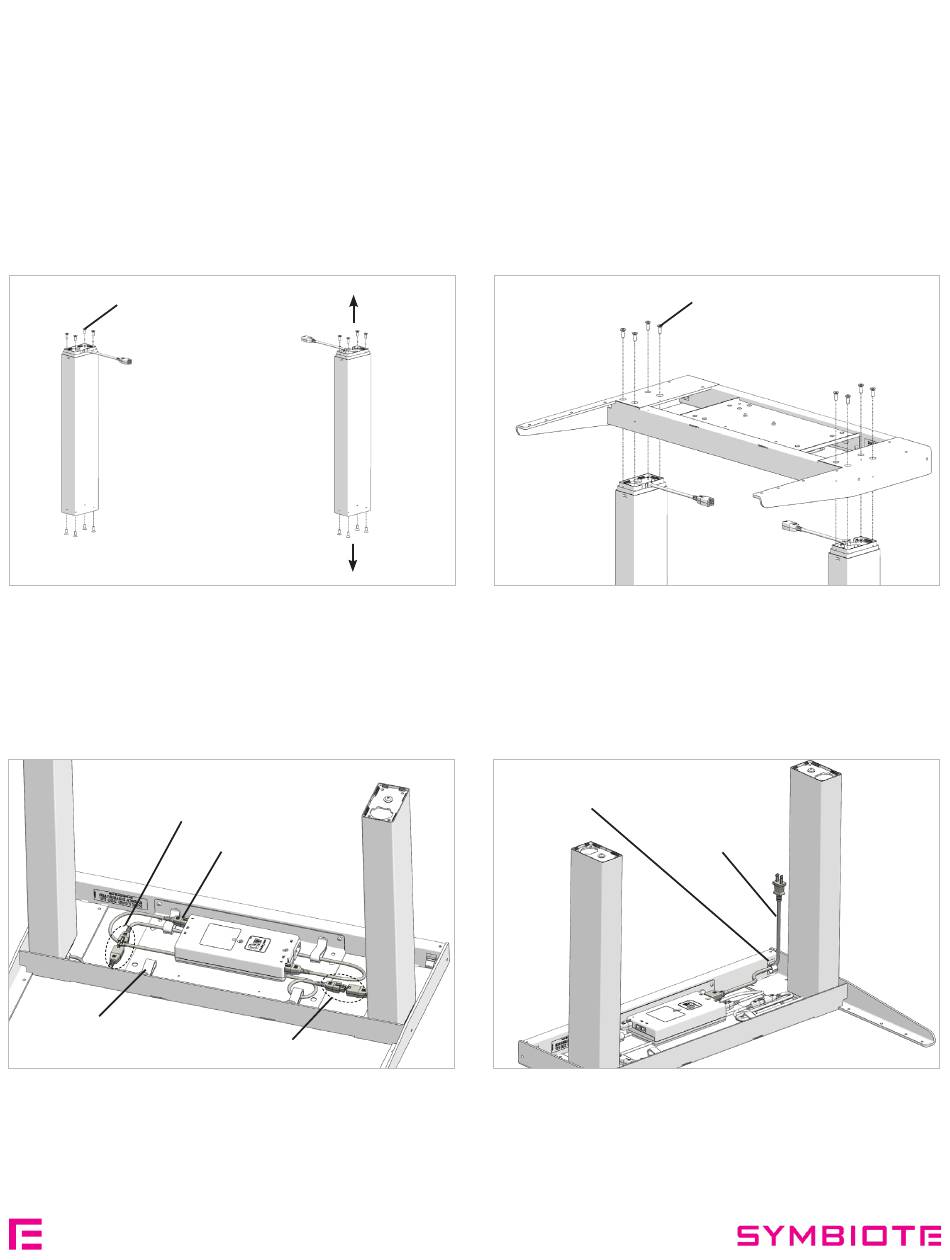

1. Remove the M6x16mm socket flat head screws from
the top and bottom of each leg using a 4mm Allen
wrench.
RH connection
wire retaining clip
(16110401-01-BLK)
3. Flip unit upside down. Connect the leg cables to the
motor cables that are preassembled to ports 1 and 2
of the control box. Manage excess cable length with
wire retaining clips.
Installation Instructions: p/n 16032912-01 rev B
Page 1 of 3
Remove
Remove
motor cable
(08101401-01)
LH connection
PRODUCT NUMBERS
PERGxxyy, PERCxxyy
HARDWARE PACK
PERHP (p/n 16032903-01)
REQUIRED TOOLS
Cordless Drill/Driver, 4mm Hex Bit or Allen wrench,
#2 Phillips Bit and/or Screwdriver, 1/8" Drill Bit
2. Place legs on the floor oriented with cables at top,
space legs to match the width of the stretcher. Align
countersunk holes in stretcher with tapped holes in
the top of the legs. Install (4) M6x16mm socket flat
head screws in each leg to secure the stretcher. Do
not exceed a screw torque of 10 Nm (88.5 in.-lbs.).
cord manager
(15101403-01-BK)
power cord
(08101403-01)
4. Attach the power cord to the port on the control box
labeled "AC" and route the cord through the cord
manager in the back corner of the stretcher.
M6x16mm screw
(09070801-01)
