Symbiote HDB15 Series Installation Instructions

INSTALLATION INSTRUCTIONS

High Density Shelving Unit

Product Numbers
• HDB15xx
• HDC15xx
Hardware Pack: HDBHP (p/n 14061920-02) or HDCHP (p/n 14061920-03)

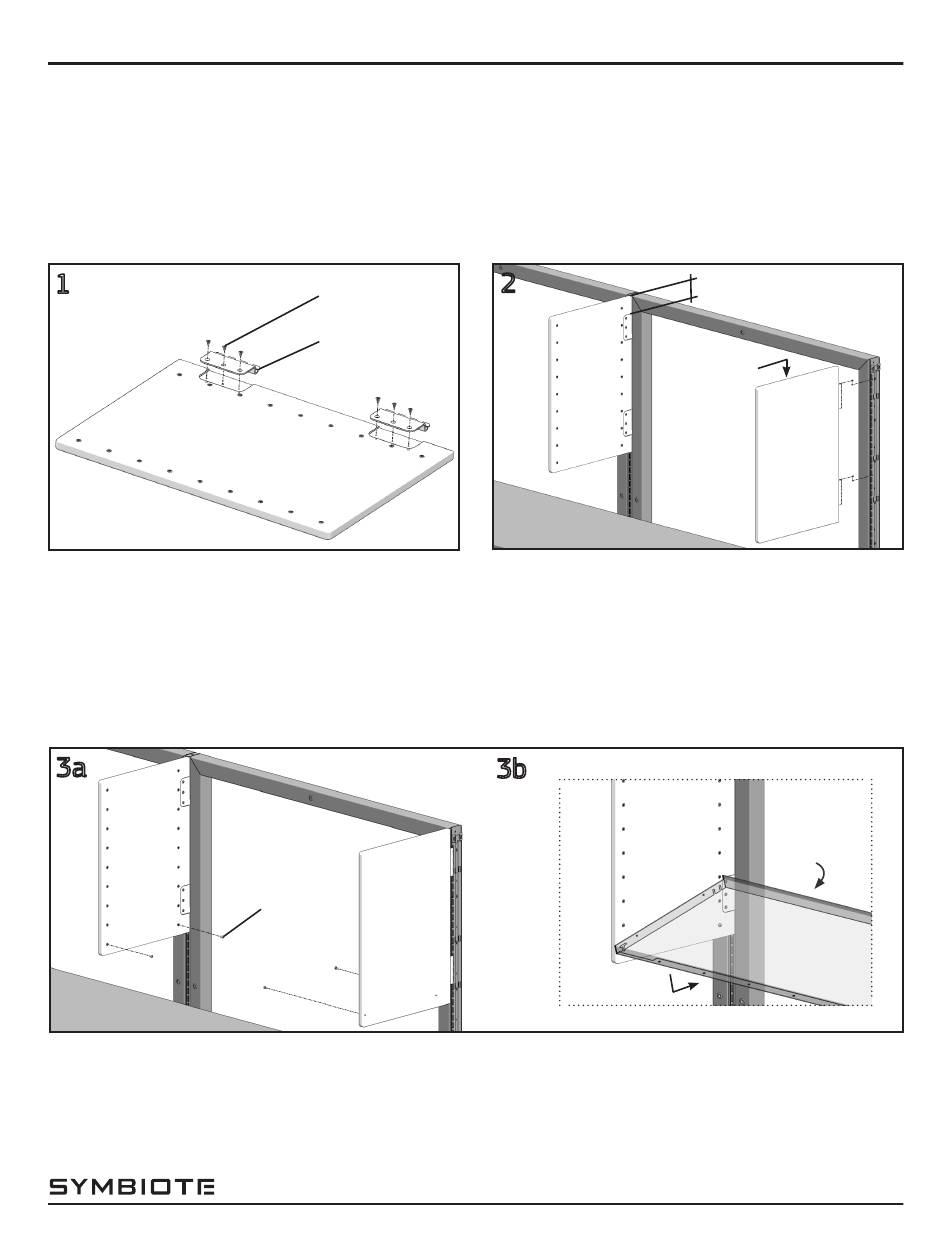

1
Attach brackets to side panels using (3) #8-15x1/2"
Philips flathead screws per bracket with a #2 Phillips
screwdriver. Note "B" height side panels use two
brackets per panel, "C" height use three brackets per
panel. Do not over torque screws.

For Flat Shelves

3a
Install (4) #8-32x3/8" Phillips pan head screws per shelf into the threaded inserts of the side panels at the
desired shelf height, leaving a 1/8" gap between the underside of the screw head and panel. Threaded inserts
are spaced at 2.5" increments. Orient the shelf lip towards the back and engage the front panel screws in the
t-slots on the sides of the shelf. Slide the shelf back and hook the shelf notch over the rear screw. Tighten all
screws securely with a #2 Phillips screwdriver. Repeat steps 3a and 3b with additional shelves.
p/n 14061931-01 rev A
" screw
#8-15x1/2
(15060501-01)
bracket
(14061902-01)
screw
#8-32x3/8"
(97060503-03)

Required Tools

• #2 Phillips Screwdriver
• Tape Measure
2
Engage the brackets in the left and right sides of
the frame. Ensure the brackets are firmly seated in
the hanger frame slots and use a tape measure to
verify both side panels are at the same height. Note
"C" height side panels are handed, orient panels
such that the spacing from the top of the side panel
and top of the bracket is 2.5".
3b
SHELVING
"
21/2
SYMBIOTE.COM
sheet 1 of 2
