ErgoStat
Pro
®
BASES AND RISER FRAMES
Synchronization and Ganging Kit
Note: Up to four ErgoStat Pro bases can be synchronized. A hand control can be used on either end of the adjacent
base run. When synchronizing more than two bases the hand control/s on the center base/s must be removed after step
1 so connections can be made at port "A1" instead of "A2".
minimum
height

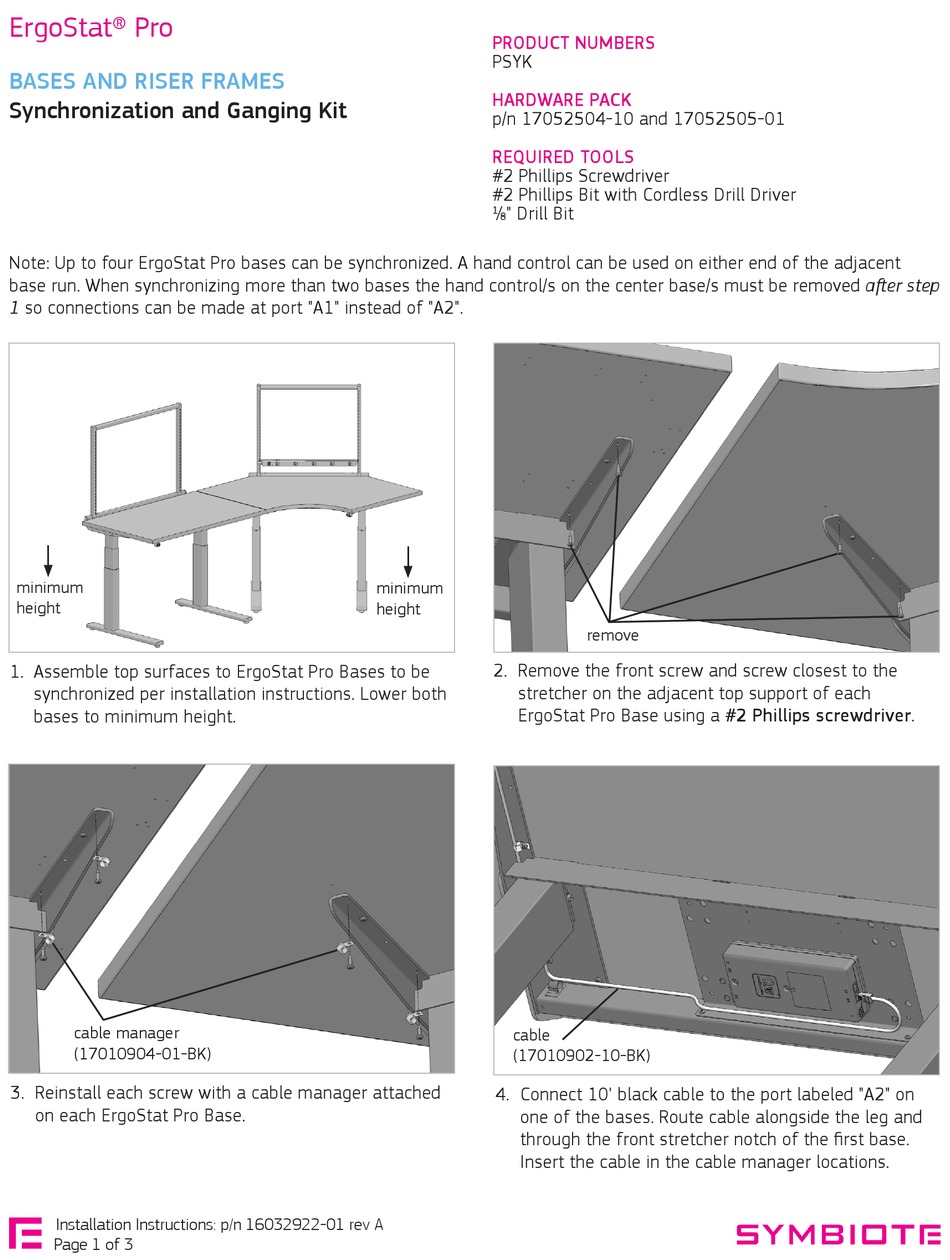

1. Assemble top surfaces to ErgoStat Pro Bases to be
synchronized per installation instructions. Lower both
bases to minimum height.
cable manager
(17010904-01-BK)
3. Reinstall each screw with a cable manager attached
on each ErgoStat Pro Base.
Installation Instructions: p/n 16032922-01 rev A
Page 1 of 3
PRODUCT NUMBERS
PSYK
HARDWARE PACK
p/n 17052504-10 and 17052505-01
REQUIRED TOOLS
#2 Phillips Screwdriver
#2 Phillips Bit with Cordless Drill Driver
" Drill Bit
1
8
minimum
height
2. Remove the front screw and screw closest to the
stretcher on the adjacent top support of each
ErgoStat Pro Base using a #2 Phillips screwdriver.
cable
(17010902-10-BK)
4. Connect 10' black cable to the port labeled "A2" on
one of the bases. Route cable alongside the leg and
through the front stretcher notch of the first base.
Insert the cable in the cable manager locations.
remove
